Hitachi R-H350P4M Manual de usuario

Warning and caution for safety........

Preparations before use..................

Operation

Location of food storage...............

Temperature control.................

How to operation..........................

Freezer Compartment...............

Refrigerator Compartment.........

Cleaning...................................

Troubleshooting..............................

Service Center................................

Installation................................. 4

Before Use................................ 4

Optimal Food Storage............... 4

Model

Page

Instruction Manual

Hitachi Refrigerator

Contents

Refrigerant

R600a

For household use only

Thank you very much for purchasing the Hitachi refrigerator.

Before installation and usage,please read the user’s guide carefully

for the correct usage.

Maintenance work must only be carried out at workshop

by well-trained maintenance worker.

R-H350P4M

No frost

R-H350P4MS

R-H350PG4

R-H350PND4K

R-H310P4PBK R-H350P4PBK

R-H310P4MS

R-H310PG4

R-H310PND4K

R-H310P4M R-H270P4M

R-H270PND4K

R-H230PG4

R-H240P4PBK

R-H270P4PBK

R-H240P4MS

R-H200PG4

R-H240P4M

Preparation for use

Maintenance

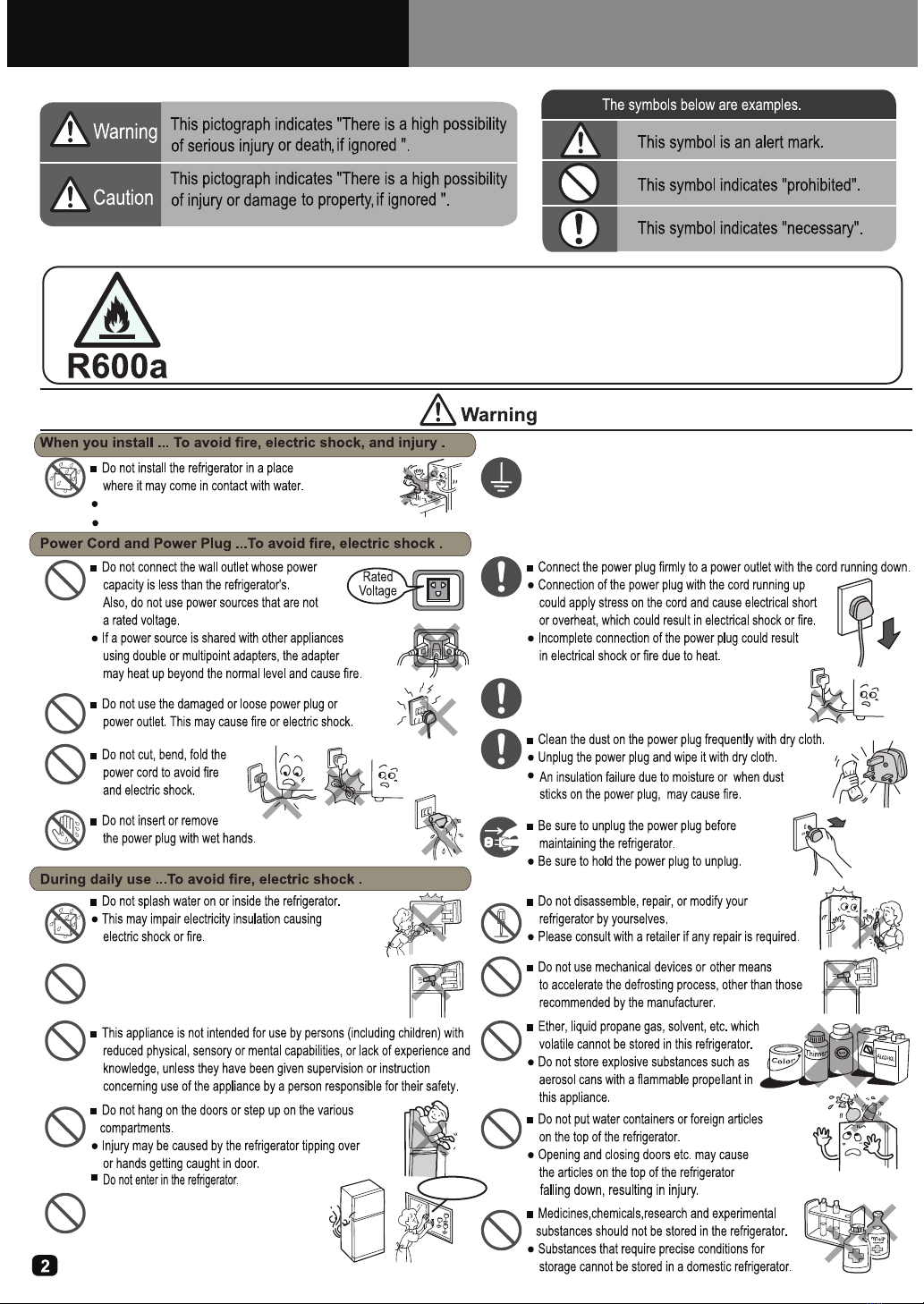

Warnings and Caution for Safety

■ Ground this refrigerator to prevent electric shock

and noise interference. Always ground this

refrigerator and install earth leakage circuit breaker

when using it in places with high humidity or moisture.

(Please consult with a retailer or Hitachi Service Center.)

To avoid harm to the use , other persons or damage to propert , please read and

follow the warnings and cautions below and those given throughout this manual.

Window open

● This may also cause gas leakage because of pipe rust.

■ If the supply cord is damaged, it must be replaced

by the manufacturer, its service agent or similarly

qualiﬁed persons in order to avoid a hazard.

■ Do not use electrical appliances inside the food

storage compartments of the appliance, unless

they are of the type recommended by the manufacturer.

■ Do not damage the refrigerant circuit.

● If you happen to damage the refrigerant pipe,

stay away from the refrigerator and avoid

using ﬁre and electrical appliances.

● And, open windows to ventilate and contact retailers or Hitachi Service Center.

The following warnings and cautions are categorized by the level of possible

harm or damage that may occur from ignoring directions.

The symbols are shown as below clearly showing the signiﬁcance of directions.

■ This refrigerator uses ﬂammable refrigerants.

The symbol column below states the precautions on ﬂammable refrigerants.

This symbol denotes the precautions on ﬂammable refrigerants.

Do not install the refrigerator in a place exposed to rain.

This may impair electricity insulation and cause electric shock of ﬁre.

600

■Do not use door handles when carrying the refrigerator.

■ Never use the carrying handles to hang

up with a chain hoist or similar machines.

■When replacing lamps (LED) is required. Please contact your dealer or Hitachi Service Center.

● For a floor that may be easily scratched,

lay a protective mat, etc. .

● Carry the refrigerator by at least 4 persons for safety reasons.

● Carry it with the doors facing upward.

■Before carrying the refrigerator:

1. Take out all food items and ice cubes.

4. Finally carry the refrigerator with the doors facing upward.

● Secure the doors well with adhesive tapes so they do not open.

● If transporting in a vehicle, do not load the refrigerator on

its side. This could damage the compressor.

When replacing lamps (LED) is required.

2. Lay a protective sheet or cloth to protect the floor from damage

and catch remaining water spilled from the refrigerator.

3. With a large piece of old cloth underneath, tilt the refrigerator

backward to drain water.

Such as old cloth

(Continuance)

■ Keep ventilation openings in the

appliance enclosure or in the built-in

structure, clear of obstruction.

Preparations before Use

Installation

Before Use

Optimal Food Storage

●Above temperatures are the approximate values in the conditions of outside temperature 32℃, the setting of the

refrigerator compartment “Normal”, freezer compartment “Normal” while doors being closed and without food storage.

● Door pocket temperatures may be little higher than above temperatures.

Notice

Freezer Compartment -20℃～-18℃

Vegetable Compartment 4℃～7℃

Vegetable Drawers

●Storage of fruits and vegetables.

Freezer Shelves

●Storage of frozen food and ice

cream ,etc.

Refrigerator Door Pockets

●Storage of packed small

food and drinks such

as juice,milk,etc.

Refrigerator Compartment

●Storage of side

dish, desert ,etc.

Refrigerator Shelves

●Vegetable (Lower position)

●Dairy/Meat (Upper position)

Convertible Compartment

●

Freezer temperature control dial

Refrigerator temperature control dial

Temperature control

1℃～5℃

Refrigerator Door Pockets

2℃～6℃

Egg tray

●Storage of eggs (14 eggs)

Movable Twist Ice Tray

●For ice cube storage made by

"Twist Ice Maker"

Freezer Door Pockets

-19℃～-17℃

l frozen food.

or long storage,

ure rise

●Storage of packed smal

●Not recommended f

because temperat

caused bydoor ope

mayoccur.

Freezer Door Pockets

Location of Food Storage R-H350P4M, R-H350P4MS, R-H350PG4, R-H350PND4K, R-H350P4PBK

R-H310P4M, R-H310P4MS, R-H310PG4, R-H310PND4K, R-H310P4PBK

Temperature control

●Above temperatures are the approximate values in the conditions of outside temperature 32℃, the setting of the

refrigerator compartment “Normal”, freezer compartment “Normal” while doors being closed and without food storage.

● Door pocket temperatures may be little higher than above temperatures.

Notice

Freezer Compartment -20℃～-18℃

Vegetable Compartment 4℃～7℃

Vegetable Drawers

●Storage of fruits and vegetables.

Freezer Sh elves

●Storage of frozen food and ice

cream ,etc.

Refrigerator Door Pockets

●Storage of packed small

food and drinks such

as juice,milk,etc.

Refrigerator Compartment

●Storage of side

dish, desert ,etc.

Refrigerator Shelves

●Vegetable (Lower position)

●Dairy / Meat (Upper position)

Convertible Compartment

●

Freezer temperature control dial

Refrigerator temperature control dial

Temperature control

1℃～5℃

Refrigerator Door Pockets

2℃～6℃

Egg tray

●Storage of eggs (14 eggs)

Freezer Door Pockets

-19℃～-17℃

l frozen food.

or long storage,

ure rise

●Storage of packed smal

●Not recommended f

because temperat

caused bydoor ope

mayoccur.

Freezer Door Pockets

Adjustable Door Pockets

●Lift up for storage

2 litres bottle at the

lower pocket.

* R-H230PG4 , R-H240P4MS

Ice Tray

Ice Bank

Movable Twist Ice Tray

●For ice cube storage made by

"Twist Ice Maker"

R-H200PG4 , R-H240P4PBK

R-H270P4PBK

Location of Food Storage R-H270P4M, R-H230PG4, R-H270PND4K, R-240P4MS, R-H270P4PBK

R-H240P4M, R-H200PG4, R-H240P4PBK

Freezer Compartment

Refrigerator Compartment

2. Egg pocket

3. Adjusting the shelves.

●Lift the front of the shelf upward slightly,

then pull the shelf out towards you.

●Adjust the shelf to the desired height.

●It can hold 14 eggs. When turned over,

it can be used as a case for small items.

Egg pocket

CAUTION

●Do not store in each case more than maximum load.

Maximum Load

Convertible Compartment 6.0 kg

Refrigerator Shelves

egetable Crisper .0 kg

.0 kg

6.0 kg

8.0 kg

21.0 kg

1. Convertible Compartment

CAUTION

HOW TO REMOVE CONVERTIBLE COMPARTMENT

●Lift the front of the shelf upward slightly,

then pull the shelf out towards you.

The temperature zone of the compartment is

selected between Dairy/Meat and Vegetable,

depending on the set position.

2) Dairy/Meat (Upper position)

●To keep meat and fish fresh before freezing.

1) Vegetable (Lower position)

●For more vegetable storage.

●If you want to store meat or fish longer,

please store them in the freezer compartment.

●Be careful, it might be frozen if that food

has a lot of moisture.

Dairy/Meat Case

Vegetable Case

Vegetable Crisper

Convertible

Compartment

Twist Ice Maker (Ice Tray )

Lever (Ice tray)

Water level

Lever

Ice Bank

R-H350*

R-H310*

R-H270*, R-H240*

R-H230*, R-H200*

Ice tray

R-H270PND4K

R-H270P4M

R-H240P4M

Ice tray

Ice Bank

How to operation

About Non-fluorocarbon refrigerator.

● This refrigerator, including refrigerant and the heat insulator, is using hydrocarbon (non-ﬂuorocarbon). The hydrocarbon is a material that does not rip up

the ozone

and have very little inﬂuence on global warming. It is the global environment concern material).

● R600a refrigerant is ﬂammable. But the refrigerant is being sealed up by the refrigerate circuit, and never leak by usual use. In case of the refrigerate circuit

being damaged by any chance, please avoid the use of ﬁre and electric product, open t

he window and ventilate. Afterwards, please contact Hitachi Service Center.

Hitachi Sales (Malaysia) Sdn.,Bhd.

1-800-88-1122

62787177

■ This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge

if they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the

■ Children shall not play with the appliance.

■ Children should be supervised to ensure that they do not

play with the appliance or get in.

Children getting inside may not be able to get out.

■ Cleaning and user maintenance shall not be made by children

without supervision.

hazards involved.

When you request repair, please check the refrigerator

well according to Trouble shooting on page 7.

When still abnormal, Please contact the retailer or

local Hitachi Service Center.

Hitachi Home Electronics Asia (S) Pte. Ltd.

HRPK0985A_INST-B-290L-EN-14 E

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Refrigerador de Hitachi

Hitachi

Hitachi R-WB460PY Manual de usuario

Hitachi

Hitachi R-S32EPH Manual de usuario

Hitachi

Hitachi R-VX401PRU9-1 Manual de usuario

Hitachi

Hitachi R-G620GJ Instrucciones de funcionamiento

Hitachi

Hitachi R-XG480KH Manual de usuario

Hitachi

Hitachi R-F7300XS Instrucciones de funcionamiento

Hitachi

Hitachi R-SG32FPG Manual de usuario

Hitachi

Hitachi R-V490P8M Manual de usuario

Hitachi

Hitachi R-X6000H Instrucciones de funcionamiento

Hitachi

Hitachi R-W660ERU9 Manual de usuario

Hitachi

Hitachi R-B380PH9 Manual de usuario

Hitachi

Hitachi R-ZX740JH Manual de usuario

Hitachi

Hitachi R-V600PWX Manual de usuario

Hitachi

Hitachi R-Z470ARU6 PWH Manual de usuario

Hitachi

Hitachi R-220ARU5 Guía de referencia rápida

Hitachi

Hitachi R-WB640VFX Manual de usuario

Hitachi

Hitachi R-V480P8H Manual de usuario

Hitachi

Hitachi R-Z220ARU7 Manual de usuario

Hitachi

Hitachi R-WB640PT1 Manual de usuario

Hitachi

Hitachi R-H350P7H Manual de usuario

Hitachi

Hitachi R-Z570ERU9X (STS) Manual de usuario

Hitachi

Hitachi R-538AH Guía de referencia rápida

Hitachi

Hitachi R-Z570ARU6X Manual de usuario

Hitachi

Hitachi R-VX441PH9 Manual de usuario

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Frigidaire

Frigidaire FSC23R5DW9 Manual de usuario

Beko

Beko LSP4579W Manual de usuario
