NOTE • Be sure to check jack type, signal level, timing and resolution before

connecting this projector to a PC.

• Some PCs may have multiple display screen modes. Use of some of these modes

will not be possible with this projector.

• Depending on the input signal, full-size display may not be possible in some cases.

Refer to the number of display pixels above.

• Although the projector can display signals with resolution up to UXGA (1600x1200),

the signal will be converted to the projector’s panel resolution before being displayed.

The best display performance will be achieved if the resolutions of the input signal

and projector panel are identical.

• Automatic adjustment may not function correctly with some input signals.

• The image may not be displayed correctly when the input sync signal is a composite

sync or a sync on G.

Projector

CP-WX3011N

User's Manual (detailed)

Operating Guide – Technical

Resolution (H x V) H. frequency (kHz) V. frequency (Hz) Rating Signal mode

720 x 400 37.9 85.0 VESA TEXT

640 x 480 31.5 59.9 VESA VGA (60Hz)

640 x 480 37.9 72.8 VESA VGA (72Hz)

640 x 480 37.5 75.0 VESA VGA (75Hz)

640 x 480 43.3 85.0 VESA VGA (85Hz)

800 x 600 35.2 56.3 VESA SVGA (56Hz)

800 x 600 37.9 60.3 VESA SVGA (60Hz)

800 x 600 48.1 72.2 VESA SVGA (72Hz)

800 x 600 46.9 75.0 VESA SVGA (75Hz)

800 x 600 53.7 85.1 VESA SVGA (85Hz)

832 x 624 49.7 74.5 Mac 16” mode

1024 x 768 48.4 60.0 VESA XGA (60Hz)

1024 x 768 56.5 70.1 VESA XGA (70Hz)

1024 x 768 60.0 75.0 VESA XGA (75Hz)

1024 x 768 68.7 85.0 VESA XGA (85Hz)

1152 x 864 67.5 75.0 VESA

1152 x 864 (75Hz)

1280 x 768 47.7 60.0 VESA W-XGA (60Hz)

1280 x 800 49.7 60.0 VESA

1280 x 800 (60Hz)

1280 x 960 60.0 60.0 VESA

1280 x 960 (60Hz)

1280 x 1024 64.0 60.0 VESA SXGA (60Hz)

1280 x 1024 80.0 75.0 VESA SXGA (75Hz)

＊) 1280 x 1024 91.1 85.0 VESA SXGA (85Hz)

1440 x 900 55.9 59.9 VESA WXGA+ (60Hz)

1680 x 1050 65.31 60.0 VESA WSXGA+ (60Hz)

＊) 1600 x 1200 75.0 60.0 VESA UXGA (60Hz)

Example of computer signal

＊) Supported except for HDMI input.

Initial set signals

The following signals are used for the initial settings. The signal timing of some

computer models may be different. In such case, adjust the items V POSITION

and H POSITION in the IMAGE menu.

Back porch (B) Front porch (D) Back porch (b) Front porch (d)

Active video (C)

Data Data

H. Sync. V. Sync.

Sync (A) Sync (a)

Active video (c)

Resolution

(H x V)

Horizontal signal timing (μs) Vertical signal timing (lines) Signal mode

(A) (B) (C) (D) (a) (b) (c) (d)

720 x 400 2.0 3.0 20.3 1.0 3 42 400 1 TEXT

640 x 480 3.8 1.9 25.4 0.6 2 33 480 10 VGA (60Hz)

640 x 480 1.3 4.1 20.3 0.8 3 28 480 9 VGA (72Hz)

640 x 480 2.0 3.8 20.3 0.5 3 16 480 1 VGA (75Hz)

640 x 480 1.6 2.2 17.8 1.6 3 25 480 1 VGA (85Hz)

800 x 600 2.0 3.6 22.2 0.7 2 22 600 1 SVGA (56Hz)

800 x 600 3.2 2.2 20.0 1.0 4 23 600 1 SVGA (60Hz)

800 x 600 2.4 1.3 16.0 1.1 6 23 600 37 SVGA (72Hz)

800 x 600 1.6 3.2 16.2 0.3 3 21 600 1 SVGA (75Hz)

800 x 600 1.1 2.7 14.2 0.6 3 27 600 1 SVGA (85Hz)

832 x 624 1.1 3.9 14.5 0.6 3 39 624 1 Mac 16" mode

1024 x 768 2.1 2.5 15.8 0.4 6 29 768 3 XGA (60Hz)

1024 x 768 1.8 1.9 13.7 0.3 6 29 768 3 XGA (70Hz)

1024 x 768 1.2 2.2 13.0 0.2 3 28 768 1 XGA (75Hz)

1024 x 768 1.0 2.2 10.8 0.5 3 36 768 1 XGA (85Hz)

1152 x 864 1.2 2.4 10.7 0.6 3 32 864 1 1152 x 864 (75Hz)

1280 x 768 1.7 2.5 16.0 0.8 3 23 768 1 W-XGA (60Hz)

1280 x 800 1.6 2.4 15.3 0.8 3 24 800 1 1280 x 800 (60Hz)

1280 x 960 1.0 2.9 11.9 0.9 3 36 960 1 1280 x 960 (60Hz)

1280 x 1024 1.0 2.3 11.9 0.4 3 38 1024 1 SXGA (60Hz)

1280 x 1024 1.1 1.8 9.5 0.1 3 38 1024 1 SXGA (75Hz)

1280 x 1024 1.0 1.4 8.1 0.4 3 44 1024 1 SXGA (85Hz)

1440 x 900 1.4 2.2 13.5 0.8 6 25 900 3

WXGA+ (60Hz)

1680 x 1050 1.2 1.9 11.5 0.7 6 30 1050 3 WSXGA+ (60Hz)

1600 x 1200 1.2 1.9 9.9 0.4 3 46 1200 1 UXGA (60Hz)

LAN

MIC

HDMI

IN1

IN2

USB

TYPE B

USB

TYPE A

DC5V 0.5A

ACOMPUTER IN1, BCOMPUTER IN2, CMONITOR OUT

D-sub 15pin mini shrink jack

• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω terminated (positive)

• H/V. sync. signal: TTL level (positive/negative)

• Composite sync. signal: TTL level

• Video signal:

-Y, Analog, 1.0±0.1Vp-p with composite sync, 75Ω terminated

-Cb/Pb, Analog, 0.7±0.1Vp-p, 75Ω terminated

-C

, Analog, 0.7±0.1Vp-p 75Ω terminated

• System: 480i@60, 480p@60, 576i@50, 720p@50/60, 1080i@50/60

Pin Signal Pin Signal

1Video Red, Cr/Pr 9(No connection)

2 Video Green, Y 10 Ground

3 Video Blue, Cb/Pb 11 (No connection)

4 (No connection) 12 A: SDA (DDC data), (No connection)

5 Ground B, C: (No connection)

6 Ground Red, Ground Cr/Pr 13 H. sync / Composite sync., (No connection)

7 Ground Green, Ground Y 14 V. sync., (No connection)

8 Ground Blue, Ground Cb/Pb 15 A: SCL (DDC clock), (No connection)

B, C: (No connection)

Connection to the ports





 

Connection to the ports

NOTICE ►Use the cables with straight plugs, not L-shaped ones, as the

input ports of the projector are recessed.

NOTICE ►Use the cables with straight plugs, not L-shaped ones, as the

input ports of the projector are recessed.

►Only the signal that is input from the COMPUTER IN1 or IN2 can be output

from the MONITOR OUT port.

LAN

MIC

HDMI

IN1

IN2

USB

TYPE B

USB

TYPE A

DC5V 0.5A

GS-VIDEO

Mini DIN 4pin jack

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL(60Hz)

Pin Signal

1Color signal 0.286Vp-p (NTSC, burst), 75Ω terminator

Color signal 0.300Vp-p (PAL/SECAM, burst) 75Ω terminator

2 Brightness signal, 1.0Vp-p, 75Ω terminator

3 Ground

4 Ground

Connection to the ports (continued)

HVIDEO

RCA jack

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL(60Hz)

• 1.0±0.1Vp-p, 75Ω terminator

COMPONENT DY, ECb/Pb FCr/Pr

RCA jack x3

• System: 480i@60, 480p@60, 576i@50, 720p@50/60, 1080i@50/60, 1080p@50/60

Port Signal

Y Component video Y, 1.0±0.1Vp-p with composite sync, 75Ω terminator

Cb/Pb Component video Cb/Pb, 0.7±0.1Vp-p, 75Ω terminator

Cr/Pr Component video Cr/Pr, 0.7±0.1Vp-p, 75Ω terminator

LAN

MIC

HDMI

IN1

IN2

USB

TYPE B

USB

TYPE A

DC5V 0.5A

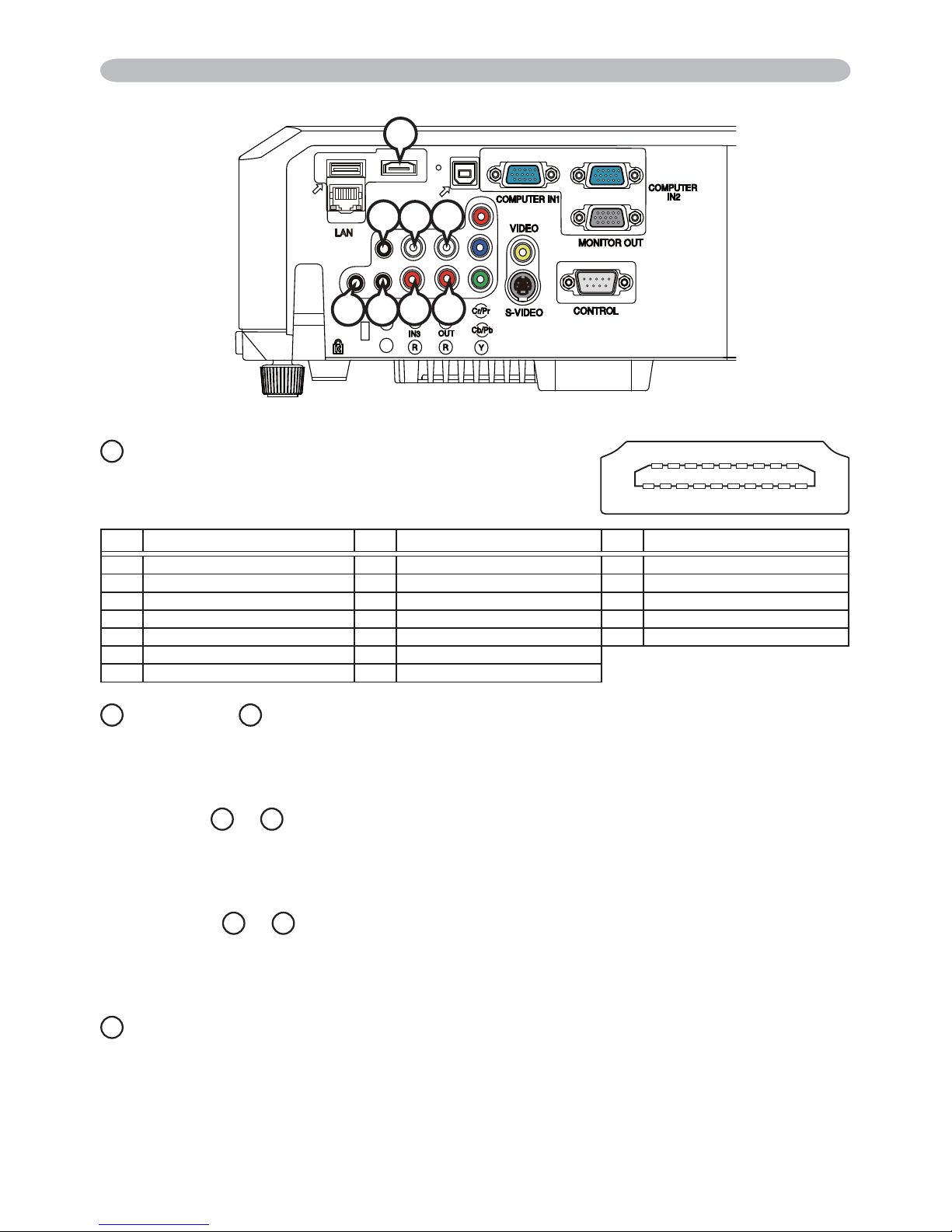

Connection to the ports (continued)

JAUDIO IN1,

AUDIO IN2

Ø3.5 stereo mini jack

• 200 mVrms, 47kΩ terminator

AUDIO IN3

RCA jack x2

• 200 mVrms, 47kΩ terminator

AUDIO OUT

R, OL

RCA jack x2

• 200 mVrms, 1kΩ output impedance

PMIC

Ø3.5 mono mini jack

• 2 mVrms, 1kΩ terminator

• 20 mVrms, 1kΩ terminator

IHDMI

• Type :Digital audio/video connector

• Audio signal : Linear PCM (Sampling rate; 32/44.1/48 kHz)

Pin Signal Pin Signal Pin Signal

1 T.M.D.S. Data2 + 8 T.M.D.S. Data0 Shield 15 SCL

2 T.M.D.S. Data2 Shield 9 T.M.D.S. Data0 - 16 SDA

3 T.M.D.S. Data2 - 10 T.M.D.S. Clock + 17 DDC/CEC Ground

4T.M.D.S. Data1 + 11 T.M.D.S. Clock Shield

+5V Power

5 T.M.D.S. Data1 Shield 12 T.M.D.S. Clock - 19 Hot Plug Detect

6 T.M.D.S. Data1 - 13 CEC

7 T.M.D.S. Data0 + 14 Reserved(N.C. on device)

JMO

624 8 1610 12 14 18

13 151171917593

LAN

MIC

HDMI

IN1

IN2

USB

TYPE B

USB

TYPE A

DC5V 0.5A

Connection to the ports (continued)

USB

TYPE B

USB B type jack

Pin Signal

1 +5V

2 - Data

3 + Data

4 Ground

CONTROL

D-sub 9pin plug

• About the details of RS-232C communication,

please refer to the section "RS-232C Communication".

Pin Signal Pin Signal Pin Signal

1 (No connection) 4 (No connection) 7 RTS

2 RD 5 Ground 8 CTS

3 TD 6 (No connection) 9 (No connection)

LAN

RJ-45 jack 87654

Pin Signal Pin Signal Pin Signal

1TX+ 4- 7-

2TX- 5- 8-

3 RX+ 6 RX-

54321

678

QUSB TYPE A

USB A type jack 432 1

Pin Signal

1 +5V

2 - Data

3 + Data

4 Ground

To input SCART RGB signal;

ex.

LAN

MIC

HDMI

IN1

IN2

USB

TYPE B

USB

TYPE A

DC5V 0.5A

㪭㫀㪻㪼㫆

㪩

㪙

㪞

㪘㫌㪻㫀㫆㩷㪣

㪘㫌㪻㫀㫆㩷㪩

Connection to the ports (continued)

To input SCART RGB signal to the projector, use a SCART to RCA cable.

Connect the plugs refer to above ex.. For more reference, please consult your

dealer.

SCART

connector

(jack)

SCART cable

(plug)

RCA plugs

To input component video signal to COMPUTER IN ports

ex.

To input component video signal to the COMPUTER IN1 or IN2 port of the

projector, use a RCA to D-sub cable or adapter.

For about the pin description of the required cable or adapter, refer to the

descriptions about COMPUTER IN1 and IN2 port (3).

LAN

MIC

HDMI

IN1

IN2

USB

TYPE B

USB

TYPE A

DC5V 0.5A

Y CB/PBCR/PR

COMPONENT VIDEO OUT

RCA plugs

D-sub plug

VCR/DVD/

Blu-ray Disc™ player

RCA connectors

CD (1) (1) −

RD(2) (2) RD

TD (3) (3) TD

DTR (4) (4)

−

GND (5) (5) GND

DSR (6) (6)

−

RTS (7) (7) RTS

DTS (8) (8) CTS

RI (9) (9)

−

RS-232C Communication

When the projector connects to the computer by RS-232C communication, the

projector can be controlled with RS-232C commands from the computer.

For details of RS-232C commands, refer to RS-232C Communication / Network

command table (17).

Connection

1. Turn off the projector and the computer.

2. Connect the projector's CONTROL port and the computer's RS-232C port

with a RS-232C cable (cross). Use the cable that fulﬁlls the speciﬁcation

shown in ﬁgure

3. Turn the computer on, and after the computer has started up turn the projector

on.

4. Set the COMMUNICATION TYPE to OFF. (OPTION menu - SERVICE -

COMMUNICATION in the User's Manual - Operating Guide)



124

CONTROL port

of the projector

RS-232C port

of the computer

CONTROL

RS-232C

RS-232C Cable

(cross)

54321

678

RS-232C Communication (continued)

Communicaion settings

1. Protocol

19200bps,8N1

2. Command format ("h" shows hexadecimal)

Byte Number 01 2 3456

789101112

Command

Action

Header Data

Header

code

Packet

Data

size

CRC

ﬂag Action Type Setting

code

LH LHLHLHLHLH

<SET>

Change setting to

desired value [(cL)(cH)]

by [(eL)(eH)].

BEh EFh 03h 06h 00h

(aL) (aH) 01h 00h (bL) (bH) (cL) (cH)

<GET>

Read projector

internal setup value [(bL)

(bH)] .

(aL) (aH) 02h 00h (bL) (bH) 00h 00h

Increment setup value

[(bL)(bH)] by 1.

(aL) (aH) 04h 00h (bL) (bH) 00h 00h

Decrement setup value

[(bL)(bH)] by 1.

(aL) (aH) 05h 00h (bL) (bH) 00h 00h

<EXECUTE> Run a

command [(bL)(bH)].

(aL) (aH) 06h 00h (bL) (bH) 00h 00h

[Header code] [Packet] [Data size]

Set [BEh, EFh, 03h, 06h, 00h] to byte number 0

[CRC ﬂag]

For byte number

5, 6,

refer to

RS-232C Communication / Network command

table

(17).

[Action]

Set functional code to byte number 7, 8.

<SET> = [01h, 00h], <GET> = [02h, 00h], <INCREMENT> =[04h, 00h]

<DECREMENT> = [05h, 00h], <EXECUTE> = [06h, 00h]

Refer to the Communication command table (above).

[Type] [Setting code]

For byte number

〜

, refer to

RS-232C Communication / Network command

table

(17).

RS-232C Communication (continued)

3. Response code / Error code ("h" shows hexadecimal)

(1) ACK reply : 06h

When the projector receives the Set, Increment, Decrement or Execute

command correctly, the projector changes the setting data for the speciﬁed

item by [Type], and it returns the code.

(2) NAK reply : 15h

When the projector cannot understand the received command, the projector

returns the error code.

In such a case, check the sending code and send the same command again.

(3) Error reply : 1Ch + 0000h

When the projector cannot execute the received command for any reasons,

the projector returns the error code.

In such a case, check the sending code and the setting status of the projector.

(4) Data reply : 1Dh + xxxxh

When the projector receives the GET command correctly, the projector returns

the responce code and 2 bytes of data.

NOTE • For connecting the projector to your devices, please read the

manual for each devices, and connect them correctly with suitable cables.

• Operation cannot be guaranteed when the projector receives an undeﬁned

command or data.

• Provide an interval of at least 40ms between the response code and any other

code.

• The projector outputs test data when the power supply is switched ON, and

when the lamp is lit. Ignore this data.

• Commands are not accepted during warm-up.

• When the data length is greater than indicated by the data length code, the

projector ignore the excess data code. Conversely when the data length is

shorter than indicated by the data length code, the projector returns the error

code to the computer.

Otros manuales para CP-WX3011N

Tabla de contenidos

Otros manuales de Proyector de Hitachi

Hitachi

Hitachi CP-X1200 Series Manual de usuario

Hitachi

Hitachi CPX417 - XGA LCD Projector Instrucciones de instalación y mantenimiento

Hitachi

Hitachi CP-X5021N Manual de usuario

Hitachi

Hitachi CP-X340W Manual de usuario

Hitachi

Hitachi CP-A300N Manual de usuario

Hitachi

Hitachi CP-D32WN Manual de usuario

Hitachi

Hitachi CP-DX301 Manual de usuario

Hitachi

Hitachi X807 - CP XGA LCD Projector Guía

Hitachi

Hitachi CP-X4021N Instrucciones de instalación y mantenimiento

Hitachi

Hitachi CP-X3011N Instrucciones de instalación y mantenimiento

Hitachi

Hitachi CP-X445 Documento técnico

Hitachi

Hitachi CP-X2530WN Manual de usuario

Hitachi

Hitachi CP-WU9411 Manual de usuario

Hitachi

Hitachi CP-SX5500 Manual de usuario

Hitachi

Hitachi CP-AX3503 Manual de usuario

Hitachi

Hitachi CP-X8160 Manual de usuario

Hitachi

Hitachi CP-X440 series Manual de usuario

Hitachi

Hitachi CP-A301N Manual de usuario

Hitachi

Hitachi CP-WU13K Manual de usuario

Hitachi

Hitachi Innovate CP-RX94 Manual de usuario

Hitachi

Hitachi CP-L850W Manual de usuario

Hitachi

Hitachi CP-RX70(M1-20EN) Manual de usuario

Hitachi

Hitachi CP-X260W Manual de usuario

Hitachi

Hitachi CP-X995W Manual de usuario

Manuales populares de Proyector de otras marcas

iEmmet

iEmmet MP-312 Manual de usuario

Epson

Epson VS400 Manual de usuario

Sony

Sony VPL-HS10 Marketing Specifications & Features Manual de usuario

Sony

Sony VPL-HW65ES Manual de servicio

Toshiba

Toshiba TLP-791U Manual de usuario

Philips

Philips LC1341 Guía de referencia

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manual de usuario

NEC

NEC NP600S EDU Manual de usuario

BenQ

BenQ SH753P Manual de usuario

Eiki

Eiki EK-623U series Manual de usuario

Epson

Epson PowerLite Pro Cinema 6020UB Manual de usuario

Epson

Epson PowerLite Home Cinema 705HD Manual de usuario

Christie

Christie LHD700 Manual de usuario

Navitar

Navitar FX Manual de usuario

InFocus

InFocus LitePro 560 Manual de usuario

Sony

Sony SRX-R815P Manual de usuario

Vivitar

Vivitar DP1500 X Manual de usuario

Acer

Acer C20 Series Manual de usuario
