Hitachi Cs 40 ea Hoja de datos

Model CS 40EA

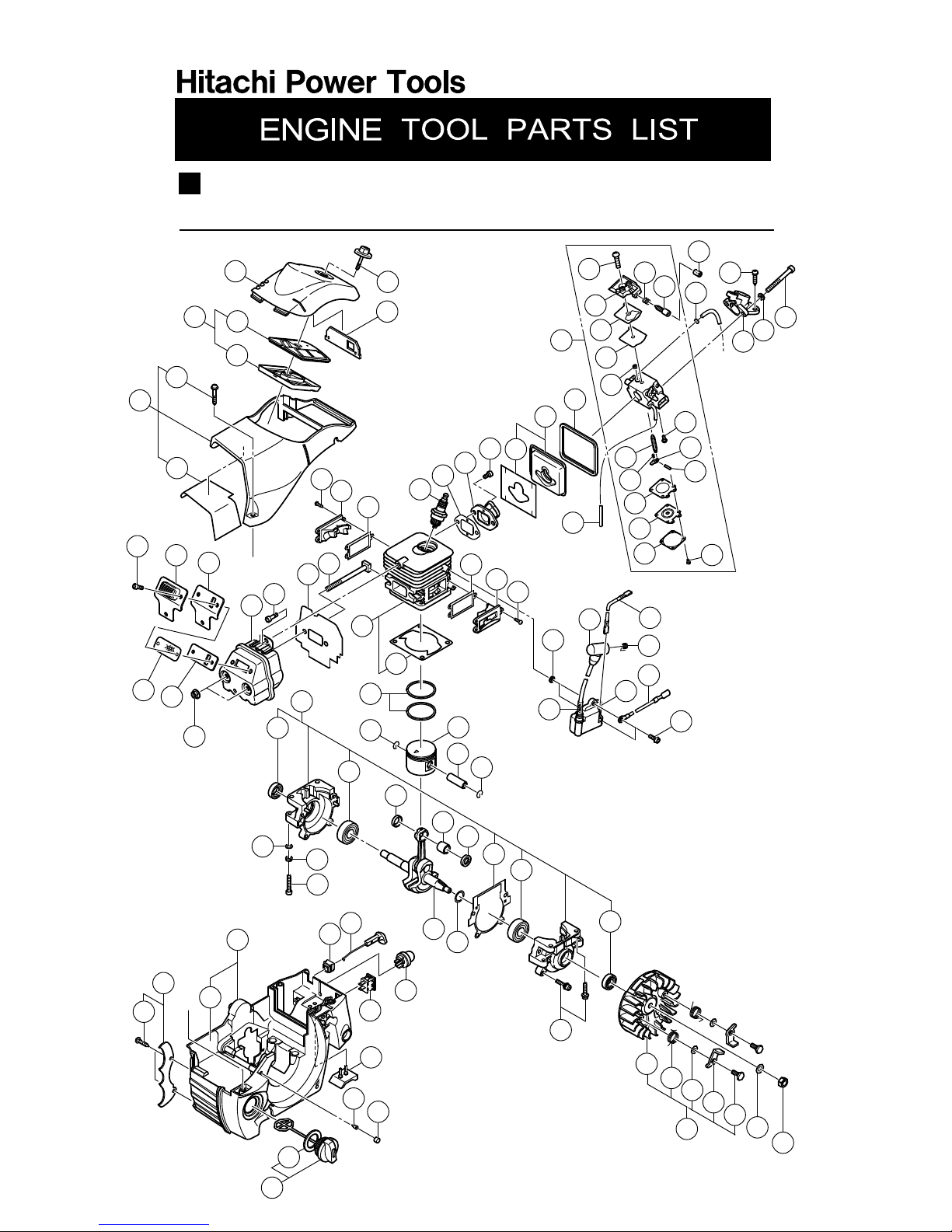

ENGINE CHAIN SAW

LIST NO. E079

(E1)

2010 8 18

32 38

53 54 55

56 57

46 47

90 91

••• •

8 - 10

CS 40EA

- 2 -

113

114

115 115

113

114

116

117

120

119

118

121

126

125

127

122 128

129

111

123

124 130

125

131

132

133

142

135

125

136

137

138

140

141

134

148

146

149

151

150

153

152

154

155

156

157

139

158

159

160 161

162

163

125

143

164

155

165

166

167

168

169

170

171

172

173

174

175

501 502

134

147

145

144

112

111

PART

CS 40EA

DESCRIPTION REMARKS

1 669-8424 CLEANER COVER 1

2 669-6908 CLEANER ELEMENT (B) 1

3 669-6907 CLEANER ELEMENT (A) 1

4 669-6891 CLEANER ELEMENT ASS'Y 1 INCLUD. 2, 3

5 669-6903 COVER SET BOLT 3

6 669-8520 ALUMINUM TAPE (A) 1

*7 669-8462 CYLINDER COVER ASS'Y 1 INCLUD. 5, 6

*7 669-8519 CYLINDER COVER ASS'Y 1 INCLUD. 5, 6 FOR EUROPE, USA, CAN

*8 669-8425 CLEANER KNOB (VERMILION) 1

*8 669-8438 CLEANER KNOB (GREEN) 1 FOR USA, CAN

9 669-6904 SHUTTER PLATE 1

10 949-216 MACHINE SCREW M4 X 10 (10 PCS.) 6

11 669-8407 SCAVENGING COVER (B) 1

12 669-6852 COVER PACKING 2

*13 668-5782 SPARK PLUG BPMR7A 1

*13 669-8432 SPARK PLUG BPM-7A 1

14 669-6895 INTAKE PACKING 1

15 669-8419 INTAKE 1

16 949-765 HEX. SOCKET HD. BOLT M5 X 12 (10 PCS.) 2

17 669-8524 ALUMINUM TAPE (B) 1

18 669-8461 CARBURETOR INSULATOR ASS'Y 1 INCLUD. 17

19 669-6896 CARB. INSULATOR RUBBER 1

20 669-8433 CARBURETOR ASS'Y 1 INCLUD. 21-36

21 668-5210 SCREW 1

22 PUMP BODY 1

23 668-5212 PUMP GASKET 1

24 668-5213 PUMP DIAPHRAGM 1

25 668-4700 INLET SCREEN 1

26 668-5215 NEEDLE VALVE 1

27 669-0873 VALVE SPRING 1

28 668-5220 DIAPHRAGM PACKING 1

29 668-4690 METERING DIAPHRAGM COMP. 1

30 668-5222 DIAPHRAGM COVER 1

31 669-0766 IDLE ADJUST SPRING 1

32 668-5298 IDLE ADJUST SCREW 1

33 668-5218 HINGE PIN SET SCREW 1

34 668-5217 CONTROL LEVER 1

35 668-5219 HINGE PIN 1

36 668-5223 SET SCREW 4

37 668-5224 IDLE SPONGE 1

38 668-5311 CLIP 4

39 302-089 TAPPING SCREW (W/FLANGE) D5 X 20 (BLACK) 6

40 669-8427 CLEANER SUPPORT 1

41 668-5408 WASHER 5 7

42 669-6317 HEX. SOCKET HD. BOLT M5 X 45 2

43 669-8434 FUEL PIPE 1

44 669-8406 SCAVENGING COVER (A) 1

45 668-4600 WASHER 2

46 669-8435 PLUG CAP 1

47 668-5365 CORD (A) 1

8 - 10 - 3 -

*ALTERNATIVE PARTS

ITEM

NO. NO.

USED

CODE NO.

ITEM

NO. NO.

USED

CODE NO.

PARTS CS 40EA

DESCRIPTION REMARKS

48 669-8436 METAL FITTING OF PLUG CAP 1

49 668-5338 CORD (B) 1

50 669-8416 IGNITION COIL 1

51 669-6326 HEX. SOCKET HD. BOLT (W/FLANGE) M4 X 18 2

52 669-8457 CORD INSULATION TUBE 1

53 669-8442 HEX. SOCKET BOLT(SUS) M4 3

54 669-8458 MUFFLER PROTECTOR 1

55 669-8459 MUFFLER PROTECTOR PACKING 1

56 669-6874 MUFFLER GAUZE 1

57 669-8460 EXHAUST PLATE 1

58 329-934 FLANGE NUT M6 2

*59 669-8410 MUFFLER 1 FOR EUROPE, USA, CAN, JPN

*59 669-8411 MUFFLER 1

60 305-574 HEX. SOCKET HD. BOLT (W/SP.WASHER) M5 X 16 1

61 669-8412 MUFFLER PACKING 1

62 669-8437 SQUARE HEAD BOLT M6 2

63 669-8430 CYLINDER ASS'Y 1 INCLUD. 64

64 669-6864 CYLINDER PACKING 1

65 669-6858 PISTON RING 2

66 669-6854 CIR CLIP 2

67 669-8521 PISTON (M) 1

68 669-6855 PISTON PIN 1

69 669-8441 CRANK CASE SET 1 INCLUD. 70, 71, 74

70 668-4607 OIL SEAL TB 12227 2

71 668-5328 BALL BEARING 2

72 669-6856 PISTON PIN COLLAR 2

73 669-8445 NEEDLE BEARING (A) 1

74 669-6863 CRANK CASE PACKING 1

75 949-454 SPRING WASHER M5 (10 PCS.) 4

76 668-5412 SEAL LOCK HEX. SOCKET HD. BOLT M5 4

77 669-6853 CRANK SHAFT 1

* 78 669-6865 SHIM 1 T 0.2

* 78 669-6866 SHIM 1 T 0.3

* 78 669-6867 SHIM 1 T 0.4

79 305-583 HEX. SOCKET HD. BOLT (W/SP.WASHER) M5 X 20 8

80 669-8414 MAGNETO SUB ASS'Y 1 INCLUD. 81-85

81 669-8415 MAGNETO ROTOR 1

82 669-8417 STARTER PAWL SPRING 2

83 669-6857 WASHER 0.8 2

84 669-6877 STARTER PAWL 2

85 669-6878 STEP BOLT 2

86 669-6880 BOLT WASHER D7 1

87 669-6879 FLYWHEEL NUT 1

88 669-6329 SPIKE SET 1 INCLUD. 39

89 669-8523 ALUMINUM TAPE 1

90 669-8448 ENGINE CASE SUB 1

91 668-5369 CHOKE ROD RUBBER 1

* 92 669-8463 CHOKE BUTTON 1

* 92 669-8464 CHOKE BUTTON 1 FOR USA, CAN

93 668-5364 STOP SWITCH 1

- 4 - 8 - 10

*ALTERNATIVE PARTS

NO.

USED

CODE NO.

ITEM

NO. CODE NO.

ITEM

NO.

PART

CS 40EA

DESCRIPTION REMARKS

94 668-5139 PRIMING PUMP COMP. 1

95 669-6870 REAR DAMPER 1

96 668-5370 AIR VENT VALVE (B) 1

97 668-5371 AIR VENT SPONGE 1

98 668-5386 TANK CAP PACKING 2

* 99 668-5384 FUEL TANK CAP ASS'Y 2 INCLUD. 98

* 99 668-5385 FUEL TANK CAP ASS'Y (GREEN) 2 FOR USA, CAN

111 669-8449 NUT M6 3

112 949-432 BOLT WASHER M6 (10 PCS.) 3

113 669-8409 SPRING HOLDER 2

114 669-6872 FLANGED TAPPING SCREW D6 2

115 669-8408 ANTIVIBRATION SPRING 2

116 669-6873 FRONT DAMPER 1

117 668-5199 PUMP FILTER BODY 1

118 669-6970 RETURN GROMMET 1

119 669-8401 FUEL PIPE (PINK) 1

120 668-5351 INNER CAP 1

121 669-8420 THROTTLE ROD 1

* 122 669-8451 THROTTLE LEVER (VERMILION) 1

* 122 669-8452 THROTTLE LEVER (GREEN) 1 FOR USA, CAN

123 668-5308 FUEL GROMMET(A) 1

124 669-8522 FUEL PIPE 1

125 305-812 TAPPING SCREW (W/FLANGE) D4 X 16 (BLACK) 8

126 668-5367 REAR HANDLE GRIP 1

* 127 668-5350 TRIGGER LOCKOUT (VERMILION) 1

* 127 668-5420 TRIGGER LOCKOUT (GREEN) 1 FOR USA, CAN

128 668-5349 THROTTLE LEVER SPRING 1

129 668-5282 SPRING PIN 5 X 25 1

130 669-6871 REAR HANDLE 1

131 669-8429 SPRING HOLDER 1

132 881-722 HEX. SOCKET HD. BOLT (W/FLANGE) M6 X 20 1

133 669-8428 ANTIVIBRATION SPRING 1

134 305-558 TAPPING SCREW (W/FLANGE) D5 X 25 (BLACK) 4

135 669-6901 BRAKE LINK COVER 1

136 668-5388 BRAKE LINK 1

137 955-479 RETAINING RING (E-TYPE) FOR D6 SHAFT 1

138 669-6900 BRAKE SPRING 1

139 668-5391 NEEDLE ROLLER D3 1

140 669-6899 BRAKE BAND PLATE 1

141 311-945 TAPPING SCREW (W/FLANGE) D4 X 10 (BLACK) 1

142 669-8426 FRONT HANDLE 1

143 669-6893 OIL PUMP COVER 1

144 669-6892 OIL PIPE 1

145 669-6887 OIL PUMP 1

146 668-5374 BRAKE LEVER SPRING 1

147 CAUTION LABEL 1

148 668-5373 BRAKE HANDLE 1

149 NAME PLATE 1

150 668-5416 CHAIN BAR CLAMP NUT 2

* 151 669-8422 SIDE CASE SUB (VERMILION) 1

8 - 10 - 5 -

*ALTERNATIVE PARTS

NO.

USED

CODE NO.

ITEM

NO.

PART

CS 40EA

DESCRIPTION REMARKS

* 151 669-8454 SIDE CASE SUB (GREEN) 1 FOR USA, CAN

* 152 668-7270 SAW CHAIN 13 INCH 1

* 152 668-7335 SAW CHAIN 15 INCH 1

* 152 668-7296 SAW CHAIN 16 INCH 1

* 152 668-7284 SAW CHAIN 18 INCH 1

153 668-5393 CHAIN PULLER 1

154 669-6902 GUIDE PLATE (B) 1

155 668-5415 TAPPING SCREW D3 X 8 2

* 156 669-6911 CHAIN BAR 13 INCH 1

* 156 669-6912 CHAIN BAR 15 INCH 1

*156 669-6983 CHAIN BAR 16 INCH 1

*156 669-6982 CHAIN BAR 18 INCH 1

157 669-8423 BRAKE BAND 1

158 669-6883 CLUTCH 1

159 669-6882 CLUTCH WASHER (B) 1

160 669-6881 CLUTCH HOUSING 1

161 669-6884 NEEDLE BEARING 1

162 669-6886 WORM 1

163 669-6885 WASHER 1

164 949-219 MACHINE SCREW M4 X 16 (10 PCS.) 1

165 669-6898 GUIDE PLATE (A) 1

166 669-6868 OIL GROMMET (A) 1

167 669-8453 FUEL PIPE 1

168 668-5407 BOLT WASHER D5 1

169 669-8455 OIL FILTER 1

170 669-6869 OIL FILTER BODY 1

171 669-8456 FLANGED TAPPING SCREW D5 X 15 1

172 669-6894 CHAIN CATCHER 1

173 669-6906 AIR DEFLECTOR 1

* 174 669-8421 RECOIL STARTER (VERMILION) 1

* 174 669-8431 RECOIL STARTER (GREEN) 1 FOR USA, CAN

175 HITACHI LABEL 1

DESCRIPTION REMARKS

* 501 668-5439 CHAIN COVER 1 13 INCH

* 501 669-6909 CHAIN COVER 1 15,16 INCH

* 501 669-6910 CHAIN COVER 1 18 INCH

502 668-5402 COMBI BOX SPANNER 10/19MM 1

- 6 - Printed in Japan 8 - 10

(100818N)

*ALTERNATIVE PARTS

NO.

USED

CODE NO.

ITEM

NO.

STANDARD ACCESSORIES

NO.

USED

CODE NO.

ITEM

NO.
