Hisense 49K3110PW Manual de usuario
49K3110PW
50K3110PW
55K3110PW
English
ES-A160639-1
Before using the TV, please read this guide thoroughly and retain it for future
reference. For more detailed instructions, please see the User Manual.
QUICK SETUP GUIDE
1
Contents
Contents
Accessories List..............................................................................................................1
Installing the Stand.........................................................................................................2
TV Front..........................................................................................................................3
TV Rear ..........................................................................................................................4
Making Connections.......................................................................................................5
Remote Control ............................................................................................................10
Turning the TV on for the First Time.............................................................................12
Specifications ...............................................................................................................13
TV Base Stand User Manual
Quick Setup Guide AAA Batteries × 2 Remote Control
(ST4×16) × 4(49"/50"）(M4×12)×4(55")

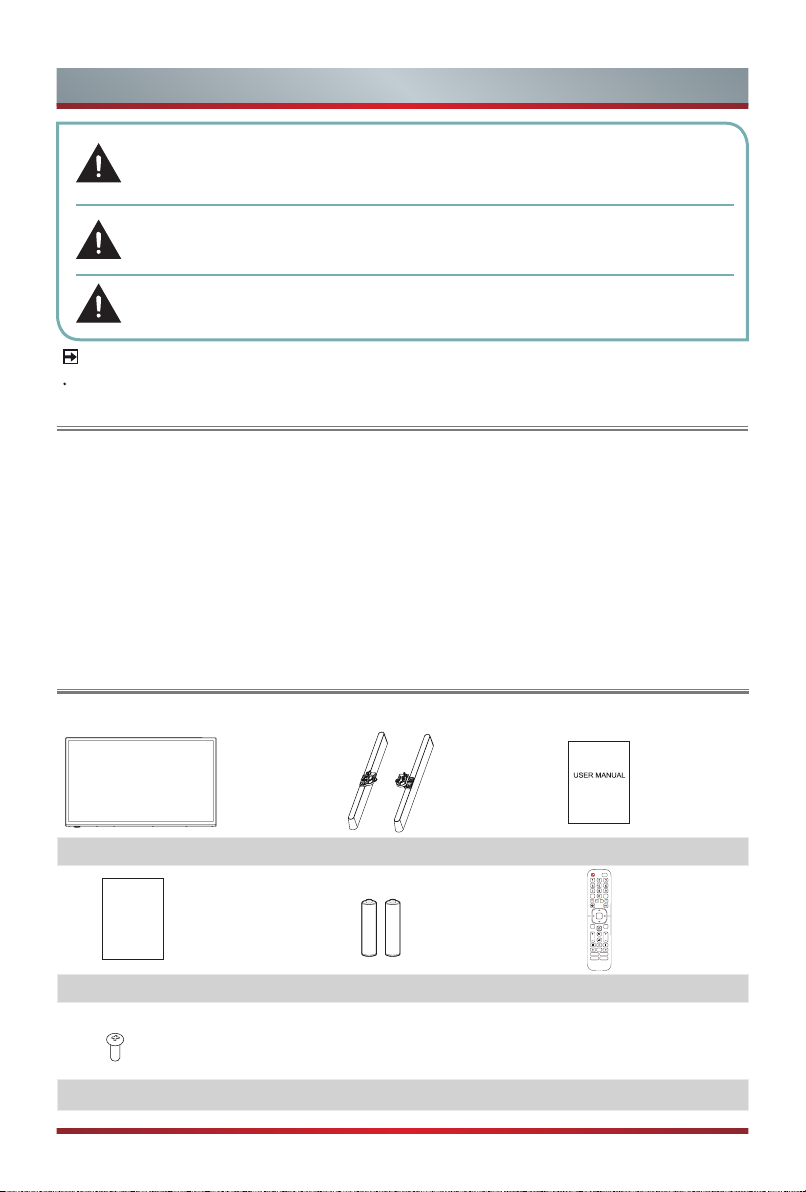

Accessories List
The following accessories are included with TV:
Quick Setup Guide
OK
VOLC
BACK EXIT
INPUT
SubtitleT.shift
EPGCH.List
CH
APP
Info
APP
Incorrect replacement of the battery may lead to the risk, including the
replacement of another similar or the same type. Do not expose batteries
to heat such as sun or fire or something like that.
The device should not be exposed to dripping and spraying and it cannot
be placed under objects filled with liquids.
Main plug is used as the disconnect device, the disconnect device shall
remain ready for operating.
NOTES
Excessive sound pressure from earphones and headphones can cause hearing loss.
2

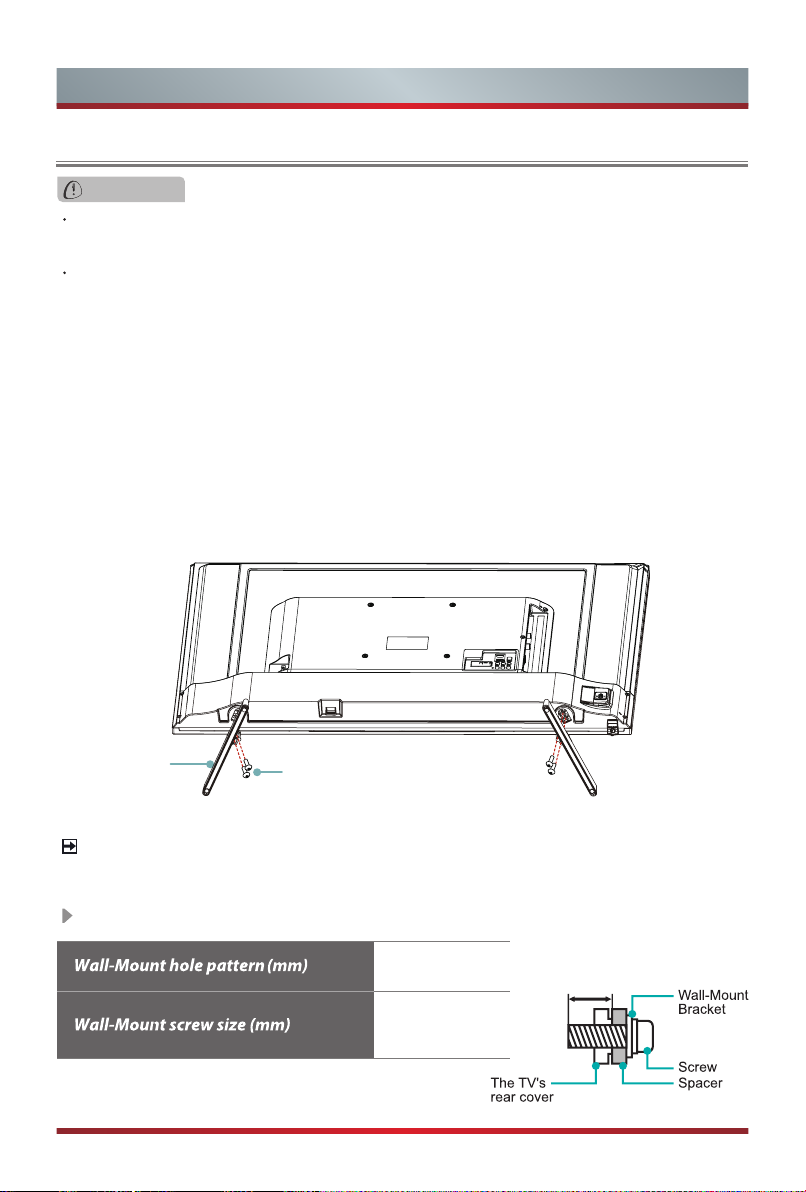

Installing the Stand
Installing the Stand
CAUTION
Be sure to disconnect the A/C power cord before installing a stand or Wall-Mount
brackets.
The LED display is very fragile, and must be protected at all times when installing
the base stand. Be sure that no hard or sharp object, or anything that could scratch
or damage the LED display, comes into contact with it. DO NOT exert pressure on
the front of the TV at any time because the screen could crack.
Follow the illustrations and textual instructions below to complete the installa -
tion steps:
Pictures are only for reference, actual product may vary in appearance.
NOTE
1. Carefully place your TV facedown on a soft, flat surface to prevent damage to the
TV or scratching to the screen.
2. Remove the 2 stands from the accessory bag and then insert the stands into the
bottom slots of the TV.
3. Secure the BASE STAND to the TV with the 4 screws in accessary tightly.
WALL-MOUNT BRACKET (not provided)
200 × 200
M6
9.5~11.5mm
BASE STAND Screws: ST4×16(49"/50"）
M4X12 (55"）
3
TV Front
TV Front
NOTES
The Picture is Only for Reference.
It takes several seconds to power on the TV and load program. Do not rapidly turn
the TV on and off as it may cause the TV to work abnormally.
Remote sensor
Power indicator
VOL -
OK
CH
CH
VOL +
TV Bottom Panel
TV Back View
OK
Item Description
Remote sensor Receive remote signals from the remote control.
Do not put anything near the sensor, as its function may be affected.
Power indicator The light is red in standby mode.
Select among the different input signal sources and put the TV
in standby mode, and you can turn on the TV when the TV in
standby mode.
Toggle the OK button left and right to adjust the volume.
Toggle the OK button up and down to select the channel.
4
TV Rear
TV Rear
NOTES
Check the jacks for position and type before making any connections. Loose
connections can result in image or color problems. Make sure that all connections
are tight and secure.
The TV may not be compatible with all external devices. To check compatibility,
please refer to the user manual of external device.
Do not connect external equipment while TV's power cord is plugged in. It may
cause electric shock.
HDMI 3
HDMI 2(ARC)
ANT
HDMI 1(MHL)
COMMON INTERFACE
USB 1
DC 5V 0.5A(MAX)
USB 2
DC 5V 0.5A(MAX)
SERVICE
5
Making Connections
HDMI/COMP/AV
Connect a HDMI / Comp / AV cable from an external AV equipment. No sound
connection is needed for HDMI to HDMI connection. If the signal resolution does not
match the specification table, you need to change the setting of device according to
the table. Please consult your device user manual for instruction.
·To select the HDMI / Component / AV
Press [Input] button, when the list of input Source appears, press [< / >] to select the
source [HDMI] / [COMPONENT] / [AV], then press [OK] to connect.
TV JACK Outdoor
Antenna
Antenna Cable (75Ω)
or ANT OUT
Cable
VHF/UHF Antenna
ANT Connect an outdoor VHF/UHF antenna or cable.
ANT
(not included)
COMMON INTERFACE
Insert the CI+ module for watching scrambled services like pay-tv channels or
some HD channels.
SMART CARDCAM CARD
TV JACK
12
NOTES
Before you insert/remove the CI+ module, ensure that the TV is switched off.
Then insert the CI card into the CI+ module in accordance with the Service
Provider’s instructions.
Do not repeatedly insert or remove the Common Access Module as this may
damage the interface and cause a malfunction.
You must obtain a CI+ module and card from the service provider of the
channels you want to watch.
Insert the CI+ module with the SmartCard in the direction marked on the module
and SmartCard.
CI+ is not supported in some countries and regions; check with your authorized
dealer.
6
Making Connections
ARC Connect an HDMI cable from an external digital audio system.
ARC enables the TV to directly output the digital sound through an HDMI cable.
Please note that it works only when the TV is connected to the audio receiver that
supports the ARC (Audio Return Channel) function.
When this port is used as the ARC function, it can't be used as signal input at the
same time.
MHL Connect an MHL cable (not provided) from your MHL-enabled device, such
as a cell phone.
TV JACK
HDMI cable (not included)
HDMI 2(ARC)
HDMI
TV JACK
MHL cable (not included)
HDMI 1(MHL)
MHL-enabled Device
NOTES
MHL is only available through HDMI 1(MHL) and only when the TV is connected to
compatible MHL devices. Please note that not all MHL devices are supported.
BEST(HDMI)
Video Effect:
BETTER
(COMP)
GOOD
(AV)
Video Camera/
Set-top Box/
Satellite Receiver
AV
Y
Pb
Pr
Component
L
R
Video
L
R
7
Making Connections
USB
Connect the USB1.1, USB2.0 devices such as hard drives, USB sticks and digital
cameras for browsing photos, listening music and watching recorded movies. You
can record live TV program (refer to PVR in user Manual). At the same time update
is also an easy thing and will be done just by plugging the USB with the updating
files into the USB interface.
NOTES
When connecting a hard disk or a USB hub, always connect the mains adapter of
the connected device to the power supply.
TV JACK
USB
DC 5V 0.5A(MAX)
HEADPHONE Connect Headphone for audio out of the TV.
The built-in speakers will be disabled once the headphone is connected.
TV JACK
Headphone (not included)
HEADPHONE
OPTICAL Connect an optical cable from an external digital audio system
Optical SPDIF—is a type of digital audio interconnect cable used in consumer
audio equipment to output audio over reasonably short distances. The signal is
transmitted over a fibre optical cable.
Before connecting a digital audio system to the Optical jack, you should decrease
the volume of both the TV and the system to avoid that the volume suddenly
become bigger.
TV JACK
Optical cable (not included)
Audio Amplier/Speaker
OPTICAL
NOTES
Please make sure that the headphone you plug in is without microphone function,
or it may not be supported.
8
Making Connections
LAN (Wired setup)
Connect your TV to your network by connecting the LAN port on the back of your
TV to an external modem or router using a LAN (Ethernet/Cat 5) cable. See the
illustration below.
·We recommend to use a modem or router that supports Dynamic Host
Configuration Protocol (DHCP). Modems and routers that support DHCP
automatically provide the IP address, subnet mask, gateway, and DNS, so you
don’t have to enter them manually. Most home networks already have DHCP.
TV JACK
Modem CableLAN CableLAN Cable
External Modem
(ADSL / VDSL / Cable TV)
IP Sharer (Router)
(with DHCP server)
LAN
If a USB 1.1 or USB2.0 device requires more than 500mA or 5V, the USB device
may not be supported. Exceeding the max supported current may result in damage
or data loss.
If you want to store the video streaming of a DTV program, the transfer rate of the
USB storage device must not be less than 5MB/s.
Wireless setup
Connect your TV to your network wirelessly, you need a wireless router or modem.
See the illustration below.
·The TV’s built-in Wireless LAN Adapter supports the IEEE 802.11 b/g/n
communication protocols.
Wireless router with DHCP
LAN Cable
Wireless LAN Adapter
built-in TV set
9
Making Connections
NOTES
You must use the built-in Wireless LAN Adapter to use a wireless network because
the set doesn’t support external USB network adapter.
If the wireless router supports DHCP, your TV can connect more easily to the
wireless network.
If you apply asecurity system other than the systems listed below, it will not work with
the TV.
security system : WPA, WEP, WPA2.
In order to guarantee smooth network, the distance between router and TV is less
than 10 meters.
What is FreeviewPlus?
FreeviewPlus is a new television service delivered via broadband providing a state
of the art Electronic Program Guide (EPG) and seamless access to catch-up TV
across the free-to-air networks with the simple press of a button.
How does it work?
First ensure the TV is connected to internet and an antenna system. Then when
you’re watching TV, you’ll briefly see a prompt at the top left of the screen. Press
the ‘Green’ button on your remote to launch FreeviewPlus. More information about
FreeviewPlus can be found on http://www.freeview.com.au/
NOTE
FreeviewPlus service only available in Australia territories.
