Hisense 32H3D+ Manual de usuario
Quick Start Guide
Help Hisense improve the environment by reducing paper waste.
For detailed instructions and feature descriptions, access the full User Manual online .
H3 Series TV
H3 Series
© 2016 Hisense Company Ltd. All Rights Reserved.
All material in this Quick Start Guide is the property of Hisense Company Ltd. and its subsidiaries, and is protected under US,
CANADA, MEXICO and International copyright and/or other intellectual property laws. Reproduction or transmission of the materials,
in whole or in part, in any manner, electronic, print, or otherwise, without the prior written consent of the Hisense Company Ltd. is a
violation of Hisense Company Ltd. rights under the aforementioned laws.
No part of this publication may be stored, reproduced, transmitted or distributed, in whole or in part, in any manner, electronic or
otherwise, whether or not for a charge or other or no consideration, without the prior written permission of Hisense Company Ltd.
Requests for permission to store, reproduce, transmit or distribute materials may be made to one of the following addresses:
USA:
Hisense USA Corporation
PO Box 3289
Suwanee, GA 30024
CANADA: Hisense Canada Co., Ltd,
2283 Argentia Road, Unit 16
Mississauga, ON, Canada L5N 5Z2
MEXICO: Hisense Mexico S. de R.L. de C.V.
Blvd. Miguel de Cervantes Saavedra No 301
Torre Norte Piso 2, Col. Ampliación Granada
Miguel Hidalgo, Ciudad de México, C.P. 11520
Hisense, and any and all other Hisense product names, logo’s, slogans or marks are registered trademarks of Hisense Company
Ltd. and its subsidiaries. All other trademarks are the property of their respective holders.
1
Enjoy TV in a Super Simple and Super Unique Way!
Multiple Connection Methods
• 1 Digital Audio Out port
• 1 USB Connector
• 3 HDMI Connectors
• RF Antenna connector
• Component ports
• Composite ports
• 1 Headphone jack
High-Quality Picture and Sound
• Vibrant contrast and brightness to display images accurately
• Crisp sound and powerful TV speaker output
• 1080p full high definition (FHD) resolution
LED TV with Popular Features
• LED backlight that offers better brightness and contrast
• Energy-efficient design to reduce your utility bill
• HiMedia Digital Media Player to play back digital content
from your USB drive
Easy Setup Menu and Simple Design
• Short and easy-to-follow first-time setup menu
• Simple user interface (UI) design to navigate
• Descriptive features to help make your selections
2
WELCOME TO THE HISENSE FAMILY!
Congratulations on the purchase of your new Hisense TV! This Quick Start Guide will walk you through a few
easy steps to set up your TV. For more details about all of the features and instructions to use them, download
a PDF of the Hisense H3 Series TV User Manual from the Hisense support website below.
Because we value your business, we want to keep you in the know of 'all things Hisense'. Using your mobile phone, scan the Registration page QR code
to register your TV. Depending on the make and model of your phone, you may need to download a QR code scanning app.
Country Customer Care Center Hisense Support Page REGISTER YOUR TV
U.S.A •Phone: 1-888-935-8880
•Hours of Operation:
Monday - Friday: 9 AM to 9 PM EST
Saturday - Sunday: 9 AM to 6 PM EST
•Service Email: [email protected]
http://www.hisense-usa.com/
support/
http://www.hisense-
usa.com/support/
productReg.asp
CANADA •Phone: 1-855-344-7367
•Hours of Operation:
Monday - Friday: 8 AM to 8 PM EST
•Service Email: [email protected]
http://www.hisense-canada.
com/support/ http://www.hisense-
canada.com/
support/productReg.
asp
MEXICO •Phone: 01-800-008 8880
•Hours of Operation: Monday - Friday 9:00-18:00
•Service Email: [email protected]
http://www.hisense.com.mx/
support/ http://www.hisense.
com.mx/support/
productReg.asp
To view and open the user manual, you will need to install Adobe® Reader® (which is FREE) to your computer. Once you arrive on the Support page of the
Hisense website, enter the model number located on the back of the TV or on the outside of the box.
Disclaimer: This Quick Start Guide is intended as a general guideline to help you set up your Hisense TV.
Images throughout this document are for illustrative purposes only and may differ from the actual product.
*Scan to download user manual
3
PACKAGED CONTENTS
Your package in which you purchased your new TV contains the following items:
● TV ● 2basestands
●4screws ● RemoteControl
● 2AAAbatteries ● QuickStartGuide(thisdocument)
● ImportantSafetyInformationandWarrantyCard
IMPORTANT:
To prevent accidentally discarding items that came with your TV, be sure to check ALL of the foam in the carton box.
·Please check foam for accessories before discarding.
·Veuillez vérifier la mousse pour qu'il n'y ait pas d'accessoires avant de la jeter.
·Antes de desechar la espuma, asegúrese de retirar todos los accesorios.
Required tools and devices
● Phillipsscrewdriver(notincluded)tosecuretheTVstand
● HDMIandothertypesofcables(notincluded)toconnectexternaldevicestotheTV
● Wallmountbracket(notincluded)ifyouprefertomounttheTVtothewall
4
BUTTONS AND PORTS ON THE TV
Back View of the TV TV Side View
TV Bottom View
HEADPHONE
STEP 1. Attach the TV Stand or Wall Mount Bracket
Attach the TV Stand
Follow the illustrations and instructions below to complete the installation steps:
1. Carefully place your TV facedown on a soft, surface to prevent damage to the TV or scratching to the screen.
2. Remove the 2 stands from the foam and then insert the stands into the bottom slots of the TV.
3. Use the 4 screws in the accessory bag to secure the BASE STAND to the TV.
BASE STAND
BASE STAND
Screws: ST4×12F (32")
ST4×14F (40"/43")
Screws: ST4×12F (32")
ST4×14F (40"/43")
5
6

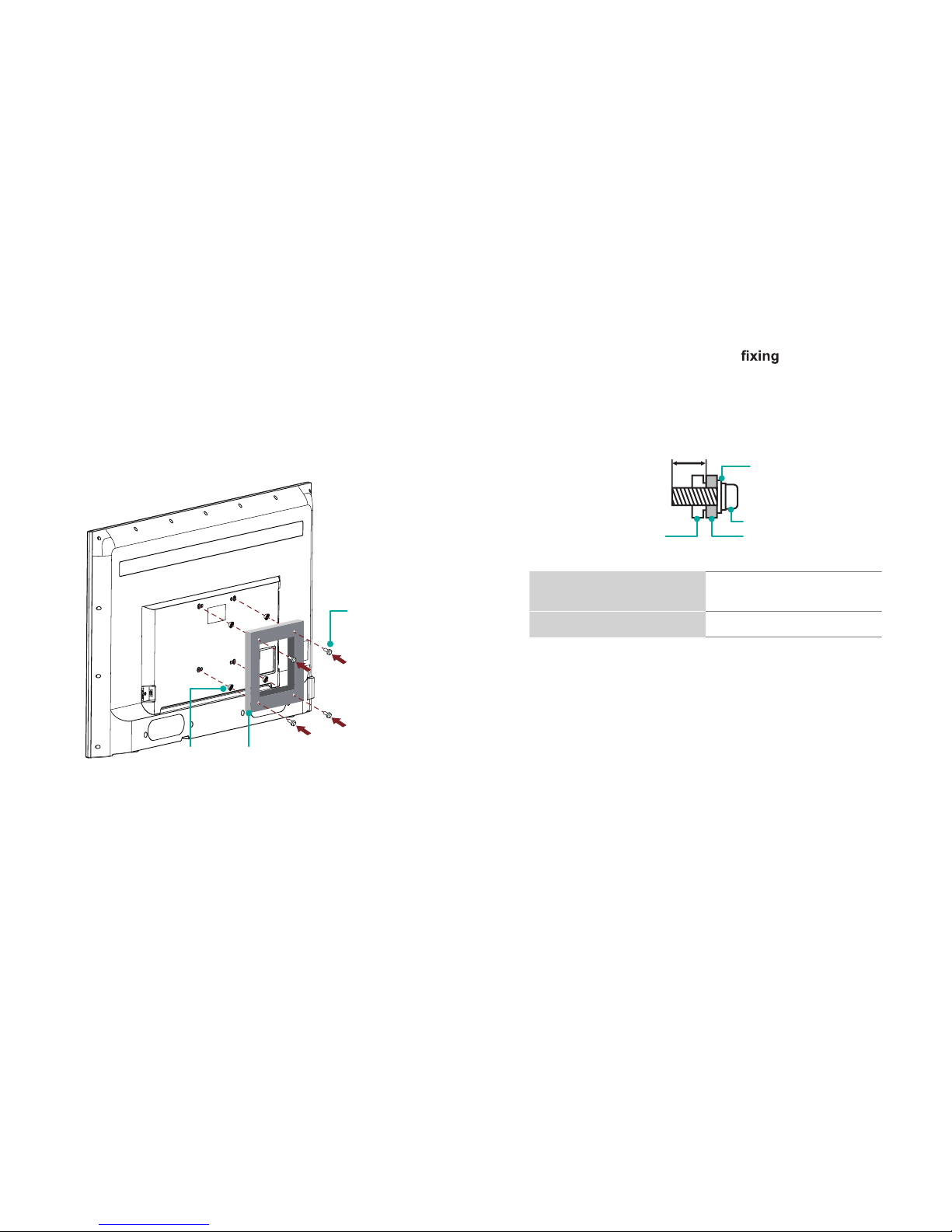

Attach the Wall Mount Bracket (not included)
Before you begin the third-party manufacturer instructions, be
sure to do the following things:
1.Place the TV face down on a clean, safe and cushioned surface.
2.Remove the TV stand if you already attached it.
3.Place the spacers (not included) in the corresponding bracket
holes.
CAUTION:
• When you attach the mount, be sure to use the spacers
(provided by the third-party manufacturer) between the TV
and the bracket.
Screw
(not provided)
Bracket
(not provided)
Spacer
(not provided)
•To prevent internal damage to the TV and ensure it is
mounted securely, be sure to use screws (not
provided) that are 8 - 10 mm(32"/40") / 9.5 - 11.5 mm(43")
in length when measured from the attaching surface of
the mounting hook.
Follow instructions provided with the Wall mount bracket.
● To complete the installation, please contact the wall-mount
manufacturer or the retailer from which you purchased the TV.
●The selected screws are 8-10 mm(32"/40") / 9.5-11.5 mm(43")
in length when measured from the attaching surface of the rear
cover.
NOTE: The diameter and length of the screws differ
depending on the wall mount bracket model.
Rear cover of the TV Spacer
Screw
Wall mount bracket
Wall mount hole pattern
VESA (mm) 200 × 200
Wall mount screw size M6
8.0~10.0mm(32"/40")
9.5~11.5mm(43")
7
STEP2.ConnectdevicestoyourTV
Check to ensure that you have selected the right cables for the ports and that they are connected securely. Loose connections can affect
the quality of the picture image and color.
TV label Port Cable External Equipment Brief Description
ANT
CABLE IN
Antenna
VHF/UHF Antenna
ANT OUT
Connect an outdoor VHF/UHF antenna.
HDMI
DVD Player/Recorder
Set-top Box
Satellite Receiver
Satellite
antenna
cable
VCR
Video
Camera
COMPO-
NENT IN
YGreen
Connect a component video cable and left-right
audio cables from an external AV device.
PBBlue
PRRed
LWhite
RRed
AV IN
VIDEO Yellow
Connect a composite video cable and left-right
audio cables from an external AV device.
LWhite
RRed
Connect a High Definition Multimedia Interface
(HDMI) cable from an external device.
8
TV label Port Cable External Equipment Brief Description
DIGITAL AUDIO OUT
Speaker
Connect an optical cable from an external
digital audio system.
/ AUDIO OUT
Connect headphones to hear audio from the
TV.
Connect an audio adapter (not provided) from
an external analog audio system.
USB
SERVICE This port is not available for you to connect an external device. It can only be used by our factory for testing
purposes.
White
Red
Speaker
Connect a USB device for browsing photos
and movies.
The unit only recognizes a USB Memory Stick.
