Hisense BCD-560WPZ/HC1 (H) Manual de usuario

重要度

产品

名称:

冷藏冷冻箱

产品

型号：

BCD-560WPZ/HC1(H)

文件

名称：

售后服务技术资料

文件

编号：

BSSJ00002772

编制

日期：

2021 年3月20 日

借(通)用件登记

家电开发

中心

旧底图总号

底图总号

售后服务

技术资料

版本

更改单

编号

签字

日期

重量

比例

出图审查

设计

曾思锋

审核

标准

化

共51 张

第1张

BSSJ00002

772

日期

批准

Refrigerator

Service Manual

Model:BCD-560WPZ/HC1 (H)

Contents

1. Warnings and precautions for safety .......................................................................4

2. Appearance and structure

2.1 View of the appliance ..................................................................................................5

2.2 Wind channel structure ...............................................................................................6

2.3 Evaporator structure ...................................................................................................6

2.4 Compressor room structure ........................................................................................7

3. Basic parameters ........................................................................................................8

4. Operation and functions

4.1 Display controls............................................................................................................9

4.2 Using the appliance.....................................................................................................11

4.3 Connect Water Line to Refrigerator............................................................................13

4.4 Using theAppliance.....................................................................................................13

4.5 Remove the Ice maker part ........................................................................................14

4.6 Error display ................................................................................................................15

5. Troubleshooting

5.1 Common problem and checking ................................................................................18

5.2 Faulty start ..................................................................................................................21

5.3 Refrigeration failure ....................................................................................................22

5.4 Thick frost in freezer compartment ............................................................................25

5.5 Dew in refrigerator compartment................................................................................26

5.6 Breaking of light ..........................................................................................................27

5.7 Noise ...........................................................................................................................28

6. Circuit and checking

6.1 Circuit diagram ............................................................................................................29

6.2 Mainboard ...................................................................................................................29

6.3 Compressor..................................................................................................................31

6.4 Fan motor.....................................................................................................................32

6.5 Damper.........................................................................................................................35

6.6 Light .............................................................................................................................37

6.7 Door switch ..................................................................................................................39

6.8 Defrost heater ..............................................................................................................39

6.9 Removing the Display Component ............................................................................41

6.10 Cooling electromagnetic valve...................................................................... ............42

7. Cooling system repairing

7.1 Refrigeration system ...................................................................................................44

7.2 Summary of repair........................................................................................................45

7.3 Regulation of repair......................................................................................................46

7.4 Practical work of repair ................................................................................................47

7.5 Brazing reference drawing ..........................................................................................48

1. Warning and precautions for safety

Please observe the following safety precautions in order to use safely and correctly the

refrigerator and to prevent accident and danger during repair.

1. Be care of an electric shock. Disconnect power cord from wall outlet and wait for more

than three minutes before replacing PCB parts. Shut off the power whenever replacing

and repairing electric components.

2. When connecting power cord, please wait for more than five minutes after power cord

was disconnected from the wall outlet.

3. Please check if the power plug is pressed down by the refrigerator against the wall. If

the power plug was damaged, it may cause fire or electric shock.

4. If the wall outlet is over loaded, it may cause fire. Please use its own individual electrical

outlet for the refrigerator.

5. Please make sure the outlet is properly earthed, particularly in wet or damp area.

6. Use standard electrical components when replacing them.

7. Make sure the hook is correctly engaged. Remove dust and foreign materials from the

housing and connecting parts.

8. Do not fray, damage, machine, heavily bend, pull out or twist the power cord.

9. Please check the evidence of moisture intrusion in the electrical components. Replace

the parts or mask it with insulation tapes if moisture intrusion was confirmed.

10. Do not touch the ice maker with hands or tools to confirm the operation of geared

motor.

11. Do not let the customers repair, disassemble and reconstruct the refrigerator for

themselves. It may cause accident, electric shock, or fire.

12. Do not store flammable materials such as ether, benzene, alcohol, chemicals, gas, or

medicine in the refrigerator.

13. Do not put flower vase, cup, cosmetics, chemicals, etc., or container with full of water

on the top of the refrigerator.

14. Do not put glass bottles with full of water into the freezer. The contents shall freeze

and break the glass bottles.

15. When you scrap the refrigerator, please disconnect the door gasket first and scrap it

2. Appearance and structure

2.1 View of the appliance

Note！

Due to unceasing modification of our products, your refrigerator may be slightly different

from this instruction manual, but its functions and using methods remain the same.

To get the best energy efficiency of this product, please place all shelves, drawers and

baskets on their original position as the illustration above.

2.2 Wind channel structure

2.3 Evaporator structure

2.3.1 Convertible evaporator structure

2.3.2 Freezer evaporator structure

2.4 Compressor room structure

ⅠPower cord

ⅡAC electromagnetic valve

ⅢDry filter

ⅣCompressor

ⅤSuction tube

ⅥFan Motor

ⅦBottom condenser

ⅧEvaporation dish

ⅨValve body

Ⅰ

Ⅱ

Ⅲ

Ⅳ

Ⅴ

Ⅵ

Ⅶ

Ⅷ

Ⅸ

3. Basic parameters

Content

Unit

Value

Voltage/Frequy

V/Hz

115V/60Hz

Rated Current

Defrost Power

280

Energy consumption/year

kWh/year

555

Net Weight

118.5

Kind of

coolant/Charge(R134a/R600a)oz

R/g

R600a/65

4. Operation and functions

4.1 Display controls

Use your appliance according to the following control regulations, your appliance has the

corresponding functions and modes as the control panels showed in the pictures below.

When the appliance is powered on for the first time, the backlighting of the icons on

display panel starts working If no buttons have been pressed and the doors are closed,

the backlighting will turn off.

POWER

Press and hold the “POWER” button for 3

seconds to turn the power function on or

off. When the power function is on, the

“POWER” icon lights, the refrigerator is

stopped cooling.

Setting Compartment Temperatures

When you set a temperature, you are

setting an average temperature for the

entire compartment. The actual

compartment temperatures may vary from

the temperatures displayed depending on

the amount and placement of stored food,

and the surrounding room temperature.

Recommended Temperature Settings

•Fridge Compartment: 39℉(4°C)

•Fresh Choice Compartment: 19℉(-7°C)

•Freezer Compartment: 0℉(-18°C)

Refrigerator (Fridge) Compartment

Temperature

1. Press ZONE repeatedly until the Fridge

icon appears.

2. When Fridge is on, is illuminated

and then press TEMP. repeatedly to cycle

through the available temperature settings,

from 46℉to 36℉(8°C to 2°C).

NOTE: Each press of the button decrease

the setting by one degree.

3. Release the TEMP. control when the

desired temperature setting appears.

My Fresh Choice Compartment

Temperature

1. Press ZONE repeatedly until the My

Fresh Choice appears.

2. When My Fresh Choice is on, is

illuminated and then press TEMP.

repeatedly to cycle through the available

temperature settings, from 41℉to -4℉

(5°C to -20°C).

NOTE: Each press of the button decrease

the setting by one degree.

3. Release the TEMP. control when the

desired temperature setting appears.

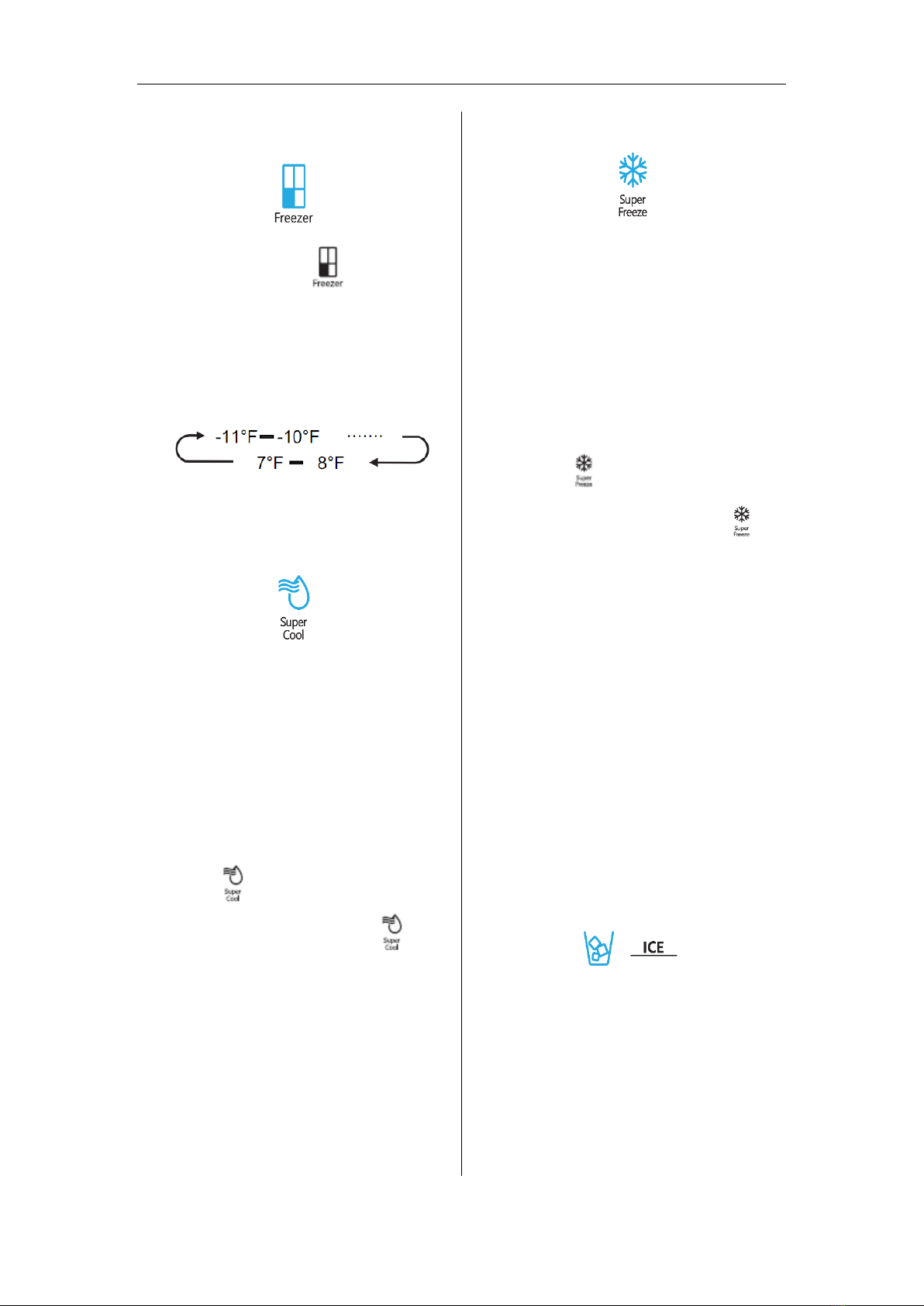

Freezer Compartment Temperature

1. Press ZONE repeatedly until the Fridge

icon appears.

2. When Freezer is on, is illuminated

and then press TEMP. repeatedly to cycle

through the available temperature settings,

from 7℉to -11℉(-14°C to -24°C).

NOTE: Each press of the button advances

the setting by one degree.

3. Release the TEMP. control when the

desired temperature setting appears.

Super Cool

The Super Cool feature helps to keep food

stored in the refrigerator at the set

temperature during periods of high usage,

large grocery loads, or temporarily warm

room temperatures.

The Super Cool feature lowers the

temperature in the fridge compartment to

36℉(2°C) to cool food faster.

1. Press MODE repeatedly until the Super

Cool icon appears.

NOTE: When Super Cool is on, is

illuminated and 36℉(2°C) appears in the

temperature display.

2. Press “MODE”to manually turn off

Super Cool and return to the previously

set temperature.

NOTE: Super Cool will automatically turn

off after 3 hours, and the refrigerator will

revert to its previous temperature setting.

Super Freeze

The Super Freeze feature helps to keep

the food stored in the freezer at the set

temperature during periods of high usage,

large grocery loads, or temporarily warm

room temperatures.

The Super Freeze feature lowers the

temperature in the freezer compartment to

-11℉(-24°C) to freeze food faster.

1. Press MODE repeatedly until the Super

Freeze icon appears.

NOTE: When Super Freeze is on, is

illuminated and 11℉(-24°C) appears in the

temperature display.

2. Press TEMP. to manually turn off Super

Freeze and return to the previously set

temperature.

NOTE: Super Freeze will automatically

turn off after 52 hours, and the freezer will

revert to its previous temperature setting.

When selecting the Super Freeze function.

ensure there are no bottled in the freezer

compartment. Bottles and cans may

explode.

ICE

The ice maker is located inside the freezer

compartment, near the top of the

compartment. When it makes ice, the ice

is stored in ice storage box inside the

upper freezer drawer.

1. Press the “ICE” button to turn the ice

maker on or of. When the ice maker is

Tabla de contenidos

Otros manuales de Refrigerador de Hisense

Hisense

Hisense RD-35DC4SAB/CV2-002 Instrucciones de montaje

Hisense

Hisense RS694N4BC1 Instrucciones de montaje

Hisense

Hisense RB400N4ACD Instrucciones de montaje

Hisense

Hisense RR130DAGS Instrucciones de montaje

Hisense

Hisense RB412N4AI1 Instrucciones de montaje

Hisense

Hisense RF632N4BBF Instrucciones de montaje

Hisense

Hisense RC-76WS4S Instrucciones de montaje

Hisense

Hisense RS694N4TC2 Instrucciones de montaje

Hisense

Hisense RF702N4 IS1 Instrucciones de montaje

Hisense

Hisense RQ560N4WC1 Instrucciones de operación

Hisense

Hisense RQ515N4AC2 Instrucciones de montaje

Hisense

Hisense RR53D6AAE Instrucciones de montaje

Hisense

Hisense H6500TS Instrucciones de montaje

Hisense

Hisense BCD-740WPCZR/HC1(H) Manual de usuario

Hisense

Hisense RB434N4BFD Manual técnico

Hisense

Hisense HR6BF157W Instrucciones de montaje

Hisense

Hisense RS868N4ASV Instrucciones de montaje

Hisense

Hisense BCD-543WP2BF1Z6/HC1(H) Manual de usuario

Hisense

Hisense RB327N4WB1 Instrucciones de montaje

Hisense

Hisense RS-33DL4SCB/CPA Manual de usuario

Hisense

Hisense RR220D4ADF Instrucciones de montaje

Hisense

Hisense HRT180N6AWE Manual de usuario

Hisense

Hisense RT417N4DC1 Instrucciones de montaje

Hisense

Hisense BCD-264R Instrucciones de montaje

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Frigidaire

Frigidaire FSC23R5DW9 Manual de usuario

Beko

Beko LSP4579W Manual de usuario
