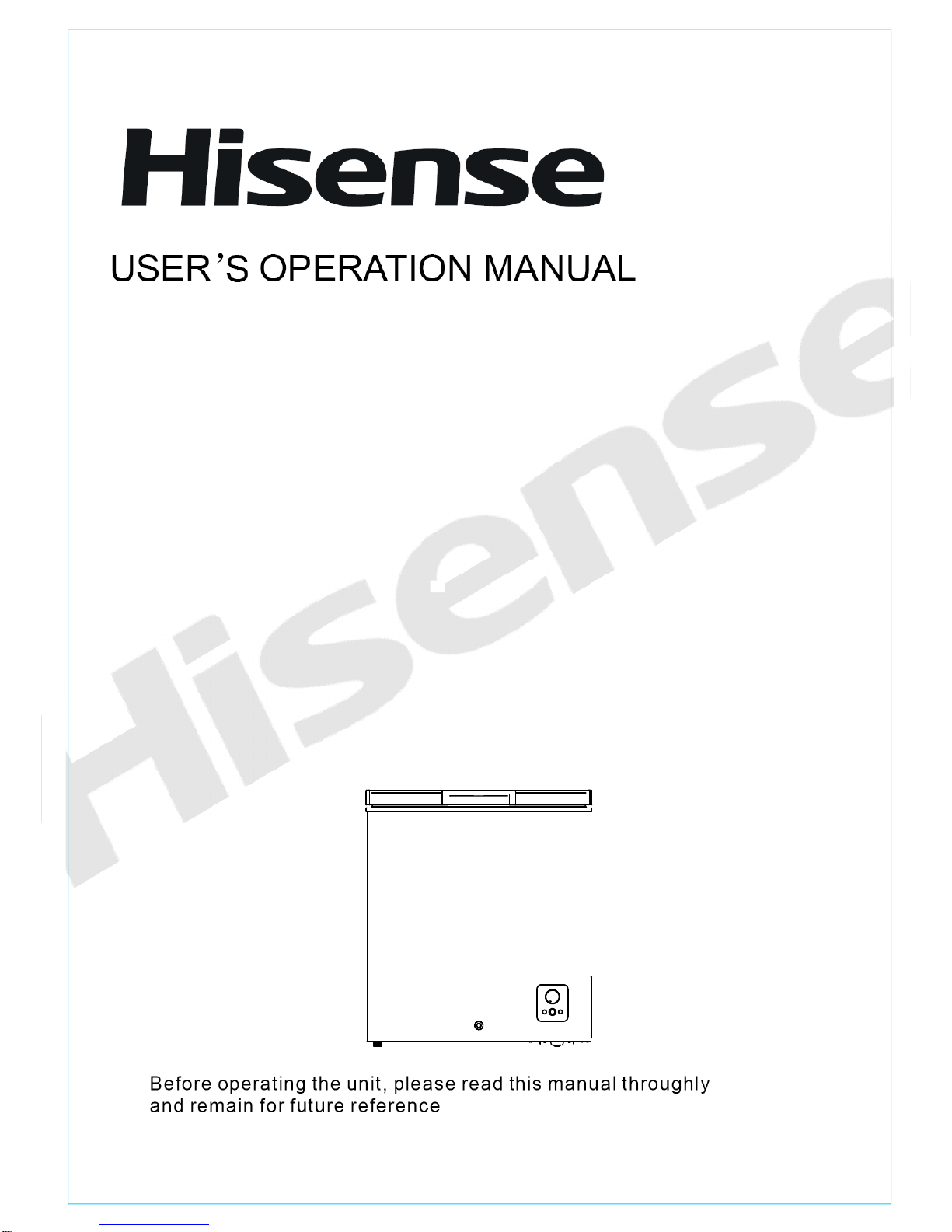

Hisense HR6CF146 Instrucciones de montaje

MODEL:HR6CF146

HR6CF206

HR6CF307

Service Note

This appliance employs Hydrocarbon Refrigerant type R600a.

It is hazardous for anyone other than an Authorized Service Person to service this applian.

In Queensland the authorized Service Person MUST hold a Gas Work Authorization for hydrocarbon

refrigerants to carry out servicing or repairs which involve removal of covers.

To ensure proper use, please thoroughly study these SAFETY PRECAUTIONS before operating the

appliance.

The purpose of the safety precautions in this manual is to minimize risks that could cause serious

damage and injury to you or other persons. The safety precautions are divided into WARNINGS and

CAUTIONS. Cases where improper handling of the unit could lead to death or serious injury are listed

under the WARNING heading. However, the cases listed under the CAUTION heading could

also lead to serious results. To ensure the safety, adhere strictly to both types of safety precautions.

SAFETY PRECAUTIONS 1

INSTRUCTION MANUAL

All repairs, disassembly and modifications

should be performed only by qualified

technicians. Attempting to perform

these yourself could result in a fire,

malfunction, and injury.

DON'T TAMPER ELECTRICAL

SHOCK HAZARDS

PRECAUTIONS FOR USE

PROHIBITED

Never splash water directly onto the

product or wash with water as short-

circuit and electrical leakage could result.

Do not damage, modify, excessively bend,

strain, twist or bundle up the power cord.

Also, placing heavy objects the power

cord or squeezing it in a tight place could

damage it, possible resulting in electrical

shock or fire.

Never put flammable or volatile

substances into the unit as explosion and

fire could result.

DANGER OF

EXPLOSION

WARNING Improper handling of the unit could lead to death or serious injury.

Use a dedicated wall outlet. Do not use

extension cords or convenience

receptacles as this could result in

electrical shock, overheating and a fire.

PROHIBITED

FLAMMABLE

Never use flammable spray cans or leave

flammable substances near the unit.

Sparks from electrical switches could

result in explosion and fire.

WARNING

Text

appliance

set off by the exclamation mark contains information that should be strictly adhered to. After

reading the instruction manual, store it an easily accessible place where the user(s) of this

can easily find it.

The unit is intended for storage of frozen foods.

Storage of items other than the intended could have

an adverse affect on the items stored in the unit.

Frozen foods

Never place heavy objects or items containing

water on top of the unit. Containers filled with

Water could fall and cause injury. Furthermore, the

spilled water could deteriorate the insulation of

electrical components and result in electrical leakage.

PROHIBITED

For indoor use only. Using the unit in a

location exposed to rain could result in

electrical leakage and electrical shock.

Do not store bottles and cans in the unit.

The contents could freeze and the

containers break causing injury.

PROHIBITED

If you find a gas leakage,please don't touch

the chest freezer,and close gas and open

the door for ventilation. A gas leakage could

cause an explosion, fire, and injury.

CAUSION AGAINST

EXPLOSION

Install the unit in a location where the

floor is sturdy enough to support the

load of the unit. If the floor is not sturdy

enough or installation is incorrectly

performed, the unit could tip over and

cause personal injury.

Cooling performance is reduced if the unit is

placed near heat sources such as hot plates and

stoves and if it is exposed to direct sunlight.

Keep away from hot air sources

Leave disassembly and disposal of the

unit to qualified experts.

WARNING

SAFETY PRECAUTIONS 2

INSTRUCTION MANUAL

When you dispose of refrigerators and freezers

remove any doors Children can suffocate if they get

trapped inside This refrigerator contains insulation

formed with flammable blowing gases Avoid safety

hazards by carefully disposing of this appliance

Please contact your local council and seek

environmentally friendly solution

When not in use please store the unit in a location away

from children. Please take necessary precautions to keep

the door opened to avoid accidental entrapment inside

the compartment.

PROHIBITED

Never hang from the door or climb onto

the unit.

Disconnect the power cord plug from the

wall outlet before moving the unit and make

sure that the power cord is not damaged

during transport. A damaged power cord

could result in electrical shock and/or fire.

DISCONNECT

POWER CORD

PLUG FROM

WALL OUTLET

When disconnecting the power cord plug

from the wall outlet, hold at the plug main

body close to the outlet. Pulling the cord

could cause wire breakage, causing

overheating and fire.

Make sure that the unit does not tip over

or fall when it is moved. A falling unit

could cause serious injury.

PROHIBITED

Never use if the power cord or plug is

damaged or the plug cannot be firmly seated

in the receptacle sockets as electrical shock,

short-circuit and fire could result.

Never touch the power cord plug, other

electrical components, or operate the switch

with wet hands. Electrical shock could result.

PROHIBITED

CAUTION

If the supply cord is damaged,it must be

replaced by the manufacturer or its ser-

vice agent or a similarly qualified person

in order to avoid a hazard.

SAFETY PRECAUTIONS 3

INSTRUCTION MANUAL

Sufficient ventilation is required to ensure your

freezer operates at optimum high efficiency and

with lowest possible power consumption, Therefore

you are required to place your appliance in a position

with adequate clearance. We recommend you place

your appliance at 100mm away from the wall to the

back of your appliance, 200mm from the side

clearance and 300mm from the top of your appliance.

A clearance space of 160 degrees is required for the

appliance door.

BEFORE USE

WAIT 5 MINUTES OR MORE BEFORE RE-STARTING

DEFROSTING

WARNING

Remove shipping packaging, tape, etc. and leave the lid open for ventilation for a while.

The unit is cleaned before shipment. However, clean the compartment interior once after delivery.

Following installation, refrigeration will start about 10 minutes after operation is started.

Operate for about 2 hours to cool the freezer compartment before placing items in the freezer.

Restarting the unit immediately after it has been turned off may cause fuses to blow and activate

the circuit-breaker, the compressor may be overloaded, and/or other damage may occur.

HOW TO USE

INSTRUCTION MANUAL

When 5mm of frost forms in the freezer, for maximum efficiency defrosting is required, you could shave off the

excess or defrost completely. If you defrost completely, please do as follows:

1.) Empty the contents & disconnect the power cord;

2.) Shaving the frost whilst thawing will shorten the defrost time;

3.) Then drain, wipe & clean the inside with a soft cloth.

Do not use a hammer, knife or bottle to chisel any part of the

freezer. Use a plastic scraper to prevent damaging the inside

lining and evaporater.

1 POWER FAILURE

2 WHEN NOT USED FOR A LONG PERIOD

3 WHEN NOT USED TEMPORARILY

1 EXTERIOR AND COOLER COMPARTMENT

CLEANING

INSTRUCTION MANUAL

Wipe with a soft, dry cloth. If very soiled, wipe with a cloth that has been moistened with a detergent. Then dry off

with a clean moist cloth.

For maximum efficiency keep the freezer clean at all times.

To prevent damage to plastic parts and lacquer coating do not clean your

appliance with hot water diluent, petrol, alcohol, kerosene, washing

powder, cleanser, aikailinous detergent, acid, chemical cloth, etc.

IN CASE OF THE FOLLOWING

Sudden power failure

Keep opening and closing of the door to a minimum to prevent cold air from escaping from the freezer

compartment. Covering exterior glass surfaces with a blanket, etc.will further help to maintain a low

temperature.

Announced power suspension

In case of a long power suspension, place dry ice in the freezer compartment.

Keep opening and closing of the door to a minimum.

Avoid placing new items in the freezer as this will raise the temperature inside the compartment.

Remove all items from the compartment and disconnect the power cord plug from the wall outlet.

Clean the compartment interior and wipe away all water. To prevent mold formation and bad smell, leave the door

open to dry the compartment completely.

Clean the compartment interior and wipe away all water.

Place an object in between the door and outer casing to prevent the door from closing.

Keep children away from playing with the unit - entrapment could result.

WARNING: Do not splash water directly onto the freezer and do not wash with water.

Short-circuit and electrical shock could result.

To prevent any electical shock hazards or injury , always disconnect the power cord

plug from the wall outlet before cleaning.

Nevertouch the interior of the Freezer Chamberor frozen foodsin the compartment with wet

handsasthiscould result in frostbite.

INSTRUCTIONMANUAL

ModelNO:HR6CF146 HR6CF206

The above image isfor reference only, configaration issubject to actual product.

Running

Alarm

Power

Drain

Nevertouch the interior of the Freezer Chamberor frozen foodsin the compartment with wet

handsasthiscould result in frostbite.

INSTRUCTIONMANUAL

ModelNO:HR6CF307

The above image isfor reference only, configaration issubject to actual product.

ezigFr en

ezig

Fren

ezigFr en

ezig

Fren

INSTRUCTIONMANUAL

If the cooling performance isinadequate,turn the

temperature control dial in the direction of Colder. If too

cold, turn dial in direction of Cold.

To adjust the temperature inside the freezercompartment,

adjust the temperature control dial on front-bottom side of

the chest freezer. Normally use chest freezer with

temperature Mid.

When you stop running temporally, please turn the

temperature control dial in the direction of Of f.

Capacity

Outer Dimensions

(mm)

Chest FreezerProduct Name

Performance

Product No.

Net Weight

Width

Depth Depth

30kg

34kg

HR6CF146

145L 205L

727 947

560 560

Height Height

823

Freezercompartment temperature: - 18 ;

Conditions: Ambient temperature 43 , unloaded state,not exposed to direct sunlight.

HR6CF206

The specifications may change, please refer to the circuit name plate on the back of your

chest freezer.

Capacity

Outer Dimensions

(mm)

Chest Freezer

Product Name

Performance

Product No.

Net Weight

Width

Depth

44kg

HR6CF307

306L

1126

670

Height

842

Freezer compartment temperature: - 18 ;

Conditions: Ambient temperature 43 , unloaded state,not exposed to direct sunlight.

INSTRUCTIONMANUAL

Off

Colder

Cold

Mid

If the cooling performance isinadequate,turn the

temperature control dial in the direction of Colder. If too

cold, turn dial in direction of Cold.

To adjust the temperature inside the freezercompartment,

adjust the temperature control dial on front-bottom side of

the chest freezer. Normally use chest freezer with

temperature Mid.

When you stop running temporally, please turn the

temperature control dial in the direction of Of f.

Off

Colder

Cold

Mid

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Congelador de Hisense

Hisense

Hisense FT124D4HW1 Instrucciones de montaje

Hisense

Hisense fc72d6bwe Instrucciones de montaje

Hisense

Hisense HR6CF144 Instrucciones de montaje

Hisense

Hisense FV354N4BIE Instrucciones de montaje

Hisense

Hisense RS-31WC4SAW Instrucciones de montaje

Hisense

Hisense RB390N4BC2 Instrucciones de montaje

Hisense

Hisense FC-13DD4SA1 Manual de usuario

Hisense

Hisense FCN300AWE1 Instrucciones de montaje

Hisense

Hisense RQ689N4WF1 Instrucciones de montaje

Hisense

Hisense HR6VFF177A Instrucciones de operación

Hisense

Hisense RB390N4BCC Instrucciones de montaje

Hisense

Hisense HCF07EE8WW00 Instrucciones de montaje

Hisense

Hisense RS677N4AWF Instrucciones de montaje

Hisense

Hisense HRCF300 Instrucciones de montaje

Hisense

Hisense RB390N4AC2 Manual de usuario

Hisense

Hisense RS741N4AC2 Instrucciones de montaje

Hisense

Hisense CFU14N6AWE Instrucciones de montaje

Hisense

Hisense RB440N4ACD Instrucciones de montaje

Hisense

Hisense HBC54D6AS Manual de usuario

Hisense

Hisense RB390N4WB1 Instrucciones de montaje

Hisense

Hisense RB11N6CSE Instrucciones de montaje

Hisense

Hisense HRCF297 Instrucciones de montaje

Hisense

Hisense RB390N4WCE Instrucciones de montaje

Hisense

Hisense FC34D6AWE Instrucciones de montaje

Manuales populares de Congelador de otras marcas

Siemens

Siemens GU..D SERIES Manual de usuario

Omcan

Omcan FR-CN-0155 Manual de usuario

Beko

Beko FNE290E24W Manual de usuario

Electrolux

Electrolux ARCTIS G 8 60 50-6I Manual de usuario

Electrolux

Electrolux EUF2042AOX Manual de usuario

Dometic

Dometic CoolFreeze CFX95DZ Manual de usuario

Electrolux

Electrolux EUF7000W1 Manual de usuario

Polar Electro

Polar Electro CT330 Manual de usuario

MPM

MPM MPM-145-SK Series Manual de usuario

SAF

SAF PRESTOTIG 200AC/DC Guía rápida

Zanussi

Zanussi ZFT11407WA Manual de usuario

AEG

AEG A63190GT Manual de usuario

AEG

AEG A81000TNW0 Manual de usuario

Matsui

Matsui MUC50S15E Manual de usuario

NEFF

NEFF G4344X8 Manual de usuario

Frigidaire

Frigidaire FV 1246 H Manual de usuario

Frigidaire

Frigidaire FFC13K1AW Manual de usuario

Electrolux

Electrolux EU 2400C Manual de usuario
