Himunication TS19 Manual de usuario

HIMUNICATION

VHF MARINE RADIO

TS19

User Manual

http://www.himunication.com

Please Scan the QR Code to Download

EN/FR/ES/ITA Multi-language User Manual





Contents
EU REGULATORY CONFORMANCE ......................................................................................................................2
CAUTION...................................................................................................................................................................2
TS19 PRODUCT DESCRIPTION .............................................................................................................................4
PTT BUTTON............................................................................................................................................................5
DISTRESS BUTTON.................................................................................................................................................5
SHORTCUT KEYS....................................................................................................................................................6
ICON..........................................................................................................................................................................6
MAIN .............................................................................................................................................................6
DSC ..............................................................................................................................................................9
MOB ............................................................................................................................................................10
H/M/L ..........................................................................................................................................................10
SCAN ..........................................................................................................................................................10
LOCK ..........................................................................................................................................................11
GPS ............................................................................................................................................................11
DIM .............................................................................................................................................................11
CHAN ..........................................................................................................................................................11
CH16 .........................................................................................................................................................11
CH09 .........................................................................................................................................................11
NIGHT .......................................................................................................................................................11
PSCAN .....................................................................................................................................................11
DUAL ........................................................................................................................................................11
TRIW .......................................................................................................................................................12
MEM .........................................................................................................................................................12
SAVE ........................................................................................................................................................12
P2nd .........................................................................................................................................................12
BAND ........................................................................................................................................................12
LANG ........................................................................................................................................................12
DASH ........................................................................................................................................................12

OTHER FEATURES AND SOLUTIONS ..........................................FOUT! BLADWIJZER NIET GEDEFINIEERD.

TX Time Out.....................................................................................................................................................13

How to update the software of TS19................................................................................................................13

The local time and date on screen...................................................................................................................13

Appendix A –Near Lightning Strike Test..........................................................................................................15

Appendix B –Channel List...............................................................................................................................17

International Marine VHF Channels & Frequencies........................................................................................17

U.S. Marine VHF Channels and Frequencies..................................................................................................20

Canadian Marine VHF Channels and Frequencies.........................................................................................23

European Private Channels and Frequencies.................................................................................................27

Weather Channels and Frequencies ...............................................................................................................28

Specifications...................................................................................................................................................29

Declaration of Conformity.................................................................................................................................21

TS19 User Manual

EU Regulatory Conformance

As certified by the qualified laboratory, the product is in compliance with the essential requirements and other

relevant provisions of the Directive 2014/53/EU. Please note that the above information is applicable to EU

countries only.

Manufacturer: HIMUNICATION

Trademark number: 11005103

Address:7th Floor,13 building, Run Dong Sheng Industrial Park, National Road 107, Longzhu community,

Xixiang, Baoan district, Shenzhen,China

Cautions

1. Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the

instructions.

2. Adapter shall be installed near the equipment and shall be easily accessible.

3. The device operating temperature range is -15~+55℃.

4. The plug considered as disconnect device of adapter.

5. The device complies with RF specifications when the device used at 25mm from your front face and 0mm from

your body.

6. Declaration of Conformity.

The information listed above provides the user with information needed to make him or her aware of a RF

exposure, and what to do to assure that this radio operates within the CE exposure limits of this radio.

The device complies with RF specifications when the device used at 25mm from your front face and 0mm from

your body. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any

metallic components. Body-worn accessories that do not meet these requirements may not comply with RF

exposure requirements and should be avoided. Maximum SAR Value (10g):0.459W/Kg.

Hereby, Shenzhen Himunication Technology Co ., Ltd declares that this Maritime Radio is in compliance with

essential requirements and other relevant provisions of Directive 2014/53/EU.

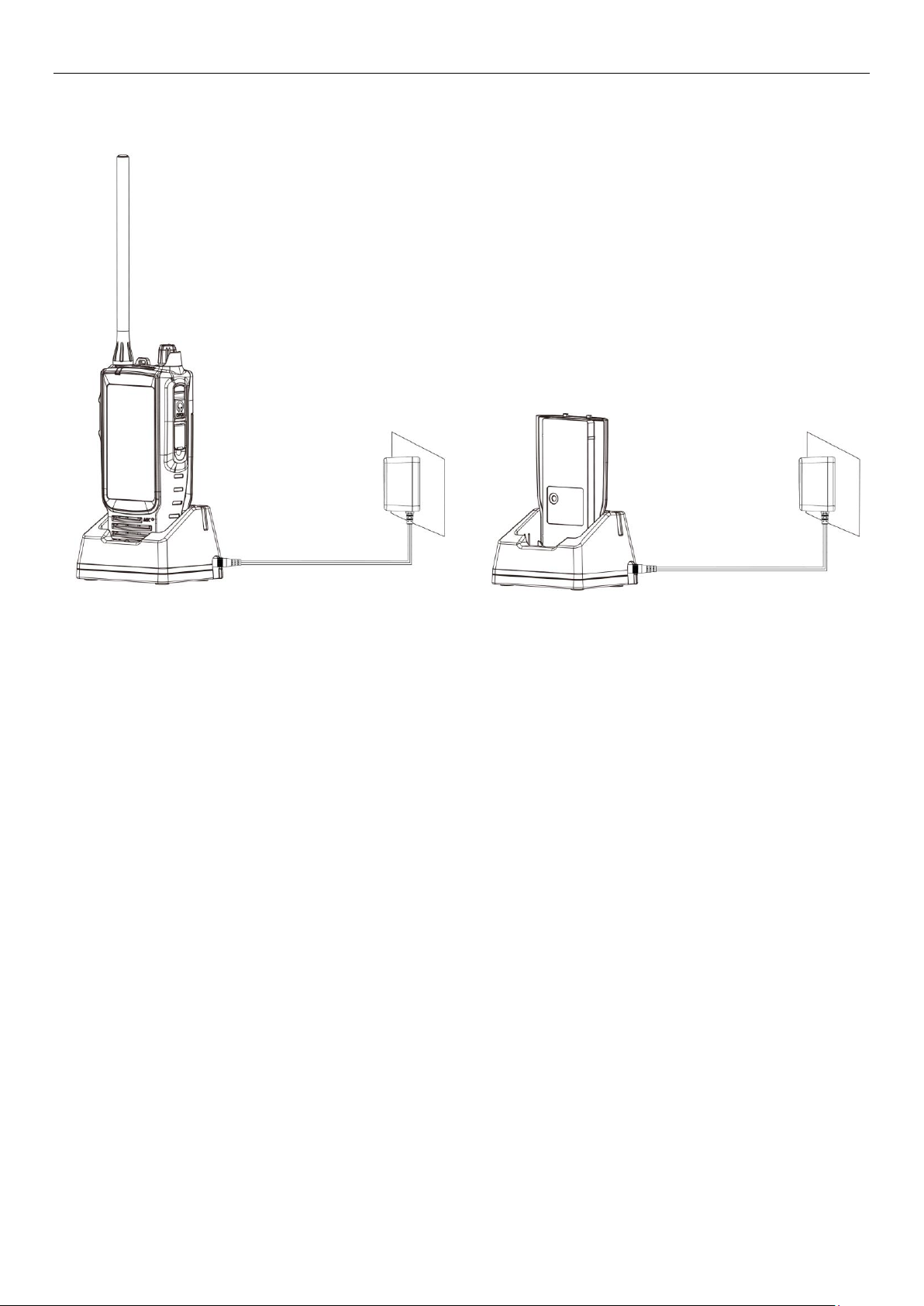

Installation and charging of the Li-Polymer battery pack

Place the battery on the device and secure it with the clip.

The battery pack can be charged when installed on the VHF radio, or separately on its supplied charger.

1. Insert the adapter connector into the charger.

2. Plug the adapter into a 220V AC socket.

3. Place the battery and VHF radio, installed on the VHF radio or separately, on the base of charge.

Note: The battery pack charges only on its base. The charging temperature of the charger base is -20~+40℃.

TS19 Product Description

Antenna

PTT

GPS position

Shortcut keys

Knob

Speaker

Headset jack

DISTRESS key

Icon

MIC

Figure 1 - TS19 VHF Hand Held Radio Figure 2 - TS19 AC/DC adapter and charge base

When turned on, the top of the interface is the information display: battery power, high and low power, DSC, etc.

The large word shows the current channel. You can click the large word and select the channel in the pop up

interface. You can scroll up large word by swiping it up and down.

GPS information is displayed in the middle of the screen. When the radio receive the GPS information, the screen

will show the GPS time, date, latitude and longitude. If the radio did not receive the GPS, the screen will display

"SEACHING GPS". It means the GPS is being searched.

PTT button

When you press the PTT button, the radio will start to transmit if the current channel is available for transmission,

and the radio will end the transmit after you release the PTT button.

DISTRESS button

Press the DISTRESS button to enter the DISTRESS interface, then select the DISTRESS that need to be

transmit, and press the DISTRESS button for 3 seconds to launch.

Knob

After power off, long press the knob until the screen display and then released the knob, the radio will power on.

After power on, long press the knob until the screen turns black and release to turn off, the radio will power off.

After power on, turn the knob or lower pressure knob to enter VOL adjustment; press down the knob again to

adjust SQL, then press the knob again to adjust the channel. The radio will exit adjustment operating (mode) if

there is no operation within 5 seconds.

Shortcut keys

This is the return function key.

This is the display desktop function key.

When the radio is not in priority channel, press this key to enter priority channel; If it is in priority

channel, press this button to exit priority channel.

This is the display confirmation function key

Icon

1. MAIN

Click MAIN icon to enter the main menu interface.

Main Menu

VHF Operation

GPS Setup

ATIS Operation

DSC Operation

System Config

Shake the water

Exit

Enter

VHF Operation

You can enter the setting of VHF Operation when you click the VHF Operation submenu.

VHF Operation

Channel Band Set

Priority 2nd Ch

You can enter the setting of BAND when you click the Channel Band Set submenu.

Click Priority 2nd Ch to enter the setting of the second Priority channel. You can turn the page to the left or right,

or click the two triangles in the upper right corner to turn the page to find the channel you want to set. Then click

the corresponding position to display the selected second Priority channel

GPS Setup

You can enter the setting of GPS when you click the GPS Setup submenu.

GPS Setup

GPS Setting

GPS ON/OFF

GPS Source

GPS ON/OFF is the function switch of GPS. You can set the GPS information signal source from the built-in or

via 2.4G channel.

ATIS Operation

You can enter theATIS setting when you click theATIS Operation submenu.

ATIS Operation

MYATIS ID

ATIS Function

Click MYATIS ID: ifATIS ID has been set, ATIS ID will be displayed. If not, you can set the ATIS ID. ClickATIS

Function to enable or disableATIS Function.

You must enter your userATIS ID before you can access theATIS functions. This is a once-only operation.

To change yourATIS ID please contact your local dealer.

Note: whenATIS mode is enabled, the following occurs:

DSC, DUAL watch, Tri Watch, Scan and PScan functions are disabled.

DSC Operation

You can click the DSC Operation submenu to enter DSC setting.

DSC Operation

MY MMSI ID

DSC Function

Click MY MMSI ID: if the MMSI ID is set, the MMSI ID will be displayed. If not, you can set the MMSI ID. Click

DSC Function to enable or disable the DSC Function.

You must enter your user MMSI ID before you can access the DSC functions. This is a once-only operation. To

change your MMSI ID please contact your local dealer.

Note: when DSC mode is enabled, theATIS function is disabled.

System Configuration

Click System Config submenu to enter the function interface of the setting System.

System Config

Powersaving Time

Key Beep

Version Info

Factory Reset

Language Select

Speed Unit

Dash simulator

2.4G ON/OFF

◆Powersaving time: It is how long it takes to enter the power saving mode after no operation. After setting the

power saving, if there is no operation for five seconds, the backlight will be dimmed

◆Key Beep: To set the key beep

◆Version Info :You can check the SW Version number

◆Factory Reset: To enter the system reset

◆Language Select: Select the language you want (English, French and Spanish languages are available)

◆Speed Unit: To set the unit of wind speed of the instrument panel (kts or m/s)

◆Dash simulator: To simulate the dashboard display
