HIMS SenseView DUO Manual de usuario

Table of Contents

1. What is the SenseView LIGHT? ....................4

2. Safety precaution...........................................5

3. Package.........................................................6

4. Configuration .................................................7

5. After purchasing.............................................9

(1) Charging..................................................9

(2) Remove screen protection film................9

6. How to use...................................................10

(1) Starting the SenseView LIGHT.............10

①Power on/off .....................................10

②Location of the camera.....................11

(2) Zoom.....................................................11

①Changing the magnification rate.......11

②Using the legs...................................11

③Semi-distance...................................13

(3) Changing color......................................14

(4) Changing brightness on the screen ......15

(5) Still image..............................................15

(6) Changingthebrightnessoftheillumination.16

(7) Additional features ....................................16

①Power saving mode..........................16

②Checking the battery status..............17

③Sound on/off.....................................18

7. Troubleshooting...........................................19

8. Technical Specifications...............................22

9. Warranty ......................................................22

User manual –SenseView LIGHT

1.What is the SenseView LIGHT?

The SenseView LIGHT is compact size so you

can carry in your pocket and use whenever you

want. To read books or newspapers for a long

time, unfold legs at the bottom. If you unfold one

leg, it is inclined so you can read in comfortable

position without bending your neck.

To make vividness text of books or

newspapers more vivid and to see receipts,

statements of way bills, or colorful text clearly, it

provides Full color mode and High contrast

mode.

AMOLED, new the next generation display, of

the SenseView LIGHT provides high contrast to

recognize text easily and equipped with better

viewing display capability which can be viewed

from more diverse angles. It can still be used in

high ambient light such as when you are outside.

User manual –SenseView LIGHT

2.Safety precaution

To protect both yourself and the equipment,

observe the following precautions.

Do not use damaged power plug or unsuitable

outlet to prevent electronic shock or fire.

Do not touch power plug with wet hands to

prevent electronic shock.

Only the supplied adapter by HIMS should be

used. Other power adapter may damage the

unit.

Do not use this unit in moisture environment

like a bathroom or shower room to prevent

any damage.

Do not take apart the device by yourself or

anyone else who is not authorized by HIMS. If

an unauthorized person or company

disassembles the device, serious damage may

occur to the device and the warranty is void.

After 6 months use of the device, the lifespan

of the battery may be shortened.

Do not use this unit under the direct sunlight

and in very hot or cold environment. The

screen may not be displayed accurately. Use

this unit not beyond 0°C ~ 35°C.

User manual –SenseView LIGHT

3.Package

(1) SenseView LIGHT

(2) AC adapter

(3) Carrying case

(4) Strap

(5) User manual

User manual –SenseView LIGHT

4.Configuration

(1) Power switch

(2) AC Jack (connect to a power adapter)

(3) Battery charging indicator

(4) Zoom button

(5) Screen brightness button

(6) Color mode button

(7) Screen

(8) Strap hole

(7)

(4)

(5)

(6)

(2)

(1)

(8)

(3)

User manual –SenseView LIGHT

(9) Illumination brightness button

(10) Still image button

(11) Camera

(12) Legs

(13) Illumination

(11)

(12)

(13)

(9)

(10)

User manual –SenseView LIGHT

5.After purchasing

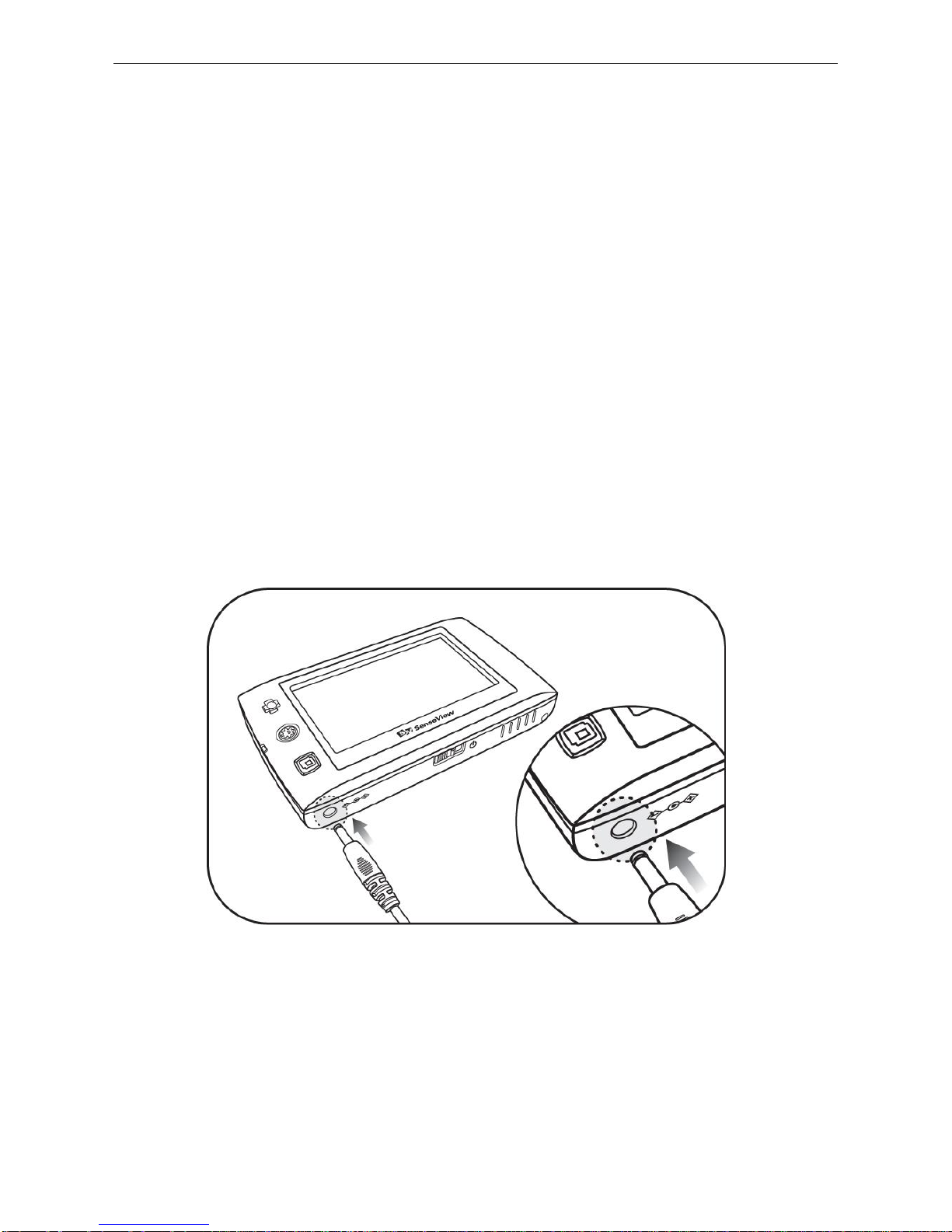

(1) Charging

Battery must be fully charged approximately for

3 hours prior to initial use.

To charge the battery, plug the supplied AC

adapter into the AC adapter jack on the

bottom of the device.

A full charge takes about 3 hours.

The battery indicator located left edge side of

the front will glow red while charging and it

will glow green when it's fully charged.

※The unit might be getting warm while charging.

(2) Remove screen protection film

A protection film is covered on the screen. Make

sure that take it off before using the unit.

User manual –SenseView LIGHT

6.How to use

(1) Starting the SenseView LIGHT

①Power on/off

The power switch is located at the center of

the bottom panel.

To turn on, slide the power switch to the right.

The magnified image will show up.

To turn off, slide the power switch to the right

once again.

※Do not turn on the device right away after

turning it off. The unit might be damaged.
