Hillman HDC-1660 Manual de usuario

Operation Instructions

DVD/VCD/CD/MP3/USB/SD/MMC PLAYER

BLUETOOTH, WITH FM/MW TUNER

HDC-1660

DVD/VCD/CD/MP3/

USB/SD/MMC Player with FM/MW Tuner

Operating Instructions

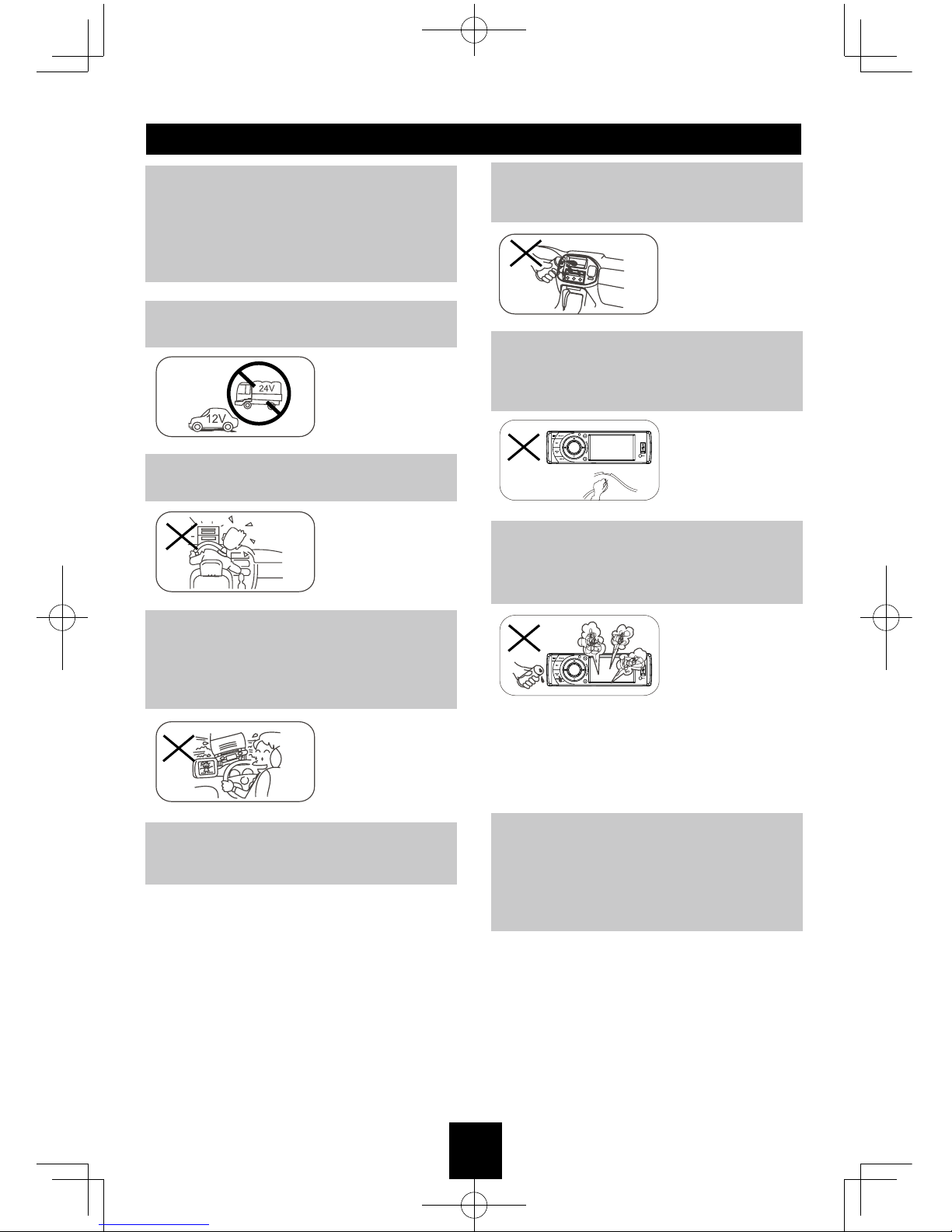

Safety Precautions

To ensure safe driving, please adjust the

volume to a safe & comfort level in case of

emergency situations.

Never expose this unit, amplifier, and

speakers to moisture or water for preventing

electric sparks or fires.

Please don't change the fuse on the power

cord without professional guidance, using

improper fuse may cause damage to this unit

or even cause fire.

Please power off this unit at once and send it

back to the after-sales service center or the

dealer/distributor you purchased from if one

of the following symptoms is found:

(a). No audio output;

(b). No image output;

(c). Water or other obstacle enters the unit;

(d). Smoking;

(e). Peculiar smell.

Only connect the unit to a 12-volt power

supply with negative grounding.

MUTE

Never install this unit where the operation &

condition for safety driving is restrained.

MUTE

Never use the video display function in the

front when driving to prevent the violation of

laws & regulations and also to reduce the

risk of traffic accident except using for rear

view video camera.

MUTE

Thank you for purchasing this product.

Please read through these operating

instructions so you will know how to operate

your model properly. After you have finished

reading the instructions, keep this manual in

a safe place for future reference.

To provide a clear demonstration and an

alternative for easy understanding of the

operation of this unit, graphic illustration

was used. However, this illustration is not

necessary printed as the actual image found

on the unit.

Safety Information Contents

Caution

This product is a CLASS 1 LASER PRODUCT.

Use of controls or adjustments or performance

of procedures other than those specified

herein may result in hazardous radiation

exposure. Do not open covers and do not

repair yourself. Refer servicing to qualified

personnel.

Two Laser Products

Wave length: CD: 780nm DVD: 650nm

Laser power: No hazardous radiation is

emitted with safety protection.

To reduce the risk of fire electric shock, and

annoying interference, use only the included

components.

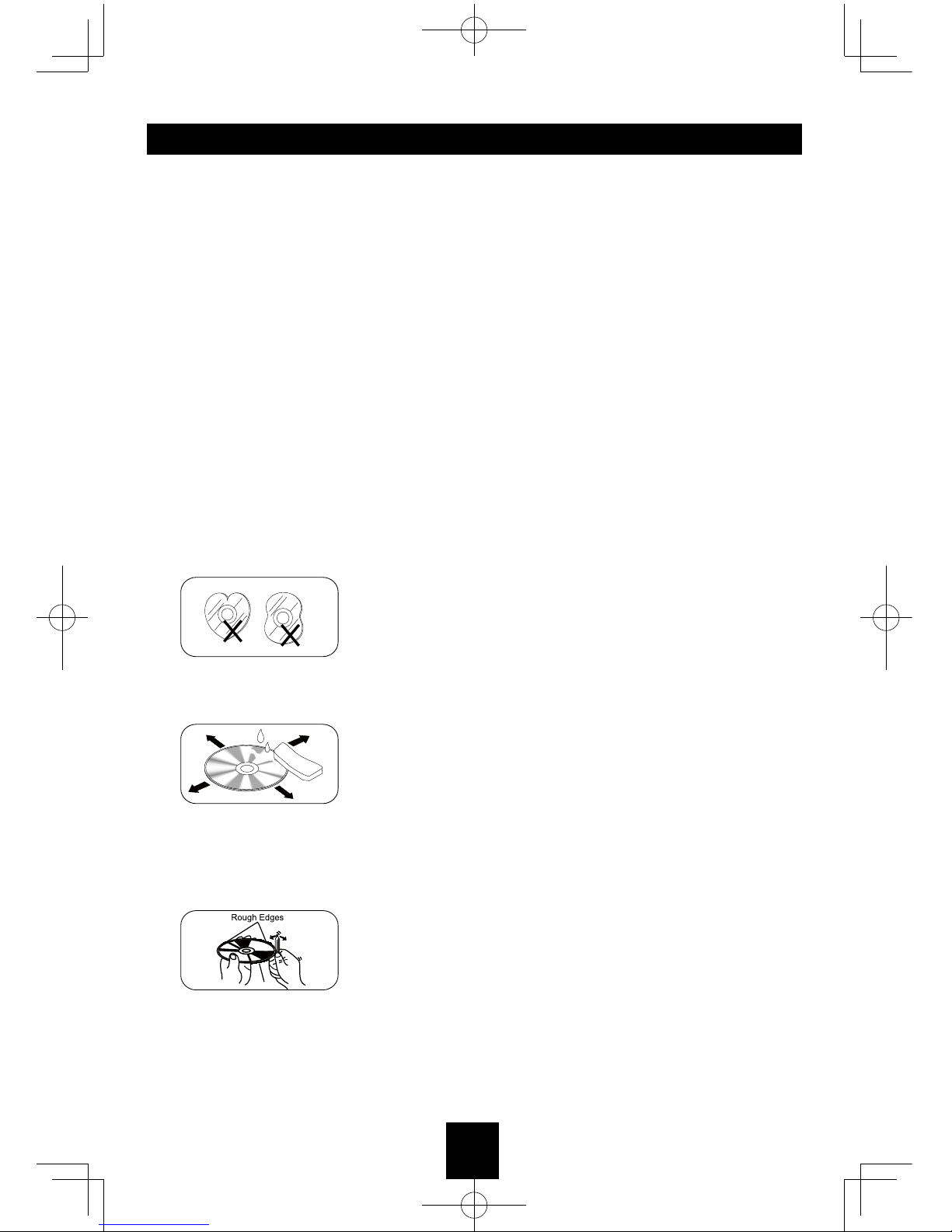

Caution of Disc Using

1. Never insert a 3-inch ( 8cm ) CD contained

in the adapter or an irregularly shaped

CD. The unit may not be able to eject it,

resulting in a malfunction.

2. Disc Cleaning. Use a dry, soft cloth to wipe

the disc from center to edge, only neutral

detergent can be used.

3. When playing a new disc. New disc may

have some rough spots around the inner

and outer edges. If such a disc is used,

remove these rough spots with a pencil or

ball-point pen, etc.

Safety Precautions .........................................1

Safety Information . .........................................2

Features .........................................................3

Panel Controls. ...............................................4

Remote Controls ............................................5

USB/SD/MMC/MP3 Playback . .......................6

Basic Operation..............................................7

Rotary Knob Menu ....................................8-11

Radio Mode..................................................12

RDS (Radio Data System) . .........................13

Disc Mode ...............................................14-17

BT Mode..................................................18-20

Device Connections ................................21-23

Installation Guide.....................................23-25

Anti-Theft System.........................................25

Troubleshooting............................................26

Care and Maintainance................................27

Specifications ...............................................28

DVD-R/RW Compatibility

It is possible to playback DVD-R/RW discs

recorded with the video format and Video

Recording format.

Video CDs Featuring PBC

Compatibility

It is possible to playback Video CDs featuring

PBC (playback control).

WMA and MP3 Compatibility

It is possible to playback WMA and MP3 files.

D i v X ® v i d e o C o m p a t i b i l i t y

(optional)

Dolby Digital:

“Dolby” and the double-D symbol are

trademarks of Dolby Laboratories.

Manufactured under license from Dolby

Laboratories.

About WMA

This unit can playback WMA data.

Windows Media and the Windows logo are

trade marks or registered trademarks of

Microsoft Corporation in the United States

and/or other countries.

This unit may not operate correctly depending

on the application used to encode WMA files.

Features

Button Operation Explanations

Some frequent operations

1. Move cursor

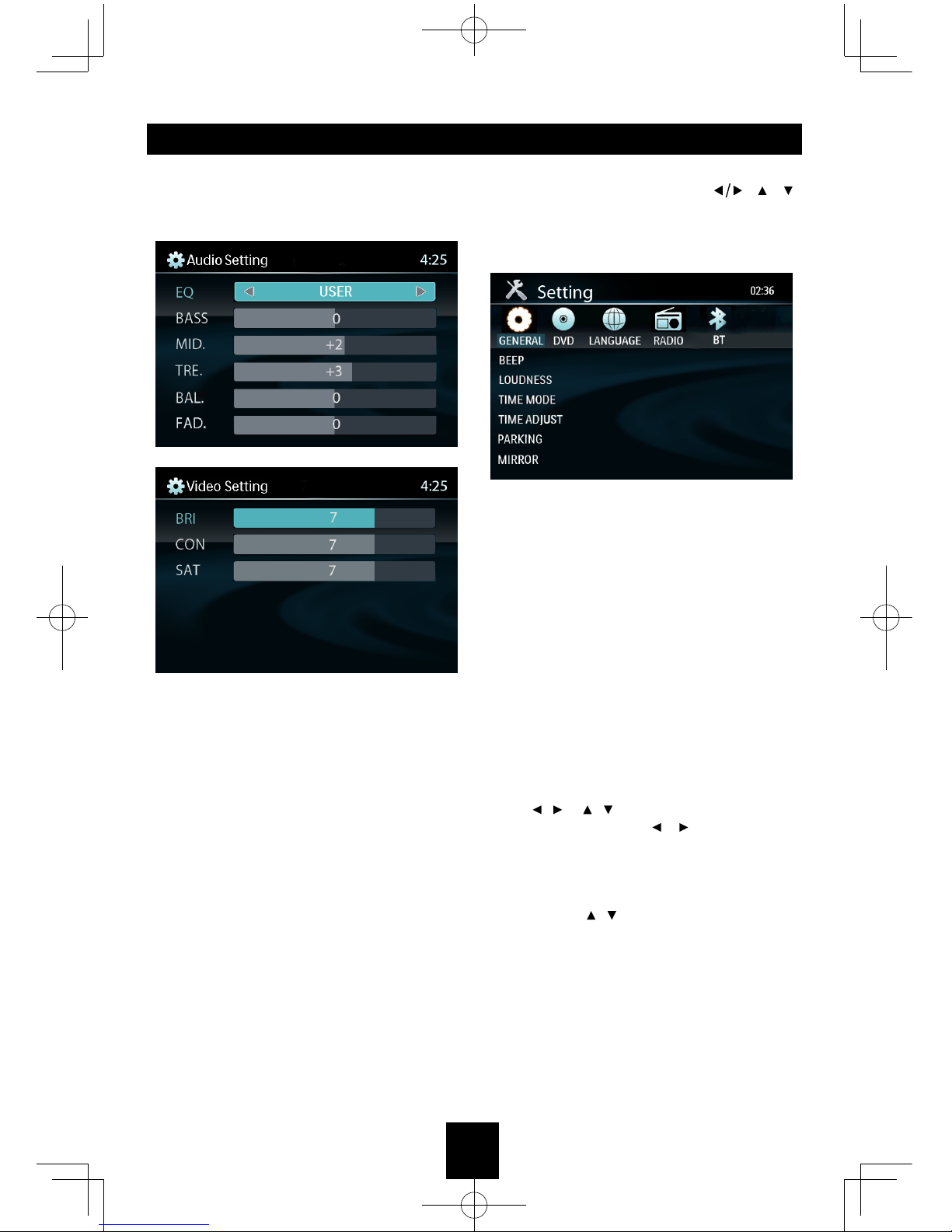

In Setting mode, rotating the VOL knob has

the same function as the / button to select

setting items.

2. Conﬁrm

About MP3

Supply of this product only conveys a license

for private, non-commercial use and does not

convey a license nor imply any right to use

this product in any commercial (i.e. revenue-

generating) realtime broadcasting (terrestrial,

satellite, cable and/or any other media),

broad-casting/streaming via internet, intranets

and/or other networks or in other electronic

content distribution systems, such as pay-

audio or audio-on-dem and applications.

An independent license for such use is

required. For de-tails, please visit http://www.

mp3licensing.com.

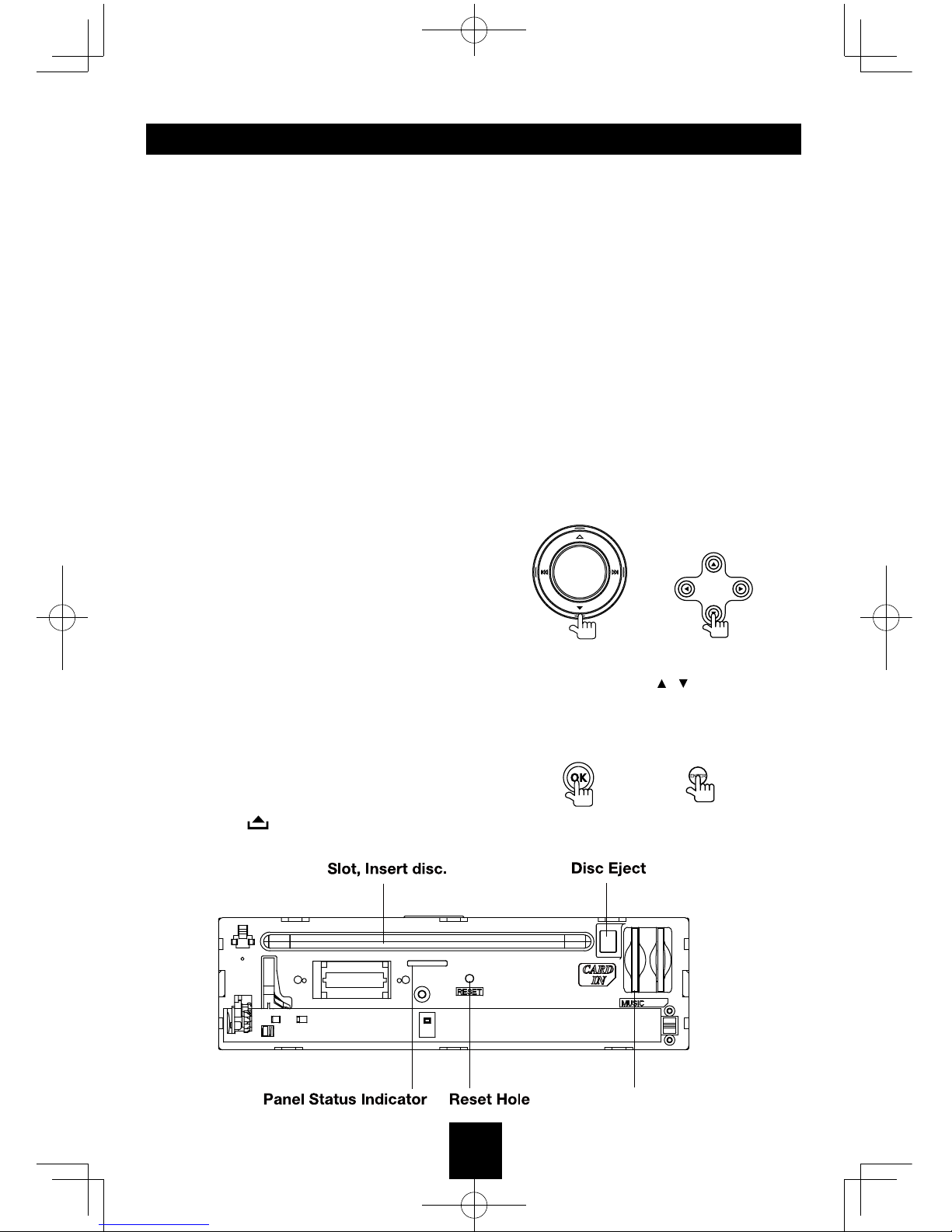

Press the button on the panel

to open the panel.

Music Card Slot

Safety Precautions .........................................1

Safety Information . .........................................2

Features .........................................................3

Panel Controls. ...............................................4

Remote Controls ............................................5

USB/SD/MMC/MP3 Playback . .......................6

Basic Operation..............................................7

Rotary Knob Menu ....................................8-11

Radio Mode..................................................12

RDS (Radio Data System) . .........................13

Disc Mode ...............................................14-17

BT Mode..................................................18-20

Device Connections ................................21-23

Installation Guide.....................................23-25

Anti-Theft System.........................................25

Troubleshooting............................................26

Care and Maintainance................................27

Specifications ...............................................28

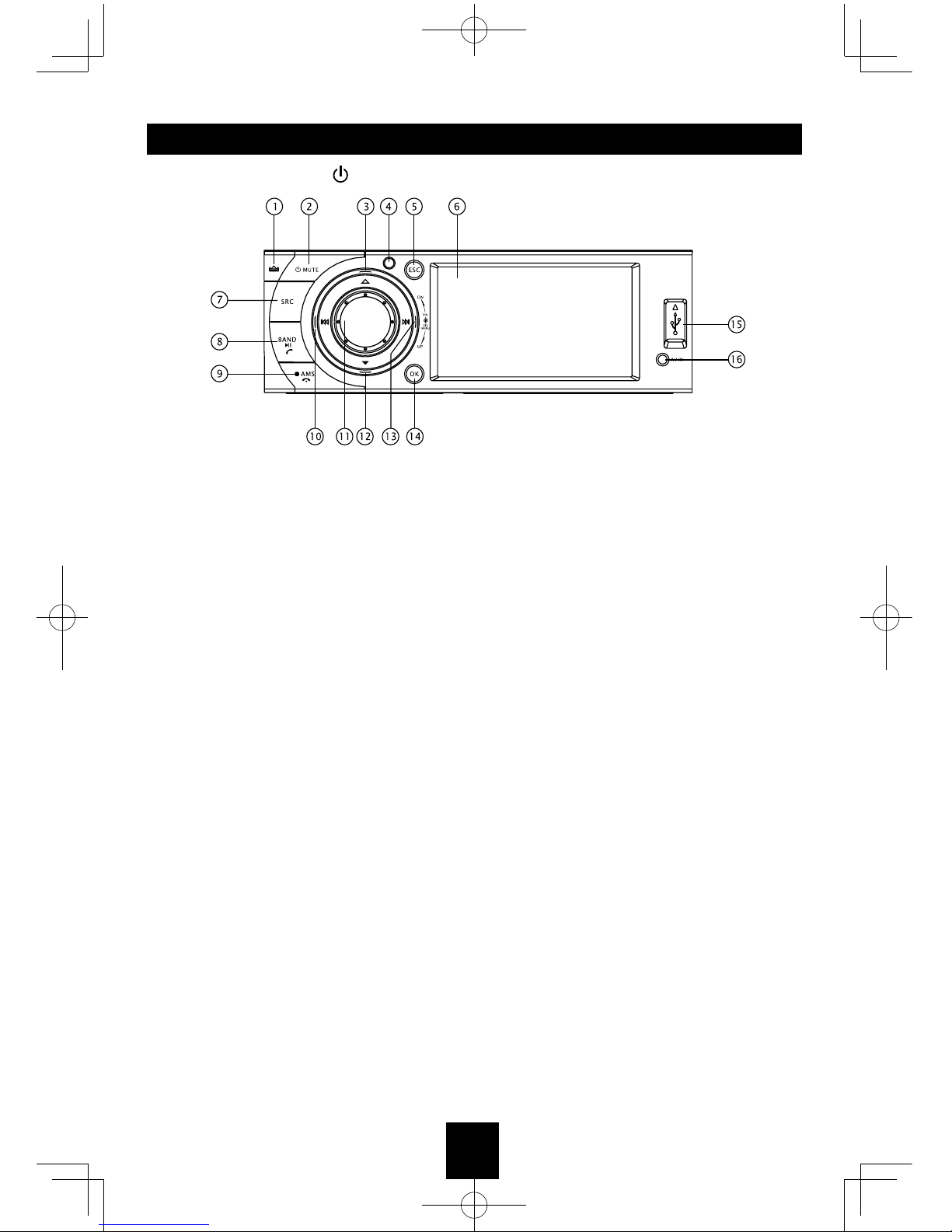

Panel Controls

Power on/off: Press to turn on/off the unit.

1. Panel open

2. - Power on/off (press and hold more than 2

seconds)

- Mute

3. - Press to navigate up among option items

(in DVD, CD and MP3/WMA modes)

- Play the previous preset radio station (in

Radio mode)

4. Remote sensor

5. Return to previous menu

6. 3 inch TFT display

7. - Short press to select playing mode:

• Radio

• Disc (when disc inserted)

• USB (when USB inserted)

• SD (when SD/MMC inserted)

• AV (audio & video input)

• BT

- Long press to return to main source menu

in any mode, then use navigate button to

select the desired mode, and press the OK

button to conrm.

8. - Play/Pause (in DVD, CD and MP3/WMA

modes)

- Band switch: FM1-FM2-FM3-MW1-MW2

(press briefly, in Radio mode)

- Dial/Receive call (press briefly, in BT mode)

- RDS program type (press and hold more

than 2 seconds, in Radio mode)

9. - Preset scan (press birefly, in Radio mode)

- Auto preset (press more than 2 seconds,

in Radio)

- Stop (in CD, MP3/WMA, and DVD video

mode)

- Terminate call (in BT mode)

10. - Advance track (in CD, MP3/WMA, and

DVD video mode)

- Fast rewind (press and hold more than 2

seconds, in CD, MP3/WMA and DVD

video mode)

- Tuning backwards (press briefly to tune

automatically, press and hold more than 2

seconds to tune manually , in Radio

mode)

11. - Rotate the knob to adjust volume level

- Press to select Audio/video Setting, and

rotate the knob to adjust level.

- Press more than 2 seconds to enter

Setting menu.

12. - Press to navigate down among option

items (in DVD, CD and MP3/WMA modes)

- Play the next preset radio station (in

Radio mode)

13. - Next track (in CD, MP3/WMA, and DVD

video mode)

- Fast forward (press and hold more than 2

seconds, in CD, MP3/WMA and DVD

video mode)

- Tuning forwards (press briefly to tune

automatically, press and hold more than 2

seconds to tune manually , in Radio

mode)

14. - Confirm operation

- Stop auto seeking

15. USB port

16. External equipment socket

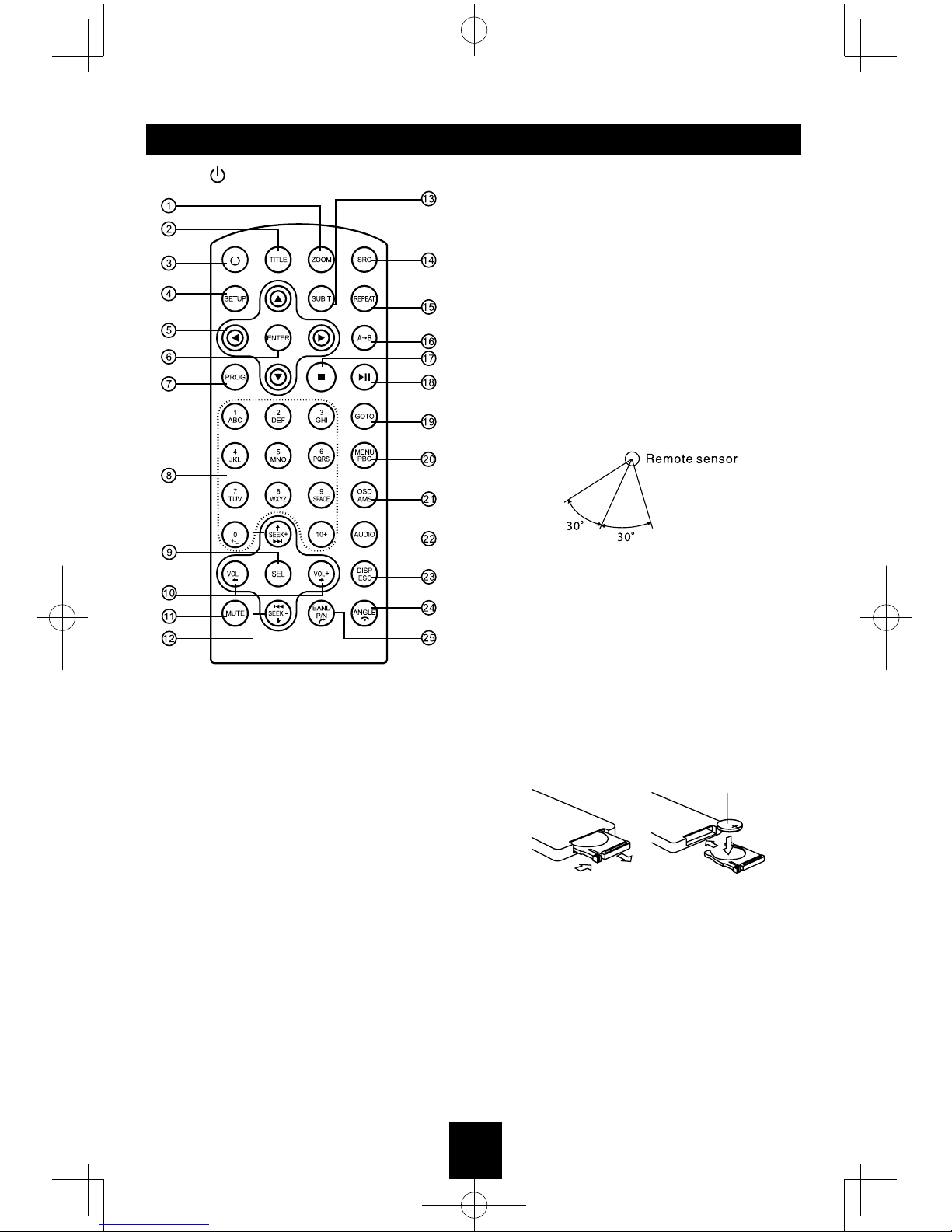

Remote Controls

Press to turn on/off the unit.

1. Zoom (DVD/VCD only)

2. Title (DVD only)

3. Power on/off

4. Setup

5. Menu cursor

6. Enter

7. Program

8. Digit area

9. Select Audio/Video Setting, then rotate the

knob to adjust level.

10. Volume

11. Mute

12. - Radio tune

- Track skip/seek

13. Subtitle (DVD only)

14. Source switch

15. Repeat

16. Repeat A-B

17. Stop/Return

18. Play/Pause

19. Goto search

20. - DVD menu

- PBC (for VCD 2.0 or up)

21. - OSD: On screen display

Replacing the lithium battery

When the range of operation of the card

remote control becomes short or no function,

replace the lithium battery with a new one.

Make sure the battery polarity replacement is

correct.

1. Pull out the battery holder while pressing

the stopper.

2. Insert the button-type lithium battery with

the (+) mark facing upward. Insert the battery

holder into the remote control.

1 2

(CR 2025)

Remote Control Operating Range

The remote control can operate within a

distance of 3~5m.

Warning

•Store the battery where children cannot

reach. If a child accidentally swallows the

battery, consult a doctor immediately.

•Do not recharge, short, disassemble or heat

the battery or dispose it in a fire.

• Do not leave the battery with other metallic

materials. Otherwise, the battery may start

to give off heat, crack or catch fire.

• When throwing away or saving the battery,

wrap it in tape and insulate.

- AMS: Search and store stations

automatically

22. - DVD audio

- VCD audio L/R/ST

23. - Display time/clock (Video mode)

- Return to previous menu

24. - Angle (DVD only)

- Terminate call (in BT mode)

25. - Video system PAL/NTSC/AUTO

- Radio band (in Radio mode)

- Dial/Receive call (in BT mode)

USB/SD/MMC/MP3 Playback

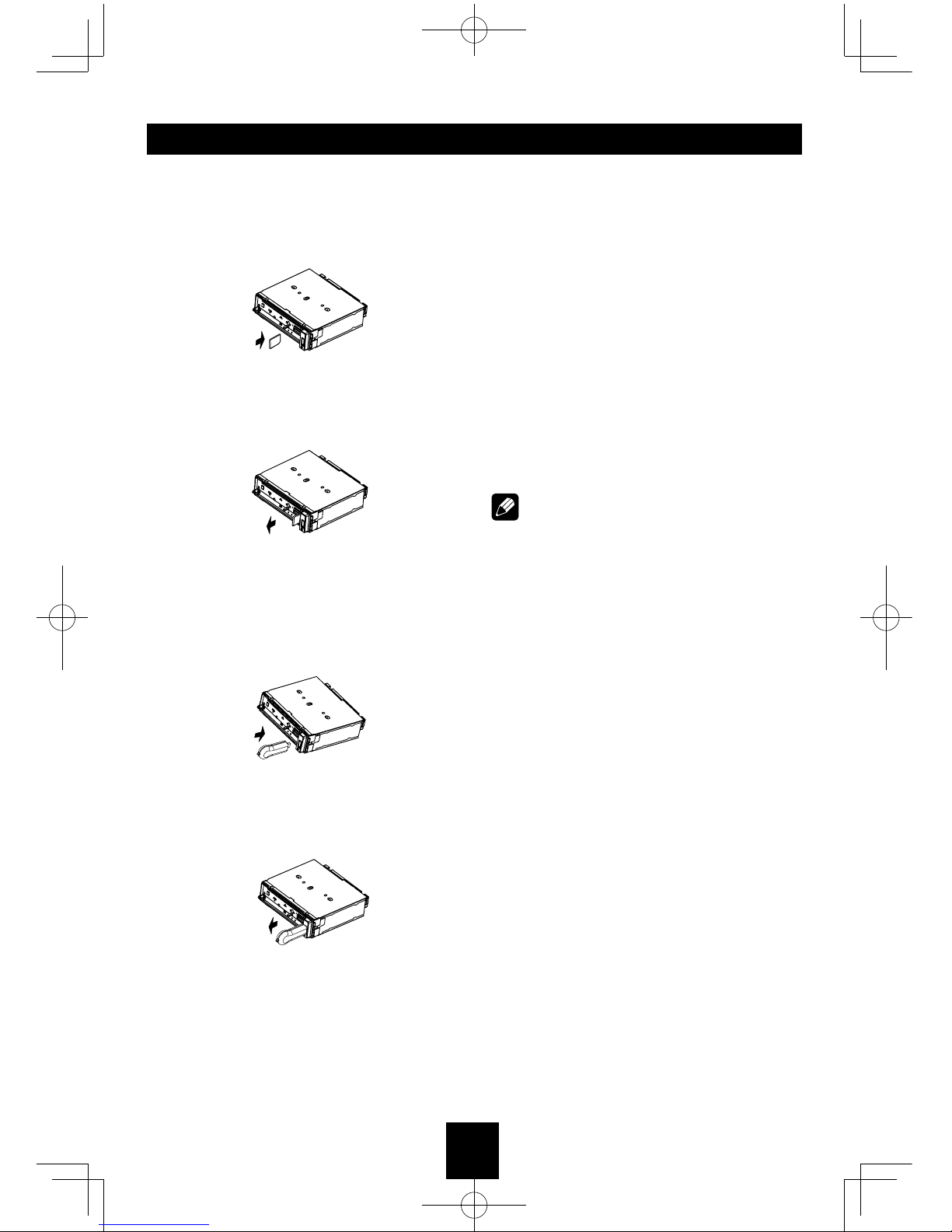

1. Load SD/MMC Card

Insert the SD/MMC card into the slot, with

the front side at right.

The unit will play the music automatically

and the LCD will show CARD.

2. Take out SD/MMC Card

Press SRC button and switch to non CARD

mode, slightly press SD/MMC card, take

out the card when it pops out.

3. Load USB Equipment

Open the rubber cap, insert the USB into

the connector and the unit will play the

music in the

USB storer automatically, and the LCD will

show USB.

4. Take out USB Equipment

Press SRC button and switch to non USB

mode, then take off the USB stick, close

the rubber cap.

USB/SD/MMC Notes

USB functions (flash memory type) MP3

music play

1. SD/MMC card support

2. USB flash memory 2 in 1 (SD/MMC)

support

3. FAT 12/FAT 16, FAT 32 is possible

- FAT 12/16 (dir: 200 support, file: 500

support)

- FAT 32 (dir: 200 support, file: 500 support)

4. Tag (id3 tag ver 2.0)

- Title/artist/album: 30 byte support

5. Multi card reader not support

6. USB 1.1 support

USB 2.0 support

(it can not support USB 2.0 speed. Just, get

the same speed with USB 1.1)

Note:

Not all kinds of USB devices are compatible

with the unit.

Basic Operations

Turn on/off the Power

1. Press to turn on the unit.

The unit goes back to the last status after

power on.

2. Press more than 2 seconds to power off.

Mute

When power on, press briefly to cut the

sound.

Note:

• Doing the operation above again or

adjusting volume will release muting.

• Mute icon appears on the TFT during

muting.

Adjust the Volume

Rotate the knob on the panel or press VOL +/-

on the remote control to increase or decrease

the volume.

The adjustable range of volume is 0 to 39.

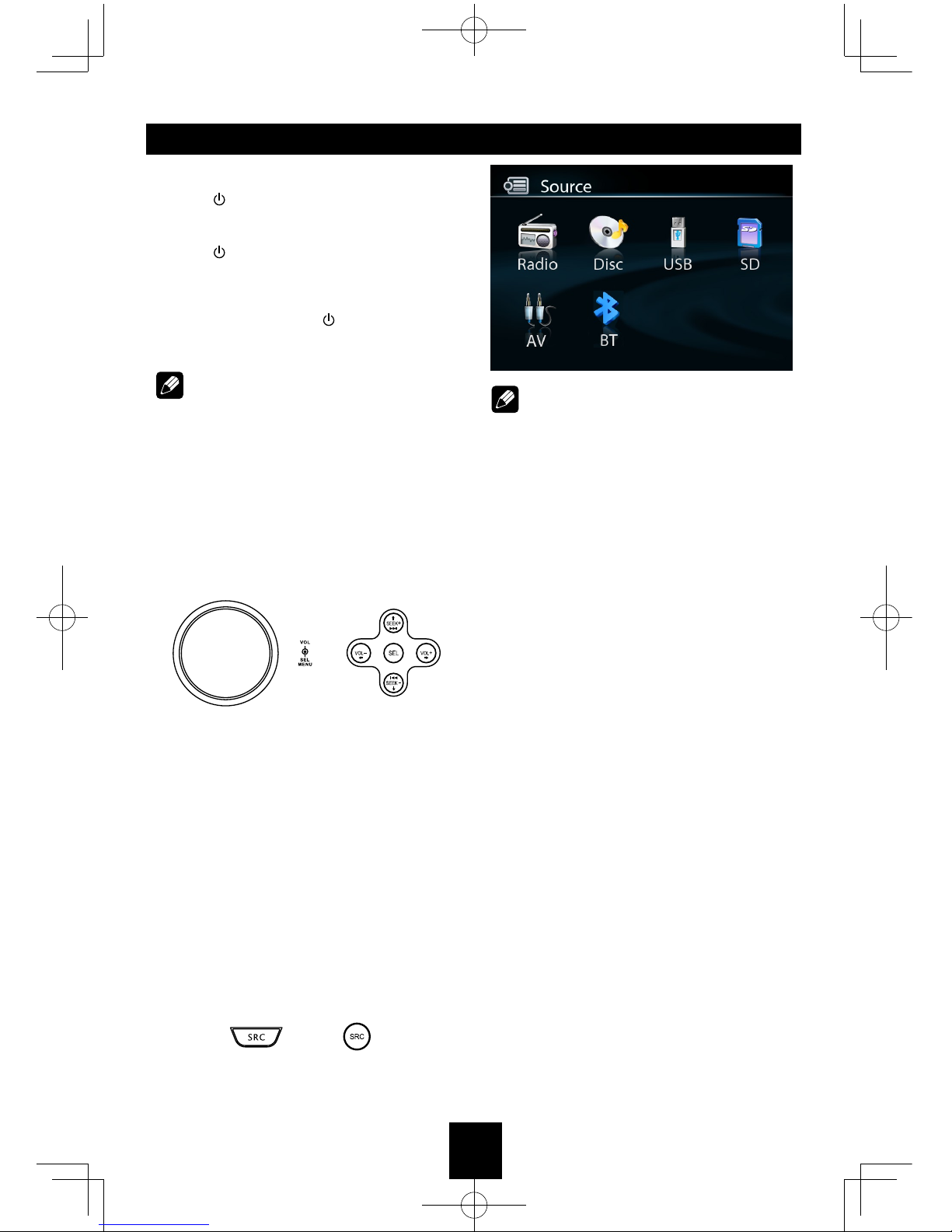

Playing Source Selection

Method 1

Short press the SRC button on the panel

or remote control to cycle through all the

available sources: Radio, Disc (when disc

inserted), USB (when USB inserted), SD

(when SD/MMC inserted), AV(rear audio &

video input), and BT.

Method 2

In any mode, long press the SRC button on

the panel or remote control to enter main

source menu , then use navigate button to

select the desired mode, and press the OK

button to confirm.

Note:

• When some devices are not ready, they

cannot be selected.

• You should stop switching when the playing

source you desired has been selected and

wait for some seconds, the unit will auto

enter the playing source mode you have

selected.

When Parking Brake Applied

1. If 'PRK SW' cable is connected to hand

brake switch, the video display of the TFT

monitor will be controlled by driving status,

system setup and input video sources.

2. When the car is moving ahead, if the video

disc is played, the screen appears “WARN-

ING: Engage Parking Brake to View Video”.

The above warning screen will prevent the

driver watching images. The passengers at

the rear seats can watch normally.

When Reverse Driving

If the rear view video camera is connected,

the unit automatically switches to CAMERA

source during reverse driving. The unit returns

to the original work mode after the reverse

driving is done.

Rotary Knob Menu

1. Rotate the knob to adjust volume level.

2. Short press to access the Audio&VIDEO

Setting menu.

Each press the knob to change the AUDIO

mode: EQ/Bass/Middle/Treble/Balance/Fader,

and rotate the knob to adjust level.

Each press the knob to change the VIDEO

mode: Bright/Contrast/Saturation, and rotate

the knob to adjust level.

EQ: USER/FLAT/POP/ROCK/CLASSIC/

JAZZ

The Equalizer function applies preset sound

effects to the unit’s audio output signal. Turn

the rotary encoder to select from the following

equalizer options: USER, FLAT, POPULAR,

ROCK, CLASSIC, JAZZ. With the equalizer

function activated, if bass or treble is adjusted,

the EQ Mode will revert to “USER”. When

the equalizer function is activated, the most

recently selected bass/treble levels cannot be

adjusted. When the equalizer function is not

active, the unit will return to the most recently

selected bass and treble levels.

3. Press the knob more than 2 seconds to

enter Setting mode, then Use , /

and OK key to select setting items.

General Setting

BEEP: ON/ OFF

The beep tone feature allows the selection of

an audible beep tone to be heard each time

the menu is accessed.

LOUDNESS: ON/OFF

When listening to music at low volumes, this

feature will selectively boost certain bass and

treble frequencies.

TIME MODE

12 HOUR MODE: the clock displays in the

type of 12 hours such as 11:18 AM.

24 HOUR MODE: the clock displays in the

type of 24 hours such as 20:18.

TIME ADJUST

Press / or / key to set hour and minute.

Each time you press / to select one

segment of the clock display:

Hour-Minute

As you select segments of the clock display

the segment selected will be highlighted. Then

you can press / to put a clock right.

PARKING: ON/OFF

When it is in Parking “On” mode, if you

play the video disc, the screen will show

“WARNING: Engage Parking Brake to View

Video”.

MIRROR: ON/OFF

This option allows for selection of a mirror

image view when a rear view backup camera

(sold separately) is connected to the CAMERA

IN input on the back of the radio. Turn the

rotary encoder to select “On” or “Off”.

SUBWOOFER: ON/80HZ/120HZ/160HZ

After connecting a subwoofer to the back of

the unit, press / key to select a crossover

frequency: OFF, 80, 120 or 160Hz.

SUB VOLUME: 0-33

Press / key to select the desired

subwoofer out volume level.

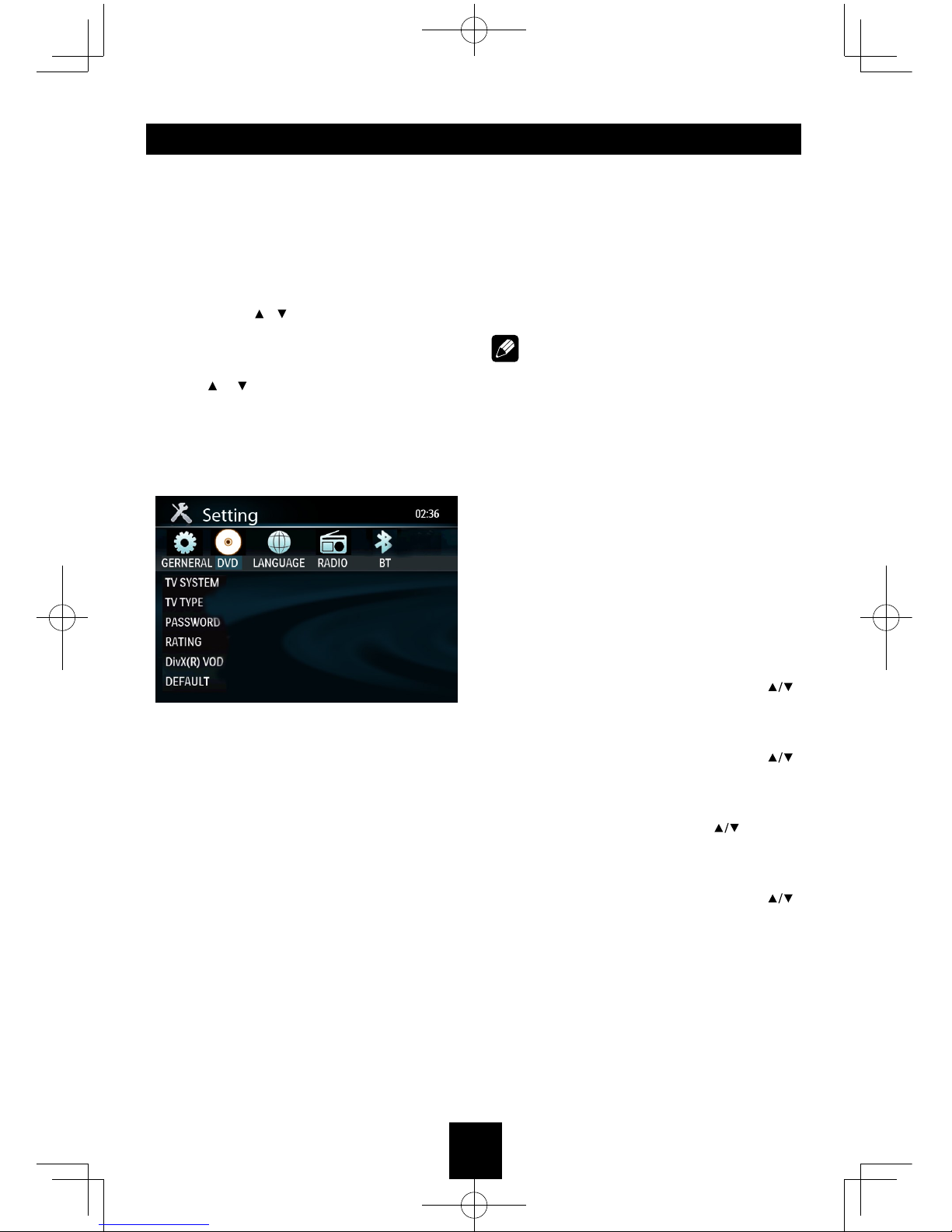

DVD Setting

TV SYSTEM: NTSC/PAL/AUTO

Select the TV system in the setting menu.

TV TYPE: 4:3PS/4:3LB/16:9

Select TV type to watch wide screen movies.

4:3 Pan Scan: For 4:3 TV, left and right edges

will be cut.

4:3 Letter Box: For 4:3 TV, black bars will

appear on top and bottom.

16:9: For 16:9 wide screen TV.

PASSWORD

1. Press number button " 0000 " on the remote

control, then press the ENTER button to

confirm.

2. Press the desired 4-digit password, and

then press ENTER button to confirm.

3. Record the password and keep it in a safe

place for future reference.

If you forget the password, please

enter 0000 to reset a new password.

The password : 0000

RATING: 1 KID SAFE/2 G/3 PG/4 PG13/5

PG-R/6 R/7 NC-17/8 ADULT

The rating of the disc is from 1 to 8:

(1) with the most limits when playing.

(8) with the least limits when playing.

Original setting: 8

Note:

The rating can be selected only under the

password unlocked status, and the limits can

be worked only under the password locked

status.

DivX(R) VOD

In order to play DivX VOD (video on demand)

content on this unit, you first need to register

the unit with your DivX VOD content provider.

Wed site: www.divx.com/vod

DEFAULT: RESTORE

If this item is selected, the unit will return to

original setting.

BRIGHTNESS

Set the brightness of the video output with

from 00 to 16.

CONTRAST

Set the contrast of the video output with

from 00 to 16.

HUE

Set the hue of the video output with

from 00

to 16.

SATURATION

Set the saturation of the video output with

from 00 to 16.

Rotary Knob Menu

Tabla de contenidos

Otros manuales de Receptor de coche de Hillman

Hillman

Hillman HDC-1160 Manual de usuario

Hillman

Hillman HDC-1680 Manual de usuario

Manuales populares de Receptor de coche de otras marcas

Motorola

Motorola VWA63 Manual de usuario

Nextar

Nextar D3201 Manual de usuario

Alpine

Alpine CDE-163BT Manual de usuario

Pioneer

Pioneer DEH-P645R Manual de usuario

Axxera

Axxera XDMA7600 Instrucciones de funcionamiento

XM OnyX Manual de usuario

Sound Storm

Sound Storm STM93R Manual de usuario

Soundstream

Soundstream VIR-5000 Manual de usuario

Avson

Avson MKT Platform Manual de usuario

Sony

Sony MEX-1HD - Audio Library System Manual de usuario

Pioneer

Pioneer DVH-P500UB Manual de usuario

JVC

JVC KD-AHD69 Manual de usuario

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manual de usuario

Sony

Sony CDX-4160 - Cd Receiver Manual de usuario

XFIRE AUDIO

XFIRE AUDIO BMW42S Manual de usuario

VDO

VDO CD 2253 Manual de usuario

Volvo

Volvo 13 84 580 Manual de usuario

ZENEC

ZENEC ZE-160DVD Manual de usuario
