HIK VISION TBK-NVR2100 Series Manual de usuario

Quick Start Guide

Network Video Recorder

TBK-NVR2100 series

 TBK-NVR2100 Network Video Recorder Quick Start Guide

www.tbkvision.com 1
TABLE OF CONTENTS
Chapter1 Panels Description............................................................................................ 6
1.1 Front Panel....................................................................................................................6
1.2 Rear Panel .....................................................................................................................7
Chapter 2 Installation and Connections ........................................................................... 8
2.1 NVR Installation.............................................................................................................8
2.2 Hard Disk Installation ....................................................................................................8
2.3 HDD Storage Calculation Chart .....................................................................................9
Chapter 3 Menu Operation.............................................................................................11
3.1 Startup and Shutdown ................................................................................................11
3.2 Activating Your Device.................................................................................................11
3.3 Using the Unlock Pattern for Login .............................................................................13
3.4 User Login....................................................................................................................14
3.5 Using the Setup Wizard...............................................................................................14
3.6 Network Settings.........................................................................................................15
3.7 Adding IP Cameras ......................................................................................................15
3.8 Live View .....................................................................................................................16
3.9 Recording Settings.......................................................................................................17
3.10 Playback ....................................................................................................................18
Chapter 4 Accessing by Web Browser .............................................................................19

Quick Start Guide
COPYRIGHT © 2018 Hangzhou Hikvision Digital Technology Co., Ltd.
ALL RIGHTS RESERVED.
Any and all information, including, among others, wordings, pictures, graphs are the properties of
Hangzhou  Hikvision  Digital  Technology  Co.,  Ltd.  or  its  subsidiaries  (hereinafter  referred  to  be
“Hikvision”). This user manual (hereinafter referred to be  “the Manual”) cannot be reproduced,
changed, translated, or distributed, partially or wholly, by any means, without  the prior written
permission  of  Hikvision.  Unless  otherwise  stipulated,  Hikvision  does  not  make  any  warranties,
guarantees or representations, express or implied, regarding to the Manual.
About this Manual
This Manual is applicable to Network Video Recorder (NVR).

TBK-NVR2100 Network Video Recorder Quick Start Guide

www.tbkvision.com 2

The Manual includes instructions for using and managing the product. Pictures, charts, images and

all other information hereinafter are for description and explanation only. The information contained

in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please

find the latest version in the company website

(http://overseas.hikvision.com/en/).

Please use this user manual under the guidance of professionals.

Trademarks Acknowledgement and other Hikvision’s trademarks and logos are the

properties of Hikvision in various

jurisdictions. Other trademarks and logos mentioned below are the properties of their respective

owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS

HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS,

AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,

MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-

INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS,

EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR

INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS,

BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE

OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY

AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL

OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER

ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL

PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR

JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE

APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH

ILLEGITIMATE PURPOSES.

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER

PREVAILS.

Regulatory Information

FCC Information

Please take attention that changes or modification not expressly approved by the party responsible

for compliance could void the user’s authority to operate the equipment.

FCC compliance: This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at his own expense.

TBK-NVR2100 Network Video Recorder Quick Start Guide

www.tbkvision.com 3

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause

undesired operation.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and

comply therefore with the applicable harmonized European standards listed under the EMC

Directive 2014/30/EU, the LVD Directive 2014/35/EU, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as

unsorted municipal waste in the European Union. For proper recycling, return this product

to your local supplier upon the purchase of equivalent new equipment, or

dispose of it at designated collection points. For more information see: www.recyclethis.info

2006/66/EC (battery directive): This product contains a battery that cannot be disposed of

as unsorted municipal waste in the European Union. See the product documentation for

specific battery information. The battery is marked with this symbol, which may

include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return

the battery to your supplier or to a designated collection point. For more information see:

www.recyclethis.info

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

Applicable Models

This manual is applicable to the models listed in the following table.

Series

Model

TBK-NVR2100

TBK-NVR2104

TBK-NVR2108

TBK-NVR2100 Network Video Recorder Quick Start Guide

www.tbkvision.com 4

Symbol Conventions

The symbols that may be found in this document are defined as follows.

Symbol

Description

Provides additional information to emphasize or supplement

important points of the main text.

Indicates a potentially hazardous situation, which if not avoided,

could result in equipment damage, data loss, performance

degradation, or unexpected results.

Indicates a hazard with a high level of risk, which if not avoided, will

result in death or serious injury.

Safety Instructions

⚫Proper configuration of all passwords and other security settings is the responsibility of the

installer and/or end-user.

⚫In the use of the product, you must be in strict compliance with the electrical safety regulations

of the nation and region. Please refer to technical specifications for detailed information.

⚫Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power

Source with 100~240 VAC, 48 VDC or 12 VDC according to the IEC60950-1 standard. Please refer

to technical specifications for detailed information.

⚫Do not connect several devices to one power adapter as adapter overload may cause over-

heating or a fire hazard.

⚫Please make sure that the plug is firmly connected to the power socket.

⚫If smoke, odor or noise rise from the device, turn off the power at once and unplug the power

cable, and then please contact the service center.

⚫If the POE ports of device do not comply with Limited Power Source, the additional equipment

connected to POE ports shall have fire enclosure.

⚫The USB interface of the /P devices can be connected with the mouse and U-flash disk storage

device only.

TBK-NVR2100 Network Video Recorder Quick Start Guide

www.tbkvision.com 5

Preventive and Cautionary Tips

Before connecting and operating your device, please be advised of the following tips:

⚫Ensure unit is installed in a well-ventilated, dust-free environment.

⚫Unit is designed for indoor use only.

⚫Keep all liquids away from the device.

⚫Ensure environmental conditions meet factory specifications.

⚫Ensure unit is properly secured to a rack or shelf. Major shocks or jolts to the unit as a result of

dropping it may cause damage to the sensitive electronics within the unit.

⚫Use the device in conjunction with an UPS if possible.

⚫Power down the unit before connecting and disconnecting accessories and peripherals.

⚫A factory recommended HDD should be used for this device.

⚫Improper use or replacement of the battery may result in hazard of explosion. Replace with the

same or equivalent type only. Dispose of used batteries according to the instructions provided

by the battery manufacturer.

Power Supply Instructions

Use only power supplies listed in the user instructions.

NVR Models

Standard

Power Supply Models

Manufacturer

TBK-NVR2104

TBK-NVR2108

European

MSA-C1500IC12.0-18P-DE

MOSO Power Supply Technology Co.,Ltd

ADS-26FSG-12 12018EPG

Shenzhen HONOR Electronic Co., Ltd

KL-AD3060VA

Xiamen Keli Electronics Co.,Ltd

KPD-018-VI

Channel Well Technology Co.,Ltd

British

ADS-25FSG-12 12018GPB

Shenzhen HONOR Electronic Co., Ltd

MSA-C1500IC12.0-18P-GB

MOSO Power Supply Technology Co.,Ltd

ADS-26FSG-12 12018EPB

Shenzhen HONOR Electronic Co., Ltd

⚫The power supplies list above is for EU countries only.

⚫The power supplies list is subject to change without prior notice.

TBK-NVR2100 Network Video Recorder Quick Start Guide

www.tbkvision.com 6

Chapter1 Panels Description

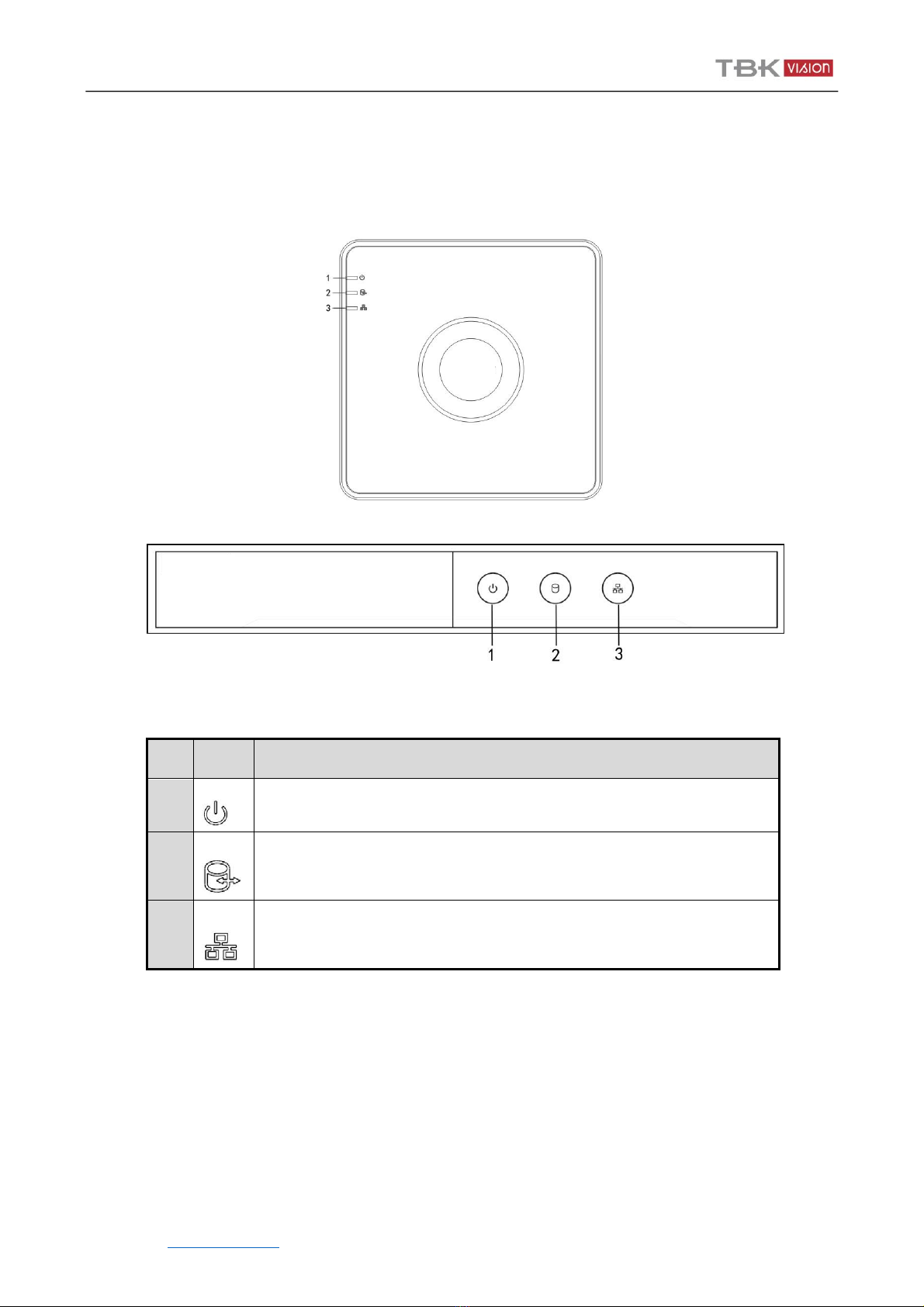

1.1 Front Panel

Table 1-1 Description of Front Panel

No.

Icon

Description

Indicator turns red when NVR is powered up.

Indicator lights in red when data is being read from or written to

HDD.

Indicator blinks blue when network connection is functioning

properly.

TBK-NVR2100 Network Video Recorder Quick Start Guide

www.tbkvision.com 7

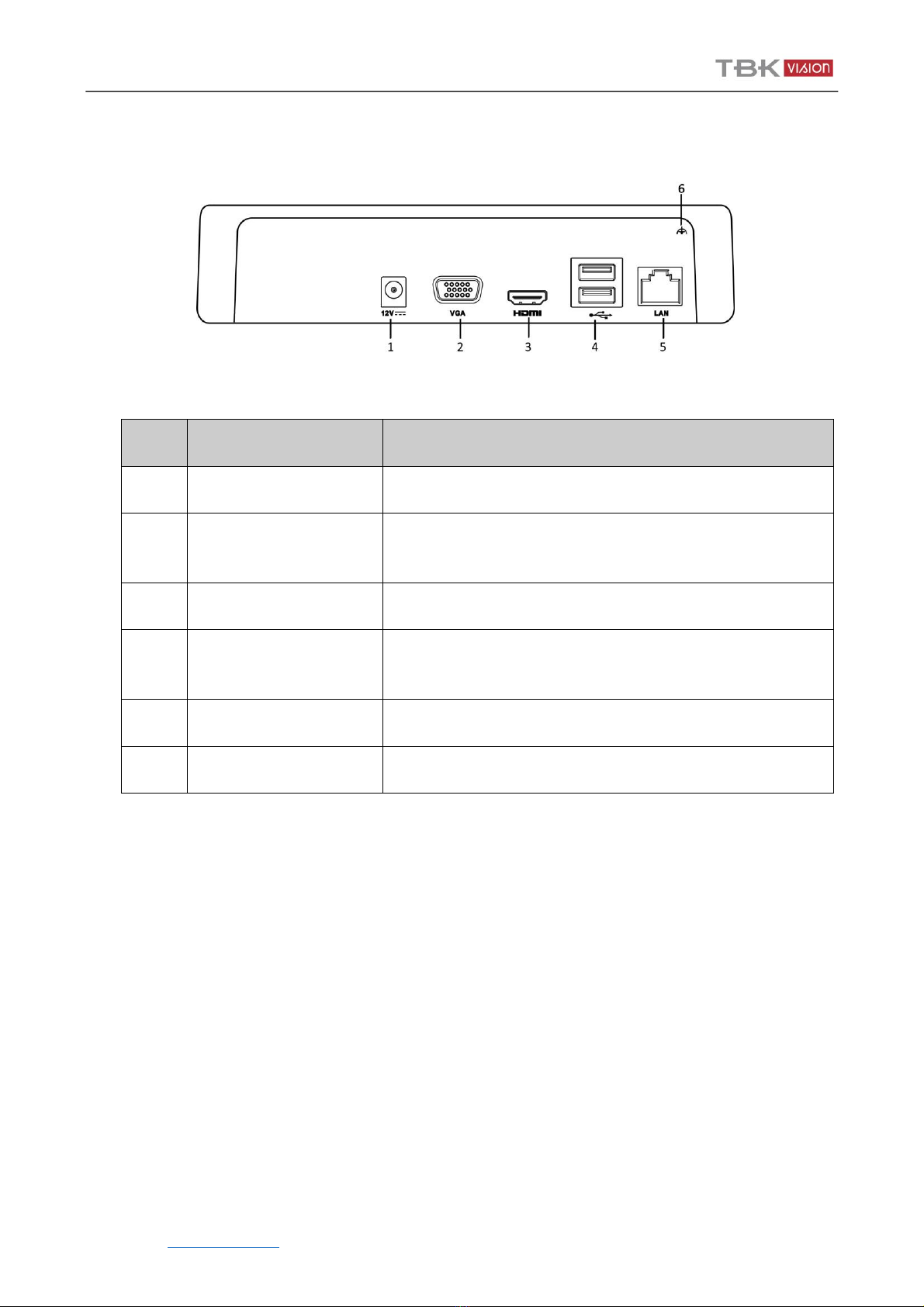

1.2 Rear Panel

Table 1-2 Description of Rear Panel

No.

Item

Description

Power Supply

12 VDC power supply.

VGA Interface

DB9 connector for VGA output. Display local video output

and menu.

HDMI Interface

HDMI video output connector.

USB Interface

Universal Serial Bus (USB) ports for additional devices such

as USB mouse and USB Hard Disk Drive (HDD).

LAN Network Interface

10 /100 Mbps self-adaptive Ethernet interface.

Ground

Ground (needs to be connected when NVR starts up).

TBK-NVR2100 Network Video Recorder Quick Start Guide

www.tbkvision.com 8

Chapter 2 Installation and Connections

2.1 NVR Installation

During installation of the NVR:

⚫Use brackets for rack mounting.

⚫Ensure ample room for audio and video cables.

⚫When routing cables, ensure that the bend radius of the cables are no less than five times than

its diameter.

⚫Connect the alarm cable.

⚫Allow at least 2cm (≈0.75-inch) of space between racks mounted devices.

⚫Ensure the NVR is grounded.

⚫Environmental temperature should be within the range of -10 to +55º C, +14 to +131º F.

⚫Environmental humidity should be within the range of 10% to 90%.

2.2 Hard Disk Installation

Before you start:

Disconnect the power from the NVR before installing a hard disk drive (HDD). A factory

recommended HDD should be used for this installation.

Tools Required: Screwdriver.

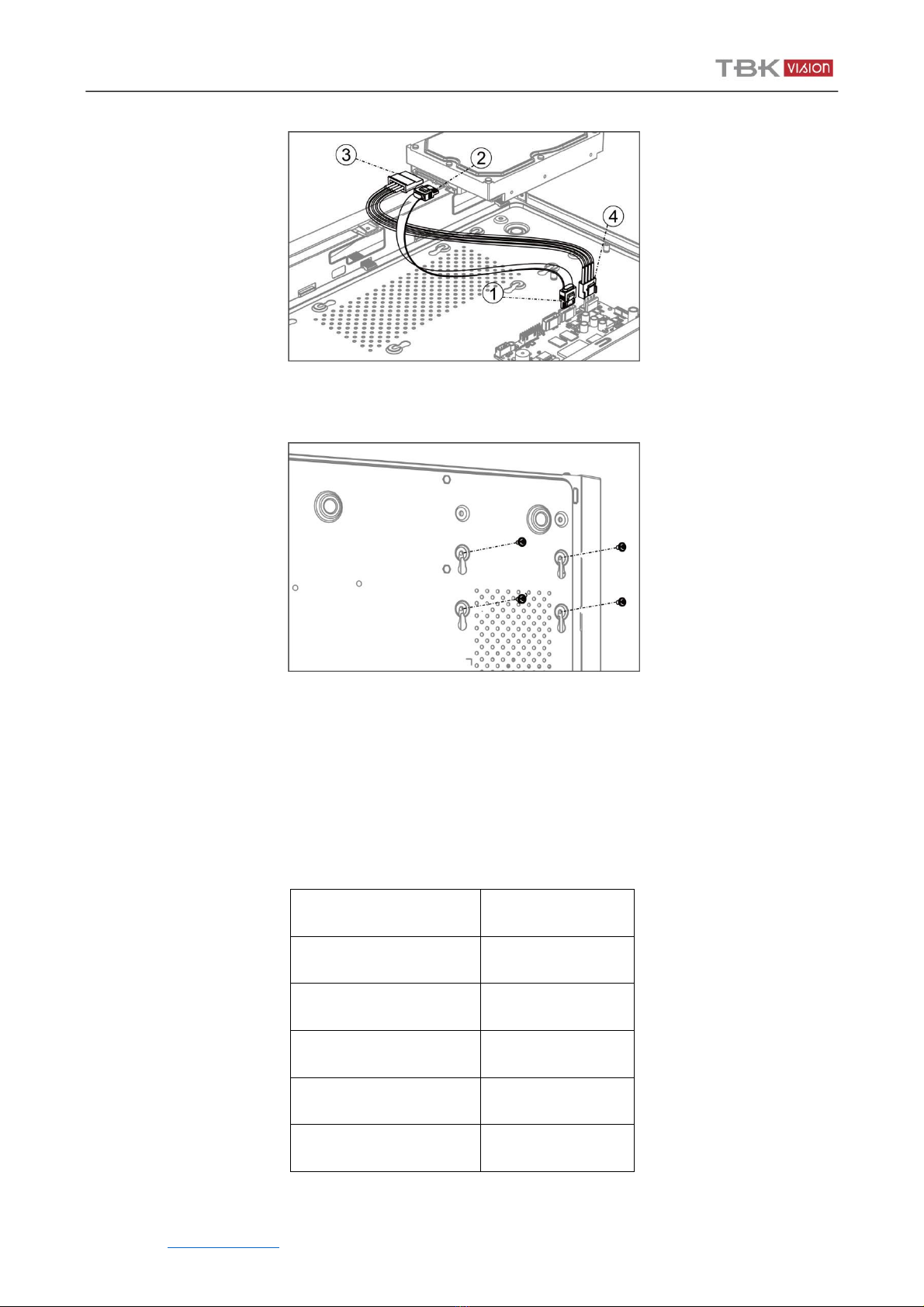

Step 1 Remove the cover from device by unfastening the screws on panels.

Figure 2-1 Remove Cover

Step 2 Connect the data cable and power cable.

1) Connect one end of data cable to the device motherboard.

2) Connect the other end of data cable to HDD.

3) Connect one end of power cable to HDD.

4) Connect the other end of power cable to the device motherboard.

TBK-NVR2100 Network Video Recorder Quick Start Guide

www.tbkvision.com 9

Figure 2-2 Connect Cables

Step 3 Set the device up, match HDD screw threads with the reserved holes on the device bottom,

and fix HDD with screws.

Figure 2-3 Fix HDD to Device Bottom

Step 4 (Optional) Repeat the steps above to install other HDDs.

Step 5 Reinstall the device cover and fasten screws.

2.3 HDD Storage Calculation Chart

The following chart shows an estimation of storage space used based on recording at one channel

for an hour at a fixed bit rate.

Bit Rate

Storage Used

96K

42M

128K

56M

160K

70M

192K

84M

224K

98M

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Hardware de red de HIK VISION

HIK VISION

HIK VISION DS-7600NI-K1/W Series Manual de usuario

HIK VISION

HIK VISION DS-9600NI-SH Series Manual de usuario

HIK VISION

HIK VISION DS-7104NI-SL Manual de usuario

HIK VISION

HIK VISION DS-9608NI-ST Series Guía del usuario

HIK VISION

HIK VISION DS-9600NI-I8 Series Manual de usuario

HIK VISION

HIK VISION Network Video Recorder Guía del usuario

HIK VISION

HIK VISION DS-7600NI-Q1 Series Manual de usuario

HIK VISION

HIK VISION DS-96000NI-I16 Series Manual de usuario

HIK VISION

HIK VISION DeepinMind Super DS-96000NXI-I Series Manual de usuario

HIK VISION

HIK VISION HWN-2100H Series Manual de usuario

HIK VISION

HIK VISION DS-3WF03C Manual de usuario

HIK VISION

HIK VISION iDS-9600NXI-I8/8FB Series Manual de usuario

HIK VISION

HIK VISION DS-7600NI-K1 Manual de usuario

HIK VISION

HIK VISION iDS-9632NXI-I8/16S Manual de usuario

HIK VISION

HIK VISION DS-9600NI-I8 Series Manual de usuario

HIK VISION

HIK VISION DS-7600NI-E1/E2 series Manual de usuario

HIK VISION

HIK VISION DS-3WF Series Manual de usuario

HIK VISION

HIK VISION DeepinMind Super iDS-96128NXI-I24 Manual de usuario

HIK VISION

HIK VISION DS-3WF02C-5N/O Manual de usuario

HIK VISION

HIK VISION HiLook NVR 104MH-D/4P Manual de usuario

HIK VISION

HIK VISION DS-MP3516-RS Manual de usuario

HIK VISION

HIK VISION HiLook NVR-216MH-C/16P Manual de usuario

HIK VISION

HIK VISION DS-3WF0AC-2NT Manual de usuario

HIK VISION

HIK VISION DS-9608NI-ST Series Manual de usuario

Manuales populares de Hardware de red de otras marcas

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manual de usuario

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manual de usuario

Yudor

Yudor YDS-16 Manual de usuario

D-Link

D-Link ShareCenter DNS-320L Manual de usuario

Samsung

Samsung ES1642dc Instrucciones de uso

Honeywell Home

Honeywell Home LTEM-PV Instrucciones de montaje

evertz

evertz 7700 Series Manual de usuario

D-Link

D-Link ShareCenter DNS-343 Manual de usuario

Asante

Asante AsanteBridge 1012 Manual de usuario

FireBrick

FireBrick FB2700 Manual de usuario

Audiovox Electronics

Audiovox Electronics ARWH2T Manual de usuario

ADC

ADC DSX-1 Manual

NetComm

NetComm NF2 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 5620 Manual de usuario

Dell EMC

Dell EMC XC6420 Series Manual de usuario

Lanner

Lanner NCA-1020A Manual de usuario

Allied Telesis

Allied Telesis AT-TN121-A Manual de usuario

Arista

Arista CCA-ETM-Q12 Manual de usuario
