HIK VISION PTZ Manual de usuario

Video Conference PTZ Camera

Packing List

Power Adapter

Camera

Remote Control Quick Start Guide

Battery

Bracket Screws USB Cable

Extension Cable

Image Flip

Pan/Tilt Control

Focus

Zoom in/out

One-touch Focus

Mute

Supports four modes. The image flips as the

following order every time pressing the button. "F"

is the default status.

Host Mode

Functions

Auto Frame

Turn on/off the audio of the remote control or the

camera.

Adjust the focus manually.

Pan/tilt the camera

Press the button to adjust the camera by level.

Press and hold the button to adjust the camera

continuously.

Zoom in/out

Press the button to adjust the camera by level.

Press and hold the button to adjust the camera

continuously.

Focus

Press the button to adjust the camera by level.

Press and hold the button to adjust the camera

continuously.

Turn on/off the Auto Frame.

Press the button to enable the function. Press and

hold the button for 3 seconds to return to the

normal view.

Turn on/off the pickup function of the remote

control. Press and hold the button to enable the

function. Release the button to disable the function.

Note: The pickup function of the camera is disabled

when enabling the remote control pickup.

Indicator

Microphone

Presets

Default Preset

If the preset 0 is predefined, the camera

moves to the set position after powering on.

If not, the camera moves to the default

position after powering on.

1. Adjust the image by remote control.

2. Press and hold a preset number for 3

seconds, and the indicator flashes twice. It

means the preset is successfully set.

3. Press the preset number, and the device

return to the defined position. Up to 6

presets can be set.

Restore to the default settings

Press and hold the buttons at the same time

for 3 seconds, and the red indicator flashes

three times.

Wireless pairing

Press and hold the buttons at the same time

for 3 seconds, and the white indicator flashes

continuously.

USB Type C

The lock shall be purchased

Microphone

Indicator

Lens

Kensington Lock Power Interface

1/4-20UNC Screw Hole

Lashing Eye

When the indicator turns to red, it means the device is standby. When the indicator turns to blue, it means the device is

working normally.

Extension Cable

Connection

Power Adapter

USB Cable

Installation

Table Mounting

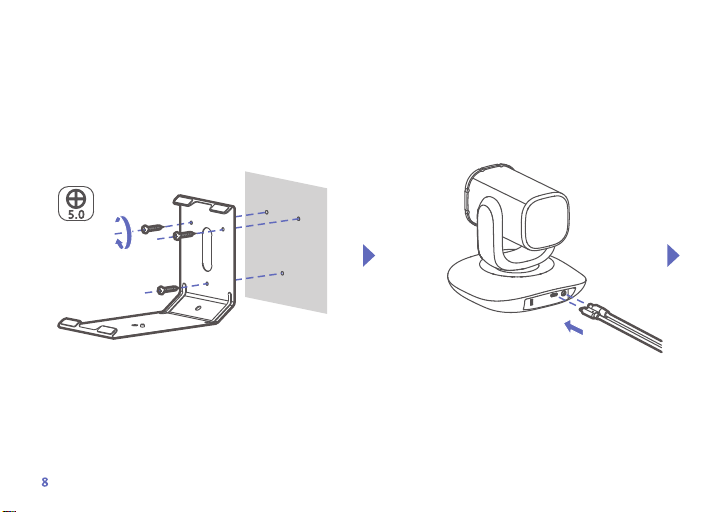

Wall Mounting
