如何配置 26 系列控制器连接 485 指纹读卡器

How to configure 26 series Access Controller

to connect 485 Fingerprint Card Reader

Title:

How to configure 26 series Access Controller

to connect 485 Fingerprint Card Reader

Version:

v1.0

Date:

25/08/2022

Product:

Access Controller

Page:

1 of 5

1

Preparation

Type

Model

Version

Access Controller

DS-K2604

Face Recognition Terminal

DS-K1T680DFG1

Fingerprint Card Reader

DS-K1201MF

Magnetic Lock

DS-k4H250D

How to configure 26 series Access Controller to connect 485 Fingerprint

Card Reader

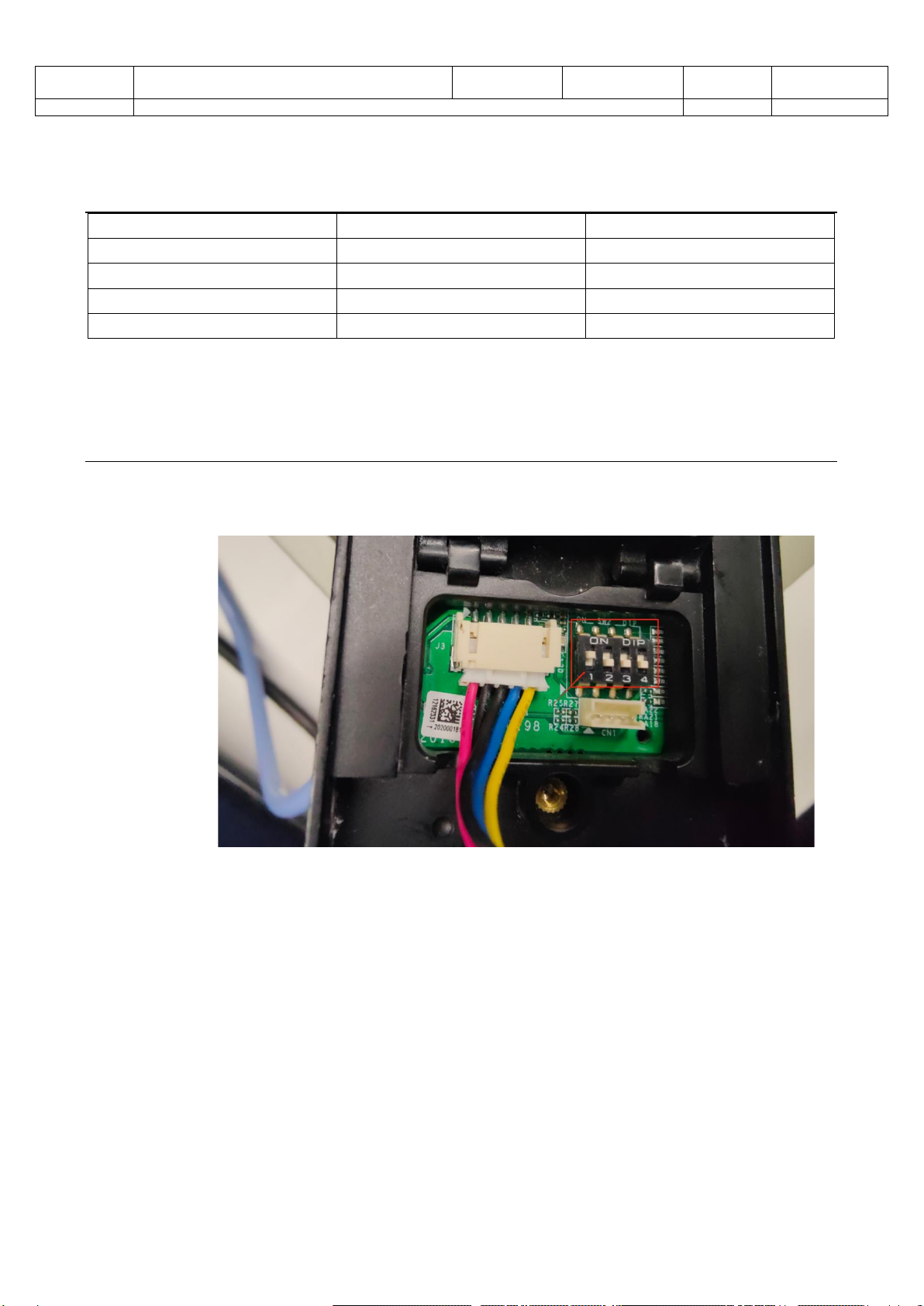

1. Wring1) Dial the 485 Fingerprint Card Reader and enable the first digit of the DIP

Switch on the back of the 485 Fingerprint Card Reader.

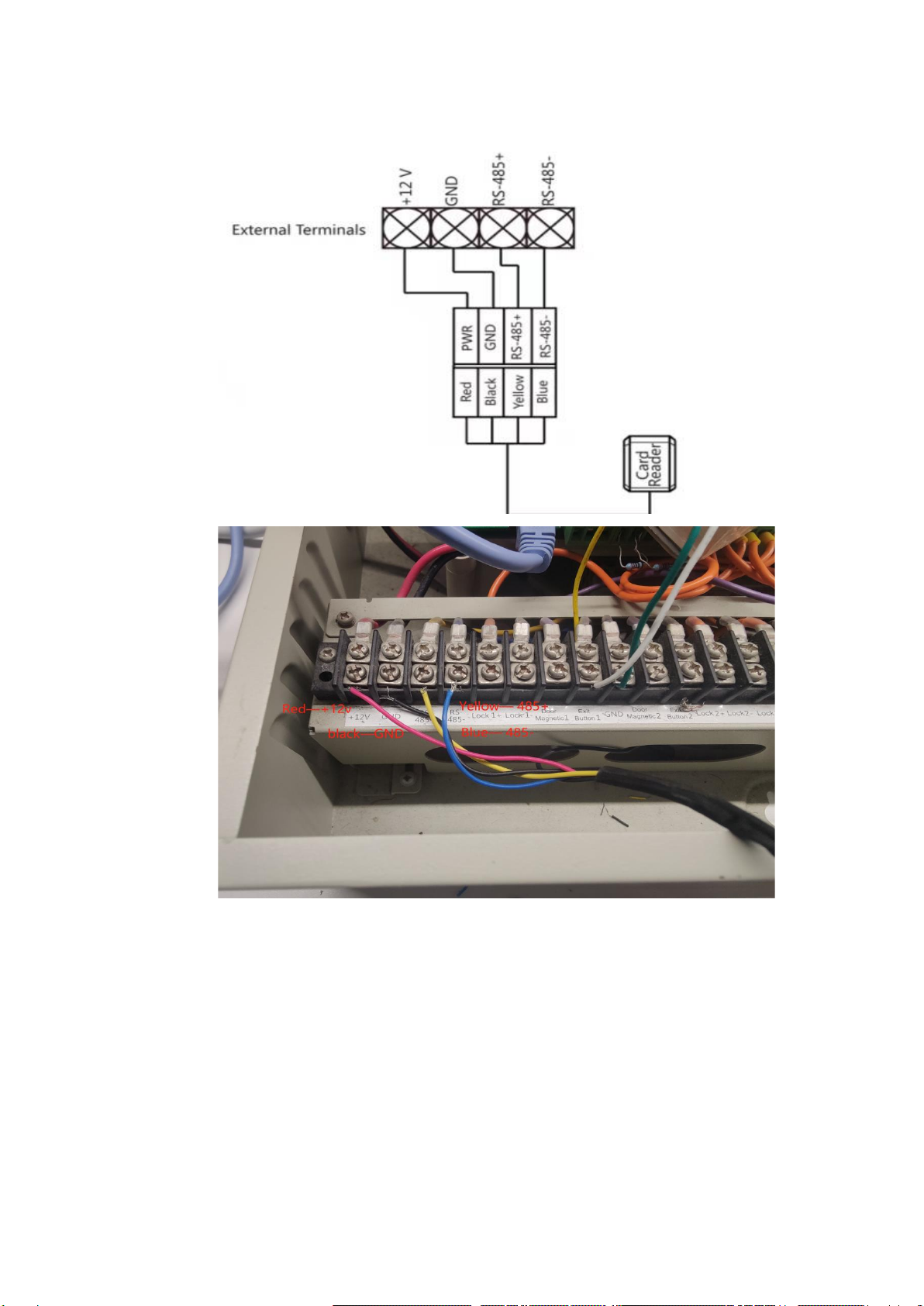

2) Connect the 485 Fingerprint Card Reader, Face Recognition Terminal and

Magnetic Lock to the controller. Refer to the wiring diagram and physical

wiring diagram.

2

2. Add device and person to the IVMS-4200 platform

1) Connect the device to the Ethernet, search the device IP address via the SADP

software.

2) Add the Access Controller and the Face Recognition Terminal to IVMS-4200

platform.

3

3) Check the device status and make sure the card reader online.

4) Add person, via Face Recognition Terminal to add card and fingerprint.

4

3. Apply to the device

1) Click Access Control-Access Group-Add，select person and Access Point,

save then apply to the device.

5

2) Click Access Control-Advanced Function-Authentication，then select the

Authentication Mode as FP/ Card，and set the schedule.

6

4. Test the function

1) Use fingerprint to test, than can open the Magnetic Lock.

2) Use card to test, than can open the Magnetic Lock.
