HIK VISION DS-KH8350-WTE1 Manual de usuario

Network Indoor Staon

Installaon Guide

Symbol Convenons

The symbols that may be found in this document are dened as follows.

Symbol Descripon

Danger Indicates a hazardous situaon which, if not avoided, will or

could result in death or serious injury.

Cauon Indicates a potenally hazardous situaon which, if not

avoided, could result in equipment damage, data loss,

performance degradaon, or unexpected results.

Note Provides addional informaon to emphasize or

supplement important points of the main text.

Network Indoor Staon Installaon Guide

Contents

1 About this Manual ...................................................................................... 1

2 Appearance ................................................................................................ 2

3 Typical Applicaon ..................................................................................... 4

4 Wiring Descripon ...................................................................................... 5

5 Installaon .................................................................................................. 6

5.1 Installaon Accessory Descripon .................................................................... 6

5.2 Wall Mounng .................................................................................................. 6

Network Indoor Staon Installaon Guide

1 About this Manual

Get the manual and related soware from or the ocial website (hp://

www.hikvision.com).

Product Model

Network Indoor Staon DS-KH8350-WTE1,DS-KH8350-TE1

Scan the QR code to get the

conguraon guide for detailed

informaon.

Scan the QR code to get the operaon

guide for detailed informaon.

Network Indoor Staon Installaon Guide

2 Appearance

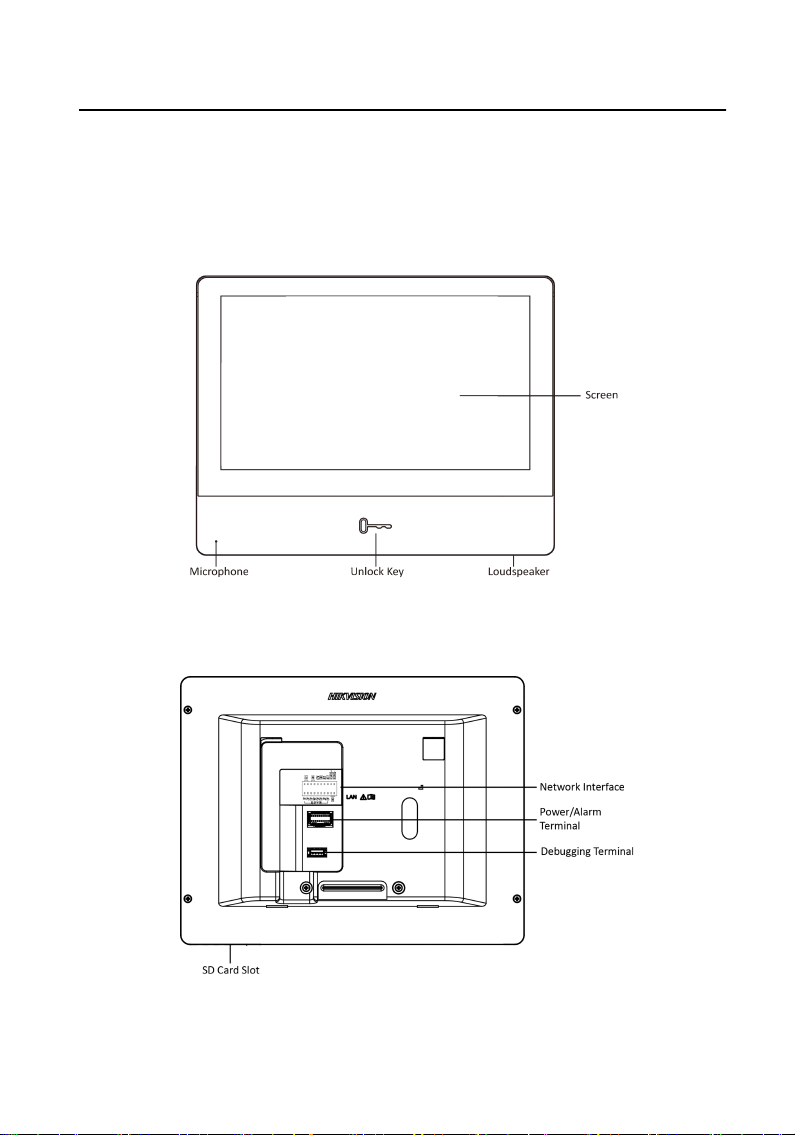

Front Panel

Figure 2-1 Front Panel

Rear Panel

Figure 2-2 Rear Panel

Network Indoor Staon Installaon Guide

Note

•The Unlock key is valid only when does the indoor staon speak with the

door staon or open the live view of the door staon.

•You can not use the debugging terminal.

Network Indoor Staon Installaon Guide

3 Typical Applicaon

Network Indoor Staon Installaon Guide

4 Wiring Descripon

There are 20 pins in the terminal on the rear panel of the indoor staon: 2 RS-485

pins, 2 power pins, 2 GND pins, 2 alarm output pins, 8 alarm input pins, and 4

reserved pins.

Figure 4-1 Wiring Descripon (Alarm Input Device)

Network Indoor Staon Installaon Guide

5 Installaon

It supports wall mounng. There are two installaon modes.

5.1 Installaon Accessory Descripon

The wall mounng plate is required when installing the indoor staon on the wall.

The dimension of wall mounng plate is shown below.

Figure 5-1 Wall Mounng Plate

5.2 Wall Mounng

Before You Start

•Make sure the device in the package is in good condion and all the assembly

parts are included.

•The power supply the indoor staon supports is 12 VDC. Please make sure your

power supply matches your indoor staon.

•Make sure all related equipments are power-o during the installaon.

•Check the product specicaon for the installaon environment.

Steps

1. Fix the wall mounng plate to the wall with 2 supplied screws.

Network Indoor Staon Installaon Guide

2. Put the indoor staon on the holder of the wall mounng plate.

Figure 5-2 Installing the Plate

Network Indoor Staon Installaon Guide
