NVR Quick Start Guide (QSG): DS-7604NI-E1/4P, DS-7608NI-E2/8P,

DS-7616NI-E2/16P, v3.4.3





 W H A T ’ S I N T H E B O X

Make sure the fo owing items are in your box:

NVR Mouse Remote 7604: Power Supp y HDD Screws

7608/7616: AC Cord

HDD HDD Cab es Ear Mounts QSG DVD-ROM

(7608/7616 on y)







M E N U T R E E

Use this menu tree to navigate the embedded menus.





 R O N T P A N E L

Figure 1, DS-76xxNI-Ex/xP Front Pane

1. Indicators

• Power: Green when system is running

• Status: B inks red when data is being read from or written to HDD

• Tx/Rx: B inks green when network connection is functioning proper y

2. USB Port Connects USB mouse or USB f ash memory devices





 R E A R P A N E L S

Figure 2, DS-7604NI-E1/4P Rear Pane

Figure 3, DS-7608NI-E2/8P Rear Pane

Figure 4, DS-7616NI-E2/16P

No.

Item

Description

Audio In

RCA

connector

Audio Out

RCA

connector

VGA

Out

15 connector for VGA output

to d

isp ay oca video output and

HDMI Out

HDMI video output

connector

A arm I/O

arm

input

output

connectors

LAN Interface

Connector for LAN (Loca Area Network)

USB

port for additiona

devices

Grounding Screw

Ground (needs to be connected when NVR starts up)

Power Input

48 VDC power supp y (DS

7604

E1/4P

100 to 240 VAC

(DS

7608NI

E2/8P, DS

7616NI

E2/16P)

Power Switch

Switch for turning on/off the

device

Network Interfaces w/PoE

IP camera input

and PoE output

1 C O N N E C T D E V I C E S

1. Connect power supp y p ug (DS-7604NI-E1/4P) or AC cord (DS-7608NI-E2/8P) to the NVR.

2. Connect NVR to LAN using Cat 5e cab e.

3. Connect video monitor(s) to NVR using HDMI and/or VGA cab es, as appropriate.

4. Connect mouse to USB port (wire ess mouse can be used in ieu of inc uded mouse).

5. Connect to audio I/O using RCA connectors.

2 S T A R T T H E N V R

1. P ug power cord into 110 VAC out et (surge suppressor is recommended).

2. Turn power switch on. Power indicator LED wi turn green to indicate unit is starting.

3. After startup, power indicator LED wi remain green.

3 L O C A L A C T I V A T I O N

System access requires a secure, user-assigned password.



Set

Admin Password

1. First-time access requires user to create an

admin password.

2. Input the same password in the Create New

Password and Confirm New Password

text fie ds.

Strong Password REQUIRED

Password must contain 8 to 16 characters,

combining numbers, ower and upper case

etters, and specia characters. At east two

types of the above-mentioned characters

are required. A so, reset password

regu ar y.

3. C ick OK to save password and activate

device.

L O C A L A C T I V A T I O N ( c o n t i n u e d )

Password Strength Levels

STRENGTH

LEVEL

DESCRIPTION

Leve 0 (Risky)

DVRs

will not

accept password

Password is fewer than

characters, contains on y

type of

character, is the same as the user name, or is the mirror writing of the

user

name.

Leve 1

(Weak)

DVRs

will

password

Password c

ontains

number + owercase ett

er or number + uppercase

etter

and is

east

characters.

Leve 2

(Medium/Fair)

DVRs

will

password

Password contains

types of characters

(

neither

number + owercase

etter

nor

number + uppercase

etter)

and is

east

characters.

Leve 3

(Strong)

DVRs

will

password

Password contains more

than three types of characters

and is

east

characters.

NOTE 1: The strength eve indicator co ors can vary by activation process, mode

number, and device type. Typica : Risky (no co or), Weak (pink), Fair

(ye ow), Strong (green).

NOTE 2: PASSWORD CHARACTERS ALLOWED (ASCII On y):

• Lowercase ASCII Letters

a b c d e f g h I j k m n o p q r s t u v w x y z

• Uppercase ASCII Letters

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

• Numera s

0 1 2 3 4 5 6 7 8 9

• Specia Characters

. - _ : / @ , ? ! ‘ ( ) $ & “ [ ] { } # % ^ * + = \ | < >



Set Unlock Pattern

Admin user wi be prompted to configure an

un ock pattern for ogin in p ace of a password.

1. Ho d down eft mouse button and draw a

pattern by connecting at east four dots on

the screen, with each dot connected on y

once). Re ease mouse button when done.

2. Draw the same pattern again to confirm it.

NOTE: If you forget your pattern, c ick on

“Forgot Password” to disp ay the

norma admin ogin dia og box.

 Log In (Unlock Pattern)

1. Draw the un ock pattern to un ock system.

L O C A L A C T I V A T I O N ( c o n t i n u e d )



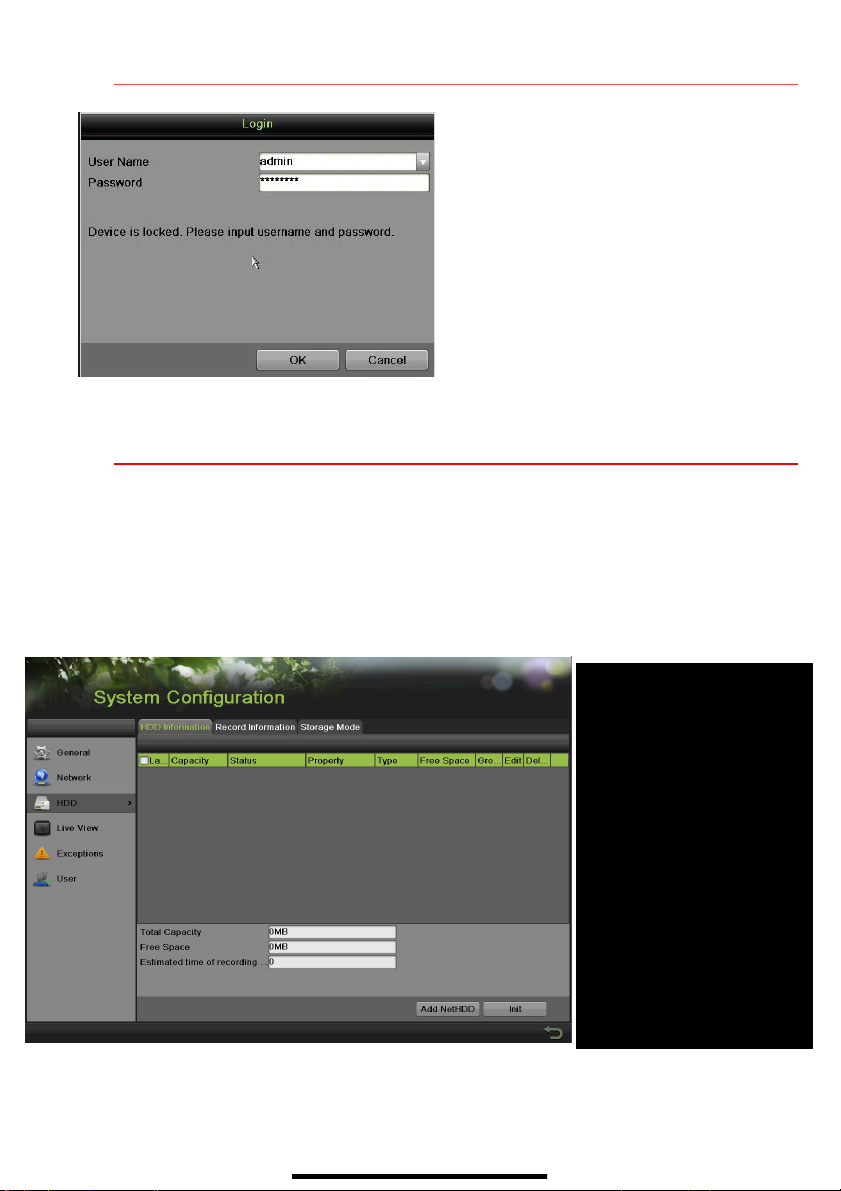

(Dialog Box)

1. User Name fie d wi be prefi ed with

“admin.”

2. Input Password (account ocks for 30

minutes after 7 incorrect attempts).

3. C ick OK.

4 I N I T I A L I Z E T H E H A R D D R I V E ( I N E E D E D )

The system is set up to record upon power up and wi beep if the hard drives are not initia ized.

1. Go to MENU > SYSTEM CONFIGURATION > HDD.

2. Use the checkboxes to se ect the HDDs that need to be initia ized.

3. Press INIT.

NOTE: Factory insta ed HDDs come initia ized. Initia izing again wi erase any

record video (this does not affect settings).

HDD LIST

w TOTAL HDD SPACE

e REE SPACE

5 S E T D A T E A N D T I M E

1. Go to MENU > SYSTEM CONFIGURATION > GENERAL.

6 S E T U P N E T W O R K A C C E S S

1. Set up access to cameras remote y: MENU > SYSTEM CONFIGURATION > NETWORK.

2. Enab e DHCP (check the checkbox).

3. Press Refresh button to update the IPv4 address, subnet mask, and IPv4 defau t gateway.

4. Disab e DHCP (uncheck the checkbox).

5. Change “Preferred DNS Server” va ue to 8.8.8.8 ( eave A ternate DNS Server b ank).

DATE/TIME

Date and time settings

w TIME ZONE

Time zone and day ight savings

time settings

e ENABLE NTP

Network Time Protoco settings

q q

GENERAL TAB

Se ect this tab

NIC TYPE

Set LAN type

e e

ENABLE DHCP

Check box so that router wi

assign IP address

r r

RE RESH

Press to update va ues

t t

IP V4 ADDRESS

Defau t 192.0.0.64

y y

PRE ERRED DNS SERVER

Defau t is 8.8.8.8

u u

ALTERNATE DNS SERVER

Leave b ank

7 S E T C A M E R A P O R T S

After assigning the IP information, c ick the More Settings tab.

The More Settings tab contains the ports that need to be forwarded for remote access.

• SERVER PORT is responsib e for the mobi e app and c ient software og-in.

• HTTP PORT is responsib e for Web browser og-in.

• RTSP PORT is responsib e for video/audio streaming.

NOTE: The HTTP port, server port, and RTSP can be changed, if desired, to

avoid conf icts with the ISP or if mu tip e devices are insta ed at a sing e

ocation.

8 S E T U P P O R T O R W A R D I N G

Port forwarding redirects communication from one address/port number to another to make services on a

protected network avai ab e to hosts on an externa network.

1. Log into the router, and proceed with port forwarding. Port forwarding steps differ by router. For

port forwarding assistance, contact your Internet Service Provider (ISP) or router manufacturer. A so

refer to www.portforward.com for step-by-step instructions.

NOTE: Hikvision USA is not associated with www.portforward.com and is not

responsib e for any activity between the user and www.portforward.com.

P ease avoid accidenta y down oading any software from www.portforward.com.

2. Proceed to the Routers section on the website for step-by-step instructions.

9 S E T U P D D N S ( D y n a m i c D o m a i n N a m e S y s t e m )

DDNS a ows users with dynamic (changing) IP address to remote y access their unit.

1. C ick on the DDNS tab.

2. Check the DDNS checkbox.

3. DDNS Type: HiDDNS (defau t)

4. Continent/Country: Auto Detection (defau t)

5. Server Address: www.hik-on ine.com (U.S. defau t)

6. Create a Device Domain Name (cannot begin with a number, contain spaces, specia characters, or

upper case etters).

7. Create a User Name.

8. Password: System uses device seria number; cannot be changed.

9. After the changes have been made, press Apply to disp ay the Succeeded message. (If the Domain

Name does not meet acceptab e criteria, or is a ready registered, an error message wi appear.)

10 A D D I P C A M E R A S

1. Right c ick a window in Live View mode to disp ay the menu.

2. C ick Menu to disp ay Menu choices.

3. C ick Cameras Setup to disp ay the Add Cameras window.

4. Add camera(s) as fo ows:

• Hikvision Camera Connected to Unit’s PoE Port — Wi automatica y be added to an NVR

camera channe (D

) and wi be visib e on the camera ist in white within two minutes.

• Hikvision Camera Connected to the Network but Not Unit’s PoE Ports — Wi automatica y be

detected and disp ayed at bottom of the camera ist in ye ow. Must be added to an NVR camera

channe manua y:

1) C ick an unused camera channe ’s D

checkbox.

2) C ick the EDIT (Penci ) button to disp ay the Edit IP Camera window.

3) Use pu -down menu to change Adding Method from “P ug and P ay” to “Manua .”

4) Enter the camera’s IP address and other information as required.

5) Press the OK button to add the camera.

1 0

A D D I P C A M E R A S ( c o n t i n u e d )

•

••

• Hikvision Cameras Not Detected — Must be added manua y:

1) C ick an unused camera channe ’s D

checkbox.

2) C ick the EDIT (Penci ) button to disp ay the Edit IP Camera window.

3) Use pu -down menu to change Adding Method from “P ug and P ay” to “Manua .”

4) Enter the camera’s IP address and other information as required.

5) Press the OK button to add the camera.

•

••

• Third-Party Cameras — Must be added manua y:

1) C ick an unused camera channe ’s D

checkbox.

2) C ick the EDIT (Penci ) button to disp ay the Edit IP Camera window.

3) Use pu -down menu to change Adding Method from “P ug and P ay” to “Manua .”

4) Enter the camera’s IP address and other information as required.

5) Press the OK button to add the camera.

IP Camera Management Icons

Icon

Explanation

Icon

Explanation

Edit basic camera parameters

Upgrade the connected camera

Camera disconnected; c ick icon

to get camera’s exception

information

De ete the IP camera

P ay connected camera’s ive

video

Camera connected

q q

NVR CAMERA CHANNELS

Cameras connected to NVR

w w

w PLAY

P ay camera’s ive video

e EDIT (Pencil)

Press to change IP address (must

be in LAN range)

CAMERA LIST (White)

Added cameras

LAN CAMERAS LIST (Yellow)

Detected cameras wi appear here

y y

CAMERA CONNECTED

Shows camera is connected

u u

CAMERA DISCONNECTED

Shows disconnected camera

NOTE: To change camera

name, go to OSD.

11 V I E W L I V E V I D E O

Live View disp ays rea -time video.

12 S E T U P R E C O R D I N G

 Recording Schedule

Defau t is to continuous y record video at 8 fps, or 15 fps when motion is detected, everyday. Do the

fo owing to change the recording schedu e:

1. Go to MENU > RECORDING CONFIGURATION > SCHEDULE.

2. Choose CONTINUOUS or EVENT/(MOTION DETECTION) under the Type pu -down menu.

3. Use cursor to se ect (days wi turn b ue [continuous] or ye ow [event/motion detect]) or dese ect

(days wi turn gray [off]) the ca endar days you wish to record.

4. App y time settings as desired.

5. Press APPLY.

Icons in the upper

rig

ht of screen show

each camera’s record and a arm status.

• Alarm (video oss, tampering, motion

detection, sensor a arm, or VCA

a arm)

• Record (manua record, continuous

record, motion detection, a arm, or

VCA triggered record)

• Event/Exception (event and

exception information appears at

ower- eft corner of screen)

TYPE

Motion or Continuous (defau t)

w COLOR

Shows Recording Schedu e days:

•

B ue=Continuous

• Ye ow=Event (motion/a arm)

• Grey=None

e TIMES

Customize schedu e times (ignore for

“motion on y” recording)

r ADD

Press to add time settings to

schedu e

t t

t ENABLE SCHEDULE

If not checked, camera wi not record

Este manual sirve para los siguientes modelos

Otros manuales de DVR de HIK VISION

HIK VISION

HIK VISION DS-7204HI series Manual de usuario

HIK VISION

HIK VISION DS-72xxHGHI-SH Manual de usuario

HIK VISION

HIK VISION DS-8000HTI-S Series Manual de usuario

HIK VISION

HIK VISION AE-MD5043 Manual de usuario

HIK VISION

HIK VISION Ds-7604ni-e1, ds-7608ni-e1 Manual de usuario

HIK VISION

HIK VISION DS-9100HFI-SH Series Manual de usuario

HIK VISION

HIK VISION DS-7204HVI-S Series Manual de usuario

HIK VISION

HIK VISION DS-7204HVI-ST Manual de usuario

HIK VISION

HIK VISION DS-E00HQHI-XB Series Manual de usuario

HIK VISION

HIK VISION DS-8004HCI-S Manual de usuario

HIK VISION

HIK VISION DS-7100HWI-SL Series Manual de usuario

HIK VISION

HIK VISION DS-72 Series Manual de usuario

HIK VISION

HIK VISION DS-7204HQI-K1 Manual de usuario

HIK VISION

HIK VISION DS 7204HQHI K1/B Manual de usuario

HIK VISION

HIK VISION DS-7104HGHI-SH Manual de usuario

HIK VISION

HIK VISION iVMS-5200 Pro Guía de instalación

HIK VISION

HIK VISION DS-1004CDY Manual de usuario

HIK VISION

HIK VISION RH5xx Series Manual de usuario

HIK VISION

HIK VISION ERT-F204 Series Manual de usuario

HIK VISION

HIK VISION DS-7204HVI-S Series Manual de usuario

HIK VISION

HIK VISION DS-8100HFI-ST Series Manual de usuario

HIK VISION

HIK VISION DS-7300HFI-ST Series Manual de usuario

HIK VISION

HIK VISION DS-7300HI-S Series Manual de usuario

HIK VISION

HIK VISION Network Video Recorder Manual de usuario

Manuales populares de DVR de otras marcas

FLIR

FLIR M3100E Series Manual de usuario

VTRACKPRO

VTRACKPRO FPRO300 Manual de usuario

Swann

Swann NVR-7085 models Manual de usuario

XtendLan

XtendLan DVR-1670C Manual de usuario

urmet domus

urmet domus 1093/004AHD Manual de usuario

Holux

Holux M1 Manual de usuario

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Manual de usuario

Whistler

Whistler D16VRS Manual de usuario

Defender Security

Defender Security 82-20235 Manual de usuario

MISUMI

MISUMI MP-WF100M Manual de usuario

Speco

Speco D8HU Manual de usuario

UST

UST DDR-E04AA Instrucciones de uso

Consolidated

Consolidated Digital Video Recorder Manual de usuario

Mace

Mace DVR0404RW Guía de inicio rápido

RCA

RCA RTD315W Manual de usuario

FSM

FSM Colibri Grande PRO Manual de usuario

Hauppauge

Hauppauge HD PVR 2 Manual de usuario

Identivision

Identivision ICR-PH161i PIONEER Manual de usuario
