DS-7200HVI/HFI-SH Series DVR

Quick Operation Guide

UD.6L0202B0019A01

Quick Operation Guide of DS-7200HVI/HFI-SH Series DVR

Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact dealer.

This manual is applicable to DS-7204HVI-SH, DS-7208HVI-SH, DS-7216HVI-SH; DS-7204HFI-SH,

DS-7208HFI-SH and DS-7216HFI-SH series DVR.

Verify Contents

Verify that the package contents are correct by checking the items against the packing list.

Note: Please contact your dealer for damaged or missing items.

DVR Pre-Installation

The DS-7200HVI/HFI-SH Series DVR is highly advanced surveillance equipment that should be installed with

care. Please take into consideration the following precautionary steps before installation of the DVR.

1. Keep all liquids away from the DVR.

2. Install the DVR in a well-ventilated and dust-free area.

3. Ensure environmental conditions meet factory specifications.

4. Install a manufacturer recommended HDD.

DVR Installation

During the installation of the DVR:

1. Use brackets for rack mounting.

2. Ensure there is ample room for audio and video cables.

3. When installing cables, ensure that the bend radius of the cables are no less than five times than its diameter.

4. Connect both the alarm and RS-485 cable.

5. Allow at least 2cm (~0.75-inch) of space between racks mounted devices.

6. Ensure the DVR is grounded.

7. Environmental temperature should be within the range of -10 ºC ~ 55 ºC , 14ºF ~ 131ºF.

8. Environmental humidity should be within the range of 10% ~ 90%.

Hard Disk Installation

Before you start:

Before installing a hard disk drive (HDD), please make sure the power is disconnected from the DVR. A factory

recommended HDD should be used for this installation.

Tools Required: Screwdriver.

To install a HDD on your DVR:

1. Remove the cover from the DVR by unfastening the screws on the back and side.

2. Install the HDD in the HDD rack using the provided screws. Fasten the screws on the bottom to fix

the HDD.

Quick Operation Guide of DS-7200HVI/HFI-SH Series DVR

3. Connect the HDD to the motherboard of the DVR with the included data cable.

4. Connect the power cable to the HDD.

5. Re-install the cover of the DVR and fasten screws.

Quick Operation Guide of DS-7200HVI/HFI-SH Series DVR

Front Panel

The front panel of DS-7200HVI-SH/DS-7200HFI-SH is shown below:

Table 1 Description of Control Panel Buttons

No.

Name

Function Description

POWER

POWER indicator turns green when DVR is powered up.

STATUS

STATUS indicator lights in red when HDD is reading/writing.

Tx/Rx

Tx/Rx indictor blinks green when network connection is functioning properly.

USB Interface

Connects USB mouse or USB flash memory devices.

IR Receiver

Receiver for IR remote.

Rear Panel

DS-7204HVI/HFI-SH:

DS-7216HVI-SH:

Note: The rear panel of DS-7208HVI-SH provides 8 video input interfaces.

DS-7216HFI-SH:

Note: The rear panel of DS-7208HFI-SH provides 8 video input interfaces.

Quick Operation Guide of DS-7200HVI/HFI-SH Series DVR

Table 2 Description of Rear Panel

No.

Item

Description

VIDEO IN

BNC connector for analog video input.

VIDEO OUT

BNC connector for video output.

USB Interface

Connects USB mouse or USB flash memory devices.

HDMI

HDMI video output.

VGA

DB15 connector for VGA output. Display local video output and menu.

AUDIO IN

RCA connector for audio input.

AUDIO OUT

RCA connector for audio output.

LAN Interface

Connector for LAN (Local Area Network).

RS-485 Interface

Connector for RS-485 devices. Connect the D+ and D- terminals to T+

and T- of PTZ receiver respectively.

12V

12VDC power supply.

POWER

Switch for turning on/off the device.

GND

Ground(needs to be connected when DVR starts up)

Peripheral Connections

RS-485 Connections

To connect RS-485 devices (e.g., pan/tilt unit) to the DVR:

Press and hold the orange part of the pluggable block; insert signal cables into slots and release the orange part.

Ensure signal cables are in tight.

Note: Make sure the pan/tilt receiver unit is connected to the D+ and D- of the RS-485 terminal of DVR.

Quick Operation Guide of DS-7200HVI/HFI-SH Series DVR

Specifications

Table 3 Specifications for DS-7200HVI-SH

Model

DS-7204HVI-SH

DS-7208HVI-SH

DS-7216HVI-SH

Video/Audio

input

Video compression

H.264

Video input

4-ch

8-ch

16-ch

Video input interface

BNC (1.0 Vp-p, 75 Ω), PAL /NTSC self-adaptive

Audio compression

G.711u

Audio input

1-ch, RCA (2.0 Vp-p, 1 kΩ)

Two-way audio input

1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)

Video/Audio

output

HDMI/VGA output

1-ch, resolution:

1920 ×1080P / 60 Hz ,1600 ×1200 / 60 Hz,1280 ×1024 / 60 Hz,

1280 ×720 / 60 Hz, 1024 ×768 / 60 Hz

CVBS output

1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 ×576, NTSC: 704 ×480

Encoding resolution

4CIF / 2CIF / CIF / QCIF

Frame rate

Mode1:

4CIF / 2CIF @ 12 fps

CIF / QCIF @ 25 fps

(P) / 30 fps (N)

Mode2:

Channel 1: 4CIF /

2CIF / CIF / QCIF @

25 fps (P) / 30 fps (N),

Channel 2~4: CIF /

QCIF @ 25 fps (P) /

30 fps (N)

Mode1:

4CIF / 2CIF @ 8

fps or

CIF / QCIF @ 25

fps (P) / 30 fps (N)

Mode2:

Channel 1&

Channel 5: 4CIF /

2CIF / CIF / QCIF

@ 25 fps (P) / 30

fps (N),

Other Channels:

CIF / QCIF @ 25

fps (P) / 30 fps (N)

Mode1:

4CIF / 2CIF

@6fps or

CIF / QCIF @ 25

fps (P) / 30 fps

(N) Mode2:

Channel 1: 4CIF /

2CIF / CIF / QCIF

@ 25 fps (P) / 30

fps (N),

Channel 2~16:

CIF / QCIF @

25 fps (P) / 30

fps (N)

Video bit rate

32 Kbps ~ 3072 Kbps, or user defined (Max. 3072 Kbps)

Audio output

1-ch, RCA (Linear, 1 kΩ)

Audio bit rate

64 Kbps

Dual-stream

Support;

Sub-stream: CIF @ 6 fps, QCIF @ 25 fps (P) /30 fps (N))

Stream type

Video, Video & Audio

Synchronous

playback

4-ch

8-ch

16-ch

Hard disk

SATA

1 SATA interface

Capacity

Up to 4TB capacity

Quick Operation Guide of DS-7200HVI/HFI-SH Series DVR

External

interface

Network interface

1, RJ45 10M / 100M Ethernet interface

Serial interface

1 RS-485 interface, half-duplex

USB interface

2, USB 2.0

General

Power supply

12 VDC

Consumption

(without hard disk or

DVD-R/W)

≤ 10 W

≤ 15 W

Working temperature

-10 ºC ~+55 ºC

Working humidity

10% ~ 90%

Chassis

Standalone 1U chassis

Dimensions

(W ×D ×H)

315 ×230 ×45 mm

Weight (without hard

disk or DVD-R/W)

≤ 2 kg

≤ 4 kg

Quick Operation Guide of DS-7200HVI/HFI-SH Series DVR

Table 4 Specifications for DS-7200HFI-SH

Model

DS-7204HFI-SH

DS-7208HFI-SH

DS-7216HFI-SH

Video/Audio

input

Video compression

H.264

Video input

4-ch

8-ch

16-ch

Video input interface

BNC (1.0 Vp-p, 75 Ω), PAL /NTSC self-adaptive

Audio compression

G.711u

Audio input

1-ch, RCA (2.0 Vp-p, 1 kΩ)

Two-way audio input

1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)

Video/Audio

output

HDMI/VGA output

1-ch, resolution:

1080P:

1920×1080×60Hz

UXGA:

1600×1200×60Hz

SXGA:

1280×1024×60Hz

720P: 1280×720×60Hz

XGA: 1024×768×60Hz

1-ch, resolution:

1080P: 1920×1080×60Hz,

SXGA: 1280×1024×60Hz,

720P: 1280×720×60Hz,

XGA: 1024×768×60Hz

CVBS output

1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 ×576, NTSC: 704 ×480

Encoding resolution

4CIF / 2CIF / CIF / QCIF

Frame rate

25 fps (P) / 30 fps (N)

Video bit rate

32 Kbps ~ 3072 Kbps, or user defined (Max. 3072 Kbps)

Audio output

1-ch, RCA (Linear, 1 kΩ)

Audio bit rate

64 Kbps

Dual-stream

Support; Sub-stream: CIF / QCIF @ 25 fps (P) / 30 fps (N))

Stream type

Video, Video & Audio

Synchronous

playback

4-ch

8-ch

16-ch

Hard disk

SATA

1 SATA interface

2 SATA interfaces

Capacity

Up to 4TB capacity

External

interface

Network interface

1, RJ45 10M / 100M Ethernet interface

Serial interface

1 RS-485 interface, half-duplex

USB interface

2, USB 2.0

General

Power supply

12 VDC

Consumption

(without hard disk or

DVD-R/W)

≤ 10 W

≤ 15 W

≤ 20 W

Working

temperature

-10 ºC ~+55 ºC

Working humidity

10% ~ 90%

Chassis

Standalone 1U chassis

19-inch

rack-mounted 1U

19-inch

rack-mounted 1U

Quick Operation Guide of DS-7200HVI/HFI-SH Series DVR

HDD Storage Calculation Chart

The following chart shows an estimation of storage space used based on recording at one channel for an hour at a

fixed bit rate.

Bit Rate

Storage Used

96K

42M

128K

56M

160K

70M

192K

84M

224K

98M

256K

112M

320K

140M

384K

168M

448K

196M

512K

225M

640K

281M

768K

337M

896K

393M

1024K

450M

1280K

562M

1536K

675M

1792K

787M

2048K

900M

Note: Please note that supplied values for storage space used is just for reference. Storage space used is estimated

by formulas and may have some deviation from actual value.

chassis

Dimensions

(W ×D ×H)

315 ×230 ×45 mm

445 ×290 ×45 mm

Weight

(without hard disk or

DVD-R/W)

≤ 2 kg

≤ 4 kg

Quick Operation Guide of DS-7200HVI/HFI-SH Series DVR

Menu Operation

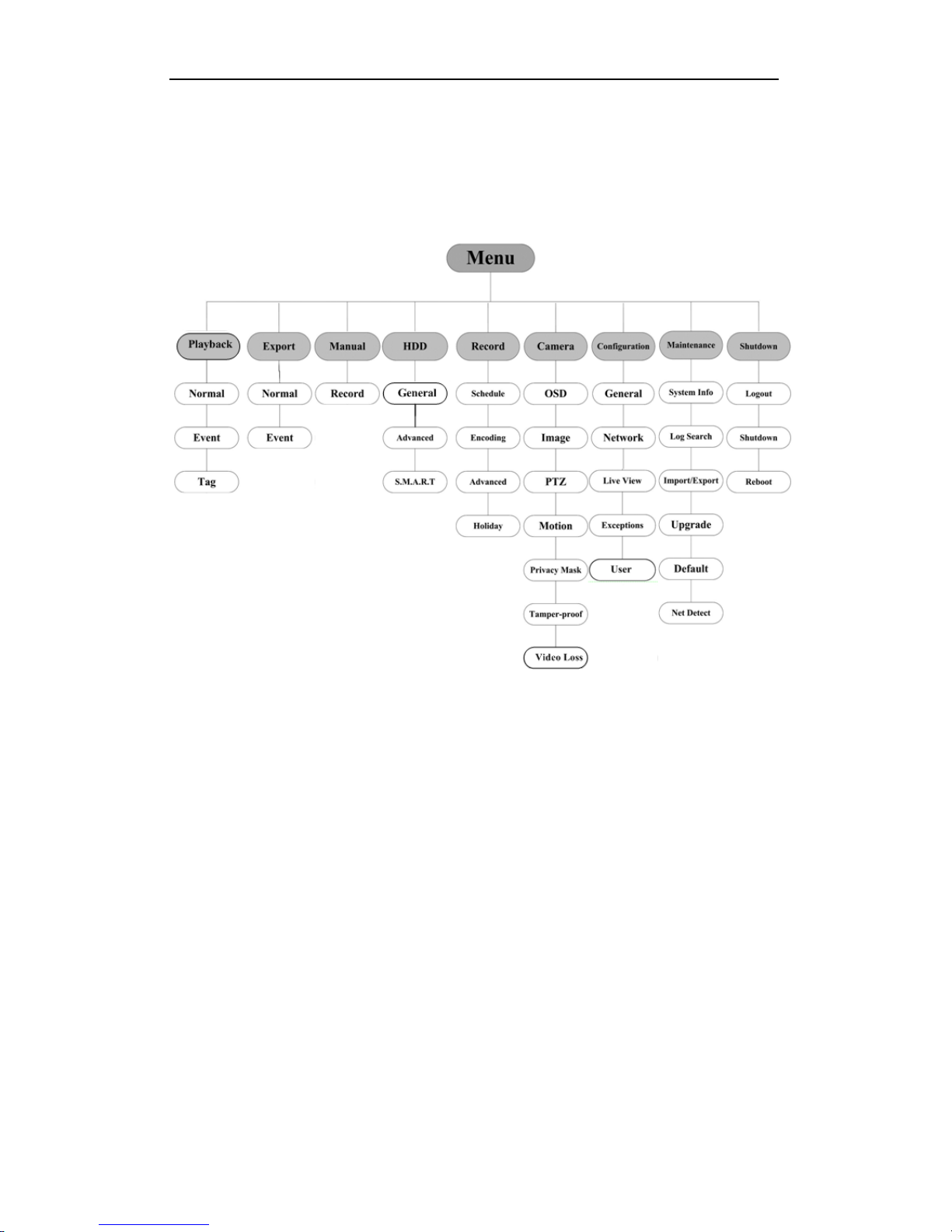

Menu Structure

The menu structure of the DVR is shown as below:

Startup and Shutdown

Proper startup and shutdown procedures are crucial to expanding the life of the DVR.

Before you start:

Check that the voltage of the extra power supply is the same with the device’s requirement, and the ground

connection is working properly.

Starting up the device:

Steps:

1. Check the power supply is plugged into an electrical outlet. It is HIGHLY recommended that an

Uninterruptible Power Supply (UPS) be used in conjunction with the device.

2. Press the POWER button on the rear panel. The Power indicator LED should turn green indicating that the

unit begins to start up.

Shutting down the device:

Steps:

1. Enter the Shutdown menu.

Menu > Shutdown

Otros manuales para DS-7200HVI

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de DVR de HIK VISION

HIK VISION

HIK VISION DS-7224HFI-ST Manual de usuario

HIK VISION

HIK VISION DS-9008HUHI-F8/N Manual de usuario

HIK VISION

HIK VISION DeepinMind iDS-6700NXI Series Manual de usuario

HIK VISION

HIK VISION DS-8104 Guía del usuario

HIK VISION

HIK VISION DS-7100HGHI-K1/R Series Manual de usuario

HIK VISION

HIK VISION DS-7200HVI-ST/SE Series Manual de usuario

HIK VISION

HIK VISION DS-7104HQHI-F1/N Manual de usuario

HIK VISION

HIK VISION DS-8000AHI-S/AHLI-S Series Manual de usuario

HIK VISION

HIK VISION DS-7300HI-S Series Manual de usuario

HIK VISION

HIK VISION DS-1004CDY Manual de usuario

HIK VISION

HIK VISION HWD-7100MH Series Manual de usuario

HIK VISION

HIK VISION Digital Video Recorder Manual de usuario

HIK VISION

HIK VISION DS-7100HQHI-K1 Series Manual de usuario

HIK VISION

HIK VISION DS-7104NI-K1/W/M(C) Manual de usuario

HIK VISION

HIK VISION DS-73HUHI-F4/N Series Manual de usuario

HIK VISION

HIK VISION DS-8104 Manual de usuario

HIK VISION

HIK VISION DS-7108HI-S Manual de usuario

HIK VISION

HIK VISION DS-7100NI-SL series Guía del usuario

HIK VISION

HIK VISION DS-7604 Series Manual de usuario

HIK VISION

HIK VISION DS-7108HGHI-SH Manual de usuario

HIK VISION

HIK VISION DS-7332HGHI-SH Manual de usuario

HIK VISION

HIK VISION DS-8100HDI-S Series Manual de usuario

HIK VISION

HIK VISION ds-7200HVI-sh series Manual de usuario

HIK VISION

HIK VISION DS-9216HWI-ST Manual de usuario

Manuales populares de DVR de otras marcas

FLIR

FLIR M3100E Series Manual de usuario

VTRACKPRO

VTRACKPRO FPRO300 Manual de usuario

Swann

Swann NVR-7085 models Manual de usuario

XtendLan

XtendLan DVR-1670C Manual de usuario

urmet domus

urmet domus 1093/004AHD Manual de usuario

Holux

Holux M1 Manual de usuario

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Manual de usuario

Whistler

Whistler D16VRS Manual de usuario

Defender Security

Defender Security 82-20235 Manual de usuario

MISUMI

MISUMI MP-WF100M Manual de usuario

Speco

Speco D8HU Manual de usuario

UST

UST DDR-E04AA Instrucciones de uso

Consolidated

Consolidated Digital Video Recorder Manual de usuario

Mace

Mace DVR0404RW Guía de inicio rápido

RCA

RCA RTD315W Manual de usuario

FSM

FSM Colibri Grande PRO Manual de usuario

Hauppauge

Hauppauge HD PVR 2 Manual de usuario

Identivision

Identivision ICR-PH161i PIONEER Manual de usuario
