HIK VISION DS-KABD8003-RS3 Manual de usuario

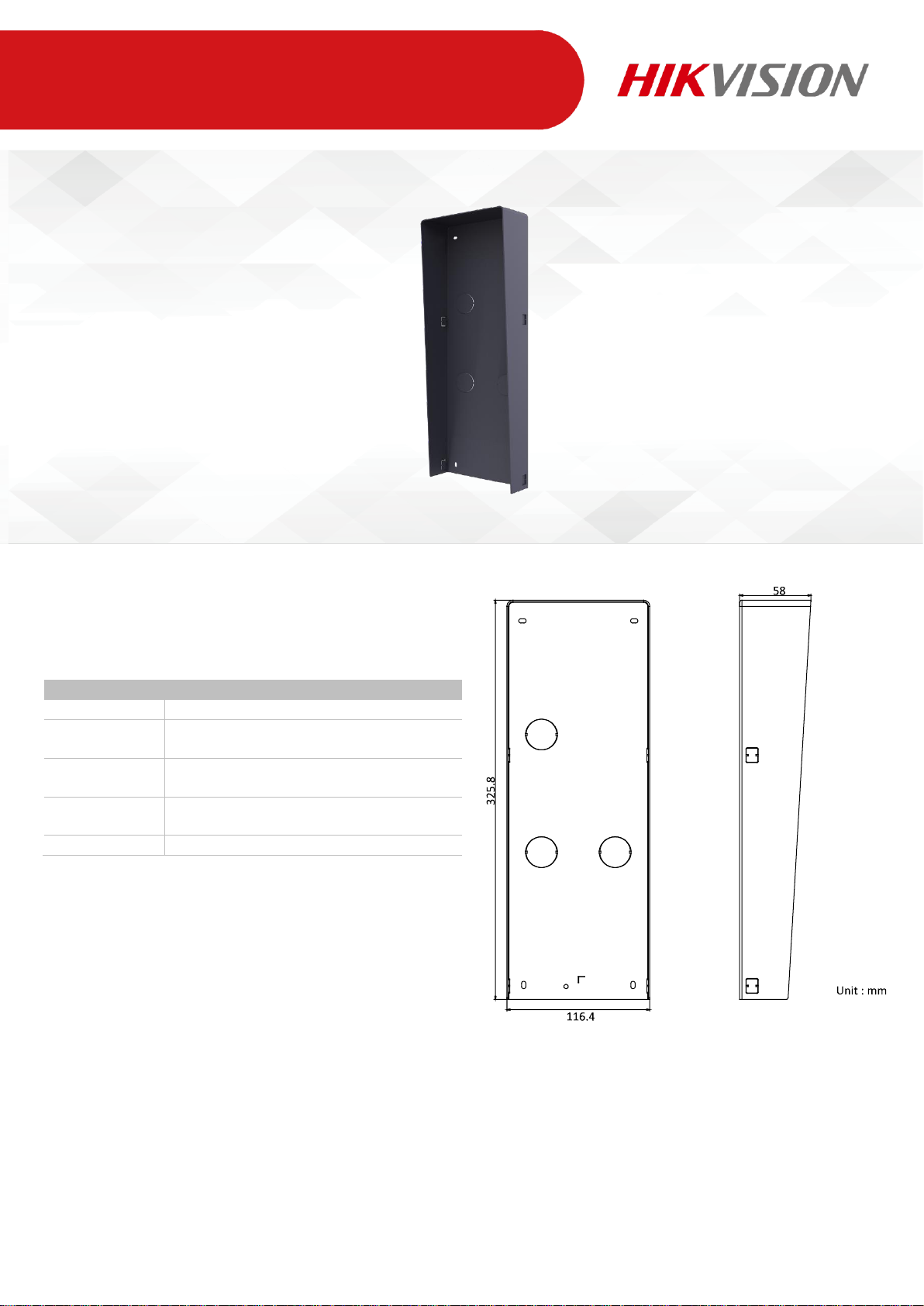

DS-KABD8003-RS3
Protective Shield
Key Feature
Adapts to three-module surface mounting with protective
shield.
Specification
Parameters
Material
SECC
Working
temperature
-40°C to +60°C(-40°F to 140°F)
Working
humidity
10% to 95%
Dimension
325.8 × 116.4 × 58 mm (12.83" × 4.58" ×
2.28")
Weight
702.3 g
Available Model
DS-KABD8003-RS3
Dimension

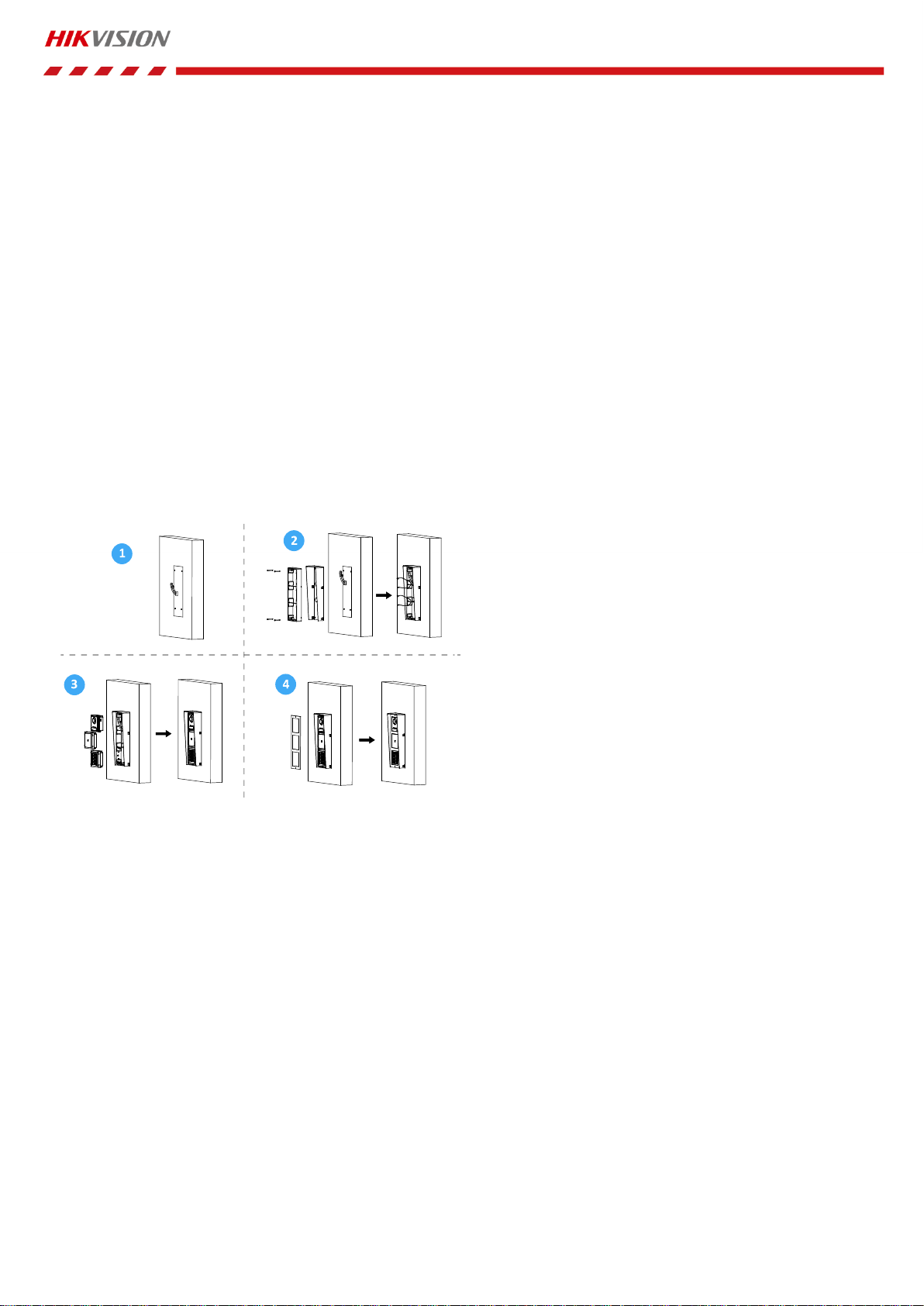

Installation
1. Paste the installation Sticker 1 onto the wall. Make sure the sticker is
placed leveled via measuring with the gradienter.
Drill 4 holes align to the screw holes on the sticker.
The suggested size of hole is 6 (diameter) × 25 (depth) mm.
2. Remove the sticker and insert the expansion sleeves into the screw
holes.
Fix the mounting frame and protective shield onto the wall with 4
expansion bolts.
Thread the module-connecting lines across the thread holes of the
frame.
Pass the main unit connecting lines across the thread hole to the top
grid.
Connect the cables and module-connecting line 1 to the
corresponding interfaces of the main unit, then place the main unit
into the upper grid.
Connect the other end of the module-connecting line1 to the input
interface of the sub module. Connect two sub modules via module-
connecting line 2.
Organize the line with cable tie in the package.
3. Insert the modules in to the frame after wiring. Main unit must be
placed in the top grid.
4. Use the hexagon wrench in the package fix the cover onto the frame.
