HighPoint RocketRAID 4500 Series Manual de usuario

RocketRAID 4500 Series

SAS/SATA 6Gb/s RAID Host Adapters

User’s Guide

Revision: 1.0

Oct. 22, 2012

HighPoint Technologies, Inc.

or transcribed in any form and for any purpose without the express written permission of HighPoint

Technologies, Inc.

Trademarks

Companies and products mentioned in this manual are for identification purpose only. Product names or

brand names appearing in this manual may or may not be registered trademarks or copyrights of their

respective owners. Backup your important data before using HighPoint's products and use at your own

risk. In no event shall HighPoint be liable for any loss of profits, or for direct, indirect, special, incidental or

consequential damages arising from any defect or error in HighPoint's products or manuals. Information

in this manual is subject to change without notice and does not represent a commitment on the part of

HighPoint.

Notice

Reasonable effort has been made to ensure that the information in this manual is accurate. HighPoint

assumes no liability for technical inaccuracies, typographical, or other errors contained herein.

Table of Contents

1 Features and Specifications ................................................................................................................... 4

2 Physical Specifications........................................................................................................................... 6

3 Kit Contents .......................................................................................................................................... 7

4 Hardware Description and Installation.................................................................................................. 8

4.1 RocketRAID 4522 / 4520 Host Adapter board layout .................................................................... 8

4.2 Connector and Jumper description ............................................................................................... 8

4.3 Installing the RocketRAID 4500 Host Adapter ............................................................................... 9

4.4 Verifying Installation..................................................................................................................... 9

5 RocketRAID 4500 BIOS Utility.............................................................................................................. 10

5.1 BIOS Settings Overview............................................................................................................... 10

5.2 Using the BIOS Utility.................................................................................................................. 10

5.3 BIOS Commands ......................................................................................................................... 11

5.4 Creating RAID Arrays................................................................................................................... 11

5.5 Deleting Arrays ...........................................................................................................................18

5.6 Adding/Remove Spare Disks ....................................................................................................... 18

5.7 Settings....................................................................................................................................... 19

5.8 View ........................................................................................................................................... 21

6 RocketRAID 4500 Driver Installation ................................................................................................... 24

6.1 Driver installation - Microsoft Windows...................................................................................... 24

6.2 Driver installation -Linux and FreeBSD ........................................................................................ 31

7 HighPoint Web RAID Management Software ...................................................................................... 32

7.1 Installing the Web RAID Management Software - Microsoft Windows........................................ 32

7.2 Installing the Web RAID Management Software - Linux .............................................................. 36

7.3 Starting Using the Web RAID Management Software.................................................................. 36

8 Firmware Update ................................................................................................................................ 37

9 Thank You ........................................................................................................................................... 38

10 Customer Support ............................................................................................................................. 39

HighPoint RocketRAID 4500 PCI-Express 2.0 x8 HBA series

The RocketRAID 4500 series, HighPoint's newest class of 6Gb/s SAS/SATA RAID HBA's, were designed to

meet the demanding requirements of professional business and media applications, where consistent

performance, data availability and reliability of storage are paramount.

RocketRAID 4500 RAID-on-Chip HBA's are optimized for I/O intensive storage configurations. The

dedicated processor and 512MB of onboard DDR3 cache memory offloads RAID processing from the host

system, ensuring stable and high-performance data transfer. HighPoint's comprehensive storage

Management Suite delivers superior monitoring, maintenance and recovery features to secure critical

data investments against hardware failure.

HighPoint RAID Management HighPoint RAID Management software offers a user friendly interface to

create, manage and maintain your storage solutions. Email notification and remote are some of the

advance features that the RAID Management software has to offer.

1 Features and Specifications

Hardware Specifications

Marvell 88RC9580 RAID-on-Chip Processor

512MB DDR 3 Cache memory with ECC protection

Optional Battery Backup Module (HPTBBU-05)

Up to 6Gb/s per port

8 6Gb/s SAS & SATA ports

PCI Express 2.0 x8 speed

Dual Mini-SAS connectors

Alarm Buzzer

Up to 128 SATA / SAS devices via SAS Expander

SAS Expander support

Backward Compatible with HighPoint RAID HBA

Low Profile

RoHS complaint

Monitor, Alerts and LED Indicators

Hard Drive LED Indicators (Activity and Failed)

SMTP email notification for events and error reporting

Alarm/Buzzer alerts for drive/array failure

SAF-TE (I2C) and SGPIO enclosure management

Advanced RAID Features

RAID 0, 1, 5, 6, 10, 50, JBOD

Redundant RAID Configuration for Array availability

RAID Initialization Types - Background, Foreground and Quick

Online Capacity Expansion (OCE)

Online RAID Level Migration (ORLM)

Native Command Queuing (NCQ)

Staggered Drive Spin Up

Spin Down Idle Disk

Enhanced data protection with Write Journaling feature

NVRAM keeps tracks I/O transaction logs

S.M.A.R.T Support

Auto Rebuild on spare drive

HotPlug and HotSwap support

Larger than 2 TB drive support

Bootable RAID Array support

Write Back or Write Through Cache support

User friendly Browser-based Management Interface

Easy to use BIOS configuration Tool

Linux Command Line Interface (CLI)-Scriptable configuration tool

Hot key (ctrl-h) boot-up RAID manager via BIOS

Web browser-based RAID management software (Web GUI)

Command Line Interface (CLI)

Operating System Support

Windows Server 2003, 2007, 2008, Vista, 7, 8

Major Linux Distributions

FreeBSD

2 Physical Specifications

Dimensions:

Size: 167mm x 68mm x 19mm

EMI: FCC Part 15 Class B and CE

Thermal and Atmospheric Characteristics:

Work Temperature Range: +5°C ~ + 55°C

Relative Humidity Range: 5% ~ 60% non-condensing

Storage Temperature: -20°C ~ +80°C

MTBF: 920,585 Hours

Electrical Characteristics:

PCI-E

3.3V

12V

Power

4W max

1W max

3 Kit Contents

RocketRAID 4522 HBA / RocketRAID 4520 HBA

Quick Installation Guide

HighPoint Software CD

Low-Profile Bracket

Two mini-SAS cables (SFF-8087 to 4* SATA) (RocketRAID 4520 only)

4 Hardware Description and Installation

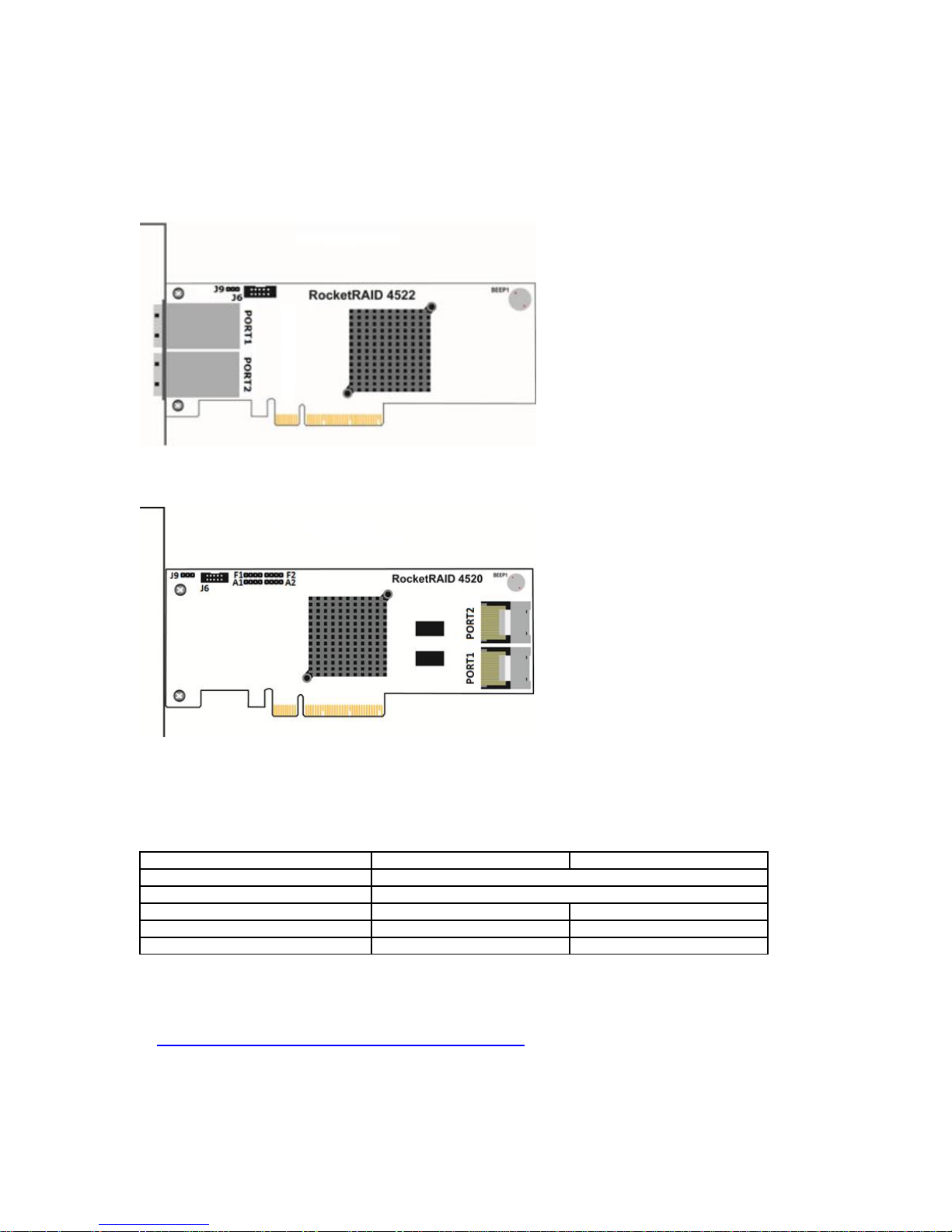

4.1 RocketRAID 4522 / 4520 Host Adapter board layout

4.2 Connector and Jumper description

Connector / Jumper description

RocketRAID 4520

RocketRAID 4522

I2C connector

BBU connector

A1, A2

Active LED PIN

N/A

F1, F2

Fail LED PIN

N/A

PORT1, PORT2

Mini-SAS Port (SFF-8087)

Mini-SAS Port (SFF-8088)

Active/FAIL LED PIN connector:

The LED connectors are designed for use with server chassis and backplanes. For more information,

please download the LED connection guide:

http://www.highpoint-tech.com/PDF/LED_connection.pdf

BBU connector:

RocketRAID 4522

RocketRAID 4520

This connector is for the optional battery backup unit (HPTBBU-05).

4.3 Installing the RocketRAID 4500 Host Adapter

Note: Make sure the system is powered-off before installing the RocketRAID host adapter.

The RocketRAID 4500 includes both standard and low-profile brackets. It may be necessary to attach the

low-profile bracket in place of the standard bracket, depending upon the chassis design.

1. Open the system chassis and locate an unused PCI-E (2.0 or 1.0) ×8 (or x16) slot.

2. Remove the PCI-E slot cover.

3. Gently insert the RocketRAID 4500 into the PCI-E slot, and secure the bracket to the system chassis.

4. After installing the adapter, attach the hard disks or backplane enclosure to the host adapter using the

mini-SAS cables.

Note: Many server-level chassis include hard-drive hot-swap bays. For these system chassis, cables

are attached to the chassis backplane, rather than directly to each individual hard drive. Consult the

chassis manual for proper installation procedures.

5. Close and secure the system chassis.

4.4 Verifying Installation

Once the host adapter and hard drives have been installed into the chassis, boot-up the system to verify

that the hardware is properly recognized.

1. Power on the system. If the system detects the presence of the adapter, the RocketRAID BIOS Utility

will be displayed during boot up.

2. Press “Ctrl+H” key combination to access the RocketRAID 4500 adapter’s BIOS Utility.

5 RocketRAID 4500 BIOS Utility

The RocketRAID 4500 controller will display its BIOS screen during the system's boot process. The BIOS

Utility will display information about hard drives attached to the adapter. Make sure all attached drives

are detected by this utility. If any of the hard drives are not detected, power down the system and check

the power and cable connections.

Press “Ctrl+H” key combination to access the RocketRAID 4500 adapter’s BIOS Utility.

5.1 BIOS Settings Overview

The RocketRAID 4500 controller BIOS utility is an interface that provides management commands and

controller related settings.

(We use the BIOS Interface of RocketRAID 4522 as example. The RocketRAID 4520’s is the same as

RocketRAID 4522.)

5.2 Using the BIOS Utility

The following keys utilized by the RocketRAID 4500 BIOS utility:

Arrow keys –Use these to move between different menu items.

Enter –Open the selected toolbar command/execute the selected command.

Esc –Move back to the previous menu, cancel the selected operation, or exit the BIOS Utility.
