HiFiMAN HE-R9 Manual de usuario
Topology
Diaphragm
www.hifiman.com store.hifiman.comhifimanelectronics hifimanofficial
HE-R9
Owner’s Guide
Table of Contents
01-02
05-06
03-04
07-08
09-10
11-12
13-14
16
15
17-18
Message from the Founder
HIFIMAN Topology Diaphragm Technology
Elegance Outside, Strength Inside
Large Ear Cups with Crimson Red
Tranquility Pads
Cable & Special Socket
Package Details
Headband Adjustment & Replacing Ear Pads
Care and Maintenance
HIFIMAN Limited Warranty
01 02HE-R9 Owner’s Guide HE-R9 Owner’s Guide
Thank you for your purchase of a HIFIMAN product. We take great
pride in offering audio products that provide best-in-class perfor-
mance and value.
Though it seems like only yesterday when, as a passionate audiophile,
I started HIFIMAN, we just finished our first decade in business and
eagerly look forward to an exciting future. The company continues to
grow at a rapid pace, and the HIFIMAN brand is one of the most
respected in the industry.
Even with our success, two things that never change are my love of
music and my commitment to creating products that recreate the
experience of hearing a live performance. I am joined by many others
in the company who share my passion and in turn, we humbly share
our passion with you.
Thank you again for your purchase. I hope you will find this guide a
useful tool for learning about your product, ultimately helping you
enjoy countless hours of pleasure.
Happy listening,
Message from the Founder
Dr. Fang Bian,
Founder and CEO
Fang
03 04HE-R9 Owner’s Guide HE-R9 Owner’s Guide
Topology
Diaphragm
HIFIMAN Topology
Diaphragm Technology
Topology Diaphragm is the name used to describe the technology first
developed for our In-Ear Monitors.
The name comes the way the technology works: it is made by applying
nano scale particles to the diaphragm in layers of assorted shapes and
patterns, thereby allowing for a high level of optimization that has a
noticeably positive effect on the diaphragm’s audio characteristics.
The inspiration for the topological diaphragm originated from Dr. Fang’s
PhD research, which illustrated that "different nanomaterials have
different structures.” Subsequently, the characteristics are not the same.
The result was a range of dynamic IEM drivers, but the HE-R9 is a new
product with the technology on a comparatively large-scale driver.
05 06HE-R9 Owner’s Guide HE-R9 Owner’s Guide

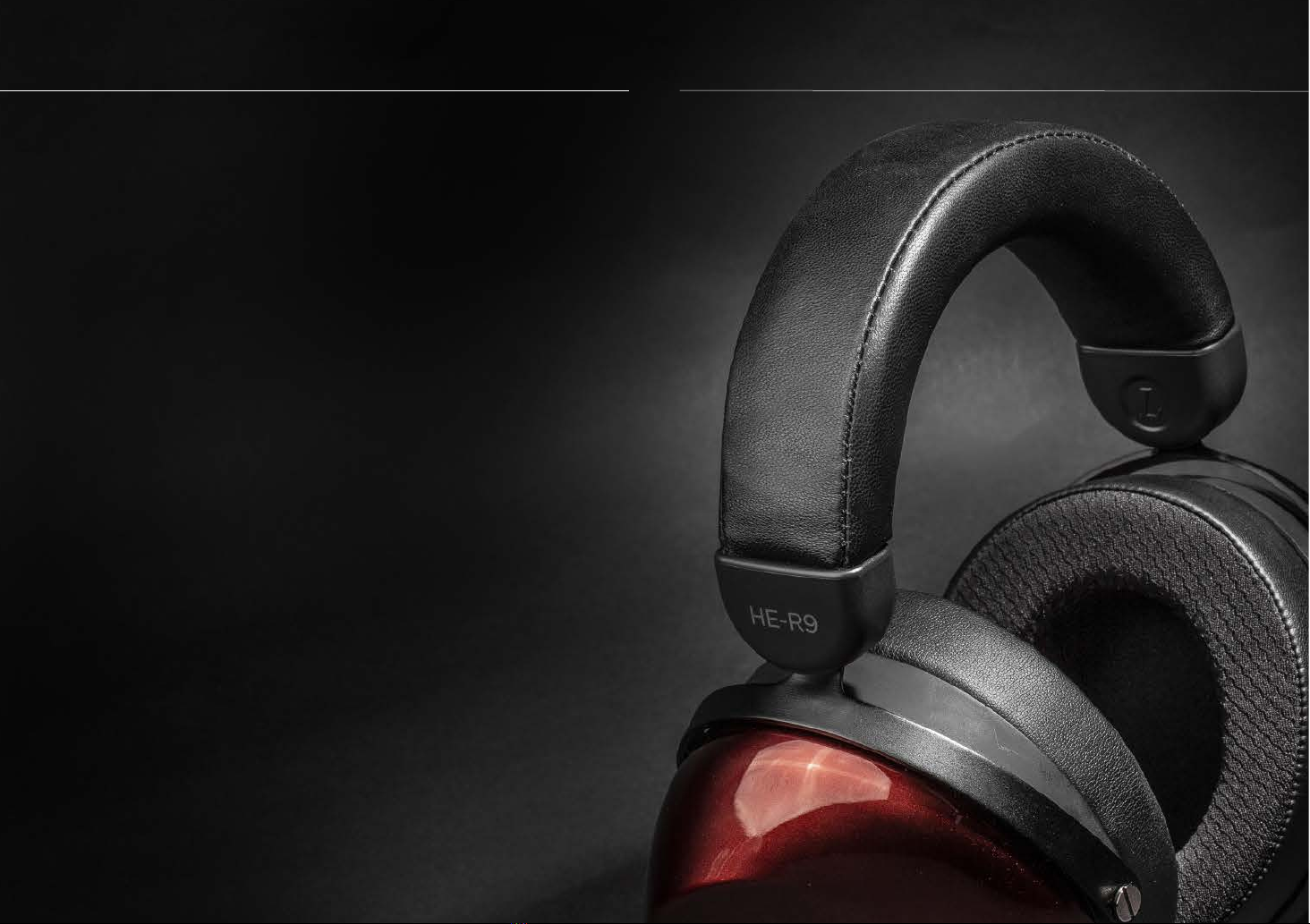

Elegance Outside,
Strength Inside
The exterior of the headband is covered by high-standard
leather, giving it a soft and elegant appearance. The inside
is high-grade memory foam, selected to achieve the most
comfortable fit and elasticity. The headband skeleton itself
is made of solid steel.
The structure is both lightweight and strong, robust yet
delicate, and designed to convey detail and musicality that
is unmatched in the market.
07 08HE-R9 Owner’s Guide HE-R9 Owner’s Guide
Large Ear Cups for
Superior Acoustics
The large internal space of the HE-R9’s cup affords
substantial spatial volume and the necessary breathing room
for the powerful driver to sound its best. The crimson red ear
cups offers exceptional tuning, with outstanding sound
quality that combines the best attributes of closed- and
open-back headphones.
09 10HE-R9 Owner’s Guide HE-R9 Owner’s Guide
Tranquility Pads
The HE-R9’s “Tranquility” ear pads feature high
quality leather on the outside, which uses a
ring-shaped inner surface to absorb sound and
prevent sound leakage through the sides of the
ear pad. This forces the sound to target the
listener’s ear. The contact edge is constructed of
highly permeable material to ensure optimal
head comfort.
The outcome of this advanced engineering?
A transparent, coherent, and wide soundstage,
with maximum comfort.
11 12HE-R9 Owner’s Guide HE-R9 Owner’s Guide
Cable & Special Socket
The HE-R9’s socket can accommodates both dual-sided
unbalanced 3.5mm cable and a single-sided 3.5mm balanced
cable at the same time.
The package includes one 3.5mm dual-sided cable and one
6.35mm adapter so that the HE-R9 is compatible most
headphones and headphone amplifiers.
Bluemini and single-side 3.5mm balanced cable are sold separately.
Specifications
Package Details
HE-R9 headphone
Dual-side 3.5mm plug headphone cable (1.5m) x 1
6.35mm Adapter x 1
Ear pads (installed on the headset) x 1 pair
Manual
Warranty card
Package Contents
Frequency response range: 15-35KHz
Impedance: 32Ω
Sensitivity: 100dB
Net weight: 328g
Input: 3.5mm
3.5mm TRRS (left only)
13 14HE-R9 Owner’s Guide HE-R9 Owner’s Guide
15 16HE-R9 Owner’s Guide HE-R9 Owner’s Guide
Replacing Ear Pads
HE-R9
①
②
③
To remove the ear pads, locate the clips on the inside of the pad, and use
two fingers to gently bend them in and slip them out. To install new pads,
simply align the ear pad with the mounting ring, and gently bend the clips so
they slot in their appropriate locations.
The headphones benefit from break-in to achieve optimum
performance. Usually, this takes up to 150 hours. Until then, there is
nothing special you need to do other than enjoy your headphones.
Wipe the surfaces (ear pads, cups) with a microfiber cloth and
store the headphone in a dry, cool, and safe place (away from dust,
heat, humidity, sunlight, younger kids, and pets if possible).
To prolong the life of the headband, periodically wipe it with a clean,
dry cloth.
Avoid exposure to extreme heat or cold.
Do not use any headphone while driving or operating machinery.
Do not use volatile substances, including alcohol, acetone, gasoline
or dish detergent, to clean the headphone.
Care and MaintenanceHeadband Adjustment
For the best possible fit, use the two adjustment blocks to adjust the
position of the headband strap.
ThinThick
