HEX Bromley Manual de usuario

Affix Serial Number

HERE

Bromley

Horizontal Metal Storage Shed Assembly Guide

Doc Ref: 699-0805/C

Using the unique serial number, simply register your product at www.hexliving.co.uk

to access and download the HEX Living lifetime warranty and video assembly instructions.

IMPORTANT: PLEASE REGISTER YOUR HEX LIVING PRODUCT BEFORE ASSEMBLY

Bromley: Advisory Data

Part Ref: FK7

Expansion Plug

Qty: x4

Part Ref: FK8

M8 x 50mm Coach Screw

Qty: x4

IMPORTANT: IT IS ADVISABLE THAT THE PRODUCT IS ASSEMBLED AT, OR AS CLOSE AS POSSIBLE TO WHERE IT WILL BE FINALLY LOCATED

The objec�ve of this instruc�on is to illustrate the recommended assembly sequence for this product, any devia�on from this will be the sole

responsibility of whoever carries out the assembly.

GROUND ANCHOR KIT

A Ground Anchor Kit is supplied, this is to secure the product to a solid

concrete base, the shed has x4 clamp plates in each corner.

WE STRONGLY ADVISE THAT THE SHED IS ANCHORED USING THIS KIT



assembled, access the clamp brackets by removing the appropriate











be easier to have assistance. x2

Eye Protection Gloves

TWO PERSON ASSEMBLY

GROUND ANCHOR KIT

CARING FOR YOUR HEX LIVING PRODUCT

PRODUCT REGISTRATION

PERSONAL PROTECTION EQUIPMENT

PLEASE READ THIS DOCUMENT FULLY PRIOR TO STARTING ASSEMBLY PROCEDURE

Your HEX Living product is designed to stand the test of me, which is why we’re happy to oer a

With zero maintenance reuired, simply assemble your HEX

Periodically, you might want to give your product a clean, these simple care ps are not essenalto the performance of your product:

Remove surface dirt with plain water using a jet wash or sponge, the coang on our products will ensure dirt or mud simply

wipes away.

Periodically clear the roof of fallen leaves.

-If your product has guering, remove leaves and garden debris as you would on your home.

IMPORTANT: Prior to assembly, please ensure you have registered your HEX Living product using the uniue serial number found on

the cover of this document, please visit www.hexliving.co.uk to register your product and access the HEX Living lifeme warranty and



Ensure there is adequate clearance where the product is to be located:

1950 x 900 x 1358mm

Footprint dimensions (W x D) 1900 x 900mm

Clearance required for door to open (W x H) Doors open outwards 1655 x 1254mm

Exterior dimensions including overhang (W x D x H)

Clearance required for lid to open (W x H) Lid opens 1950 x 2165mm

Bromley: Assembly Guide

Part Ref: 0204-05

Qty: x1

Part Ref: 0204-01

Qty: x2

ENSURE ALL ITEMS LISTED ARE PRESENT PRIOR TO STARTING ASSEMBLY PROCEDURE

SCALE OF ITEMS WILL VARY TO AID VISUAL IDENTIFICATION

Part Ref: 0204-06

Qty: x2

Part Ref: 0204-03

Qty: x3

Part Ref: 0203-03

Qty: x4

Part Ref: 0204-02

Qty: x2

Part Ref: 0204-14

Qty: x1

Part Ref: 0204-11 (1302mm Long)

Qty: x2

Part Ref: 0204-10 (1237mm Long)

Qty: x2

Part Ref: 0204-07

Qty: x1

Bromley: Assembly Guide

ENSURE ALL ITEMS LISTED ARE PRESENT PRIOR TO STARTING ASSEMBLY PROCEDURE

SCALE OF ITEMS WILL VARY TO AID VISUAL IDENTIFICATION

Part Ref: 0204-08 (824mm Wide)

Qty: x2

Part Ref: 0204-18

Qty: x1

Part Ref: 0204-19 

Qty: x1

Part Ref: 0204-15 (Right-hand)

Qty: x1

Part Ref: 0204-13 

Qty: x1

Part Ref: 0204-12 (Right-hand)

Qty: x1

Part Ref: 0204-32

Qty: x2

Part Ref: 0204-54 (616mm Wide)

Qty: x1

Part Ref: 0204-09 (625mm Wide)

Qty: x2

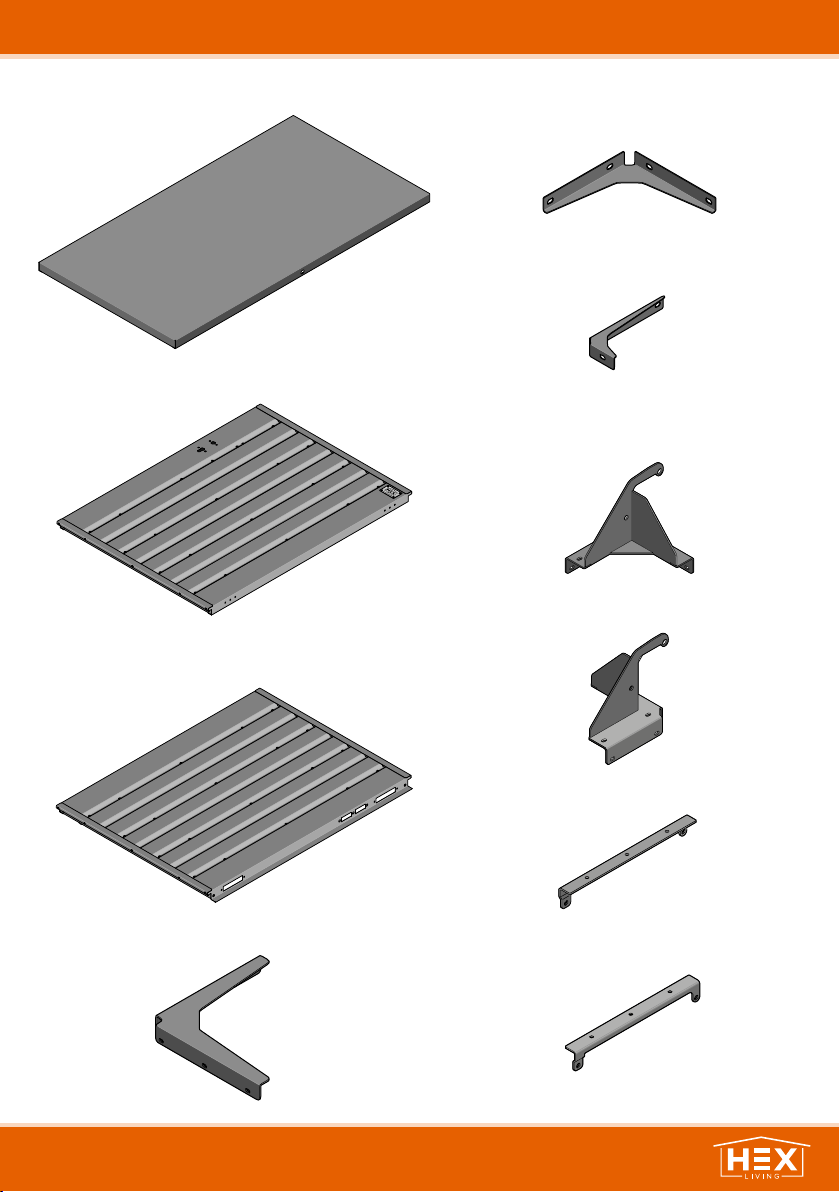

Bromley: Assembly Guide

Part Ref: 0204-33

Qty: x2

Part Ref: 0204-17

Qty: x1

ENSURE ALL ITEMS LISTED ARE PRESENT PRIOR TO STARTING ASSEMBLY PROCEDURE

SCALE OF ITEMS WILL VARY TO AID VISUAL IDENTIFICATION

Part Ref: 0204-59

Qty: x2

Part Ref: 0204-22 

Qty: x1

Part Ref: 0204-21 (Right-hand)

Qty: x1

Part Ref: 0204-50

Qty: x1

Part Ref: 0204-34

Qty: x2

Part Ref: 0204-23

Qty: x1

Part Ref: 0204-24

Qty: x1

Part Ref: 0204-47

Qty: x1

Bromley: Assembly Guide

Part Ref: 0205-66

Qty: x2

Part Ref: 0204-65

Qty: x6

ENSURE ALL ITEMS LISTED ARE PRESENT PRIOR TO STARTING ASSEMBLY PROCEDURE

SCALE OF ITEMS WILL VARY TO AID VISUAL IDENTIFICATION

Part Ref: 0204-46

Qty: x1

Part Ref: 0204-56

Qty: x1

Part Ref: 0204-63

Qty: x3

Part Ref: 0204-30

Qty: x4

Part Ref: 0204-62

Qty: x3

Part Ref: 0205-63

Qty: x2

Part Ref: 0205-68

Qty: x8

Part Ref: 0204-58 (Assembly)

Qty: x1

Part Ref: 0204-25

Qty: x2

Part Ref: 0204-57

Qty: x2

Bromley: Assembly Guide

Part Ref: 0203-40

Qty: x4

Part Ref: 511-0023

Qty: x4

Part Ref: 0204-51

Qty: x2

Part Ref: 0204-61

Qty: x2

FIXING KIT: 0204-64

ENSURE ALL ITEMS LISTED ARE PRESENT PRIOR TO STARTING ASSEMBLY PROCEDURE

SCALE OF ITEMS WILL VARY TO AID VISUAL IDENTIFICATION

Part Ref: 0203-27 

Qty: x2

Part Ref: 0203-28 (Right-hand Assembly)

Qty: x2

Part Ref: 0203-32 (Assembly)

Qty: x1

Part Ref: 0203-33 (Assembly)

Qty: x1

Part Ref: 0203-34 (Assembly)

Qty: x1

Part Ref: 0203-35

Qty: x2

Part Ref: 0203-36

Qty: x1

Part Ref: 0203-37

Qty: x8

Part Ref: 0203-41

Qty: x1

Part Ref: FK10

Expansion Plug

Qty: x4

Part Ref: FK11

M8 x 50mm Coach Screw

Qty: x4

Part Ref: FK1



Qty: x107

Part Ref: FK2



Qty: x22

Part Ref: FK3

No.8 x 13mm Eco Fix

Qty: x7

Part Ref: FK4

M4 x 12mm C’Sunk Pozi Pan

Qty: x30

Part Ref: FK5



Qty: x11

Part Ref: FK6



Qty: x4

Part Ref: FK7

M4 Serrated Flange Nut

Qty: x123

Part Ref: FK8

M8 Serrated Flange Nut

Qty: x9

Part Ref: FK9

M8 Nyloc Nut

Qty: x4

Part Ref: 0206-28 (Assembly)

Qty: x1

Bromley: Assembly Guide

ASSEMBLY STAGE 1





0204-01

0204-02

0203-03 (x4)

0203-03

PLEASE NOTE: SECTION VIEW OF TYPICAL FIXING METHOD.

FK7

FK1

Bromley: Assembly Guide

0204-03 (x3)

0204-03

 PLEASE NOTE:

ASSEMBLY STAGE 2



Bromley: Assembly Guide

0204-08 (824mm)



IMPORTANT: ENSURE PANEL IS IN THE CORRECT ORIENTATION. IMPORTANT: ONLY ATTACH AT FIXING POINTS INDICATED AT THIS STAGE.

LOOSELY ATTACH SIDE WALL PANEL ONTO FLOOR RAIL AT x3 LOCATIONS INDICATED.

3A 3B

FK1

FK7



ASSEMBLY STAGE 3

0204-08 (824mm)
