Hendi BASIC Manual de usuario

You should read this user manual carefully before

using the appliance

Przed uruchomieniem urządzenia należy koniecznie

dokładnie przeczytać niniejszą instrukcję obsługi

User manual

Instrukcja obsługi

Item: 226865

226872

226889

226896

226773

226780

226902

226919

226926

226933

226940

226957

226964

226971

226988

226995

227046

227053

PIZZA OVEN BASIC

AND BASIC XL

ELEKTRYCZNY PIEC DO PIZZY

MODEL BASIC I BASIC XL

Keep this manual with the appliance.

Zachowaj instrukcję urządzenia.

For indoor use only.

Do użytku wewnątrz pomieszczeń.

CONTENTS

1. GENERAL INFORMATION...........................................3

2. “CE” MARKING...........................................................4

3. TECHNICAL DESCRIPTIONS ......................................4

4. INSTALLATION ...........................................................6

5. USE AND FUNCTIONING ............................................9

6. MAINTENANCE ........................................................ 12

7. DISPOSAL................................................................ 13

8. SPARE PARTS.......................................................... 13

9. ELECTRICAL DRAWINGS......................................... 14

WARNING!

BEFORE SWITCHING ON THE OVEN:

REMOVE THE POLYSTYRENE.

Dear Customer,

Thank you for purchasing this HENDI appliance. Please read this manual carefully before connecting the

appliance in order to prevent damage due to incorrect use. Read the safety regulations in particular very

carefully.

1. GENERAL INFORMATION

THE IMPORTANCE OF THE MANUAL

• Before using the oven, it is compulsory to read and understand this manual in all

its parts.

• This manual must always be available for the authorized personel and has to be

kept colse to the oven.

• The Manufacturer declines all liability for eventual damages to people, animals,

and things caused by the inobservance of the regulations described in this manual.

• This manual is an integral part of the oven and must be kept until its ﬁnal disposal.

• The “authorized operators” can carry out only the interventions for which they are

speciﬁcallytrained and competent.

STATUS OF “TURNED OFF OVEN”

• Before carrying out any kind of maintenance and/or adjustment intervention, it

is compulsory to disconnect the power supply by disconnecting the power supply

plug from the main socket verifying that the oven is effectively turned off and

cooled.

WARRANTY

• The manufacturer declares that all ovens are tested at manufacturer’s premises.

The warranty period is 12 months from invoice date

THE TAMPERING AND/OR REPLACEMENT OF PARTS WITH NON ORIGINAL SPARE

PARTS CAUSE THE DECAY OF THE WARRANTY AND RELEASE THE MANUFACTURER

FROM ANY LIABILITY.

2. “CE” MARKING

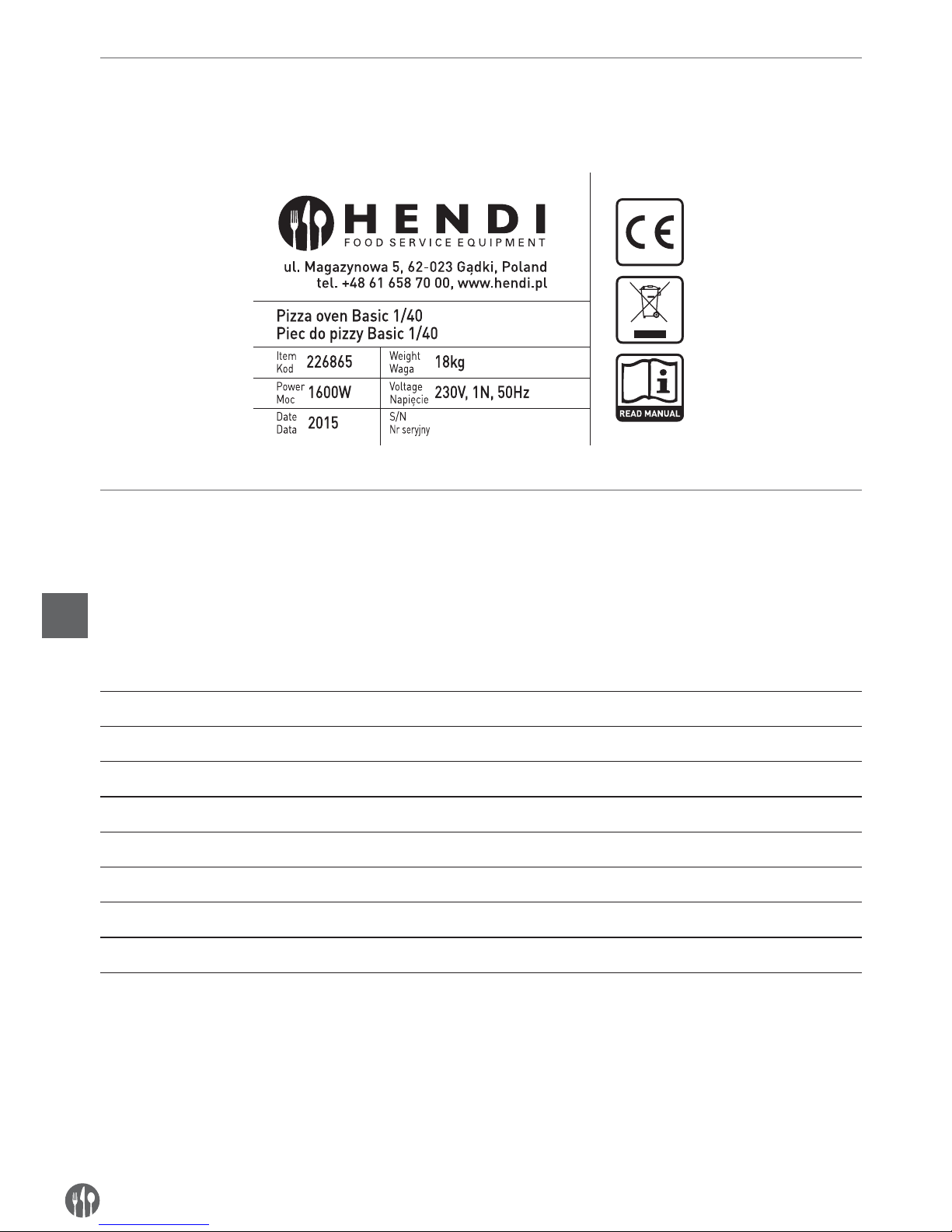

The “CE” marking consists of a gray lable applied on the back of the oven. The rating plate bears in a readable

and indelible way the following data:

3. TECHNICAL DESCRIPTIONS

3.1 TECHNICAL DATA OVENS BASIC

Code Working

temperature

[˚C)

Power

supply

[V]

Chamber Power

[kW]

Power of top

heating

element

[kW]

Power of bottom

heating

element

[kW]

External

dimentions

[cm]

Internal

dimentions

[cm]

226865 50 | 320 230 1 1,6 800x1 800x1 56,8x50,0x(H)28,0 41,0x36,0x(H)9,0

226872 50 | 320 230 2 2,4 800x2 800x1 56,8x50,0x(H)43,0 41,0x36,0x(H)9,0

226889 50 | 500 230 | 400 1 5 2500x1 2500x1 91,5x69,0x(H)35,7 62,0x50,0x(H)12,0

226896 50 | 500 230 | 400 2 7,5 2500x2 2500x1 91,5x69,0x(H)52,7 62,0x50,0x(H)12,0

226773 50 | 500 230 | 400 1 4,7 2350x1 2350x1 97,5x92,4x(H)41,3 66,0x66,0x(H)14,0

226780 50 | 500 230 | 400 2 9,4 2350x2 2350x2 97,5x92,4x(H)74,5 66,0x66,0x(H)14,0

226902 50 | 500 230 | 400 1 7,2 1200x3 1200x3 97,5x121,4x(H)41,3 66,0x99,0x(H)14,0

226919 50 | 500 230 | 400 2 14,4 1200x6 1200x6 97,5x121,4x(H)74,5 66,0x99,0x(H)14,0

3.2 TECHNICAL DATA OVENS BASIC XL

Code Working

temperature

[˚C)

Power

supply

[V]

Chamber Power

[kW]

Power of top

heating

element

[kW]

Power of bottom

heating

element

[kW]

External

dimentions

[cm]

Internal

dimentions

[cm]

226926 50 | 500 230 | 400 1 4,4 2200x1 2200x1 136,0x60,0x(H)41,3 108,0x43,5x(H)14,0

226933 50 | 500 230 | 400 2 8,8 2200x2 2200x2 136,0x60,0x(H)74,5 108,0x43,5x(H)14,0

226940 50 | 500 230 | 400 1 6 3000x1 3000x1 100,0x95,4x(H)41,3 72,0x72,0x(H)14,0

226957 50 | 500 230 | 400 2 12 3000x2 3000x2 100,0x95,4x(H)74,5 72,0x72,0x(H)14,0

226964 50 | 500 230 | 400 1 9 1500x3 1500x3 100,0x131,4x(H)41,3 72,0x108,0x(H)14,0

226971 50 | 500 230 | 400 2 18 1500x6 1500x6 100,0x131,4x(H)74,5 72,0x108,0x(H)14,0

226988 50 | 500 230 | 400 1 9 1500x3 1500x3 136,0x95,4 x(H)41,3 108,0x72,0x(H)14,0

226995 50 | 500 230 | 400 2 18 1500x6 1500x6 136,0x95,4x(H)74,5 108,0x72,0x(H)14,0

227046 50 | 500 230 | 400 1 13,2 2200x3 2200x3 136,0x131,4x(H)41,3 108,0x108,0x(H)14,0

227053 50 | 500 230 | 400 2 26,4 2200x6 2200x6 136,0x131,4x(H)74,5 108,0x108,0x(H)14,0

3.3 DESTINATION OF USE

The oven has been designed and produced only for the following use:

• PIZZA BAKING, GRATINATING OF GASTRONOMY PRODUCTS AND HEATING OF

• FOODSTUFF IN BAKING PANS.

• THE OVEN CAN BE USED EXCLUSIVELY BY AUTHORIZED OPERATORS (USER).

• THIS APPLIANCE IS NOT INTENDED FOR USE BY PEOPLE (INCLUDING CHIL-

DREN) WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR

LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN

SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE BY

A PERSON RESPONSIBLE FOR THEIR SAFETY.

• CHILDREN SHOULD BE SUPERVISED TO ENSURE

THAT THEY DO NOT

PLAY WITH THE APPLIANCE

3.4 LIMITS OF USE

This oven has been designed and manufactured exclusively for the destination of use described in Par. 3.3,

therefore, any other use is strictly forbidden in order to assure, at any time, the safety of the authorized operators,

as well as the efﬁciency of the oven itself.

4. INSTALLATION

4.1 INSTRUCTIONS FOR THE USER

The place where the oven is installed must have the

following enviromental features:

• To be dry;

• Water sources at safe distance;

• Adequate ventilation and lighting corresponding

to hygene and security rules following the exist-

ing laws.

THE OVEN MUST NOT BE INSTALLED IN PROXIMITY OF THE FLAMMABLE MA-

TERIALS (WOODS, PLASTIC, COMBUSTIBLE, GAS, ETC.). AVOID THE CONTACT OF

FLAMMABLE OBJECTS WITH THE HOT SURFACES OF THE OVEN. ALWAYS ASSURE

THE SAFETY FIREPROOF CONDITIONS. MAINTAIN A FREE SPACE AROUND THE

OVEN OF AT LEAST 30 CM.

Check that the electrical data of the user’s electric system corresponds to the equipment requirements

stated on the rating plate and on the above technical characteristics Par. 3.1, 3.2, The characteristics

of the electric socket must be compatible with the plug installed on the cable.

4.2 ELECTRIC CONNECTION

THE CONNECTION TO THE POWER SUPPLY MUST BE EXCLUSIVELY CARRIED OUT

BY AN AUTHORIZED TECHNICIAN (ELECTRICIAN) SATISFYING THE TECHNICAL

AND PROFESSIONAL REQUIREMENTS STATED BY THE REGULATIONS IN FORCE

IN THE COUNTRY OF USE , THIS TECHNICIAN MUST ISSUE A DECLARATION OF

CONFORMITY FOR THE INTERVENTION PERFORMED.

THE MAIN LINE SHOULD BE EQUIPPED WITH SAFETY DEVICES BY A DIFFEREN-

TIAL SWITCH / CICUIT BRAKER, CO-ORDINATED WITH THE GENERAL EARTH IN-

STALLATION, IN CONFORMITY WITH THE LOCAL AND NATIONAL LAWS.

To connect the machine to the electric network it is

necessary to proceed as follows:

• connect to the wires to the terminals L1—L2—

L3—N — of power cord type H07RNF 3G X “x” mm²

unsheathed with ferule;

• put together the other end of the cable and a plug,

which is normalised and polarised (the distinction

between phase and neutral must be unequivocal.

• to connect the oven to 230 V single phase is suf-

ﬁcient to make a bridge between L1-L2-L3 with

the special plates present in the terminal box

L1 Clamp N.1

L2 Clamp N.2

L3 Clamp N.3

N Clamp N. 4 o N. 5

Clamp N. 6

ONCE THE ELECTRIC CONNECTION HAS BEEN COMPLETED, THE AUTHORIZED

TECHNICIAN (ELECTRICIAN) MUST ISSUE A DECLARATION CERTIFYING THE

MEASUREMENT OF THE CONTINUITY OF THE EQUIPOTENTIAL PROTECTION

CIRCUIT.

THE APPLIANCE IS TO BE SUPPLIED THROUGH A RESIDUAL CURRENT DEVICE

(RCD) HAVING A RATED RESIDUAL OPERATING CURRENT NOT EXCEEDING 30 MA

4.3 TERMINAL

The terminal box is placed externally on the back of the oven.

Single phase

yellow/green yellow/green

blue blue

brown brown

Three phase

yellow/green yellow/green

blue blue

grey

black

brown brown

Oven type N. of cables Section (mm²)

Single phase, one chamber 3 4

Single phase, two chambers and versions 9 single phase 3 6

Three phase one chamber and two chambers 5 4

Three phase from versions 9 and up 5 6

Model N. of cables Section (mm²)

BASIC 1/40; BASIC 2/40 3 2,5

BASIC 1/50; BASIC 2/50 5 4

BASIC 4-44; BASIC 6-66 5 4

BASIC XL 4-44; BASIC XL 6-66;

BASIC XL 6L-66L; BASIC XL 9-99 55

4.5 EQUIPOTENTIAL

The equipment must be connected with an equi-potential device the connection terminal is located near the

terminal box. The bonding wire must have a minimal section of 10 mm².

5. USE AND FUNCTIONING

5.1 CONTROL PANEL

The control panel is installed on the front of the oven as shown in FIG. 1,2,3.

040

120

160

240

280

320

200

1/a

040

120

160

200

240

280

320

040

120

160

200

240

280

320

1 1/a

11/a

PIC. 1

BASIC 1/40

oven’s Control panel

PIC. 2

BASIC 2/40

oven’s Control panel

LEGEND PIC.1 - PIC.2

REF. DENOMINATION FUNCTION

1 Warning light If lighted, the heating elements are working

1/a Warning light If lighted, timer is on

2 Thermostat • Pos. 0: the heating elements are off

• Pos. 50-320°C: temperature regulation

6 Timer It adjusts the cooking time

7 General switch Turns all the devices off

100

150

200

250

300

350

400

450

500

100

150

200

250

300

350

400

450

500

100

150

200

250

300

350

400

450

500

100

150

200

250

300

350

400

450

500

100

150

200

250

300

350

400

450

500

100

150

200

250

300

350

400

450

500

100

150

200

250

300

350

400

450

500

PIC. 3

BASIC 1/50

oven’s Control panel

PIC. 4

BASIC 2/50

oven’s Control panel

PIC. 5

BASIC, BASIC XL

oven’s Control panel

LEGEND PIC.3 - PIC.4 - PIC.5

REF. DENOMINATION FUNCTION

1 Warning light If lighted, the heating elements are working.

2 Thermostat • Pos. 0: heating elements off

• Pos. 50-500°C: temperature regulation.

3 Switch heating • Pos. I: heating elements on;

• Pos. 0: heaing elements off.

4 Thermometer Indicates the temperature in the baking chamber.

5Chamber lamp

switch (I-0)

• Pos. I: chamber light on;

• Pos. 0: chamber light off.

5.2 FIRST COMMISSIONING

Before the switching the oven on for the ﬁrst time, remove the protective ﬁlm without using tools that can

damage the surfaces.

DESPITE THE THERMAL POTENTIALITIES OF THE OVEN ITSELF, FOR SAFETY

REASONS THE MAXIMUM ALLOWED TEMPERATURE IS 500°C. IT CAN BE SELECTED

BY MEANS OF THE TIMER.

THE COMMISSIONING OF THE OVEN CAN BE CARRIED OUT ONLY WHEN THE IN-

STALLATION HAS BEEN COMPLETED AND THE AUTHORIZED TECHNICIANS HAVE

ISSUED THE DECLARATION OF CONFORMITY FOR THE ELECTRIC CONNECTION.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Electrodoméstico de cocina de Hendi

Hendi

Hendi 274125 Manual de usuario

Hendi

Hendi PROFI LINE 410 Manual de usuario

Hendi

Hendi 210864 Manual de usuario

Hendi

Hendi PROFI LINE 229026 Manual de usuario

Hendi

Hendi 274101 Manual de usuario

Hendi

Hendi 274156 Manual de usuario

Hendi

Hendi BUDGET Series Manual de usuario

Hendi

Hendi 210048 Manual de usuario

Hendi

Hendi 282007 Manual de usuario

Hendi

Hendi 210000 Manual de usuario

Hendi

Hendi 209882 Manual de usuario

Hendi

Hendi 226643 Manual de usuario

Hendi

Hendi 233962 Manual de usuario

Hendi

Hendi 229026 Manual de usuario

Hendi

Hendi 212004 Manual de usuario

Hendi

Hendi 832004 Manual de instrucciones

Hendi

Hendi Cream whipper Manual de usuario

Hendi

Hendi 274156 Manual de usuario

Hendi

Hendi 975305 Manual de usuario

Hendi

Hendi 282731 Manual de usuario

Hendi

Hendi 598955 Manual de usuario

Hendi

Hendi 209097 Manual de usuario

Hendi

Hendi BAIN-MARIE KICHEN 238905 Manual de usuario

Hendi

Hendi Piave Manual de usuario

Manuales populares de Electrodoméstico de cocina de otras marcas

Tayama

Tayama TYG-35AF Manual de usuario

AEG

AEG 43172V-MN Manual de usuario

REBER

REBER Professional 40 Guía del usuario

North American

North American BB12482G / TR-F-04-B-NCT-1 Manual de usuario

Presto

Presto fountain popper Manual de usuario

Westmark

Westmark 1035 2260 Manual de usuario

Zanussi

Zanussi ZCG64396XA Manual de usuario

HOFFEN

HOFFEN SM-9302M Manual de usuario

Philips

Philips HD3133 Manual de usuario

Ronco

Ronco Beef Jerky Manual de usuario

Livoo

Livoo MEN386 Manual de usuario

Vogue

Vogue D446 Manual de usuario

croydon

croydon WR-10313-700 Manual de usuario

ADE

ADE AUTOMATIC-L Manual de usuario

Chefman

Chefman RJ43-SQ Series Manual de usuario

Vacmaster

Vacmaster VP680 Manual de usuario

Jetmaster

Jetmaster 900HG Manual de usuario

Küppersbusch

Küppersbusch EEH 610.0 Guía de configuración rápida
