Heckler Design WindFall Side Mount Manual de usuario

Assembly & Installation

H500

WindFall®

SIDE MOUNT

Room Scheduling Enclosure for iPad mini

Limited Warranty

Heckler Design warrants your product to be free from defect in material and

workmanship for a period of two years from the original date of purchase.

Electronic components are warranted to be free from defect for a period of one

year from the original date of purchase. If you discover a defect, please contact

[email protected]. Heckler Design will repair, at our discretion, using

new or refurbished components. If repair is not possible, Heckler Design will

replace the item.

Compatible with:

iPad mini 1

iPad mini 2

iPad mini 3

iPad mini 4

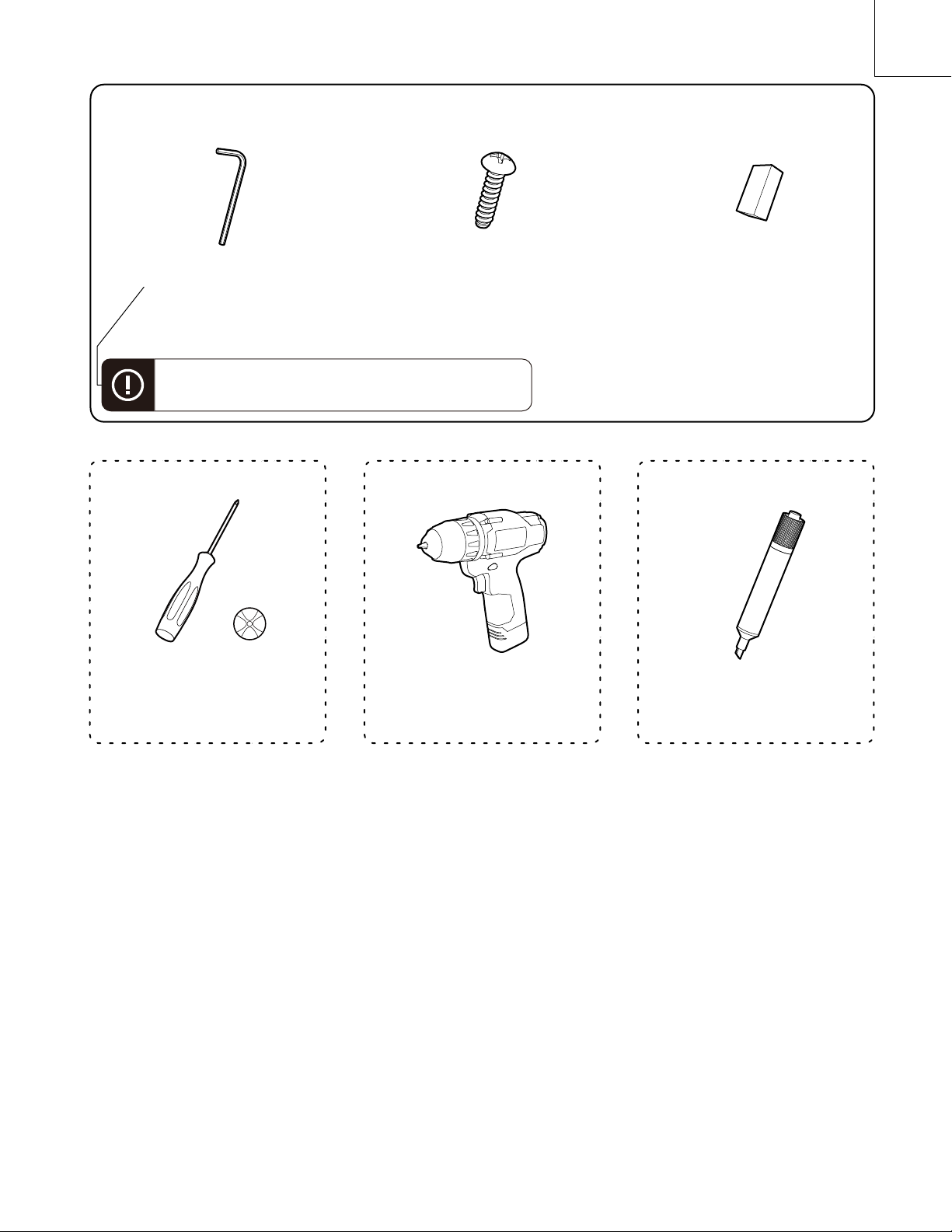

Phillips Head

Screwdriver

Drill Marker

M3 Hex Key

F486

F529

E250

Foam for iPad Fit

Adapter Clip

Thread-Forming

Mounting Screw

Keep your special assembly tool in a safe place. To purchase a

replacement, please contact [email protected].

Selecting Your Mounting Screw

Positions

ADA Compliance Guideline

Creating The Ethernet Cable Hole

Installation Instructions and Template

Important Note:

To accommodate various mullion styles,

multiple screw hole positions are available.

Please select the mounting positions that

work best for your mullion.

You may use any screw you see fit for

mounting the product to the mullion.

If you choose to use the self-tapping

mounting screws provided, we recommend

drilling a pilot hole with a #17 drill bit or a

5/32-inch drill bit.

If your Ethernet cable has an RJ45 connec-

tor installed, drill a 5/8 inch hole in the

position shown.

If you will install an RJ45 connector after the

Ethernet cable is drawn through the mullion,

a smaller hole can be created.

For ADA compliance, the center of the

Ethernet cable hole should be no higher than

45.5 inches above the ground.

A minimum 1.5 inch (38mm) set back from

mullion face to the glass is required for an

optimal installation in which the front face of

the enclosure is flush with the front face of

the mullion.

WindFall Side Mount for iPad mini

Mullion Door Frame Glass Mullion Door Frame Glass

BEFORE

INSTALLATION

AFTER

INSTALLATION

1 inch

(55 mm)

0.75 inch

(19 mm)

2.5 inch

(63.5 mm)

1.25 inch

(31.8 mm)

6.6 inch

(167 mm)

1.25 inch

(31.8 mm)

The top of the sceen.

Ground

45.5 inch

Note: Drawing is not to scale.

48 inch

Disassemble Side Mount

Remove Mounting Bracket From

Front Bezel

Mark Hole Positions3

Please select the mounting positions that work best

for your mullion.

Drill Mounting Holes

You may use any screw you see fit for mounting the

product to the mullion.

If you choose to use the self-tapping mounting

screws provided, we recommend drilling a pilot hole

with a #17 drill bit or a 5/32-inch drill bit.

Ethernet Cable Hole

If your Ethernet cable has an RJ45 connec-

tor installed, drill a 5/8 inch hole in the

position shown.

If you will install an RJ45 connector after the

Ethernet cable is drawn through the mullion,

a smaller hole can be created.

F486

Form Mounting Hole Threads

iPad mini 2

iPad mini 3

iPad mini 4

The mounting screws provided are thread-forming

screws.

F486

Remove Mounting Screws

Faster Mounting Bracket to mullion

Adapter Clips For iPad Mini 4

E250

iPad mini 4

8Charging Options

Battery Bank

PoE Splitter (Power Only)

PoE Splitter (With wired data connection)

1. Apple Lighting to USB 3 Camera

Adapter

2. Apple USB Ethernet Adapter

Install Tablet

Install Front Bezel
