Heatrae Sadia Multipoint ECO Manual del operador

Multipoint ECO Horizontal 3kW 30 - 100 Litres

Quick ﬁt manual

1. Main Components & Pre-Installation

1.1 Installation regulations

1.2 Installation requirements

Water supply and Connections

In an unvented system the pressure and owrate is

directly related to the incoming water supply.

`Minimum supply requirements should be 0.08MPa

(0.8 bar) pressure and 20 litres per minute ow

rate.

`A 22mm cold water supply is recommended

`The PRV supplied; can be connected to a maximum

mains pressure of 1.6MPa (16 bar).

`Following the PRV all ttings, pipework and

connections must have a rated pressure of at least

0.6 Mpa (6 bar) at 80°C.

2.1 General

Mounting the water heater

`Wall xings must support up to 130kg, see full

installation manual for weights table.

`300mm service clearance required to left of unit.

`The top bracket bolts should be screwed in until

they stop and stick out 8mm as shown Figure 2.

`Secure the top bracket to the wall using appropriate

xings - recommend 3 evenly spaced.

`Secure the lower bracket to unit as per gure 3.

`Locate top appliance bolts in the the wall bracket.

`Secure the lower bracket to the wall, gure 3.

WARNING

Installation of the appliance must be done

by a qualied engineer in accordance with

prevailing and national regulations as listed

below.

`Building Regulations G3

`The Building Standards (Scotland)

`The Building Regulations (Northern

Ireland)

`I.E.E Electrical Regs

`UK Water Regulations

Item Description

1 Temperature and Pressure Relief Valve

2Inlet

3 Wall Mounting Bracket (lower)

4Neon Indicator

5Outlet

6 User Interface

2. Installation - General

1.3 Components

The delivery includes:

`Water heater

`Wall mounting brackets

`Literature pack

`Cold water control pack

`Expansion vessel (inc bracket)

`Tundish

`Pressure Reducing Valve (PRV)

`Expansion (Pressure) Relief Valve

`Check Valve

`Compression nuts

8 ±1.5 mm

Figure 3: Lower Bracket

Figure 2: Top Bracket

Figure 1: Components

2.2 Electrical

`Ensure the electrical supply is of su󰀩cent current

rating and voltage - see product rating plate.

`The exible cable, supplied; must be wired into an

appropriate termination with dedicated isolation.

`The wires are colour coded as follows:

Green and Yellow EARTH ( )

Brown LIVE (L)

Blue NEUTRAL (N)

Table 1: Components

`All appliance pipe ttings are made via 22mm compression ttings, threaded 3/4”BSP male parallel.

`A servicing valve must be incorporated into the cold water supply

`The expansion vessel must be connected between the check valve and the appliance.

`It is recommended that the outlet point of the drain pipework be at least 1 metre below the level of the base of the

appliance (this can be achieved by attaching a hose to the drain tap outlet spigot).

`Safety discharge connections (including the tundish) must to conform to G3 building regulations.

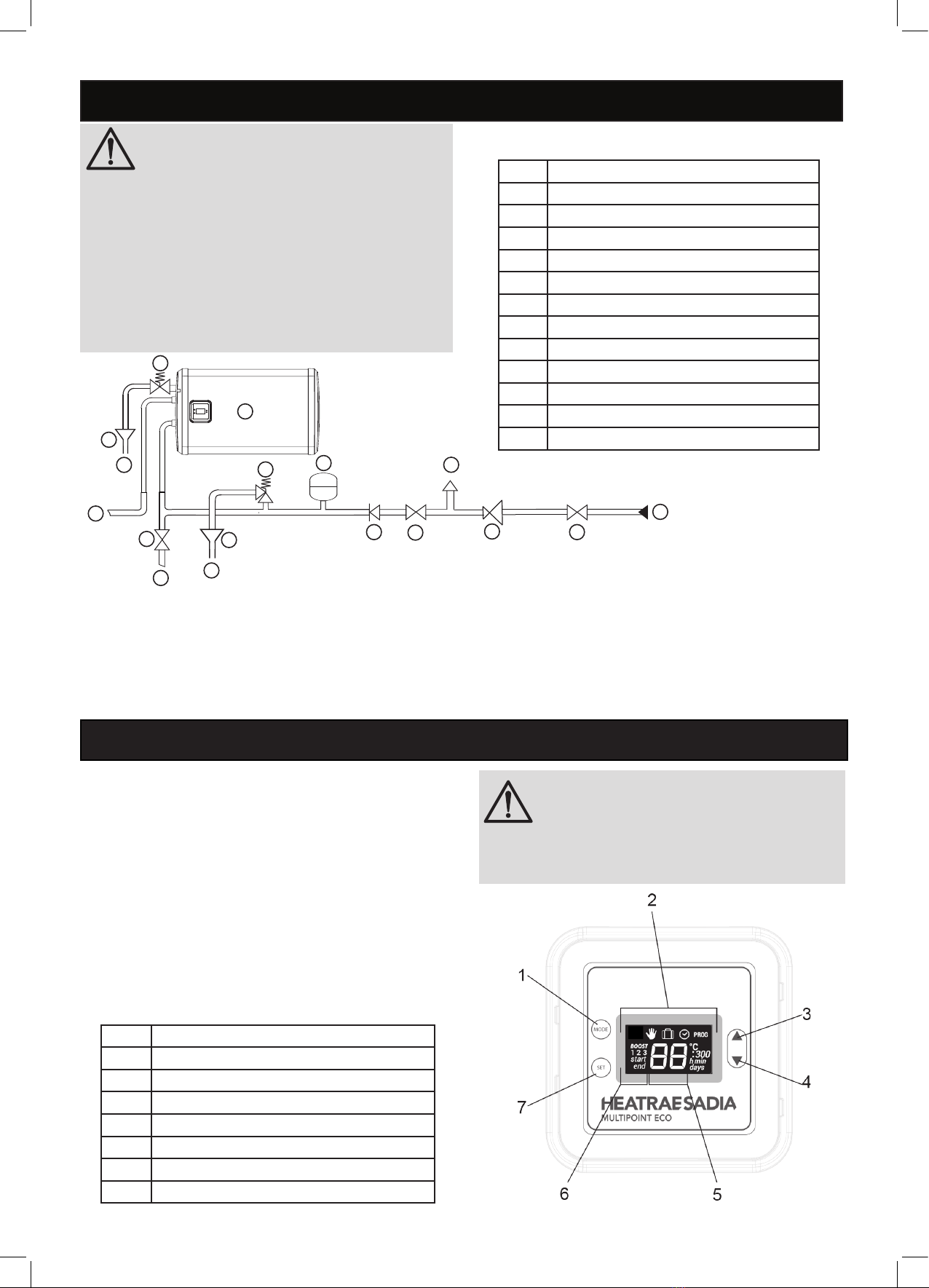

3. Installation - Water

Figure 4: Typical installation - schematic (not to scale)

Item Description

1 Cold Water Mains in

2Service Valve (not supplied)

3 Pressure Reducing Valve (PRV)

4Balanced Cold Water Draw O󰀨

5Check Valve

6 Expansion Vessel

7Expansion (Pressure) Relief Valve

8 Tundish

9To Drain (Waste)

10 Hot out

11 Water heater

12 Temperature and Pressure Relief Valve

Table 2: Typical installation table

WARNING

`Under no circumstances should the

factory tted Temperature/Pressure

Relief Valve be removed.

`The cold water controls supplied MUST

be tted to the mains water supply to

the appliance.

`The discharge pipe should not be

blocked or used for any other purpose.

`The tundish should not be located

adjacent to electrical components.

4. Commissioning & Controls

4.1 Commissioning procedure

`Ensure water supply is turned on - allow tank to ll.

`Switch on electrical supply to the water heater. You

will notice that the display and all options will light

up for a few seconds.

`After a few seconds the display will go into its

default "S" smart setting. The "°C" graphic will blink

indicating water heating cycle is active.

`In this default mode the temperature of the water is

automatically selected but will adjust based on the

usage patterns learnt.

4.2 User Interface

WARNING

DO NOT apply electicial power to the water

heater until the unit has been lled with

water.

Figure 5: User interface

Item Description

1Mode selection and programming

2Selected mode

3Temp up/level up

4Temp down/level down

52 digit display

6Program periods

7Validation and Boost

Table 3: User interface

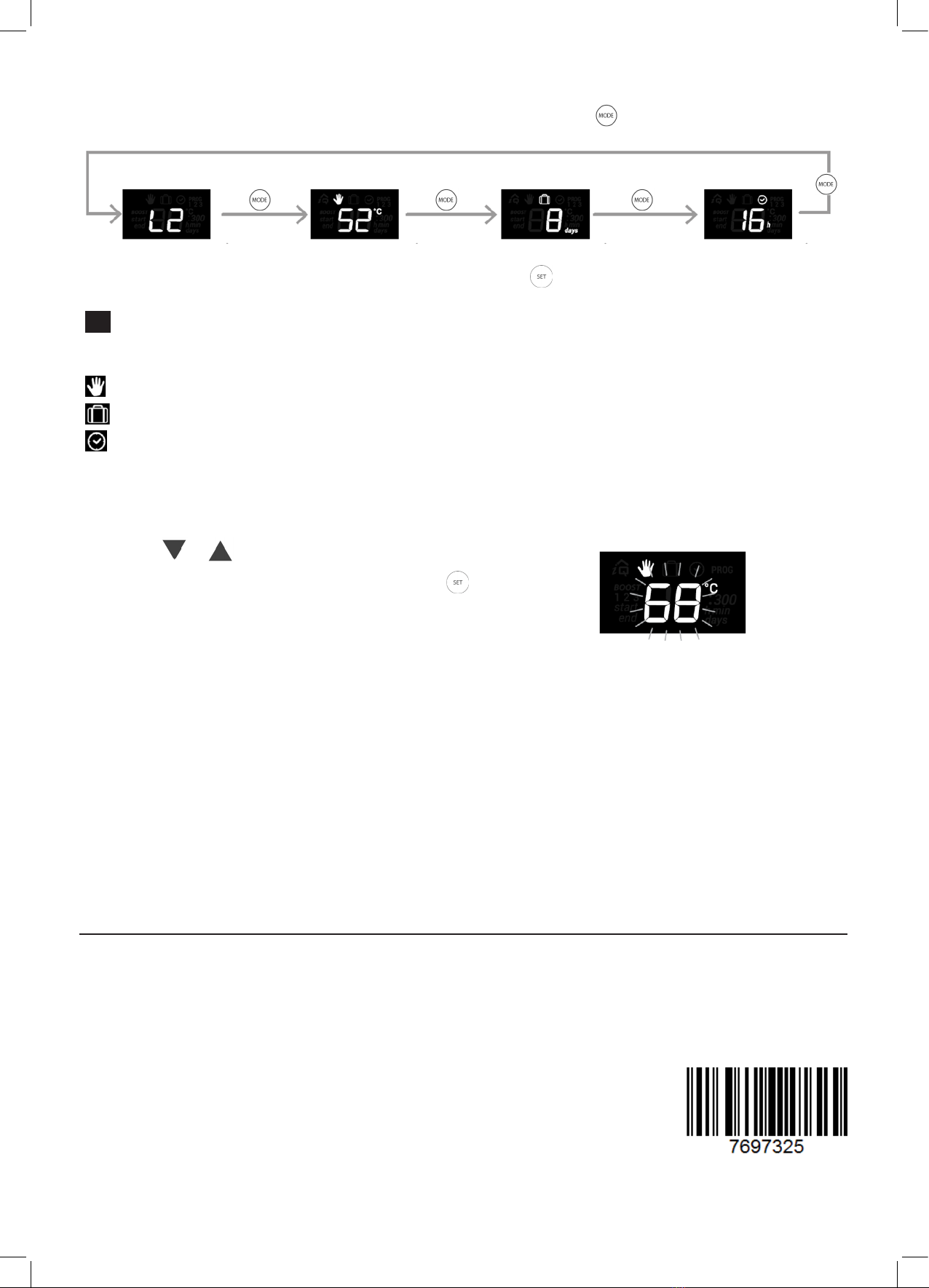

4.3 Mode Selection

The selected mode or the set of the clock is validated by pressing the button

Smart Mode:

Manual Mode: Maintains the total volume of water at a temperature according to the selected temperature.

Vacation mode: Keeps the water temperature at a minimumlevel avoiding any water freezing.

Set Time Mode: To set the current time in hours and minutes.

Core

modes: to move from one mode to another or to set the clock, short press button.

Permanently monitors and learns hot water consumption habits and after a minimum of one

week learning period, automatically adjusts hot water production according to past recorded

consumptions. A minimum of hot water availability is guaranteed depending on the selected

level of comfort.

4.4 Manual Mode

In Manual mode, the water heater regulates water temperature at a stable temperature. The temperature is selected

y using the or , in range from 40°C to 75°C.

he requested temperature is validated by pressing the key

he real-time water temperature at bottom of the tank is permanently display.

4.5 Other Modes and Settings

For all other modes and settings consult the full Installation,Operation and Maintenance Manual.

4.6 Explanation to the User

After commisioning the following should be explained to the user:

`Correct operation of the unit.

`The position of the water and electrical isolation points.

`How to identify a malfunction of the unit.

`The service and maintainance requirements.

The commissioning record in the full Operating and Maintenance Manual should be completed and then these left with

the user for future reference.

This Quick Fit Guide must be used in conjunction with the full Installation,Operation and Maintenance Manual.

Heatrae Sadia, Hurricane Way, Norwich, Norfolk, NR6 6EA

SPECIFICATION ADVICE HOTLINE

t | 01603 420220 e | speci[email protected]

AFTER SALES SERVICE

t | 0344 871 1535 e | customer[email protected]

w | heatraesadia.com

7706820_issue_05
