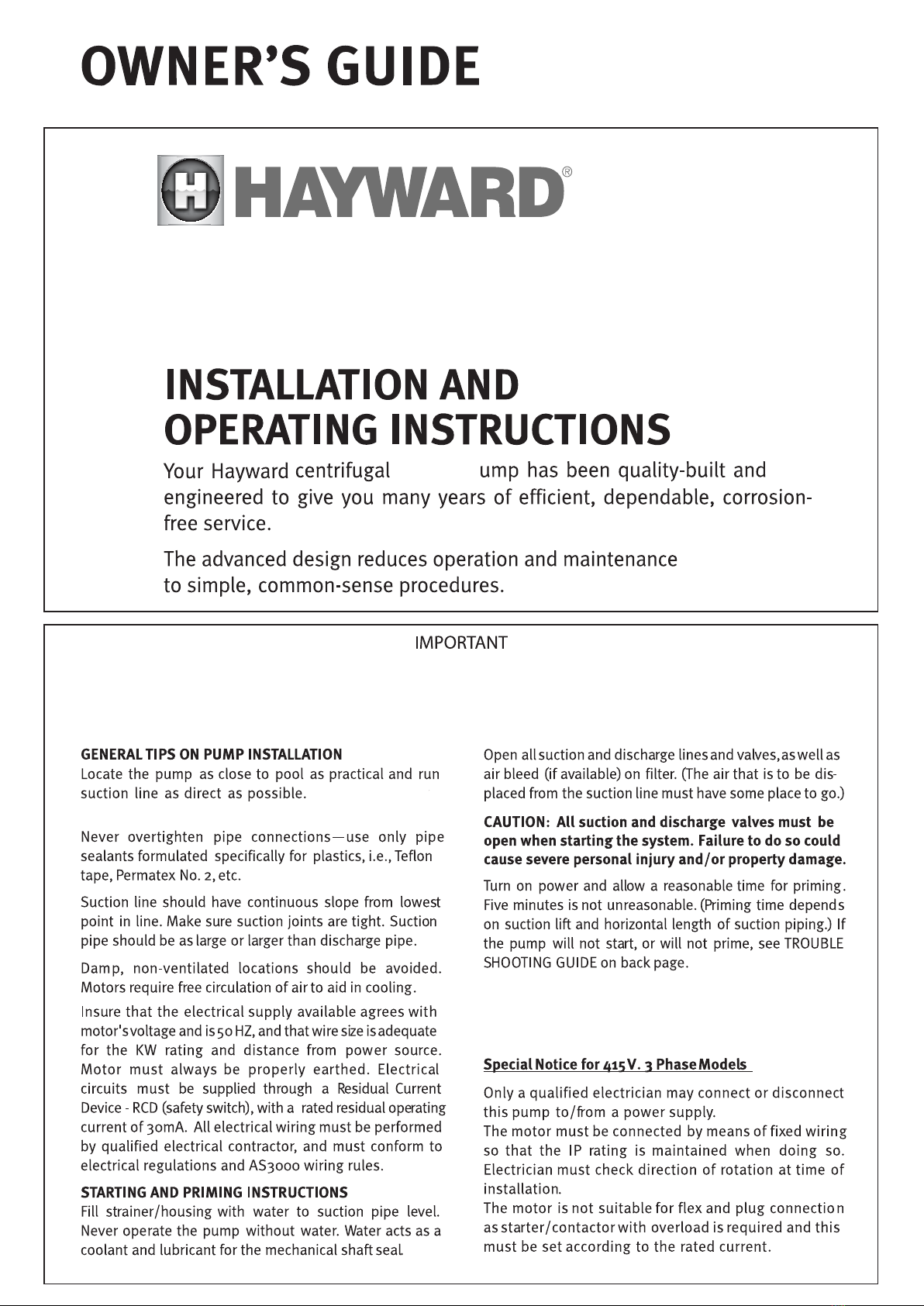

Hayward BP100 Manual de usuario

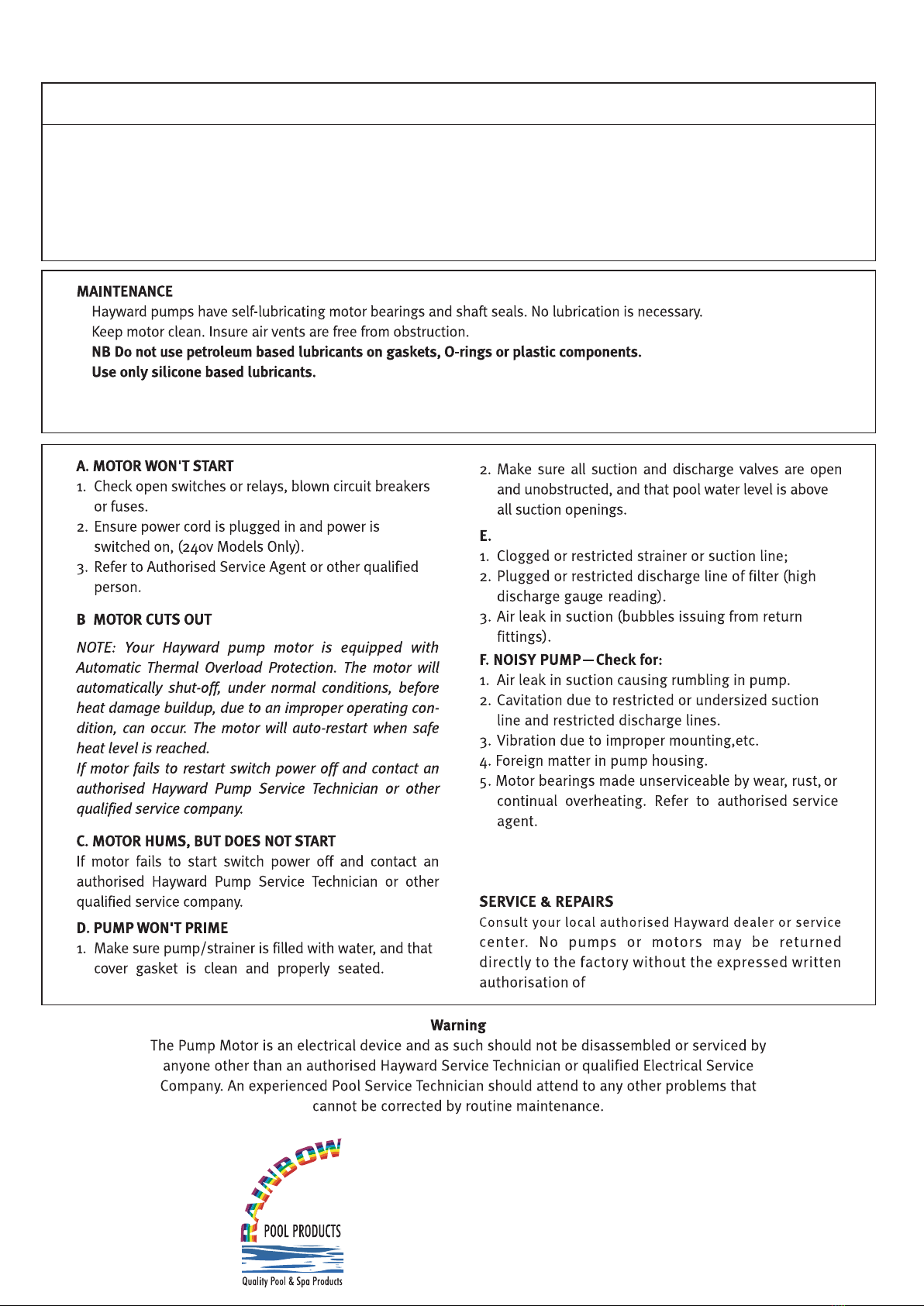

LOW FLOW - Generally, check for:

Hayward Pool Products (Australia) Pty Ltd.

Melbourne-Sydney-Brisbane-Perth

Email: [email protected] Website: www.haywardpool.com.au

MAXIMUM TOTAL HEAD - IMPORTANT INSTALLATION INFORMATION

Hand

tighten the union nuts.

BOOSTER PUMP

Booster P

30-LITINSB003-REVB

Model Max Total

Metres Head

Max Pressure

KPa

BP100 26.5 260

G. If the Supply Cord is damaged, it must be replaced by

persons in order to avoid a hazard.

the manufacture, its service agent or similarly qualified

*This appliance is not intended for use by young children or infirm persons unless they have been

adaquetly supervised by a responsible person to ensure they can use the appliance safely.

*Young children should be supervised to ensure that they do not play with the appliance.

Secure pump to base

with screws or bolts to reduce vibration and pipe stress.

Ref # Code Description Quantity Required

www.haywardpool.com.au

1. 20-AX6060Z1 Screws 10

2. 20-AX6060A Volute 1

3. 20-AX6060UNPAK Union Fitting Kit (2 Unions with O-Rings) 1

- 20-SPX1495Z1 Union O-Ring (Singular) 2

4. 20-AX6050C Impeller Assembly 1

5. 20-AX6060S O-ring 1

6. 20-SPX2700SA Seal Assembly 1

7. 20-AX6060E Seal Plate Assembly 1

8. 20-SPX4000FG Drain Plug with O-Ring 1

9. 20-AX6060G Motor Support 1

10. 20-SPX3200Z5 Motor Bolts 4

11. 20-SPX6050AQM Motor - Booster Pump 1

BOOSTER PUMP

Model number: BP100

Ref # Code Description Quantity Required

www.haywardpool.com.au

1. 20-AX6060Z1 Screws 10

2. 20-AX6060A Volute 1

3. 20-AX6060UNPAK Union Fitting Kit (2 Unions with O-Rings) 1

- 20-SPX1495Z1 Union O-Ring (Singular) 2

4. 20-AX6050C Impeller Assembly 1

5. 20-AX6060S O-ring 1

6. 20-SPX2700SA Seal Assembly 1

7. 20-AX6060E Seal Plate Assembly 1

8. 20-SPX4000FG Drain Plug with O-Ring 1

9. 20-AX6060G Motor Support 1

10. 20-SPX3200Z5 Motor Bolts 4

11. 20-SPX6050AQM Motor - Booster Pump 1

BOOSTER PUMP

Model number: BP100

LOW FLOW - Generally, check for:

Hayward Pool Products (Australia) Pty Ltd.

Melbourne-Sydney-Brisbane-Perth

Email: [email protected] Website: www.haywardpool.com.au

MAXIMUM TOTAL HEAD - IMPORTANT INSTALLATION INFORMATION

Hand

tighten the union nuts.

BOOSTER PUMP

Booster P

30-LITINSB003-REVB

Model Max Total

Metres Head

Max Pressure

KPa

BP100 26.5 260

G. If the Supply Cord is damaged, it must be replaced by

persons in order to avoid a hazard.

the manufacture, its service agent or similarly qualified

*This appliance is not intended for use by young children or infirm persons unless they have been

adaquetly supervised by a responsible person to ensure they can use the appliance safely.

*Young children should be supervised to ensure that they do not play with the appliance.

Secure pump to base

with screws or bolts to reduce vibration and pipe stress.

Rainbow Pool Products

PO Box 2388, Mansfield Qld 4122

Telephone STD 61-7-3849 5385

Facsimile STD 61-7-3849 5384

Email: [email protected]

Web: www.rainbowpoolproducts.com.au
