Remote: Product Overview
2
•The OmniLogic HLWIRELESS Wireless
Terminal is a rechargeable touchscreen
remote control for Hayward OmniLogic.
•The terminal is wireless and portable. Its
unique watertight housing and floating
design allows it to be used outdoors, even
while inside the pool or spa*.
•The Wireless Terminal is 802.11 b/g/n
compatible and communicates with the
OmniLogic through your home network's
Wi-Fi system with a "line of sight" range of
300 feet to the network's access point or
router.
*NEVER put the HLWIRELESS remote in the charger while it is wet.
This may lead to accelerated product failure or corrosion.
Remote: Requirements & Tech Specs
3
The following outlines the technical requirements and specifications related to the
Wireless Remote and subsequent hardware.
Min. Firmware Rev.
Equipment
*2.0.0*
Wired
Wall Mount (WDT)
2.0.0
Main
System Processor (MSP)
1.0.5
Main Panel Processor (MPP)
*ALWAYS upgrade the wired wall mount first, before upgrading the MSP.
Specifications
6.34, 3.5, 4.0 (“)
Product
Dimensions (L,W,H includes base)
2lbs
Shipping Weight
100VAC/50-
60Htz/12VA
Charging Base Plug
–Input
(volts/frequency/amps)
5VDC/1.2A
Charging Base Plug
–Output
Remote: How Communication Works
4
The Hayward Wireless Waterproof Remote communicates to the home network
router, through the 2.4 Ghz Wi-Fi.
It DOES NOT connect directly to the OmniLogic or HLWLAN.
Important: The remote MUST be connected to the same network as
the OmniLogic; including the same network name (SSID).
Omni
Status
Sent
Remote
Status Sent
Remote
Status Received
Omni
Status
Received
How To: Sync Remote with Network
5

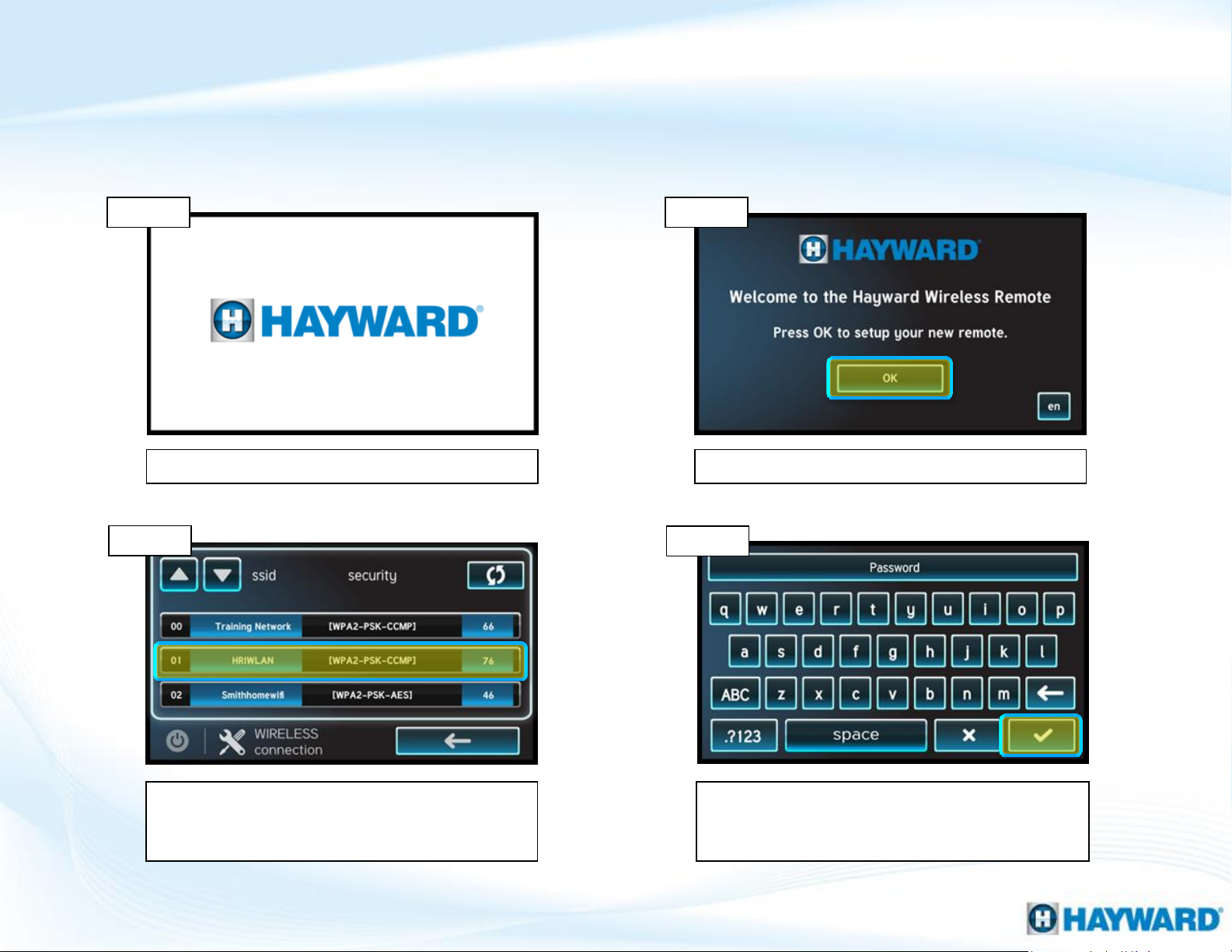

Use the steps provided to synchronize the HLWIRELESS with the home network.
Upon boot-up the Hayward Logo will appear. Once the “Welcome” screen appears, tap “OK”.
Select the network name from the list. If the
network does not appear, tap on the refresh
button in the top right.
Enter network password. NOTE: Network
passwords are case sensitive. Once complete
tap the check mark to continue.
Step 4
Step 2
Step 3
Step 1
6
The HLWIRELESS communicates through the router and not directly with the
OmniLogic unit.
NOTE: IF the OmniLogic is connected to Wi-Fi, make sure the HLWIRELESS is connected
to the same network and not one with a different SSID or network name.
Once connected, tap the check mark in the
lower right.
The remote will automatically scan the
network for the OmniLogic.
IF the scan was successful the wireless remote
will populate with the dashboard information
seen on the MSP.
IF the scan fails a pop-up will appear, press the
check mark and retry Config>Network. If it still
fails reset the Wireless Remote (next section).
Step 7b
Step 6
Step 7
Step 5
How To: Sync Remote with Network (cont.)
How To: Reset the Remote
7

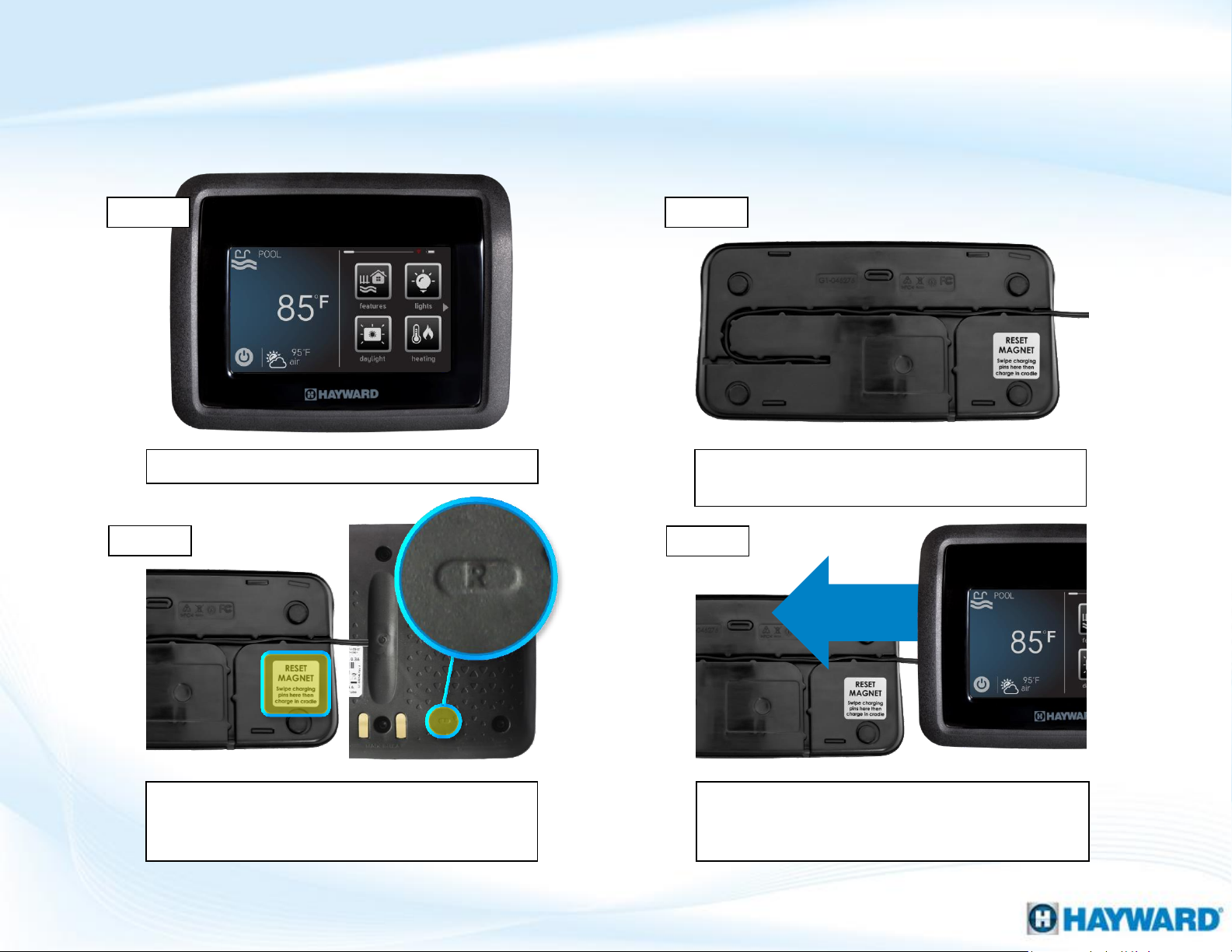

Use the steps provided to reset the HLWIRELESS remote.
Take the remote out of its cradle. Flip the charging cradle upside-down, revealing
the bottom.
Locate the label on the bottom of the base and
the small “R” on the back of the wireless
remote. These two should line up in Step 4.
Holding the remote face up, hover the remote
close to the base from right to left, lining up
the lables.
Step 4
Step 2
Step 3
Step 1
How To: Reset the Remote
8
Use the steps provided to reset the HLWIRELESS remote.
When the screen goes completely blank, tap on
the screen to verify it is rebooting.
Place the remote back in the charging cradle, at
this point the remote should reboot.
IF, directly following a blank screen, the remote
immediately displays the dashboard, then the
remote was not reset (repeat steps 2-6).
Step 6
Step 5
Step 6b
How To: Download Firmware
9
To download the latest firmware to a USB drive go to www.hayward.com
Support Center> Automation > OmniLogic > Firmware Updates
Step 1: Right click on the link of the
file you wish to download.
Step 2: Within the options menu
select "Save link as..."
(Note: USB drive must already be
connected to your computer).
Step 3: From the "Save As" window
navigate to the desired USB drive.
(Note: please make sure to select the
root directory of the USB drive).
Step 4: Before saving, change the
“Save as type” to “All Files” AND
remove the “.txt” file extension that
automatically appears. Then click on
"Save" button.
(Note: failing to remove the .txt file
extension will result in an unreadable
firmware upgrade file).
Step 4
Step 1-3
This process was accomplished through Google’s Chrome Browser.
Tap the device to upgrade then check mark.Tap the “Upgrade” icon.
How To: Upgrade Firmware
10
Press the power button. Select “service mode”.
Step 4
Step 2
Step 3
Step 1
Insert the USB drive into the side of the MSP and follow the steps provided below:
