Hayter SST38/ST42 Manual de usuario

English Version

FROM SERIAL NO: 150A001001, 151A001001, 153A001001 MANUAL PART NO: 150005 (REV.0.)

Issue: 15.01.02

OPERATOR'S MANUAL

GARDEN TRACTOR

AND

POWERED SWEEPER

COLLECTOR

CODES 150A / 151A / 153A

THIS MANUAL SHOULD BE REGARDED AS PART OF THE

MACHINE, AS IT GIVES ESSENTIAL INFORMATION REGARDING

MACHINE SAFETY, OPERATION AND SPECIFICATIONS.

SST38/ST42

ATTENTION

THIS SYMBOL MEANS

BE ALERT!

YOUR SAFETY IS INVOLVED

READ THIS MANUAL BEFORE USING THE ST38/ST42 GARDEN TRACTOR AND

POWERED SWEEPER COLLECTOR. IT IS ESSENTIAL THAT OPERATORS

STUDY IT FOR THEIR OWN SAFETY.

150005MA010302A

CONTENTS

1.4 1.4

SAFETY PRECAUTIONS. 1.6 - 1.12

Training. 1.6

Preparation. 1.6 - 1.7

Operation. 1.7 - 1.8

Maintenance and storage. 1.9

Decals 1.10 - 1.12

EC CONFORMITY INFORMATION. 1.13 - 1.14

EC Declaration of Conformity. 1.13

EC Declaration of Incorporation 1.14

INTRODUCTION. 1.15

SPECIFICATIONS 1.16 - 1.17

Engine 1.16

Detail Specifications 1.16 - 1.17

Weights and Dimensions 1.17

Recommended Lubricants 1.17

OPERATING THE TRACTOR. 1.18 - 1.27

Safety Notice. 1.18

Operator Controls. 1.18

Before Starting the Engine. 1.19

Parking Brake. 1.19

Seat Position. 1.20

Headlights. 1.20

Cutterblade Control. 1.20

Height of Cut Setting. 1.20

Cutterdeck Level Setting. 1.21

Throttle Control. 1.22

Choke Control. 1.22

Travel. 1.22

Ignition Key. 1.22

Fuel Filler Cap. 1.23

Engine Oil Filler Cap. 1.23

Transaxle Bypass Lever. 1.23

Starting and Stopping the Engine. 1.24

Operator Safety System. 1.24

CONTENTS Page No.

150005MA010302A

CONTENTS

1.5 1.5

CONTENTS Page No.

Sweeper Drive Switch. 1.25

Sweeper Working Height Setting. 1.25

Emptying the Sweeper collector. 1.25

Sweeper Collector Lift Lever. 1.26

Attaching/Detaching the Sweeper Collector. 1.26 - 1.27

MAINTENANCE 1.28 - 1.37

Maintenance 1.28

Engine 1.29

Engine Oil 1.30

Oil Filter 1.30

Fuel and Carburation 1.31

Battery 1.32

Spark Plug 1.32

Headlights 1.32

Electrical 1.32

Tyres and Wheels. 1.33

Lubrication 1.34

Cutterdeck 1.35 - 1.36

Powered Sweeper Collector 1.37

GRASS CUTTING FAULTS. 1.38

TROUBLE SHOOTING. 1.39 - 1.41

ELECTRICAL CIRCUIT DIAGRAM 1.42 - 1.43

150005MA010302A

SAFETY PRECAUTIONS

1.6 1.6

TRAINING

Read the instructions carefully. Be familiar with the controls and the proper use of the equipment. Learn

how to stop the tractor quickly in an emergency.

Never allow children or people unfamiliar with these instructions to use the garden tractor and powered

sweeper collector. Local regulations may restrict the age of the operator.

Never mow while people, especially children, or pets are nearby.

Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or

their property.

Do not carry passengers.

All drivers should seek and obtain professional and practical instruction. Such instruction should emphasise:

The need for care and concentration when working with this garden tractor and powered sweeper collector.

The need to slow down when making tight turning manoeuvres. Failure to take adequate care can affect

stability leading to loss of control of the tractor.

Control of a ride-on machine sliding on a slope will not be regained by application of the brake.

The main reasons for loss of control are:

- Insufficient wheel grip.

- Being driven too fast.

- Inadequate braking.

- The type of machine is unsuitable for the task.

- Lack of awareness of the effect of ground conditions, especially slopes.

- Incorrect load distribution.

PREPARATION

While mowing, always wear substantial footwear and long trousers. Do not operate the equipment when

barefoot or wearing open sandals. Eye protection should be worn.

Thoroughly inspect the area where the equipment is to be used and remove all objects which can be

thrown by the machine.

READ THIS MANUAL BEFORE USING THE TRACTOR, IT IS ESSENTIAL THAT OPER-

ATORS STUDY IT FOR THEIR OWN SAFETY.

THE FOLLOWING PRECAUTIONS MUST BE TAKEN TO HELP PREVENT ACCIDENTS.

A CAREFUL OPERATOR WHO USES COMMON SENSE IS THE SAFEST OPERATOR.

150005MA010302A

SAFETY PRECAUTIONS

1.7 1.7

PREPARATION Continued.

Warning - petrol is highly flammable:

- Store fuel in containers specially designed for this purpose.

- Refuel outdoors only and do not smoke while refuelling.

- Add fuel before starting the engine. Never remove the cap from the tank or add petrol while the

engine is running or when the engine is hot. Allow the engine to cool for at least two minutes

before refuelling.

- Do not attempt to start the engine if petrol is spilled or a smell of petrol is present. Move the

machine away from the area of the spillage and avoid creating any source of ignition until the

petrol vapours have dissipated.

- Always use fresh fuel. Stale fuel can block the carburettor and cause leakage.

- Replace fuel tank and oil tank caps securely.

Ensure that the cutterdeck is fully raised before transporting the tractor.

Replace faulty silencers.

Check the condition of the tyres and ensure that they are inflated to the correct pressures.

Check that the garden tractor and powered sweeper collector are in good working order, paying particular

attention to the brakes and steering. Also ensure that the forward/reverse travel control pedal moves freely

to neutral when released.

Before use, always visually inspect to see that the blades, blade bolts and cutterdeck assembly are not worn

or damaged. Replace worn or damaged components.

Check that all linkages, connections and pivot nuts are secure and that wheel nuts are torqued correctly.

OPERATION

Do not operate the engine in a confined space where dangerous carbon monoxide fumes can collect.

Mow only in daylight or in good artificial light.

Before attempting to start the engine, engage the parking brake, switch off the cutterblade and powered sweep-

er collector drives and ensure that the forward/reverse travel control pedal is in the neutral position.

Watch out for traffic when crossing or near roadways.

Use extreme caution when reversing.

Switch off the cutterblade and powered sweeper collector brush drives before crossing surfaces other than grass.

When using the garden tractor, never direct the discharge of material toward bystanders or allow anyone near the

machine while in operation.

150005MA010302A

SAFETY PRECAUTIONS

1.8 1.8

OPERATION Continued.

Never operate the garden tractor or powered sweeper collector with defective guards or shields or without

safety protective devices in place and in good working order.

Do not change governor settings to increase the speed of the engine. Operating an engine at excessive speed

increases the hazard of injury.

Before leaving the operator’s position:

- Switch off the drive to the cutterblades and powered sweeper collector and lower the powered

sweeper collector to the ground.

- Engage the parking brake.

- Stop the engine and remove the ignition key.

Switch off the drive to the cutterblades and powered sweeper collector, stop the engine and disconnect the

spark plug lead or remove the ignition key before:

- Clearing blockages.

- Checking, cleaning or working on the mower or powered sweeper collector.

- Refuelling.

- Removing the powered sweeper collector.

- After striking a foreign object (inspect the mower for damage and make repairs before restart-

ing the tractor).

- If the machine starts to vibrate abnormally check immediately and call dealer if necessary.

Reduce the throttle setting during engine run out.

Do not use on a slope of more than 10 degrees.

Ground conditions affect traction. Particular conditions may not permit safe operation on the slope

limits stated.

Remember there is no such thing as a" safe" slope. Travel on a grass slope requires particular care.

To guard against overturning:

- Exercise extreme care when changing direction on a slope.

- Do not stop or start suddenly when going up or downhill.

- Engage drive slowly, especially when travelling downhill.

- Tractor speed should be kept low on slopes and during tight turns.

- Stay alert for humps and hollows and other hidden hazards.

- Keep away from sharp inclines and steep drops.

- Never mow across the face of a slope.

Never park on a slope.

Ground level

10 Degree slope

150005MA010302A

1.9 1.9

SAFETY PRECAUTIONS

MAINTENANCE AND STORAGE

Never store the tractor with petrol in the tank inside a building where fumes may reach an open flame or spark.

When the tractor is to be parked, stored or left unattended turn the in-line fuel tap to the closed position,

apply the parking brake and remove the ignition key.

When the tractor is to be parked, stored or left unattended, raise the cutterdeck to the highest cut height and

lower the powered sweeper collector to the ground.

Check that all nuts, bolts and screws are tight to be sure the equipment is in safe working condition.

Allow the engine to cool before storing in any enclosure.

To reduce the risk of fire, keep the engine, silencer, fuel tank and battery compartment free of grass, leaves

or excessive grease.

Frequently check fuel lines and fittings for cracks or leaks and replace if necessary.

Replace worn or damaged parts for safety.

Ensure that all safety decals are properly secured and in good condition.

If the fuel tank has to be drained, this should be done outdoors.

Be careful during adjustment of the machine to prevent entrapment of the fingers between moving blades

and fixed parts of the tractor.

Never work on the tractor or sweeper collector while the engine is running.

Health and Safety at Work Act:

In accordance with section 6 of the Health and Safety at Work Act 1974, the garden tractor and powered

sweeper collector have been designed and constructed so that, in so far as is reasonably practical, they will

not endanger the safety and health of those working with them. This is, however, subject to the equipment

being properly used and maintained according to the conditions stated in this manual and elsewhere, which

have been found necessary as a result of the research and testing of Hayter Limited.

150005MA010302A

1.10 1.10

SAFETY PRECAUTIONS

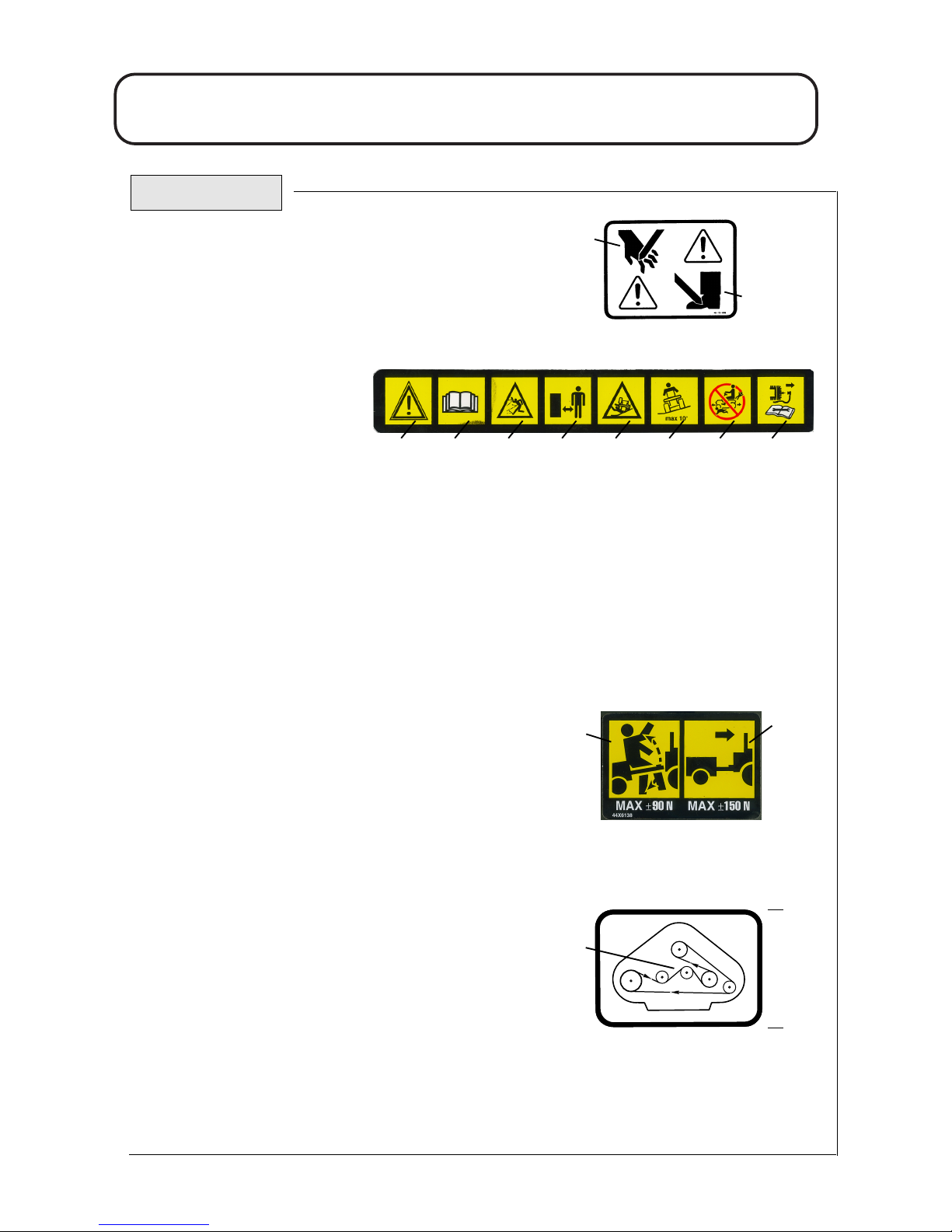

DECALS

Decal - Caution: Hands and Feet Part No: 40-13-010

Location: Cutterdeck.

a) Warning-Danger of Severing Fingers.

b) Warning-Danger of Severing Toes.

Decal - General Warning Part No: MU44x6815

Location: Footwell.

a) Warning-Safety Alert. Be aware of the possibility of injury.

b) Carefully read the operator’s manual before using the equipment.

c) Warning-Danger of being hit by thrown objects.

d) Keep bystanders at safe distances from the tractor during operation.

e) Warning-Be aware that the tractor can roll over.

f) Machine rollover. Do not use tractor on slopes of more than 10 degrees.

g) Do not operate the tractor where children may be present.

h) Stop the engine and disconnect the spark plug lead or remove ignition key

before working on the equipment.

Decal - Drawbar Warning Part No: MU44x6138

Location: Chassis Bulkhead.

a) Maximum vertical load at rear hitch point.

b) Maximum horizontal load at rear hitch point.

Decal - Cutterdeck Drive Belt Routing Part No: 150037

Location: Cutterdeck.

a) Drive belt routing.

abcdef gh

150037 REV. 0

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cortacésped de Hayter

Hayter

Hayter Harrier 41 Electric Guía del usuario

Hayter

Hayter Harrier 48 48ST Guía del usuario

Hayter

Hayter Harrier 48 BBC Guía del usuario

Hayter

Hayter Hobby 41 Manual de usuario

Hayter

Hayter Harrier 41 Electric Guía del usuario

Hayter

Hayter G002741 Manual del instalador

Hayter

Hayter R53A Manual de instrucciones

Hayter

Hayter Harrier 56 340S Guía del usuario

Hayter

Hayter Harrier 48 BBC Guía del usuario

Hayter

Hayter Harrier 48 Autodrive VS Manual de usuario

Hayter

Hayter Harrier 56 Autodrive VS Manual de usuario

Hayter

Hayter Harrier 48 BBC Guía del usuario

Hayter

Hayter Harrier 48 BBC Guía del usuario

Hayter

Hayter CODE613A Manual de usuario

Hayter

Hayter CODE477A Manual de usuario

Hayter

Hayter Spirit 41 Manual de usuario

Hayter

Hayter M10/30 133E Manual de usuario

Hayter

Hayter LT322 Manual de usuario

Hayter

Hayter Motif 432A Guía del usuario

Hayter

Hayter Spirit 41 Guía del usuario

Hayter

Hayter Harrier 48 / 56 BBC Guía del usuario

Hayter

Hayter Harrier 41 PRO FS Manual de usuario

Hayter

Hayter Envoy 36 Guía del usuario

Hayter

Hayter CODE610B Manual de usuario

Manuales populares de Cortacésped de otras marcas

RHINO

RHINO 1958 Manual de usuario

Wolf Garten

Wolf Garten Compact plus 40 B Manual de usuario

Cub Cadet

Cub Cadet LTX 1045 Manual de usuario

Craftsman

Craftsman 917.378461 Manual de usuario

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manual de usuario

Challenge

Challenge CH18V2 Instrucciones de operación

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manual de usuario

DEWEZE

DEWEZE ATM-725 Manual de operación

Weed Eater

Weed Eater 180083 Manual de usuario

Husqvarna

Husqvarna Poulan Pro PP185A42 Manual de usuario

Better Outdoor Products

Better Outdoor Products Quick Series Manual de usuario

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manual de funcionamiento

MTD

MTD 795, 792, 791, 790 Manual de usuario

Toro

Toro Groundsmaster 3505-D Manual de usuario

Dennis

Dennis FT 610 Manual de usuario

AIRFORCE

AIRFORCE F-15 Gen 3 Manual de usuario

MTD

MTD 126-220-000 Manual de usuario

Toro

Toro 74806 Manual de usuario
