Operator’s Manual

Form No. 3459-652 Rev A

46cm Lawn Mower

Model No. CODE610B - Serial No. 323000001 and Up

Model No. CODE611B - Serial No. 323000001 and Up

www.hayter.co.uk

Printed in China

Spellbrook, Bishop’s Stortford,

Herts, CM23 4BU

Introduction

This rotary-blade, walk-behind lawn mower is intended to be used by residential homeowners. It is designed

primarily for cutting grass on well-maintained lawns on residential properties. Using this product for

purposes other than its intended use could prove dangerous to you and bystanders.

Read this information carefully to learn how to operate and maintain your product properly and to avoid

injury and product damage. You are responsible for operating the product properly and safely.

Visit www.hayter.co.uk for more information, including safety tips, training materials, accessory information,

help ﬁnding a dealer, or to register your product.

Whenever you need service, genuine Hayter parts, or additional information, contact an Authorised Service

Dealer or Customer Service and have the model and serial numbers of your product ready. Figure 1 identiﬁes

the location of the model and serial numbers on the product. Write the numbers in the space provided.

Important: With your mobile device, you can scan the QR code on the serial number decal (if equipped) to

access warranty, parts, and other product information.

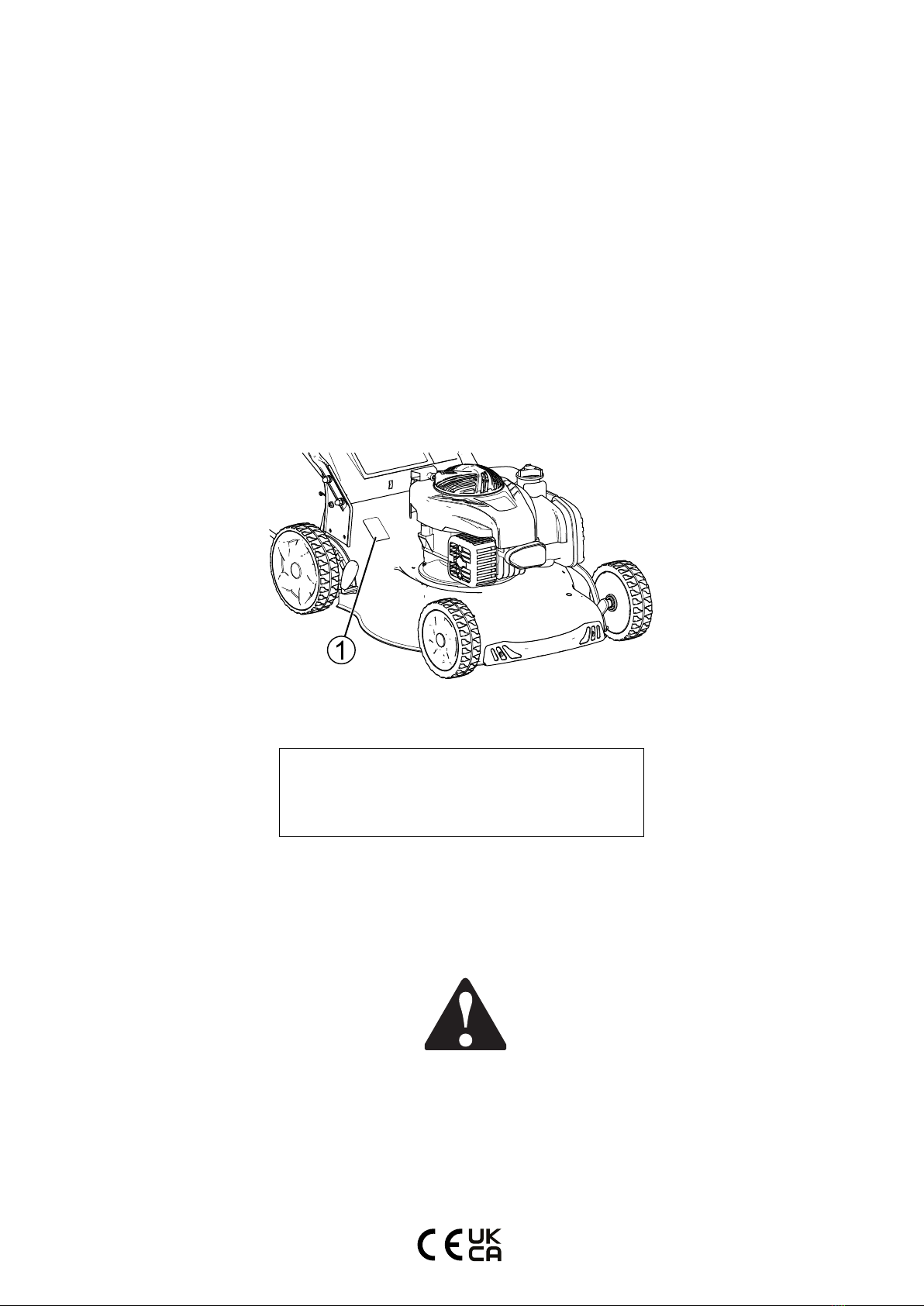

Figure 1

Model No. __________________________________

Serial No. __________________________________

This manual identiﬁes potential hazards and has safety messages identiﬁed by the safety-alert symbol,

Figure 2, which signals a hazard that may cause serious injury or death if you do not follow the recommended

precautions.

Figure 2

Safety-alert symbol

4EN

This manual uses two other words to highlight information. Important: calls attention to special mechanical

information and Note emphasises general information worthy of special attention.

This product complies with all relevant European directives; for details, please see the separate product

speciﬁc Declaration of Conformity (DOC) sheet.

Gross or Net Torque: The gross or net torque of this engine was laboratory rated by the engine manufacturer

in accordance with the Society of Automotive Engineers (SAE) J1940 or J2723. As conﬁgured to meet safety,

emission, and operating requirements, the actual engine torque on this class of mower will be signiﬁcantly

lower. Please refer to the engine manufacturer’s information included with the machine.

Do not tamper with or disable safety devices on the machine, and check their proper operation regularly.

Do not attempt to adjust or tamper with the engine speed control; doing so may create an unsafe operating

condition, resulting in personal injury.

5EN

Contents

Safety 7

- General Safety ................................................................. 7

Safety and Instructional Decals ............................................. 8

Setup ................................................................................... 9 - 14

- Assembling the Handle ..................................................... 9 - 10

- Installing the Recoil-Starter Rope in Guide .......................... 11

- Filling the Engine with Oil ................................................. 12

- Assembling Grass Bag....................................................... 13

- Product Overview ............................................................ 14

- Speciﬁcations .................................................................. 14

Operation ............................................................................ 15 - 18

- Before Operation ............................................................. 16 - 17

- Before Operation Safety ................................................. 15

- General Safety ............................................................ 15

- Fuel Safety ................................................................. 15

- Filling the Fuel Tank ....................................................... 16

- Checking the Engine-Oil Level ........................................ 17

- Adjusting the Cutting Height .......................................... 18

- During Operation ............................................................. 19 - 23

- During Operation Safety ................................................. 19

- General Safety ............................................................ 19

- Slope Safety ............................................................... 19

- Starting the Engine ........................................................ 20

- Using the Self-Propel Drive ............................................. 21

- Shutting off the Engine .................................................. 21

- Mulching the Grass Clippings .......................................... 21

- Bagging the Grass Clippings ........................................... 22

- Installing the Grass Bag .................................................. 22

- Removing the Grass Bag ................................................ 22

- Rear-Discharging the Grass Clippings .............................. 23

- Operating Tips ............................................................... 23

- General Mowing Tips.................................................... 23

- Cutting Grass .............................................................. 23

- Cutting Leaves ............................................................ 23

6EN

After Operation..................................................................... 24 - 25

- After Operation Safety ................................................... 24

- General Safety ............................................................. 24

- Hauling Safety ............................................................. 24

- Cleaning under the Machine ........................................... 24 - 25

- Folding the Handle ......................................................... 25

Maintenance ........................................................................ 26 - 32

- Recommended Maintenance Schedule(s) ........................... 26

- Maintenance Safety ....................................................... 26

- Preparing for Maintenance ................................................ 26 - 27

- Replacing the Spark Plug .................................................. 27

- Servicing the Air Filter ...................................................... 28

- Changing the Engine Oil ................................................... 29 - 30

- Replacing the Blade .......................................................... 30 - 31

- Blade Sharpening ............................................................. 31 - 32

- Lubricating the Wheels .................................................... 32

Storage ................................................................................ 33

- Storage Safety ............................................................. 33

- Preparing the Machine for Storage ..................................... 33

- Removing the Machine from Storage ................................. 33

Warranty ............................................................................. 34

Privacy Notice ...................................................................... 35

7EN

Safety

This machine has been designed in accordance with EN ISO 5395.

General Safety

This product is capable of amputating hands and feet and of throwing objects. Always follow all safety

instructions to avoid serious personal injury or death.

• Read, understand, and follow the instructions and warnings in this Operator’s Manual and on the

machine and attachments before starting the engine.

• Do not put your hands or feet near moving parts or under the machine. Keep clear of any discharge

opening.

• Do not operate the machine without all guards and other safety protective devices in place and

functioning properly on the machine.

• Keep bystanders and children out of the operating area. Do not allow children to operate the machine.

Allow only people who are responsible, trained, familiar with the instructions, and physically capable

to operate the machine.

• Stop the machine, shut off the engine, and wait for all moving parts to stop before servicing, fuelling,

or unclogging the machine.

Improperly using or maintaining this machine can result in injury. To reduce the potential for injury, comply

with these safety instructions and always pay attention to the safety-alert symbol, which means Caution,

Warning:, or Danger—personal safety instruction. Failure to comply with these instructions may result in

personal injury or death.

8EN

Safety and Instructional Decals

111-9937

1. Easy-wash port.

4 5

2 3

134-0084

1. Warning:—read the Operator’s Manual. 4. Thrown object hazard—keep bystanders away from the

machine.

2. Cutting hazard—keep away from moving parts; keep all

guards and shields in place.

5. Cutting hazard—do not mow up a slope; always mow

from side to side; ensure that the blade is stopped and

the engine is shut off before picking up nearby debris;

always look behind you when backing up with the

machine.

3. Cutting hazard—disconnect the spark plug and read the

Operator’s Manual before performing maintenance.

H295159

1. Engine stop

Safety decals and instructions are easily visible to the operator and are located near any area of

potential danger. Replace any decal that is damaged or missing.

9EN

Setup

Important: Remove and discard the protective plastic sheet that covers the engine and any other plastic or

wrapping on the machine.

Assembling the Handle

Parts needed for this procedure:

2 Lower handle

4 Short bolt

4 Flat washer

4 Split washer

4 Nut

1 Upper handle

2 Handle knob

2 Curved washer

2 Long bolt

Procedure

1. Attach the lower handle to the mower housing with the 4 bolts, 4 ﬂat washers, 4 split washers, and 4

nuts. Figure 3.

Figure 3

1. Short bolt (4) 3. Split washer (4)

2. Flat washer (4) 4. Nut (4)

10 EN

2. Attach the upper handle to the lower handle using 2 handle knobs, 2 curved washers, and 2 bolts.

Tighten the handle knobs securely by hand. Figure 4.

123

Figure 4

1. Handle knob (2) 4. Upper handle

2. Curved washer (2) 5. Lower handle

3. Long bolt (2)

3. Insert the cables into the cable clamp and attach the cable clip to the handle as shown in. Figure 5.

Figure 5

1. Cable clip (1)
