– INSTRUCTION MANUAL –

DESIGN BY PIERRE CHARPIN

PC LINEAR

 GENERAL INFORMATION 

TECHNICAL DATA

This product is supplied with an integrated LED

light source. The expected lifespan of the LED

light source is 25,000 hours, which equates to

810 years of general use. When the light source

reaches its end of life, the whole luminaire should

be replaced. For dimming, please check which

wall mounted dimmers are compatible with the

included LED driver.

FITTING TYPE | Integrated LED

POWER W | 28W

COLOUR TEMPERATURE | 2800K warm white

ATTENTION

Ensure that the power supply to the circuit has

clearly been turned OFF before installing the

product. In some countries, electrical installation

must be carried out by authorised electricians/

contractors; please check with your local

authority for guidance.

The product must not be modiﬁed in any way.

HAY accepts no responsibility for any products

that have been modiﬁed or tampered with. The

external ﬂexible cable or cord of this luminaire

cannot be replaced. If the cord is damaged,

the luminaire should be replaced. This lamp is

designed for indoor use only.

CARE AND MAINTENANCE

The product can be cleaned with a soft damp

cloth and mild detergent, or a dry microﬁbre

cloth. Do not use alcohol or any other solvents

to clean the product and avoid using abrasive or

rough sponges. Ensure that the power supply has

been turned OFF before cleaning the product.

 PARTS 

Lamp with suspension

wire & cable

Ceiling capMounting bracket

LED driver Suspension mount

1.

Unpack all the parts and check that you have received all the

parts listed. Mark the position of the holes to be drilled (104 cm apart)

on the ceiling.

104 cm

2.

Drill the holes using the correct type of drill for the ceiling you are drilling into.

3.

Insert the wall plugs. Ensure you use the correct type of wall plugs for

the type of ceiling.

4.

Fix the suspension mount to the ceiling using the provided screws.

Disassemble the suspension mount as shown below and insert each screw into

the suspension mount, screwing them ﬁrmly into place.

5.

Once the suspension mounts are ﬁrmly in place, the lamp is ready to be mounted.

Start by pulling the suspension wire through the disassembled suspension mount

(step 1). Guide the wire though the ﬁxed suspension mount and through the exit hole

on the side (step 2). Screw the disassembled suspension mount together with the

part that is ﬁxed to the ceiling (step 3). The suspension wire is now safely in place

(step 4). Repeat on the other side.

Step 1

Step 3

Step 2

Step 4

6.

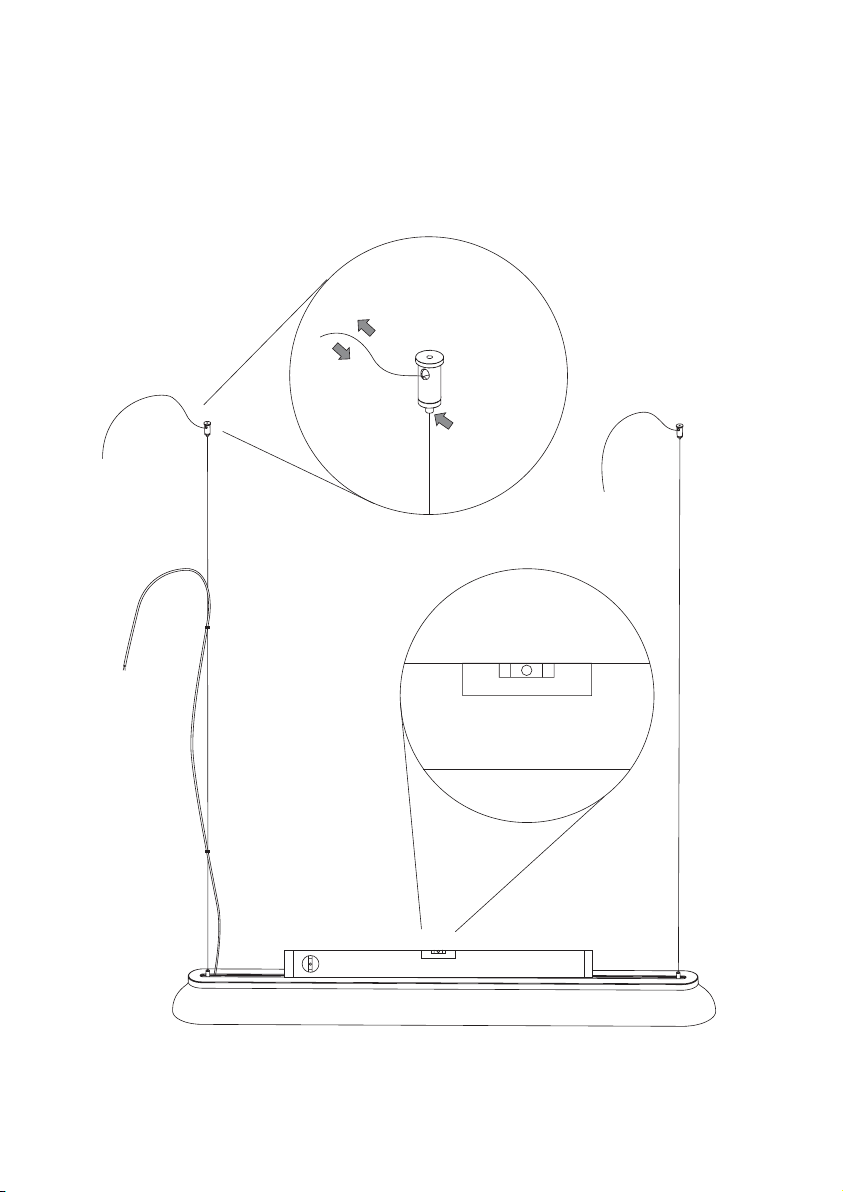

Level the lamp by adjusting the wire. Pull the wire to shorten it or press the tab

of the suspension mount to release it. It is recommended that two persons

perform this step.

7.

Once the lamp is in place, the excess wire trailing from the exit hole can be cut.

Note that once the wire has been cut, the lamp can no longer be lowered.
