TQ3 Series Conveyor Toasters

with ColorGuard System

All TQ3 series Conveyor Toasters use a patented

ColorGuard sensing system. The ColorGuard sensing

system monitors and adjusts conveyor speed and chamber

temperature automatically during high usage periods and

recovery from PowerSave mode for consistent toast color

Hatco Corporation

Booster Water Heater Presentation 2

Testing and Troubleshooting:

TQ3 Series Conveyor Toasters

(TQ3-400 and TQ3-500 Used as Examples)

Toaster Startup

•Press and Hold Standby

Icon on Touchpad for 3

seconds to Turn On and

Off

•Main Power Switch (Back, of Toaster)

DPST16 Amp, 250 Volt 0219.161.00

Hatco Corporation

Booster Water Heater Presentation 3

Toaster Startup

Main Menu

10:00 Minute Preheat

Selecting a Product to Toast

•Press Menu Item Icon

and release

Hatco Corporation

Booster Water Heater Presentation 4

Minor Light/Dark Adjustment

•Press Darker or Lighter

Toast Icon

•Up to 5 increments in

either direction

•Select On to Lock in

change

•Leave in Off position to

temporarily adjust color

Modify a Menu Item Setting

•Press and Hold Menu Item

Icon for 5 seconds

•Adjustment Screen Appears

•Top Heating Element %

•Bottom Heating Element %

•Toast Time

(without compensation)

•Use Up/Down Arrows to

adjust

Hatco Corporation

Booster Water Heater Presentation 5

Returning to Main Menu (Home)

Power Save Feature

•All TQ3 series toasters

can be put into a Power

Save mode by pressing

the Green Leaf Icon

•Automatic Power Save

is selectable

•Conveyor will

temporarily speed up

for approximately four

seconds to eject toast

from unit

•The toaster will operate

at 50% power in Power

Save mode

•% and automatic on

time is adjustable

Hatco Corporation

Booster Water Heater Presentation 6

Power Save Feature

•All TQ3 series toasters

can be put into a

Power Save mode by

pressing the Green

Leaf Icon

•Automatic Power Save

is selectable

•Conveyor will

temporarily speed up

for approximately four

seconds to eject toast

from unit

•The toaster will

operate at 50% power

in Power Save mode

•% and automatic on

time is adjustable

Power Save Feature

•To place toaster back

into full operation,

press the leaf Icon,

then desired product

icon

•Recovery will take

about 10 minutes with

default Power Save

settings

•To place toaster back

into full operation,

press the leaf Icon,

then desired product

icon

•Recovery will take

about 10 minutes with

default Power Save

settings

Hatco Corporation

Booster Water Heater Presentation 7

Power Save Feature

•To place toaster back

into full operation,

press the leaf Icon,

then desired product

icon

Technician Mode

•Select the Gear Icon

Hatco Corporation

Booster Water Heater Presentation 8

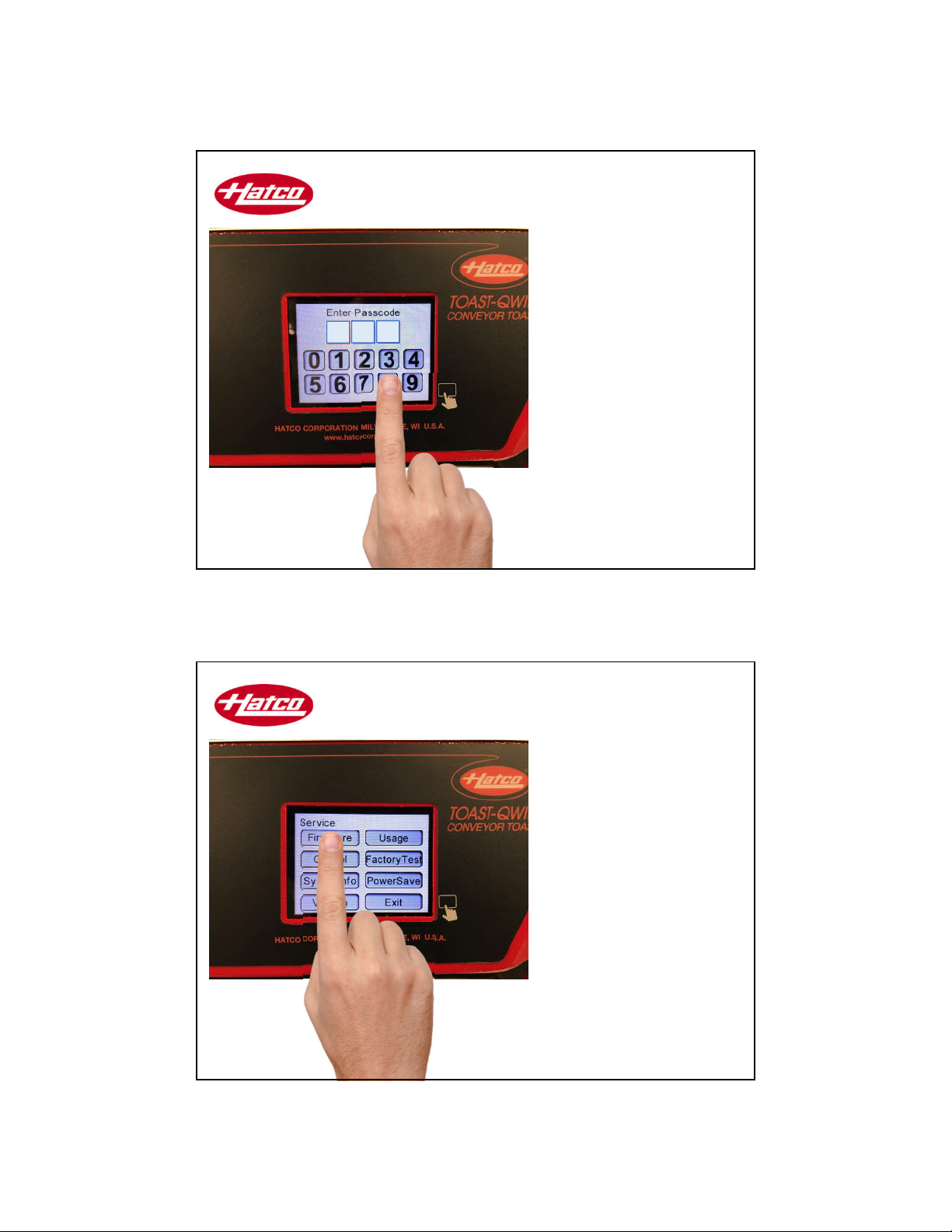

•Passcode for Service is

248

Updating Firmware

248

Hatco Corporation

Booster Water Heater Presentation 9

Updating Firmware

•Selecting Firmware

Button will show

Firmware version

loaded on the unit

Updating Firmware

•Selecting Firmware

Button will allow

update of the

firmware from a Flash

Drive inserted into

USB Port at Bottom of

front panel

Hatco Corporation

Booster Water Heater Presentation 10

Updating Firmware

•Selecting Firmware

Button will allow

update of the

firmware from a Flash

Drive inserted into

USB Port at Bottom of

front panel

Updating Firmware

•Selecting Firmware

Button will allow

update of the

firmware from a Flash

Drive inserted into

USB Port at Bottom of

front panel
