Harman DVC-500 Instrucciones de instalación



































This appliance is also approved

for installation into a shop.





 







































































46”

42”

16”

8”8” 9”

9”

18”





















Please copy

your serial

number

from the label on your stove to the

box below.





Warnings 4

Introduction 5

Assembly 6

Installation 7

Direct Vent Pipe 14

DVC500 Microprocessor Control 15

Operation 17

Maintenance 19

Fuel 23

Wiring Diagram 25

Control and Safety Sensors 26

Parts 27

Specications 30

Troubleshooting 31

Please read this entire manual before you install and use your new

room heater. Failure to follow instructions may result in

property damage, bodily injury, or even death.



SAVE THESE INSTRUCTIONS



352 Mountain House Road

Halifax, PA 17032

www.harmanstoves.com









       

















Freshly delivered coal is watered down to

eliminate dust when loading and unloading. Wet

rice coal does not ow as well as damp or dry

coal. We do not recommend burning wet coal;

however, we realize if it's the only coal you have,

it is better to burn it than be cold. If you must

burn wet coal, the feed rate must be increased

in order to get the same size re. As the wet

coal in the hopper dries out, the feed rate must

be decreased. Loading wet coal once or twice a

year will not damage your stove as long as it is

hot and burning. The damage is caused when

the hopper has wet coal in it when the stove is

cold. This will cause rust and corrosion and it

is totally the operator’s fault. Usually after the

coal dries for three or four days, depending on

conditions, it will ow very well and feed properly.

Feed rate will be the same as with dry coal.







Carbon monoxide, referred to as CO, is a colorless,

odorless gas that is produced during combustion of

coal and other fuels. CO fumes are toxic and can

be fatal.

The DVC 500 is a closed loop system specially

designed to prevent the escape of CO and other

combustion products from the stove.

Even though this stove is designed to be as safe

as possible, it is important that you install a CO

detector. This is true for oil, gas, or wood burning

products as well.



           





CO detectors are very sensitive and may sound an

alarm for fumes other than CO or CO from sources

other than the stove such as car or lawn mower exhaust.

If the alarm sounds

1. Increase ventilation by opening windows or doors.

2. Make sure the stove doors and hopper lid are

closed and latched.

3. Check stove for electrical power and normal

operation.

4. Check for false alarm.



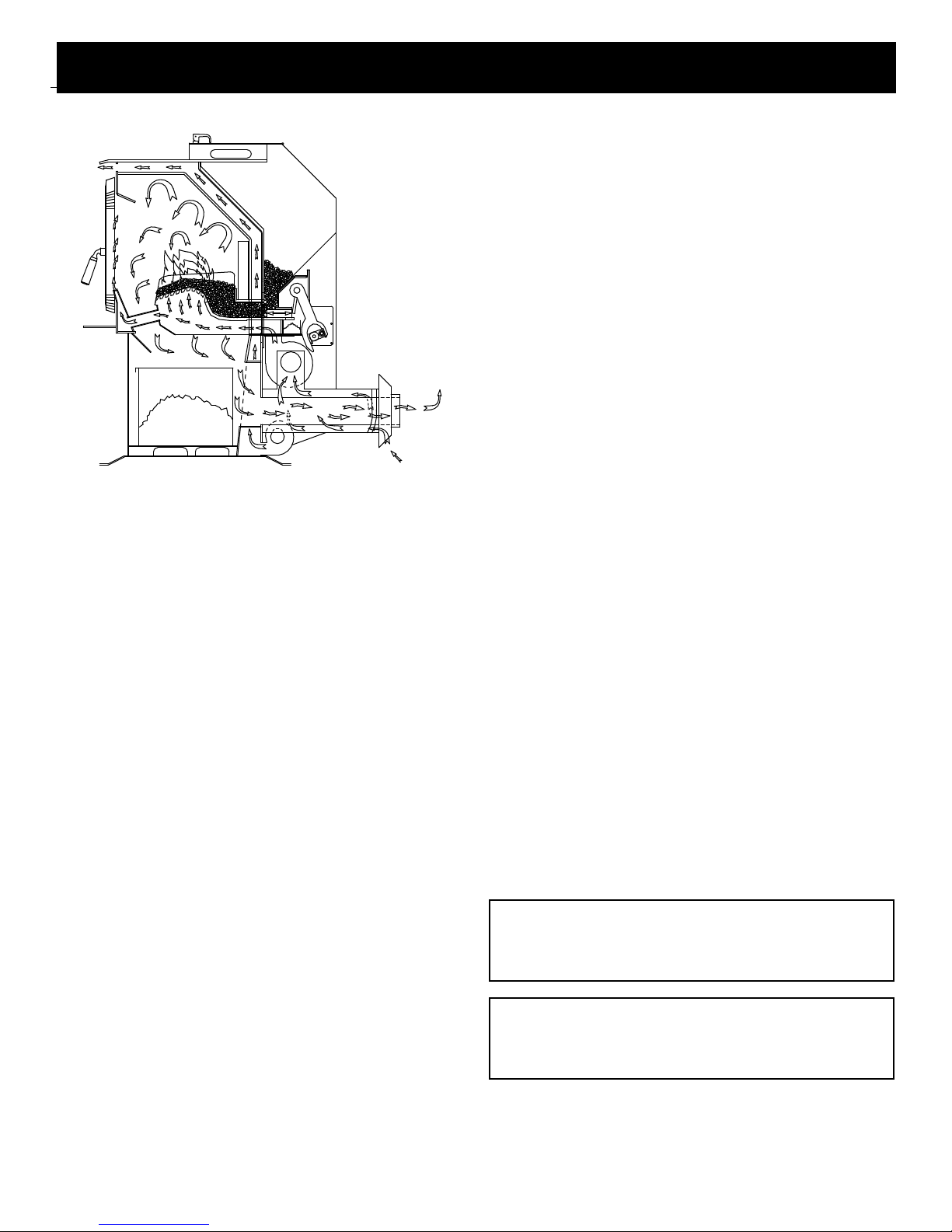

This remarkable design by Harman features

the Verti-ow Direct Vent Stoker System.

This unique, high efciency unit uses only

outside air for combustion.

Micro-processor controls provide for an

automatic wide range of heat output from 7,000 to

75,000 BTU .

With a big 93 pound hopper capacity, this unit

can burn on high approximately 16 hours or extend

for over 96 hours on low.

A Room Sensor connected to the micro-

processor automatically adjusts the feed rate to

compensate for changes in temperature.

The ash pan is large enough to hold the ash

from one hopper full of coal at any setting.

       





















       























1. Install the hopper latch as shown at left.

2. Install 3 rebricks on the cast iron angle be-

hind the grate as shown.

3. Cement in grates as shown below. This may

already be done at the factory.

3 Bricks

Grate

Inserts

g. 3



4 GLASS

RETAINER

CLIPS 4 GLASS

RETAINER

BOLTS

GLASS

GLASS GASKET

DOOR

HINGE PINS

PAW BOLT



The glass in your Harman stove is a special ceramic glass.

• Do not abuse the glass by striking or slamming the door.

• Never burn the appliance if the door glass is cracked or broken.

• Replace only with Harman supplied glass.

Soot and/or y-ash may accumulate on the viewing glass, and will ocassionally need to be cleaned.

Clean the glass with a soft cloth and mild glass cleaner. Do not spray cleaner on hot glass, and avoid

the use of abrasive cleaners.

Glass replacement

Carefully remove all remaining glass and gasket materials prior to replacing the glass.

Lay the door face down on a at surface. Remove the glass retainers and screws. Apply the gasket

material to the face of the new glass. Lay the glass into the door, making sure that the glass is contained

within the channels and raised areas of the door itself. Lay the glass retainers into position and install

the screws. Tighten each screw evenly to avoid making any stress points.

BRASS HANDLE

HANDLE BOLT

WOOD HANDLE

SET SCREW

Tips On Installation

Before the positioning of the unit can be decided

a few questions should be considered?

1. Can the unit be vented properly and installed safely?

2. Will exhaust be vented where fumes can build up or

be drawn into lower levels of the structure

3. Will fumes and y ash affect the exterior of the

structure or surrounding structures?

4. Are there any local regulations governing the use and

placement of the unit?

5. Are there any structural reasons why the unit cannot

be placed where you want?

6. How close is the electrical outlet?

Follow the guidelines to the left regarding

clearances to combustible materials.

Floor Protector

This stove should be placed on a non-combustible

oor protector extending 16 inches to the front, 8 inches

to the sides, and 1 inch to the rear.

Straight Through Wall

1. When positioning of the unit has been decided, use

measurements on Page 10 for cutting the hole through

the wall. Don’t forget to gure the thickness of the

oor protector used.

2. Cut at least a 9" x 9" hole through the wall.

3. Remove the side doors / rear cover assembly (6 black

screws, 5/16" socket or straight screwdriver)

4. Place the unit in front of the hole approximately

1/2" closer to the wall than the length of the wall

termination. (From outside of wall to back of unit

where termination bolts up)

5. Take the wall termination outside and slide it into the

hole until it mates to the rear of the unit. Go inside

and install the bolts and tighten, making sure the

gasket is in place and the ue pipe section is level.

6. Reposition the unit inward until the stainless steel

intake section comes against the outside wall surface.

NOTE: If the wall is over 8" thick you will need a

longer wall termination. The standard termination

will provide 3" of wall clearance behind the stove,

with a 8" wall. Therefore, with a 5" thick wall, it will

provide 6" of clearance behind the stove.

7. Check the exterior of the termination for best t and

screw to exterior and caulk with high grade exterior

caulking.















g. 6

g. 7

8. Complete any other exterior ue piping necessary,

using 4" pellet venting.

9. Back inside, place the 2 halves of the interior wall

trim plate over ue pipe. Using the black pop rivets,

fasten together, then slide it against the wall and fasten

it to the wall.

10. Replace the side door / rear cover assembly with 6

black screws.

11. Complete the unit assembly and test.

















Wall Trim Plate

Gasket

Wall

Termiation

Standard Wall Termination

g. 9

Open

g. 8

Installation


