SAFETY NOTICE

PLEASE READ THIS ENTIRE MANUAL BEFORE YOU INSTALL AND USE YOUR HEATING APPLIANCE. FAILURE

TO FOLLOW INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, BODILY INJURY, OR EVEN DEATH.

FOR USE IN THE U.S. AND CANADA. NOT SUITABLE FOR INSTALLATION IN MOBILE HOMES

IF THIS HARMAN STOVE IS NOT PROPERLY

INSTALLED, A HOUSE FIRE MAY RESULT. FOR YOUR SAFETY, FOL-

LOW INSTALLATION DIRECTIONS.

CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION

REQUIREMENTS IN YOUR AREA.

CONTACT YOUR LOCAL AUTHORITY (SUCH AS MUNICIPAL BUILDING DEPARTMENT, FIRE DEPARTMENT, FIRE

PREVENTION BUREAU, ETC.) TO DETERMINE THE NEED FOR A PERMIT.

CETTE GUIDE D’UTILISATION EST DISPONIBLE EN FRANCAIS. CHEZ VOTRE CONCESSIONNAIRE DE HARMAN

STOVE COMPANY.

SAVE THESE INSTRUCTIONS.

The Harman SF1500A, SF2500A, SF2600A, SF 3500A

Installation & Operating Manual

Table of Contents

Packing List 3

Installation 5

Mounting Blower & Filter Box 7

Wiring 8

Duct Work 11

Operation 11

Safety Tips 13

Chimney Troubleshooting 13

Maintenance 14

Specications    15

Coil Installation 16

Oil Burner Setup 18

Warranty 19

Packing List - SF2600

Blue Angel Oil Burner

Burner Gasket

Automatic Draft Control

Blower

(2) Blower Brackets

Filter Box Kit (3 pieces) + Filter

Fan Control / High Limit

3-Speed Fan Switch (not on SF3500)

(2) Thermostats

(2) Junction Boxes

Relay

High Limit Snap Disc

(4) 1/4 X 3/4 bolts & (4) Filter Box Mounting Clips

36” Flex Conduit

(1) Straight Conduit Fitting

(1) Elbow Conduit Fitting

Ash Pan

Shaker Handle

Owner’s Manual

Warranty Registration

Filter Box

Mounting Clips

Flex- Conduit and Fittings

Junction Boxes

Ash Pan Shaker Handle

Oil Burner

Oil Burner Gasket

3- Speed Fan Switch

Fan Control /

High Limit

Relay

Snap Disc

Thermostats

Blower Brackets

Filter Box Kit

Blower

Automatic Draft Control

Filter

Packing List for SF1500, SF2500 & SF3500

Blower Mounting Plate w/ 2= 5/16X3/4 bolts ( SF3500 Only)

Automatic Draft Control

Blower

(2) Blower Brackets

Filter Box Kit (3 pieces) + Filter

Fan Control / High Limit

3-Speed Fan Switch (not on SF3500)

Thermostat

Junction Box

Relay

(4) 1/4 X 3/4 bolts & (4) Filter Box Mounting Clips

36” Flex Conduit

(1) Straight Conduit Fitting

(1) Elbow Conduit Fitting

Ash Pan

Shaker Handle

Owner’s Manual

Warranty Registration

Filter Box Kit

Flex Conduit & Fittings

Junction Box

Blower Mount-

SF3500 only

Shaker Handle

Ash Pan

Thermostat

Fan Control /

High Limit

Relay

3-Speed Fan Switch

Blower Brackets

Automatic Draft Control

Blower

Filter Box

Mounting Clips

Filter

To ensure a safe installation, it

is recommended that this furnace be

installed by a qualied installer.

The sheet metal top and sides can be

easily removed to reduce the chance of dents

or scratches on the painted surfaces.

Toremovethesheetmetal,rstliftoffthetop

section. Now, the sides can be removed by

lifting up and out away from the furnace.

To lighten the SF2600, the oil burner

heat exchanger should be removed. Do so by

rstremovingthesheetmetalasdescribed

above.Removethefrontsheetmetalbyrst

removing the burner collar. Now remove the

the two long bolts on each side of the heat

exchanger.(Figure B) The entire unit can now

be lifted off and moved separately.

Caution: This furnace must not be

installed closer than 24 inches at the

sides and 30 inches from the rear to

combustible materials. The unit may

only be installed on a non-combustible oor surface such as

concrete oor or concrete pad on dirt oor. The hot air plenum

must be a minimum of 2 inches from the ceiling or other com-

bustibles above the plenum.

Locate the furnace as close to the chimney as possible while

still maintaining the above clearances. No more than 8 feet of stovepipe

should be used, including two or less 90° elbows. All horizontal runs of

pipe should have a minimum 1/4 in. rise per foot. All stove pipe must be

24 gauge or thicker.

When re-installing the heat exchanger, inspect the gasket around

the furnace opening, and replace if necessary. (Figure A) Place the heat

exchanger in position and secure with the long bolts and nuts. Be sure the

gasket is compressed evenly.

Re-install the sheet metal by sliding the groove on the bottom of

each side panel over the steel lip on the furnace. The top sheet metal

piece holds the sides in place. The SF2600 front cover gets installed by

anglingthebottomedgeovertheliponthetopoftherebox.Theside

edgesmustslideintothegroovesoneachsideandpushedinushwith

the sides and top. This front piece is held in place by the black ring which

gets tightened around the burner pipe. Do not over tighten as this will

push the sheet metal in too far.

Furnace Installation

Figure A

Figure B

Inspect Gasket prior to re-

installing heat exchanger.

(4) 12in. bolts, two on

each side, attach the heat

exchanger to the furnace.

Bolt the auto-

matic draft control to

the bottom door. Be

sure to hold the unit

straight while tighten-

ing. After the auto-

matic draft control

is mounted, the two

wires must be strung

throughtheexible

conduitandtwottings

supplied. The knockout

plug of the junction box

must be removed to in-

stalltheconduittting.

Check the door of the

automatic draft control to assure proper operation.

Warning: Keep pieces of wood or coal out of the

draft door opening mechanism, as this could cause

the door to stick.

NOTE: Oil the hinge at the begining of the heating

season with a light oil.

The junction box is best mounted on the side

of the furnace about 1 in. back and 8 in. from the top

ofthesheetmetalside.(g.CorD)Ifthislocationis

inconvenient, anywhere on the right side will work.

SF1500, SF2500, SF3500.

 Thisgurerepresentsthemodels;SF1500,

SF2500, and SF3500. It’s intention is to represent

the approximate location of the various controls.

This drawing may also be used as a recommenda-

tion for routing of the

wiring and approxi-

mate dimension of

control spacing.

Please note

that this drawing is for

reference only. Each

specicinstallationwill

vary.

Furnace Installation

Installing Wood/Coal High Limit Switch-

SF2600 only.

First, install the sheet metal sides as de-

scribed in the previous section. Install the snap disc

switch into the hole on the right side sheet metal.

Then mount the open backed junction box around

the snap switch. Proceed with wiring as shown on

page 10. Also refer to Figure D. in this section.

Mounting The Oil Burner- SF2600 only.

Remove oil burner unit from it’s box. Loosen

the four bolts in the pipe on the front of the furnace.

Insert the nose of the oil gun into the pipe. Before

sliding the oil burner all the way in, apply the gasket

around the nose of the oil gun by wrapping it around

the nose. Next, slide the oil burner into the pipe and

secure it by tightening the four bolts around the col-

lar. Be sure to tighten the bolts evenly to locate the

oilburnerinthecenterofthepipe.Thenalset-up

of the oil burner should be done by an experienced

oil burner technician with the proper equipment. Re-

fer to the SF2600 wiring diagram on page 10 and the

oil burner manual for proper burner set-up. There is

alsoasectionattheendofthismanualwithspecic

oil burner instructions.

Venting Guidelines.

Your Harman hot-air furnace must be vented

toit’sownseparateue-lined“ClassA”chimney,

not less than 8” X 8” in size. The chimney must be

capable of providing a draft reading of at least .06”

water column on a draft meter, in order to function

properly. The Chimney must be a minimum of 16

ft. high, and must be two feet higher than anything

within 10 ft. The chimney must also be at least 3 ft.

higher than the point at which it exits or passes by

the roof. A barometric damper must be installed in

theuetoeliminateexcessivedraft.Anyhorizontal

sections of connector pipe must have at least 1/4 in.

per foot rise. Limit the number of elbows to two or

less. All joints in the connector pipe must be secured

with sheet metal screws.

Assembly.

Bolt the shaker handle to the block on the

lower left side of the furnace, using the bolts and

lock-washers provided.

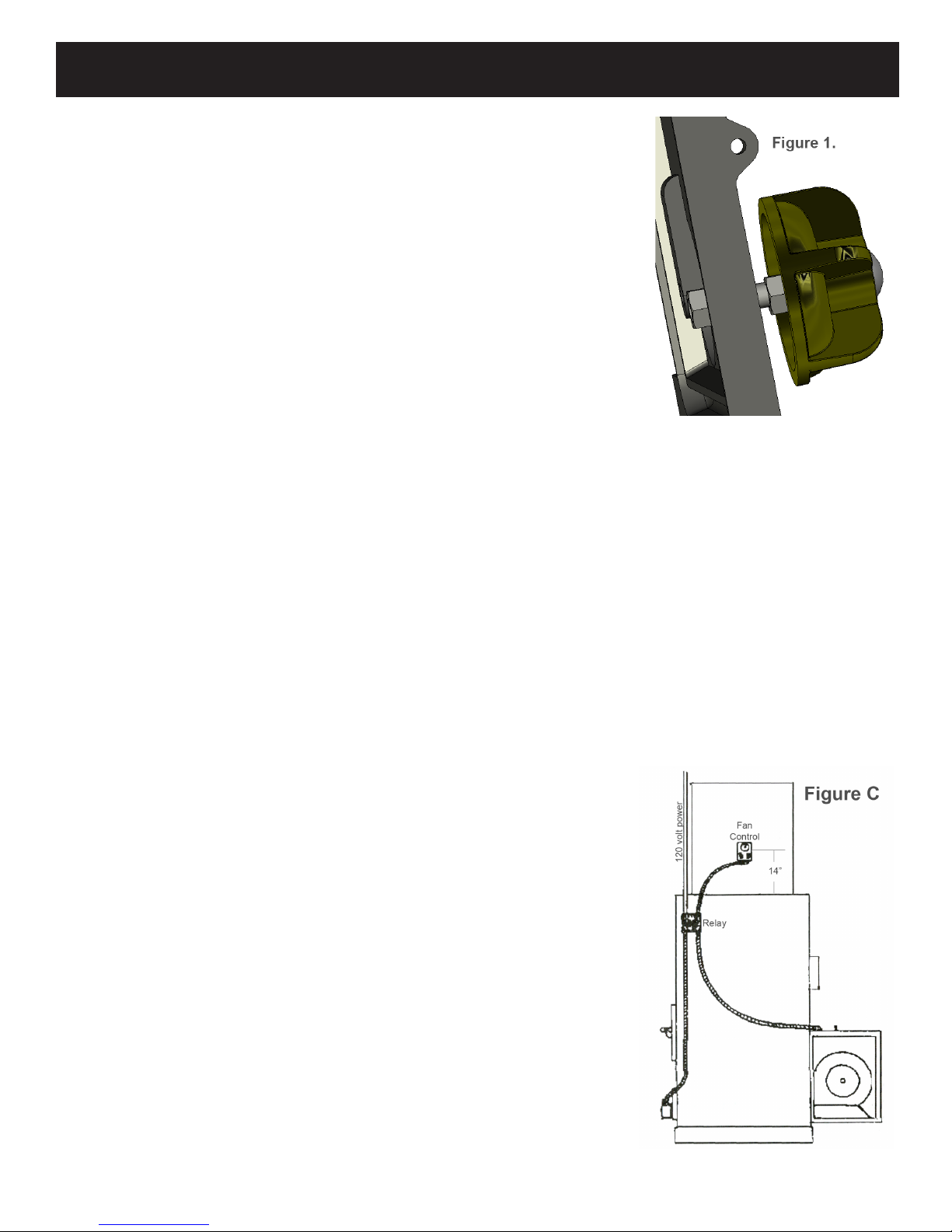

Bolt the two manual draft controls to the

front load door. Proper installation allows the draft

controls to open approximately 1/2” from the door

surface. See Figure 1.

SF2600.

 ThisgurerepresentsthemodelSF2600furnace.It’sintentionisto

represent the approximate location of the various controls. This draw-

ing may also be used as a reference for wiring and control spacing.

Pleasenotethatthisdrawingisforreferenceonly.Specicinstalla-

tions will vary.

Mounting The Blower And Filter Box

 Positionthelterboxbetweenthebracketsontherearofthefur-

nace,withthebottomoftheboxrestingontheangeatthebottomof

the furnace. Insert the mounting clips into the bracket slots to secure

thelterbox.(seeFigure2)Next,installtheblowerbracketsontothe

blower being sure to install the rubber feet into the brackets. NOTE:

OntheSF3500,installtheblowermountandblowerbeforethelter

box. All hardware, brackets, etc. for the blower, will be found in the car-

tonwiththeblower.Next,positiontheblowerinthelterbox,centered

behind the inlet hole and allow approximately 1/8 in. space between

therearofthefurnaceandthebloweroutlet.Now,installthelterrail

ontothelterbox.NOTE:Thelterrailisbestinstalledontheside

toward the shaker handle, so that any pipes from the hot water coil do

notinterferewithlterinstallationorremoval.

NOTE: Before proceeding with the installation of the access door, it is suggested that the wiring be com-

pleted.

Theaccessdoorisinstalledbyslippingtheangeonthebottomoftheaccessdooroverthebottomrail

ofthelterboxopening,thenpushthetopofthedooragainstthetopofthelterboxopeningandsecure

with a sheet metal screw.

Furnace Installation

Figure 2

Filter box mounting clips

1/8 in. space between

blower and furnace

Furnace Installation - Wiring

Wiring

 Beforebeginninganywiring,studytheappropriatewiringdiagramforyourunit.Alsoreferbacktog-

ures C or D for an example of what the completed job will look like. It is your reponsibility to follow all state

and local electrical codes. Locate the best place to route the power for the blower, and drill a 7/8” hole in the

lterbox.Thisholesizewillaccomodatea“romex”connector.Attachtheblowerandpowerwiresasshownon

the appropriate wiring diagram.

Once you have the plenum installed, the fan control with high limit switch can be installed. The Fan

control/high limit switch is packaged with a jumper between the two sets of terminals inside. REMOVE THE

JUMPER WIRE INSIDE THE FAN CONTROL. The fan control should be installed in the right side of the ple-

num and 12 to 18 inches above the top of the furnace. A separate conduit should be run from the fan control to

the junction box.

Mount the thermostat in a central location of the area you want to heat. Run two wires to the junction

box, from the heating terminals on the thermostat. 22 gauge or thicker wire is acceptable.

The next step is to run a 120 volt line from your breaker panel to the junction box. Attach all wires ac-

cording to the corresponding wiring diagram, and install the relay into the junction box. DO NOT TURN ON

THE BREAKER UNTIL ALL WIRING IS COMPLETE AND THE RELAY IS SECURED.

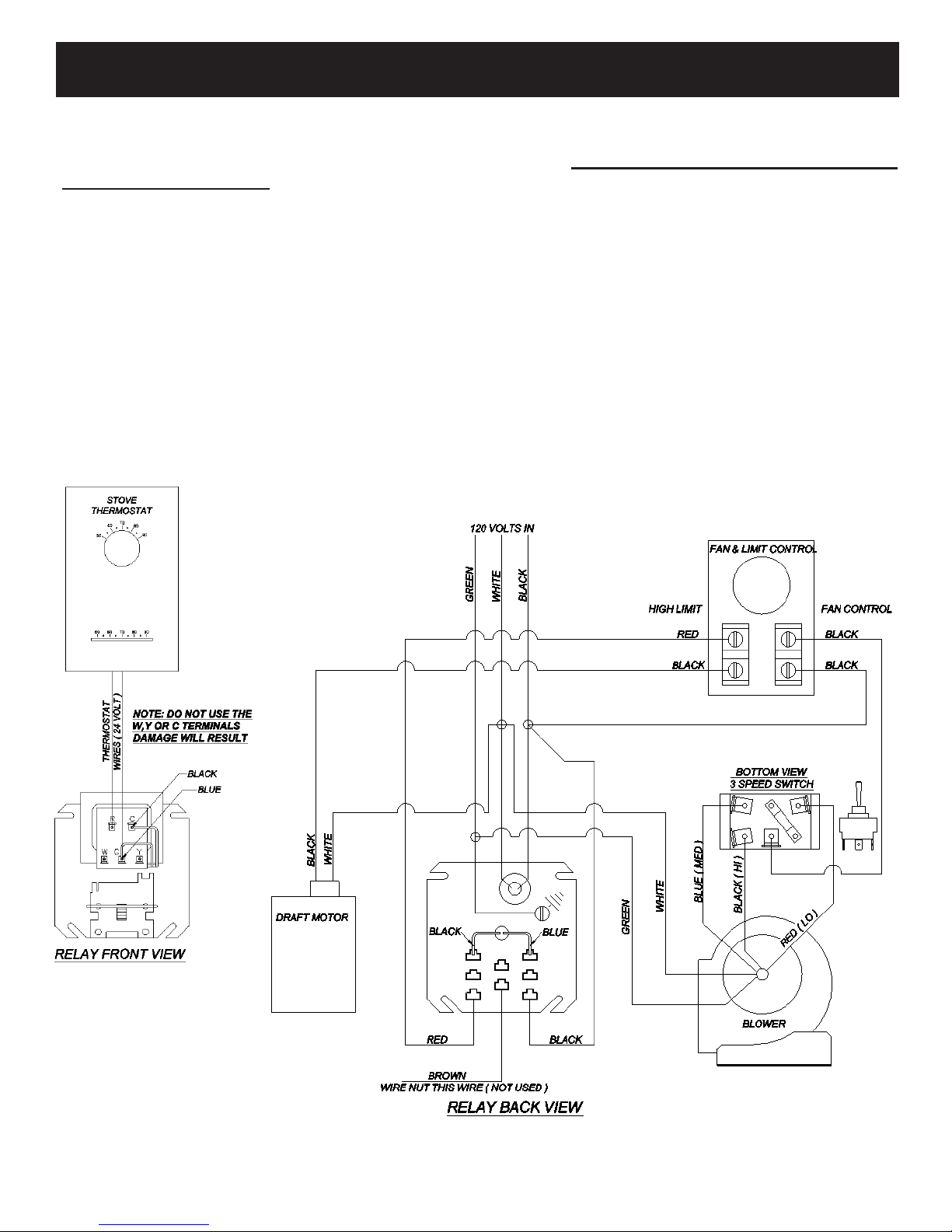

SF1500 and SF2500 Wiring Diagram

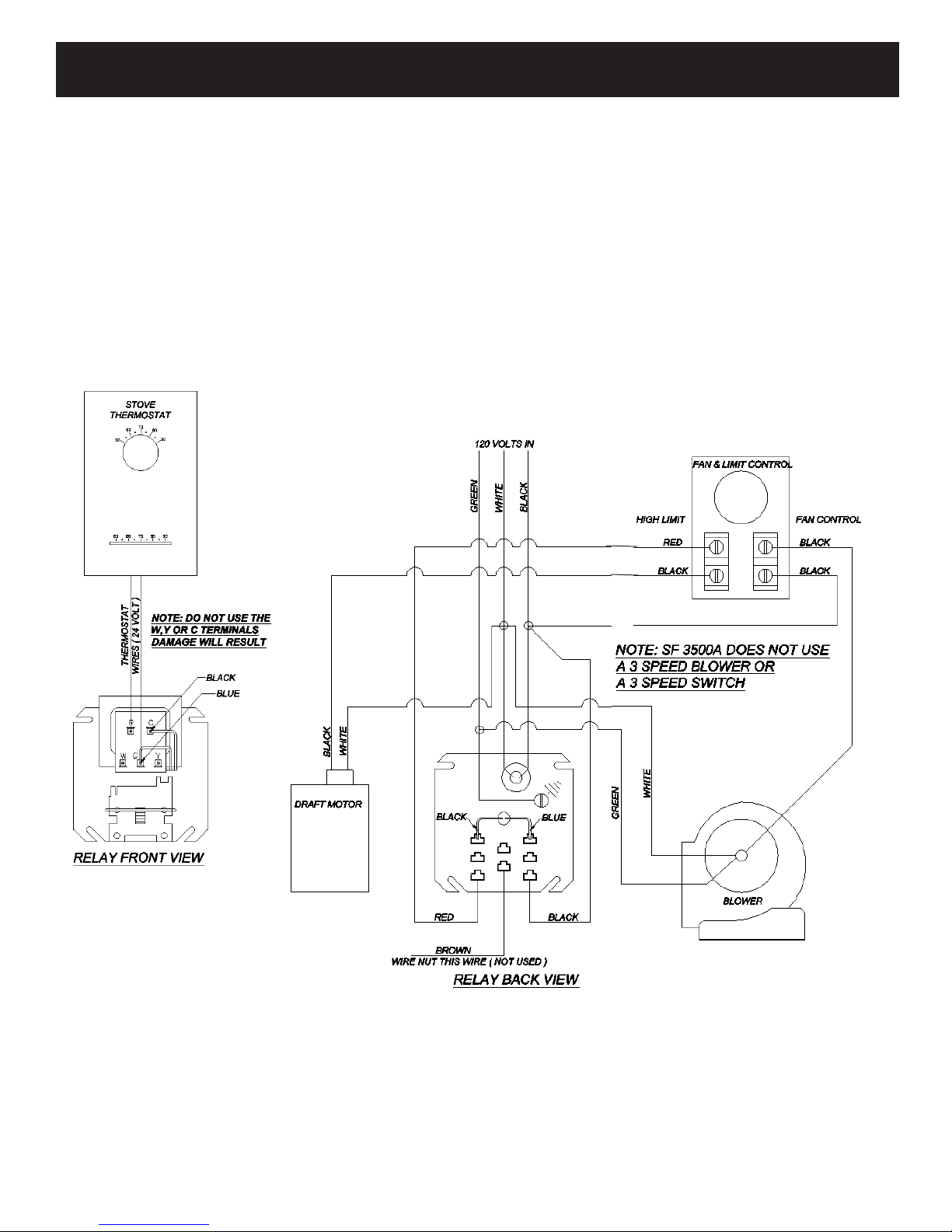

SF3500 Wiring Diagram

SF2600 Wiring Diagram

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cocina de Harman Stove Company

Harman Stove Company

Harman Stove Company 44 Magnum Manual de usuario

Harman Stove Company

Harman Stove Company Advance Pellet Stove Manual de usuario

Harman Stove Company

Harman Stove Company PC 45 Instrucciones de instalación

Harman Stove Company

Harman Stove Company Clarity 929 DV Manual de usuario

Harman Stove Company

Harman Stove Company Harman Stove The Harman Magnum Stoker Manual de usuario

Harman Stove Company

Harman Stove Company Conquest Instrucciones de instalación

Harman Stove Company

Harman Stove Company DVC500-C Manual de usuario

Harman Stove Company

Harman Stove Company I Guía de configuración

Harman Stove Company

Harman Stove Company Invincible T Manual de usuario

Harman Stove Company

Harman Stove Company Conquest Gas Stove Manual de usuario

Harman Stove Company

Harman Stove Company Clarity 929bv Instrucciones de instalación

Harman Stove Company

Harman Stove Company RS Manual de usuario

Harman Stove Company

Harman Stove Company 3-90-70738 Instrucciones de instalación

Harman Stove Company

Harman Stove Company SF-150 SF-250 Guía de configuración

Harman Stove Company

Harman Stove Company TLC 2000 Stove Manual de usuario

Harman Stove Company

Harman Stove Company XXV Manual de usuario

Harman Stove Company

Harman Stove Company Accentra Manual de usuario

Harman Stove Company

Harman Stove Company Accentra Manual

Harman Stove Company

Harman Stove Company PC 45 Manual de usuario

Harman Stove Company

Harman Stove Company XXV Instrucciones de instalación

Harman Stove Company

Harman Stove Company XXV Instrucciones de instalación

Harman Stove Company

Harman Stove Company Pellet Pro 2 Manual de usuario

Harman Stove Company

Harman Stove Company P68 Instrucciones de instalación

Harman Stove Company

Harman Stove Company PP38+ Instrucciones de instalación

Manuales populares de Cocina de otras marcas

Arada

Arada Cassette Stove Manual de usuario

Parmco

Parmco FS 600 Manual de usuario

MCZ

MCZ SUITE AIR 10 M2 Manual de usuario

HearthStone

HearthStone Stowe DV 8321 Guía de solución de problemas

Cattara

Cattara FAMILY Manual de usuario

Stanley

Stanley Argon F500 OVAL Manual de usuario

Avalon

Avalon B-VENT Manual de usuario

Nordpeis

Nordpeis Vega Manual de usuario

Exquisit

Exquisit EKC601-5 Manual de operación

Stanley

Stanley Oisin Oil MK II Manual del propietario

Thermocet

Thermocet Brookfield S/CC Manual de usuario

HASE

HASE delhi Manual de usuario

Vermont Castings

Vermont Castings Intrepid 2 Manual de usuario

Italiana Camini

Italiana Camini CLASSICA Guía de inicio rápido

Avalon

Avalon Vashon Avanti DVS FS Manual de usuario

Spartherm

Spartherm ambiente a1 Manual de usuario

Dimplex

Dimplex MCFSTV12AU Manual de usuario

Warmlite

Warmlite WL46040 Manual de usuario
