HK 3470

STEREO RECEIVER

High fidelity is both an ideal and a

philosophy. Harman Kardon pioneered

the high-fidelity stereo receiver more

than forty-five years ago, and our

commitment to sonic purity has never

wavered. The HK 3470, our top-of-the-line

stereo receiver, combines a 2 x 100-watt,

high-current, ultrawide-bandwidth

amplifier design with our proprietary

VMAx®processor to generate dramatic

3-D sound fields from two-channel

sources with only two speakers.

And with remote A/B speaker selection,

a programmable universal remote,

as well as infrared extension jacks,

it’s among the easiest to use receivers

we’ve ever built. The HK 3470 is the

ultimate realization of high fidelity.

VMAx

phono input

ultrawide bandwidth

high-current capability

A/B speaker selection

programmable remote

tape monitor loop

subwoofer output

VMAx is a registered trademark of Harman International Industries, Inc., and is an implementation of Cooper Bauck Transaural Stereo under patent license. Harman Kardon is a registered trademark,

and Power for the Digital Revolution is a trademark, of Harman Kardon, Inc. Part No.: HK3470PI2/01

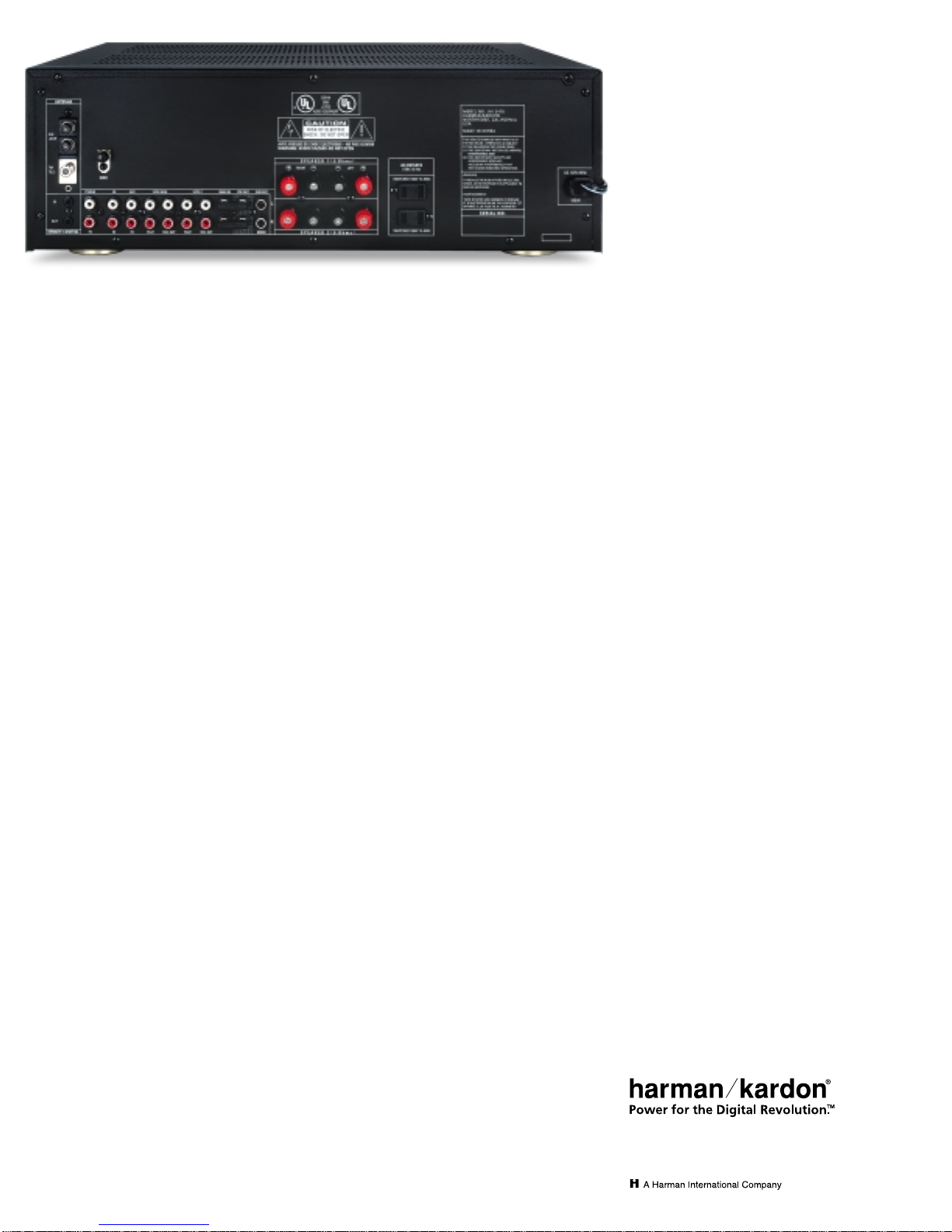

HK 3470

STEREO RECEIVER

Specifications

• Continuous Average Power

(FTC): 100 watts x 2 @ 8 ohms

(20Hz –20kHz, <0.07% THD,

both channels driven); High-Current

Capability: ±45 amps

•Tuner –Usable Sensitivity:

IHF 1.12µV/13.5dBf; THD at

1kHz with 100% Modulation:

(Mono) 0.3%, (Stereo) 0.4%;

FM Adjacent Channel Selectivity:

±400kHz, 65dB; Ultimate

(Maximum) S/N Ratio (measured

at 1mV RF Input Level):

(Mono) 73dB, (Stereo) 72dB

•General –Dimensions (H x W x D):

6-1/8" x 17-3/8" x 16-5/16"

(156mm x 442mm x 415mm);

Weight: 26.8 lb (12.1kg)

[NOTE: Depth measurement includes

knobs, buttons and terminal connections;

height measurement includes feet and

chassis.] All features and specifications

are subject to change without notice.

Features

100W x 2 Into 8 Ohms,

20Hz –20kHz at <0.07%

THD, Both Channels Driven

Simultaneously •High-Current

(±45 Amps) Capability

Amplifier •Ultrawide-Bandwidth

Amplifier Design •VMAx

Virtual Surround Sound Delivers

an Enveloping Sound Field

With Only Two Speakers •Five

Audio Inputs •High-Quality

Phono Input •Tape Monitor

Loop •Preamp Out/Main

Amp Input Jacks for Use With

Outboard Equalizers •Subwoofer

Output •Remote A/B Speaker

Switching •FM Stereo/FM/AM

Tuner With 30 Station Presets and

Direct-Access Tuning •IR Remote

Extension Jacks •Programmable

Learning Remote

250 Crossways Park Drive

Woodbury, NY 11797

800-422-8027 FAX 516-682-3523

www.harmankardon.com
