Harman Kardon CITATION TOWER Manual de usuario

CITATION TOWER

OWNER’S

MANUAL

IMPORTANT SAFETY

INSTRUCTIONS

Do Not Use Extension Cords

To avoid safety hazards, use only the power cord supplied with

this product. We do not recommend that extension cords be

used with this product. As with all electrical devices, do not run

power cords under rugs or carpets, or place heavy objects on

them. Damaged power cords should be replaced immediately

by an authorized service center with a cord that meets factory

specications.

Handle the AC Power Cord Gently

When disconnecting the power cord from an AC outlet, always

pull the plug; never pull the cord. If you do not intend to use

your speaker for any considerable length of time, disconnect

the plug from the AC outlet.

Do Not Open the Cabinet

There are no user-serviceable components inside this product.

Opening the cabinet may present a shock hazard, and any

modicationtotheproductwillvoidyourwarranty.Ifwater

accidentally falls inside this product, disconnect it from the AC

power source immediately, and consult an authorized service

center.

Safe and Stable Placement

This product may become unstable and tip over during

earthquakes or if they are rocked, tipped or improperly

positioned.

TABLE OF CONTENTS

/IMPORTANT SAFETY INSTRUCTIONS............................................. 2

/INTRODUCTION ....................................................................................... 4

/WHAT’S IN THE BOX .............................................................................. 5

/PRODUCT OVERVIEW ........................................................................... 6

/PLACEMENT................................................................................................ 8

/POWER ON ................................................................................................10

/SPEAKER SETUP ....................................................................................... 11

/USING YOUR CITATION TOWER .......................................................14

/SETTINGS....................................................................................................16

/SPECIFICATIONS......................................................................................18

/TROUBLESHOOTING.............................................................................19

/TRADEMARKS ...........................................................................................21

INTRODUCTION

This manual includes information on CITATION TOWER (primary

and secondary speakers). We encourage you to take a few

minutes to read this manual, which describes the products and

includes step-by-step instructions to help you set up and get

started. Read and understand all the safety instructions before

using your product.

This product may have an important software update

available. Please follow the instructions to connect the

product to Wi-Fi to ensure that your product has the most

recent software updates.

Designandspecicationsaresubjecttochangewithoutnotice.

If you have any questions about these products, their

installation or their operation, please contact your Harman

Kardon retailer or customer service, or visit us at www.

harmankardon.com.

WHAT’S IN THE BOX

Carefully unpack the box and check if the following parts are

included. If any part is damaged, do not use it, contact your

Harman Kardon retailer or customer service.

1 2

1. Main unit (Secondary speaker)

2. Main unit (Primary speaker)

3. Bottom cover x 2

4. Power cord x 2

PRODUCT

OVERVIEW

Top Panel and Front Side

Secondary Primary

1. Touch screen (Swipe up / down / left / right to ﬁnd out

more)

• Wi-Fi signal indicator.

• Press to enter Bluetooth pairing mode.

• Press and hold more than 3 seconds to

disable Bluetooth.

• Press to customize the general settings.

• Press to set up multi-channel surround

sound system with your CITATION BAR.

(Optional)

• Press to check the system information of this

product.

2. - / + (Volume)

• Press to decrease or increase the volume.

3. LED indicator

• Light on when active.

/ PRODUCT OVERVIEW

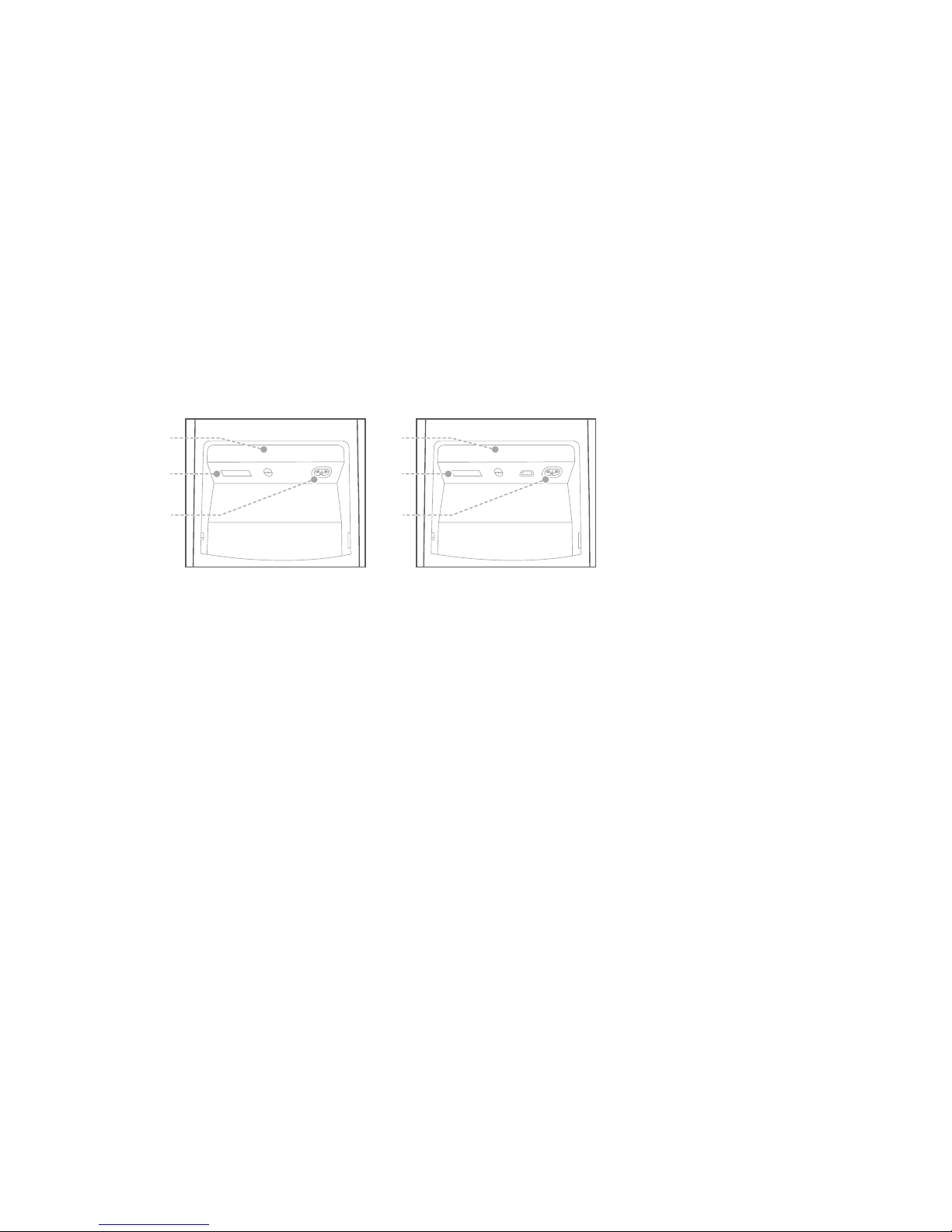

Bottom Side

Secondary Primary

RESET POWER

SERVICE 2SERVICE 1

mm 24.013

RESET POWER

SERVICE

1. RESET

• Press and hold for 5 seconds to restore the factory

settings.

2. SERVICE

• For service only.

3. POWER

• Connect to the power supply.

PLACEMENT

PlaceyourCITATIONTOWERonanyﬂatandstablesurface

near a live AC (mains) outlet.

1) To achieve the best and most accurate stereo soundstage,

place the speakers 6-10 feet (1.8-3 meters) apart, keep an

angle of 40-60 degrees between your listening position

and both speakers.

2) Bass output will increase as the speaker is moved closer to

a wall or a corner. For best sound quality, keep a minimum

distance of 20 in (51 cm) between the speakers and the side

and rear walls.

Primary

Secondary

6-10 feet

(1.8-3 m)

40° – 60°

> 20 in

(>51 cm)

/ PLACEMENT

* To avoid any interference, keep a minimum distance of 16.4

feet (5 meters) between the speakers and your Wi-Fi router.

>5m

POWER ON

NOTES:

• Use the provided power cord only.

• When you disconnect the power cord, always pull the plug, never

the cable.

1) Plug one end of the AC power cord into the POWER

connector on the bottom of each speaker, then plug the

other end to a live AC (mains) outlet.

ÆThe speaker will automatically power on and the touch

screen will turn on.

Secondary Primary

POWER

2) Select your language as instructed on the touch screen of

theprimaryspeakerfortherst-timesetting.

3) Press “MUSIC” to operate as standalone stereo speakers or

“VIDEO” to operate as a pair of satellite speakers (See the

“SPEAKER SETUP” section for details).
