Hantek 1008 Manual de usuario

Hantek 1008

DIGITAL OSCILLOSCOPE

USER’S MANUAL

Hantek1008

0.0)(Version 1.

Hantek 1008

DIGITAL OSCILLOSCOPE

USER’S MANUAL

The Display System..................................................

Taking Cursor Measurements..................................

Content

General Safety Summary ……..………………………….…...3

CHAPTER 1: Getting Started…...………………………….... 4

System Requirement..……………………………

…

.....5

Install Software........…………………….…………....…6

Install Driver............………………………..……….

....

.11

General Features....……………………..……….........16

General Check............…………………..……...

…..

....17

Probe Compensation.................………..…...…….....17

Functional Check..................................................

..19

Seft Calibration..........................................................21

Accessaries...............................................................22

CHAPTER 2: Operating Basics……………………………...23

The User’s Interface………………………............

...24

The Vertical System…...........…………………

…......

.30

The Horizontal System…………………….....…...

....

.32

The Trigger System............................…………….....33

Input Connectors..……………….………

…………..

...35

CHAPTER 3: Understanding Function..………………

…....36

et Ocsilloscope.......................................................37

Set Vertical System...................................................38

Set Horizontal System...............................................46

Set Trigger System....................................................48

Save/Load.................................................................50

Utility Function...........................................................52

Measure Signal.........................................................55

Print...........................................................................69

CHAPTER 4: Application Example......……………….….....71

Simple Measurement................................................

Capturing a Single Shot Signal................................

The Application of The X-Y.......................................74

CHAPTER 5: Appendix..............…………………...........….81

Appendix A............................................................... 82

Appendix B............................................................. ..84

Hantek1008

ZGeneral Safety Summary

Review the following safety precautions carefully before operating the device to avoid

any personal injuries or damages to the device including any products connected to it.

To avoid any potential hazards use the device as speciﬁed by this user’s guide only.

■ To Avoid Fire or Personal Injury.

■ Use Proper Power Cord. Use only the power cord speciﬁed for this product and

certiﬁed for the correct country of use.

■ Connect and Disconnect Properly. Do not connect or disconnect probes or test

leads while they are connected to a voltage source.

■ Connect and Disconnect Properly. Connect the probe output to the measurement

device before connecting the probe to the circuit under test. Disconnect the probe

input and the probe reference lead from the circuit under test before disconnecting

the probe from the measurement device.

■ Observe All Terminal Ratings. To avoid ﬁre or shock hazard, observe all ratings

and markings on the product. Consult the product manual for further ratings informa-

tion before making connections to the product.

■ Use Proper Probe. To avoid shock hazard, use a properly rated probe for your mea-

surement.

■ Avoid Circuit or Wire Exposure. Do not touch exposed connections and compo-

nents when power is on.

■ Do Not Operate With Suspected Failures. If suspected damage occurs to the

device, have it inspected by qualiﬁed service person before further operations.

■ Provide Proper Ventilation. Refer to the installation instructions for proper ventilation

of the device.

■ Do Not Operate in Wet/Damp Conditions.

■ Do Not Operate in an Explosive Atmosphere.

■ Keep Product Surfaces Clean and Dry.

Hantek 1008

DIGITAL OSCILLOSCOPE

Self calibration

Probe compensation

Install driver [

Chapter 1 Getting Started

The oscilloscope is small, compact, portable oscillo-scopes! The oscilloscope is ideal for

production test, research and design and all of the applications involving analog circuits

test and troubleshooting, as well as education and training.

In addition to the list of general features on the next page, this chapter describes how to

do the following tasks:

■ System requirement

■ Install software

■ General features

■ Function check

■

■ Accessories

■

■ General check

Hantek1008

\System Requirement

To run oscilloscope software, the needs of computer conﬁguration are as follows:

Minimum System Requirement

Operating System

Window NT/2000/XP/VISTA/Win7

Processor

Upwards of 1.00G processor

Memory

256M byte

Disk Space

500M disk free space

Screen Resolution

800 x 600 pixel

Recommended Conﬁguration

Operating System

Windows XP SP3 System

Processor

2.4G Processor

Memory

1G Byte

Disk Space

80G Disk Space

Screen Resolution

1024 x 768 or 1280 x 1024 pixel

DPI Setting

Normal Size (96DPI)

Hantek 1008

DIGITAL OSCILLOSCOPE

]Install Software

Note: Do not connect the USB connection until the software installation is complete.

1. While in Windows, insert the installation CD into the CD-ROM drive.

2. The installation should start up automatically. Otherwise in Windows Explorer, switch

to the CD-ROM drive and run Setup.exe.

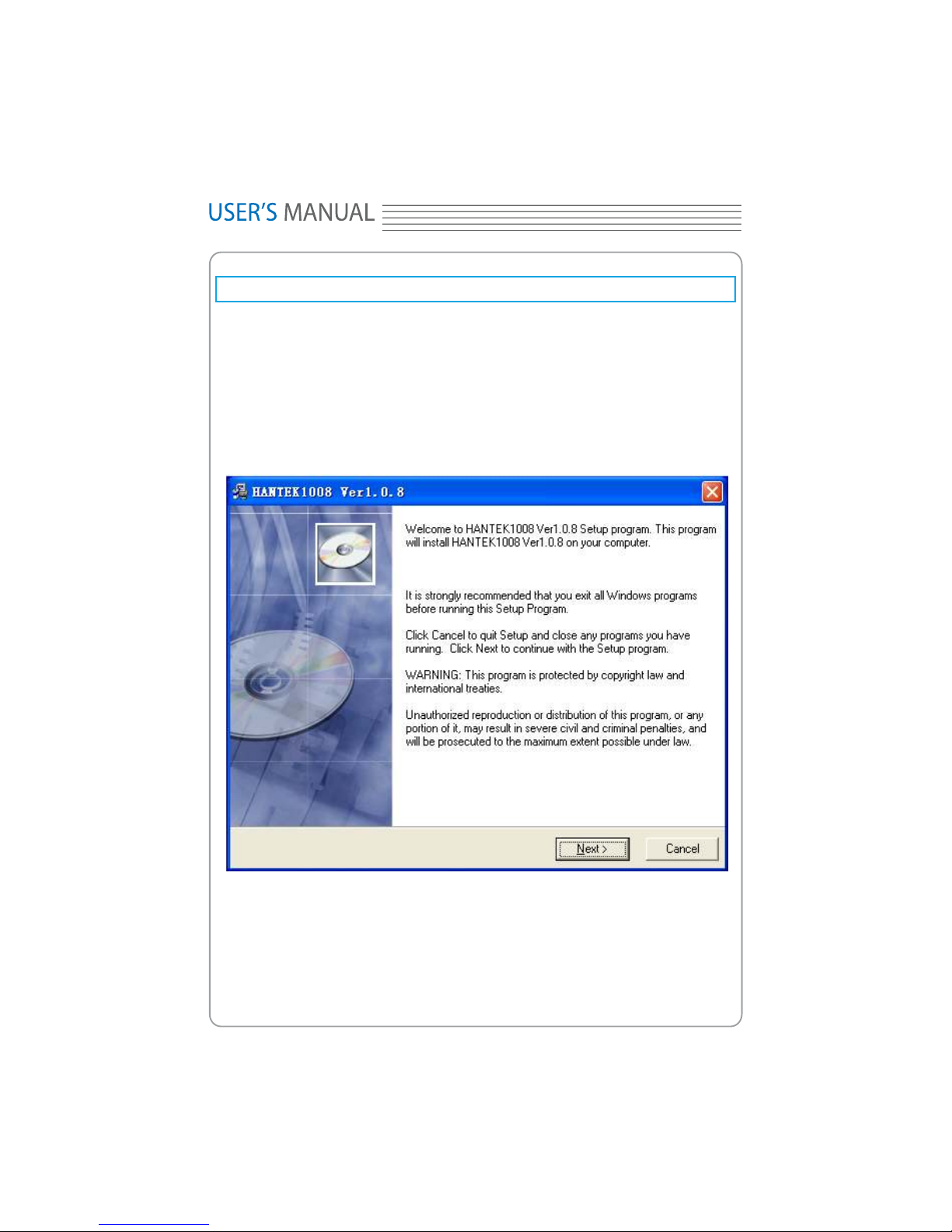

3. The software Installation is started. Click 'Next' to continue.

Hantek1008

4. Choose a destination directory. Click 'Next' to continue.

Hantek 1008

DIGITAL OSCILLOSCOPE

5. Check the setup information. Click Next to start copying ﬁles.

Hantek1008

7. Updating Your System Conﬁguration.

6. This Status dialog is displayed during ﬁles copying.

Hantek 1008

DIGITAL OSCILLOSCOPE
