Hansol B15BF Manual de usuario

Parts 3

Connection to Computer 4

How to Adjust Monitor Angle 5

Installing Monitor Driver 6

Name and Function of Front 8

Power Management Feature 10

Adjusting OSD 11

Standard Signal Table 17

Specification 18

Troubleshooting 19

Warning 21

Table of Contents

INFORMATION TO USER:

This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular

installation; if this equipment does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient / Relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit difference from that to which the receiver is connected.

4. Consult the dealer or an experienced radio/TV technician for help.

•Shielded interface cable has to be used to ensure product compliance.

CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s

authority to operate the equipment

Parts

LCD Monitor

Place the monitor to face the user and then adjust the monitor angle.

Take a break (for about 10 minutes) at every hour during the work with monitor.

Refer to the following figure to take the correct posture.

about 50cm

Look down the monitor

below the horizon.

Relax shoulders and arms,

and sit back on the chair.

Adjust the monitor to

prevent reflection.

Adjust the monitor stand

to acquire required angle.

Keep feet flat on the ground.

Maintain the arms horizontally

and place hands softly on

the keyboard.

Good Posture Guide

12V-DC Adapter

User's Manual /

Warranty Card

Signal Cable AC Power Cable

Installation Disk

Installation Diskette

How to Adjust Monitor Angle

How to Default Stand

Connection to Computer

Basic Connection

1. Use 220 V or 110 V. (Free Voltage)

2. Connect monitor and computer via computer cable (See figure )

3. Switch on power to monitor and computer.

4. Installation is finished.

12V DC connection

terminal Computer cable

For PC

For Macintosh

Use adapter.

Adapter for Macintosh (Optional)

Refer to the table on the rear side of

the optional Macintosh adapter and

adjust DIP switch by the resolution of

the monitor.

Click 'Finish'.Click 'Next>'.

Click 'Advanced..'. Click 'Next>'.

Click 'Monitor'.

Click 'Display a list of all...'.

Click 'Next>'. Click 'Have Disk..'.

Select the driver and click 'OK'. Click 'Next>'.

3. Select Exit if the monitor model is changed, and then reboot Windows.

Installing Monitor Driver

1. Insert the Diskette in the Floppy driver.

2. Double-click Install.exe in the Floppy driver folder using search function.

3. Select the model and click "OK".

4. Select inf file of the model in Floppy driver, and then click "OK" button.

5. Click "Exit" to close the installation.

Automatic Installation

Manual Installation

1. Insert the Diskette in the Floppy driver.

2. Click 'My Computer' and follow the procedure below.

Click 'Control Panel'. Click 'Display'. Click 'Settings'.

Run (Click) Install at Floppy driver and select the product model to set the

optimum display in Window 95, 98 or 2000.

Use the Driver Floppy provided.

Power Switch

Power switch is located in the lower center of the monitor stand.

You can push the switch to turn on/off the power.

Power Saving LED

If the green LED around the power switch turns into blinking amber,

it indicates the monitor is in power saving mode.

On Screen Display (OSD) Function Button

OSD buttons on the front of the monitor perform the following functions.

MENU : Press this button to display menus.

SELECT/ AUTO : Press this button, when OSD is not displayed, to perform

automatic setting.

When OSD is displayed, You can select the Item.

POWER : Power switch.

: By pressing this button when OSD is displayed, You can move cursor into

the menus which You want.

After press the select button, You can change the gauge level and items.

Functions

Name and Function of Front

Front panel

SELECT/

AUTO KEY

MENU KEY

KEY

POWER KEY

Horizontal Position

Adjusting OSD

Brightness

Contrast

1. Press the Menu button.

2. Use to move Brightness ICON.

3. Use SELECT button to select it.

4. Use to adjust the brightness.

SELECT

MENU SELECT

1. Press the Menu button.

2. Use to move Contrast ICON.

3. Use SELECT button to select it.

4. Use to adjust the contrast.

1. Press the Menu button.

2. Use to move H-Position ICON.

3. Use SELECT button to select it.

4. Use to adjust display left or right.

No image is displayed with LED blinking.

Monitor is in power saving mode.

Use mouse or keyboard to release power saving mode.

No image is displayed without LED on.

Power cable plug must be pulled out.

Check the power plugs on monitor and on the wall.

"Out of range" displayed on the screen.

This message is displayed when the signal from video card exceeds the

maximum frequency of the monitor. Readjust resolution and frequency in

accordance with the monitor capacity. (Refer to Standard Signal Table)

Power Management Feature

When not in use for a long period of time, the monitor

automatically reduces its power consumption, meeting power saving

standards of EPA and NUTEK.

The monitor is equipped with a power saving circuit that

conforms to the world-standard Display Power Manager Signalling

(DPMS) mode of Video Electronics Standard Association (VESA).

The power management feature requires that the video card of the

computer should support DPMS function.

Status Color of LED Power Consumption

Normal Green Normal Power

Power Cut Off Amber/Blinking

( 2 second interval ) 5 W or Below

1312

User Color

Color

Preset Color

1. Press the Menu button.

2. Use to move Color ICON.

3. Use SELECT button to select it.

4. Use into the submenu.

1. Use to move Red, Green, Blue ICON.

2. Use SELECT button to select color what

you want.

3. Use to increase or decrease each color.

4. Press the Menu button to exit.

1. Use to select the I or II.

2. Press the Menu button to exit.

I: Blue tone II : Default color

Clock Phase

Vertical Position

Clock

1. Press the Menu button.

2. Use to move V-Position ICON.

3. Use SELECT button to select it.

4. Use to adjust display upward or downward.

1. Press the Menu button.

2. Use to move Clock Phase ICON.

3. Use SELECT button to select it.

4. Use to correct fine trembling or Video noise.

1. Press the Menu button.

2. Use to move Clock ICON.

3. Use SELECT button to select it.

4. If Auto-cnfig function fails to remove Video noise,

Use or

to remove vertical noise.

( Adjusting clock phase is required after the

adjustment of clock.)

MENU SELECT

SELECT

1514

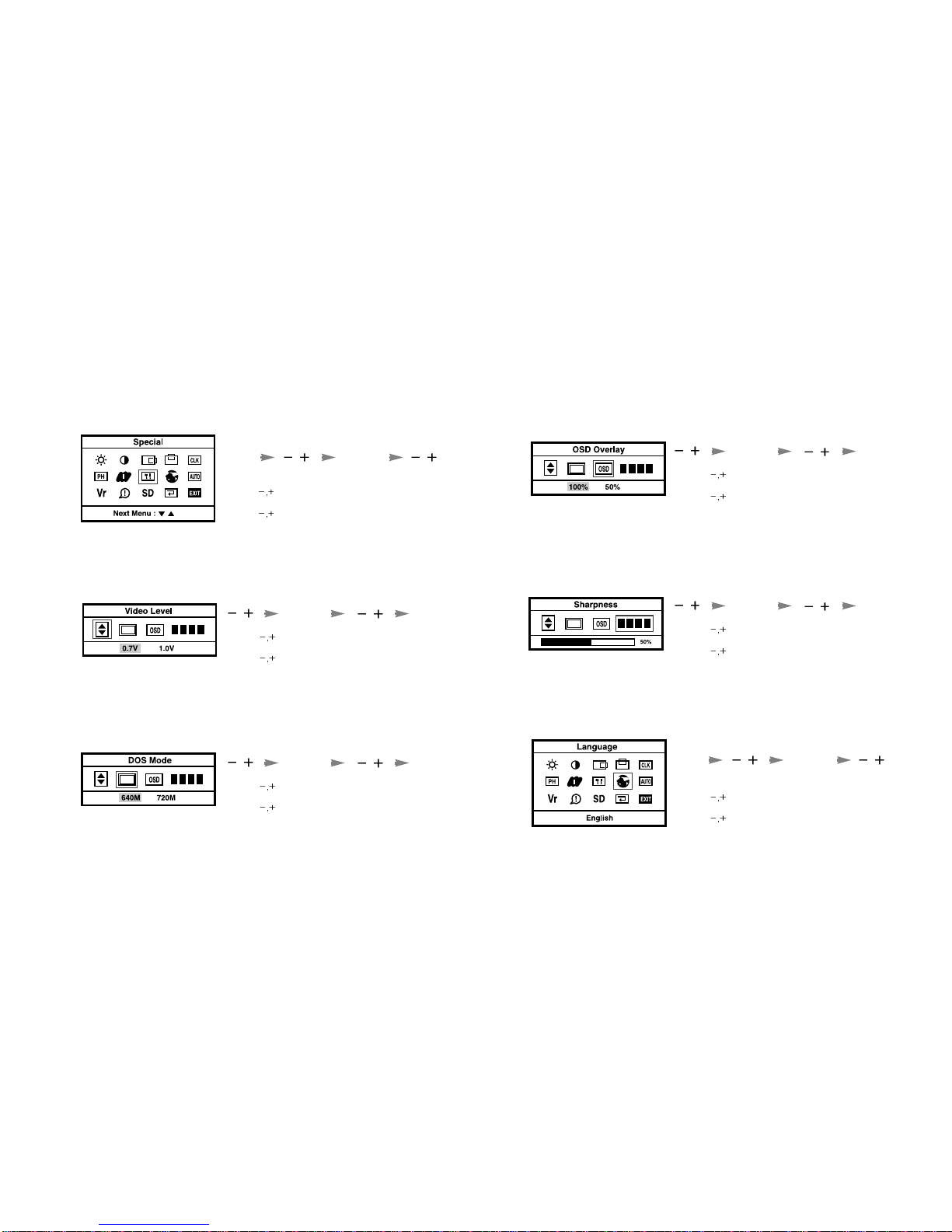

Language

OSD Overlay

Zoom Sharpness

1. Use to move DOS Overlay ICON.

2. Use SELECT button to select it.

3. Use to adjust DOS Overlay.

4. Press Menu button to exit.

1. Use to move Zoom Sharpness ICON.

2. Use SELECT button to select it.

3. Use to adjust Sharpness.

4. Press Menu button to exit.

1. Press the Menu button.

2. Use to move Language ICON.

3. Use SELECT button to select it.

4. Use to select language in order.

Special

Video Level

DOS Mode

1. Press the Menu button.

2. Use to move SPECIAL ICON.

3. Use SELECT button to select it.

4. Use into the submenu.

1. Use to move SPECIAL ICON.

2. Use SELECT button to select it.

3. Use to adjust level.

4. Press the Menu button to exit.

1. Use to move DOS Mode ICON.

2. Use SELECT button to select it.

3. Use to select DOS Mode what you want.

4. Press Menu button to exit.

MENU SELECT

SELECT

Standard Signal Table

Pin assignment table D-Sub

Mini 15pin connector

VGA (720 X 400)

VGA (640 X 480)

SVGA (800 X 600)

XGA (1024 X 768)

MAC (640 X 480)

MAC (832 X 624)

MAC (1152 X 870)

31.469

37.500

46.875

48.363

60.023

35.000

49.726

68.681

70.087

59.940

75.000

60.004

75.029

66.667

74.551

75.062

28.322

25.175

31.500

49.500

65.000

78.750

30.240

57.284

100.000

Resolution

Horizontal Frequency

(KHz)

Vertical Frequency

(Hz) Clock Frequency

(MHz)

11 15

610

15pin D-Sub

Pin No. Assignment Pin No. Assignment

1 Red Video 9 N.C

2 Green Video 10 Ground

3 Blue Video 11 Ground

4 N.C 12 SDA

5 Ground 13 H.Sync

6 Red Video Ground 14 V.Sync

7 Green Video Ground 15 SCL

8 Blue Video Ground

Auto-Config

Information

1. Press the Menu button.

2. Use to move the Auto-config ICON.

You can know a display information

(Horizontal, Vertical Frequency)

1. Press the Menu button.

2. Use to move the Auto-config ICON.

3. Use SELECT button to select it.

4. Use or to readjust the display condition.

In most cass, Auto-Config adjusts display

appropriately. Use PH or adjust CLK

in accordance with graphic card to fine tune

the display.

MENU SELECT

Menu Exit

1. Press the Menu button.

2. Use to move the Exit ICON.

3. Press SELECT button to exit.
