Hangar 9 Alpha 69 Manual de usuario

Specifications

Wingspan: ............. 71.5 in (1816mm)

Length: ................... 54 in (1371mm)

Wing Area: ............ 965.2 sq in (62.27 sq dm)

Weight:.................... 7–8 lb (3.2–3.6 kg)

ASSEMBLY MANUAL

Engines: .................. .61 2-stroke (included)

Radio:...................... 4-channel w/4 servos

(included)

Featuring the Unique Evolution Trainer Power System

  

 

  

   

WE GET PEOPLE FLYING

Table of Contents

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Covering Colors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Contents of Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Repair Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Field Equipment Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Optional Field Equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Additional Required Tools and Adhesives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Before Starting Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Using the Manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Section 1: Assembly of the Wing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Section 2: Installation of the Main Landing Gear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Section 3: Installing the Tail Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Section 4A: Installing the Wing (Rubber Band) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Section 4B: Installing the Wing (Bolt-On) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Section 5: Installing the Propeller and Spinner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Section 6: Center of Gravity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Section 7: Control Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Section 8: Preflight Checks at the Field . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Section 9: Starting the Evolution Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Section 10: Flying the Alpha Trainer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Section 11: Engine Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Section 12: Evolution Trainer Power System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Glossary of Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

2003 Official AMANational Model Aircraft Safety Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Covering Colors

• True Red HANU866

• Deep Blue HANU873

• White HANU870

• Silver HANU881

Contents of Kit

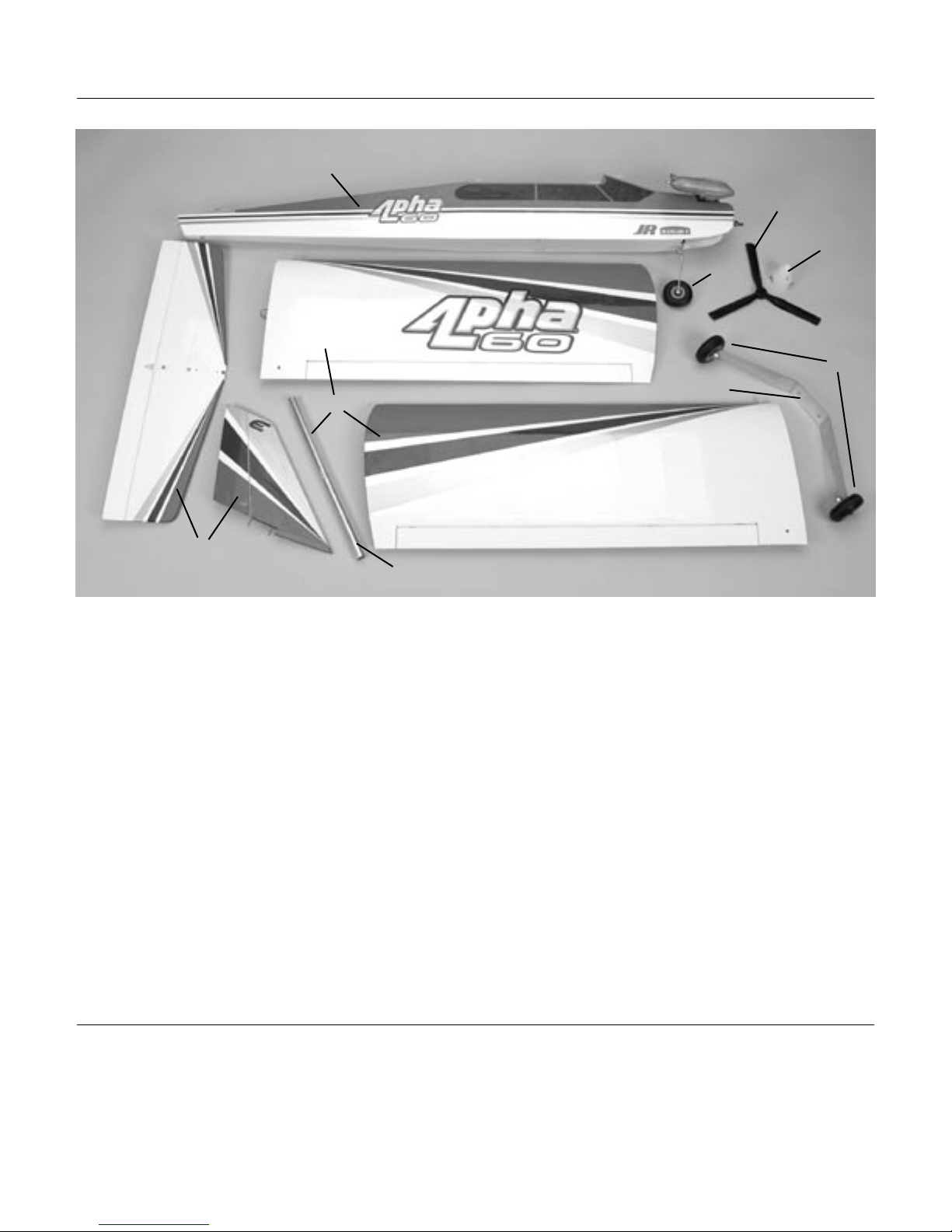

Replacement parts:

A. Wing Set w/Alum. Tube HAN2601

B. Fuselage HAN2602

C. Tail Set HAN2603

D. Landing Gear Set HAN2604

E. Wing Tube HAN2605

F. 23/4" Wheels HAN305

G. 3" Wheels HAN306

H. Propeller EVO0610P

I. Spinner EVO0610S

Items Not Shown:

Engine Mount HAN90M

Pushrod Set HAN2607

Fuel Tank (assembled) HAN2606

Repair Information

In the misfortune of a crash or broken part, see your

local hobby dealer for replacement parts. Use the part

numbers listed to aid in the selection of the correct

replacement parts.

Warning

Additional Required Tools and Adhesives

Tools

• Adjustable wrench

• Drill

• Drill bit: 5/64", 3/32"

• Hobby Knife (XAC3126)

• Phillips screwdriver (small)

• Flat screwdriver

Adhesives (Optional)

• 30-Minute Epoxy (HAN8002)

• Thick CA (cyanoacrylate) Glue (PAAPT02)

• CA Remover/Debonder (PAAPT16)

• Masking Tape (MMM20901)

Other Required Items (Optional)

• Epoxy Brushes (DUB345)

• Felt-Tipped Pen (PAR10400)

• File

• Measuring device (e.g. ruler, tape measure)

• Mixing Sticks for Epoxy (DUB346)

• Paper towels

• Rubbing alcohol

• Wax paper

An RC aircraft is not a toy! If misused, it can cause serious bodily harm and damage to property. Fly only in open

areas, preferably at AMA (Academy of Model Aeronautics) approved flying sites, following all instructions included

with your radio and engine.

Field Equipment Required

• Fuel

• Glow Plug Wrench (HAN2510)

• Glow Plug Igniter with Charger (HAN7101)

• Glow Plug (HAN3001/3006)

• Manual Fuel Pump (HAN118)

• #64 Rubber Bands (ARC64)

• Skypack Pilot Support Package (HAN001)

Optional Field Equipment

• 4-Way Wrench (DUB701)

• Field Box (HAN130/131/117)

• Cleaner & towels

• Extra Glow Plugs (HAN3001/3006)

• Blue Block After Run Oil (EVOX1000)

• Power Panel (HAN106)

• 12V 7Ah Sealed Battery (HAN102)

• PowerPro 12V Starter (HAN161)

• Start-Up Field Pack (HANSTART)

Before Starting Assembly

Using the Manual

Before beginning the assembly of the Arrow, remove each part from its bag for inspection. Closely inspect the

fuselage, wing panels, rudder, and stabilizer for damage. If you find any damaged or missing parts, contact the

place of purchase.

If you find any wrinkles in the covering, use a heat gun or covering iron to remove them. Use caution while

working around areas where the colors overlap to prevent separating the colors.

This manual is divided into sections to help make assembly easier to understand and to provide breaks between

each major section. In addition, check boxes have been placed next to each step to keep track of each step

completed. Steps with two boxes indicate that the step will require repeating, such as for a right or left wing

panel, two servos, etc. Remember to take your time and follow the directions.

Warranty Information

Horizon Hobby, Inc. guarantees this kit to be free from defects in both material and workmanship at the date of

purchase. This warranty does not cover any parts damage by use or modification. In no case shall Horizon Hobby’s

liability exceed the original cost of the purchased kit. Further, Horizon Hobby reserves the right to change or modify

this warranty without notice.

In that Horizon Hobby has no control over the final assembly or material used for the final assembly, no liability

shall be assumed nor accepted for any damage of the final user-assembled product. By the act of using the product,

the user accepts all resulting liability.

Once assembly of the model has been started, you must contact Horizon Hobby, Inc. directly regarding any warranty

question that you have. Please do not contact your local hobby shop regarding warranty issues, even if that is where

you purchased it. This will enable Horizon to better answer your questions and service you in the event that you may

need any assistance.

If the buyer is not prepared to accept the liability associated with the use of this product, the buyer is advised to

return this kit immediately in new and unused condition to the place of purchase.

Horizon Hobby

4105 Fieldstone Road

Champaign, Illinois 61822

(877) 504-0233

www.horizonhobby.com

HAN100 – Heat Gun HAN101 – Covering Iron

Section 2: Installation of the Main Landing

Gear

Section 1: Assembly of the Wing

Section 3: Installing the

Tail Assembly

Assembly Diagram

Please carefully read through the

entire instruction manual before beginning

assembly of the Alpha .60 Trainer

Ready-To-Fly (RTF) kit.

Section 1: Assembly of the Wing

Carefully remove the contents of your Alpha Trainer

Ready-To-Fly kit. It is recommended that you charge

the transmitter and receiver batteries for 24 hours

prior to flying your model.

Step 1

Remove each wing panel from its protective plastic

bag. Remove the pieces of tape that hold the ailerons

in place for shipping. The hinges in the Alpha

Trainer have already been glued in place during

manufacturing. Check to make sure hinges are

secure by gently pulling on the wing and aileron,

trying to separate the ailerons from the wing. Be

careful not to damage the wing structure.

Step 2

Locate the aluminum wing tube and carefully slide

it into the opening in one wing panel. Use a twisting

motion while inserting the tube. A short metal pin is

located near the trailing edge of one wing panel.

This pin keys into the opposite wing panel and

keep the wing from rotating around the wing tube.

Carefully slide the other wing panel onto the wing

tube. Align the metal pin in one panel into the hole

of the opposite panel and press the two panels

tightly together.

Step 3

Locate the clear wing joiner tape and apply it to the

top and bottom of the wing along the joint. Start at

the top of the trailing edge and wrap it around the

front of the wing and to the bottom trailing edge.

Step 4

The aileron servo lead has been wrapped around the

linkage for shipment. Untie the servo lead to free up

the aileron linkage.

Note: The aileron servo lead has been labeled

with a piece of tape; do not remove this tape.

One of the aileron linkages has already been

connected to the aileron and secured with a small

piece of tubing (clevis keeper). This is done to

prevent the clevis from opening during flight.

Connect the other aileron linkage to the aileron and

snap the clevis in place. Slide the clevis keeper

over the clevis to secure the linkage to the aileron.

You have successfully assembled the wing of

your Alpha™ Trainer.

Step 3

Wrap supplied clear

tape around the center joint Step 2

Slide both wing panels

onto the metal tube

Step 1

Remove the shipping tape

Step 3

Attach the aileron clevis

Bottom view of wing

Section 2: Installation of the Main Landing Gear

Step 1

Locate the aluminum landing gear and two

8-32 x 3/4" screws. The wheels have already been

installed for you. On the bottom of the fuselage

you will find a two holes and blind nuts to accept

the screws. The landing gear will be positioned

over these holes and the screws used to secure the

landing gear to the fuselage.

Step 2

Position the landing gear over the holes. Slide one

8-32 x 3/4" screw through the corresponding hole

in the landing gear and into the blind nut. Repeat

the procedure for the remaining screw. Use a Phillips

screwdriver to tighten both of the screws.

Mount the landing gear using

two 8-32 x 3/4” screws

Section 3: Installing the Tail Assembly

Locate the horizontal stabilizer and vertical

stabilizer assemblies. The rudder and elevator

have been pre-hinged at the factory and the control

horns are also attached.

Remove the shipping tape holding the rudder and

elevator in place. Check both the rudder and elevator

for freedom of movement. Also check to make sure

the hinges have been glued securely.

Step 1

The vertical stabilizer has threaded rods in the bottom

that secure it to the horizontal stabilizer. Insert the

threaded rods through the predrilled holes in the

horizontal stabilizer. Secure them together using

two large washers and wing nuts. Place a drop of

threadlock on the threaded rods before tightening

the wing nuts.

Step 2

Slide the tail assembly into the slot in the rear of the

fuselage; making sure the rudder pushrod is on top of

the horizontal stabilizer. Use the two long screws and

two small washers to secure the tail assembly to the

fuselage. There is a hole in the bottom of the fuselage

to access the forward screw location. Place a drop of

threadlock on the screws before installing the screws.

Hint: Use a magnetic screwdriver when

installing the screws.

Threadlock

Wing Nut Large Washer

Attach the vertical stabilizer to

the horizontal stabilizer using

two washers and two wing nuts

Apply

threadlock

Apply

threadlock

Slide tail assembly into slot

at fuselage rear

Long Screw Small Washer

Tabla de contenidos

Otros manuales de Juguete de Hangar 9

Hangar 9

Hangar 9 F4U-1D Corsair 60cc Manual de usuario

Hangar 9

Hangar 9 Clipped Wing Taylorcraft ARF Manual de usuario

Hangar 9

Hangar 9 Ultra Stick 30cc Manual de usuario

Hangar 9

Hangar 9 HAN4770 Manual de usuario

Hangar 9

Hangar 9 Clipped-wing Taylorcraft Manual de usuario

Hangar 9

Hangar 9 P-51D Mustang 40 ARF Manual de usuario

Hangar 9

Hangar 9 P-51D Mustang 40 ARF Manual de usuario

Hangar 9

Hangar 9 Piper Pawnee 40 ARF Manual de usuario

Hangar 9

Hangar 9 85cc Sukhoi SU-26MM Manual de usuario

Hangar 9

Hangar 9 Taylorcraft 20cc ARF Manual de usuario

Hangar 9

Hangar 9 toledo special 40 Manual de usuario

Hangar 9

Hangar 9 Carden Aircraft Edition 89" Extra 300... Manual de usuario

Hangar 9

Hangar 9 FuntanaX 50 Manual de usuario

Hangar 9

Hangar 9 Extra 260 Manual de usuario

Hangar 9

Hangar 9 Van's RV-4 Manual de usuario

Hangar 9

Hangar 9 P-51 PTS Mustang Mk II Manual de usuario

Hangar 9

Hangar 9 ARROW Manual de usuario

Hangar 9

Hangar 9 Saratoga 40 Manual de usuario

Hangar 9

Hangar 9 Messerschmitt Bf 109F-2 60 Manual de usuario

Hangar 9

Hangar 9 HAN5190 Manual de usuario

Hangar 9

Hangar 9 Piper J-3 Cub 40 Manual de usuario

Hangar 9

Hangar 9 Twist 3D .40 Manual de usuario

Hangar 9

Hangar 9 Taylorcraft 26cc Hangar 9 Manual de usuario

Hangar 9

Hangar 9 Easy Fly 40 Manual de usuario

Manuales populares de Juguete de otras marcas

marklin

marklin 37321 Manual de usuario

Canon

Canon PAPER CRAFT Manual de usuario

GREAT PLANES

GREAT PLANES Pitts M-12S Manual de usuario

NOCH

NOCH 14261 Manual de usuario

Hausler

Hausler 450 SE V2 Manual de usuario

Dynaflite

Dynaflite Daydream Manual de usuario

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Manual

Kenner

Kenner Batman 63651 Manual de usuario

LEGO

LEGO 8527 Manual de usuario

iKarus

iKarus ECO 8 Manual de usuario

Multiplex

Multiplex EasyStar II Manual de instrucciones

Walkera

Walkera 38 Manual de instrucciones

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Manual de usuario

MD MXION SWD Manual de usuario

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Manual de usuario

marklin

marklin 39671 Manual de usuario

Meccano

Meccano 15103 Manual de usuario

LEGO

LEGO TECHNIC 8735 Manual de usuario
