HIGH CAPACITY PROPANE

FREEZER/ REFRIGERATOR

Equipment Manual

H&K Model Number HCFRC30.01P

This manual is for the exclusive use of

Licensees and employees of

McDonald’s Systems Inc.

Manufactured by:

H&K International

2200 Skyline Drive

Mesquite, TX 75149 U.S.A.

Telephone: (214) 818-3500

Fax: (214) 818-3596

Distributed by:

H&K International

2200 Skyline Drive

Mesquite, TX 75149 U.S.A.

Telephone: (214) 818-3500

Fax: (214) 818-3596

High Capacity Propane Freezer/Refrigerator Combo

This manual is for the exclusive use of licensees and employees of McDonald’s Systems Inc. 2 of 22

Revision E

Table of Contents

Refrigeration Warnings...................................................................................................... 3

Introduction........................................................................................................................ 5

Power Requirements......................................................................................................... 5

Installation instructions...................................................................................................... 5

Inspection ...................................................................................................................... 5

Uncrate the Unit............................................................................................................. 5

Wash and Sanitize Unit Interior & Shelving Components.............................................. 6

Operating Instructions ....................................................................................................... 7

Temperature Setting...................................................................................................... 7

Operating Procedure...................................................................................................... 7

Start-Up: ........................................................................................................................ 7

Loading and Restocking ................................................................................................ 8

Cleaning......................................................................................................................... 8

Preventative Maintenance................................................................................................. 9

Clean the Condenser Coils (Quarterly).......................................................................... 9

Check the Door Gasket (Quarterly).............................................................................. 10

Product Warranty............................................................................................................. 10

Troubleshooting............................................................................................................... 11

Assembly Drawing........................................................................................................... 13

Wiring Diagram............................................................................................................... 13

Replacement Parts.......................................................................................................... 15

Appendix: Controller Manual .......................................................................................... 16

This unit contains a flammable

refrigerant. Exercise caution when

installing and servicing this item. See

page 3 of this manual detail

High Capacity Propane Freezer/Refrigerator Combo

This manual is for the exclusive use of licensees and employees of McDonald’s Systems Inc. 3 of 22

Revision E

Refrigeration Warnings

CAUTION: This unit contains a flammable refrigerant

Under no circumstances can a mechanical device be

used to defrost evaporator.

Do not puncture refrigeration tubing.

The unit is to be repaired by only a trained technician

with experience with flammable refrigerants.

Consult this manual before attempting to install or

service a product with a flammable refrigerant.

Unit must be disposed of in accordance with Federal or

local regulations.

High Capacity Propane Freezer/Refrigerator Combo

This manual is for the exclusive use of licensees and employees of McDonald’s Systems Inc. 4 of 22

Revision E

Warnings

This Installation & Operating Manual contains important instructions and

safety information. Read and understand the contents of this manual before

attempting to install, operate, or service the unit.

Disconnect all power sources before attempting any service work.

A licensed technician should do all servicing and repairs.

Use of abrasive pads to clean the unit will result in scratching and

spoiling the finish of the unit.

Do not leave the door open for extended period of time.

High Capacity Propane Freezer/Refrigerator Combo

This manual is for the exclusive use of licensees and employees of McDonald’s Systems Inc. 5 of 22

Revision E

Introduction

The High Capacity Propane Freezer/Refrigerator Combo is designed to hold the temperature of

products between 33°F to 40°F (1°C to 4.4°C) for Refrigerator and 0°F to -10°F (-18°C to -23°C)

for Freezer, during normal and peak sales periods. This new innovative modular design can be

fitted with Drawers or Doors and allows easy access to refrigerator mechanical for serves.

Power Requirements

All electrically operated appliances must be electrically grounded in accordance with local

codes, or in the absence of local codes, with National Electric Code, ANSI/NFPA No. 70-1990.

Power supply: 120V/60hz/1ph

Current = 10.2 Amps

Maximum Fuse/Circuit Breaker = 20A

Installation instructions

Inspection

Upon receipt, examine the equipment carefully for any damage. If damage has occurred,

notify the freight carrier and H&K immediately.

Uncrate the Unit

This unit will arrive crated in a skid-mounted carton.

Cut the banding holding the cardboard carton to the shipping pallet, using

heavy scissors or tin snips. Use caution to avoid contact with cut banding.

Lift the cardboard carton straight up and off the unit.

Cut the banding that holds the refrigerator to the shipping pallet or skid. Use

caution to avoid contact with the cut banding.

*Note: Leave unit on skid until ready to install

Peel the protective adhesive film from all exposed areas (front, sides and

interior)

CAUTION! The shipping container may have staples, nails, banding under

tension and possible wood splinters, which can cause injuries. Wear gloves

and eye protection to reduce the risk of injury when uncrating.

CAUTION! This unit is very heavy; do not attempt to remove this unit

from its packaging without assistance.

High Capacity Propane Freezer/Refrigerator Combo

This manual is for the exclusive use of licensees and employees of McDonald’s Systems Inc. 6 of 22

Revision E

Remove Packing & Loose Components

Remove any tape and foam blocking used to secure the loose components.

Wash and Sanitize Unit Interior & Shelving Components

Wipe down, sanitize and dry the refrigerator interior.

NOTE! Use only McDonald’s approved cleaning and sanitizing

agents according to instructions.

High Capacity Propane Freezer/Refrigerator Combo

This manual is for the exclusive use of licensees and employees of McDonald’s Systems Inc. 7 of 22

Revision E

Operating Instructions

Temperature Setting

The combo has been tested and preset at the factory to maintain a temperature

between 33ºF (0°C) and 40ºF (4.4°C). The temperature controller located on the front

panel displays the internal temperature of the refrigerator.

To view current set point or if the temperature is not reading within the range specified

above, the electronic controller can be adjusted using the following procedure:

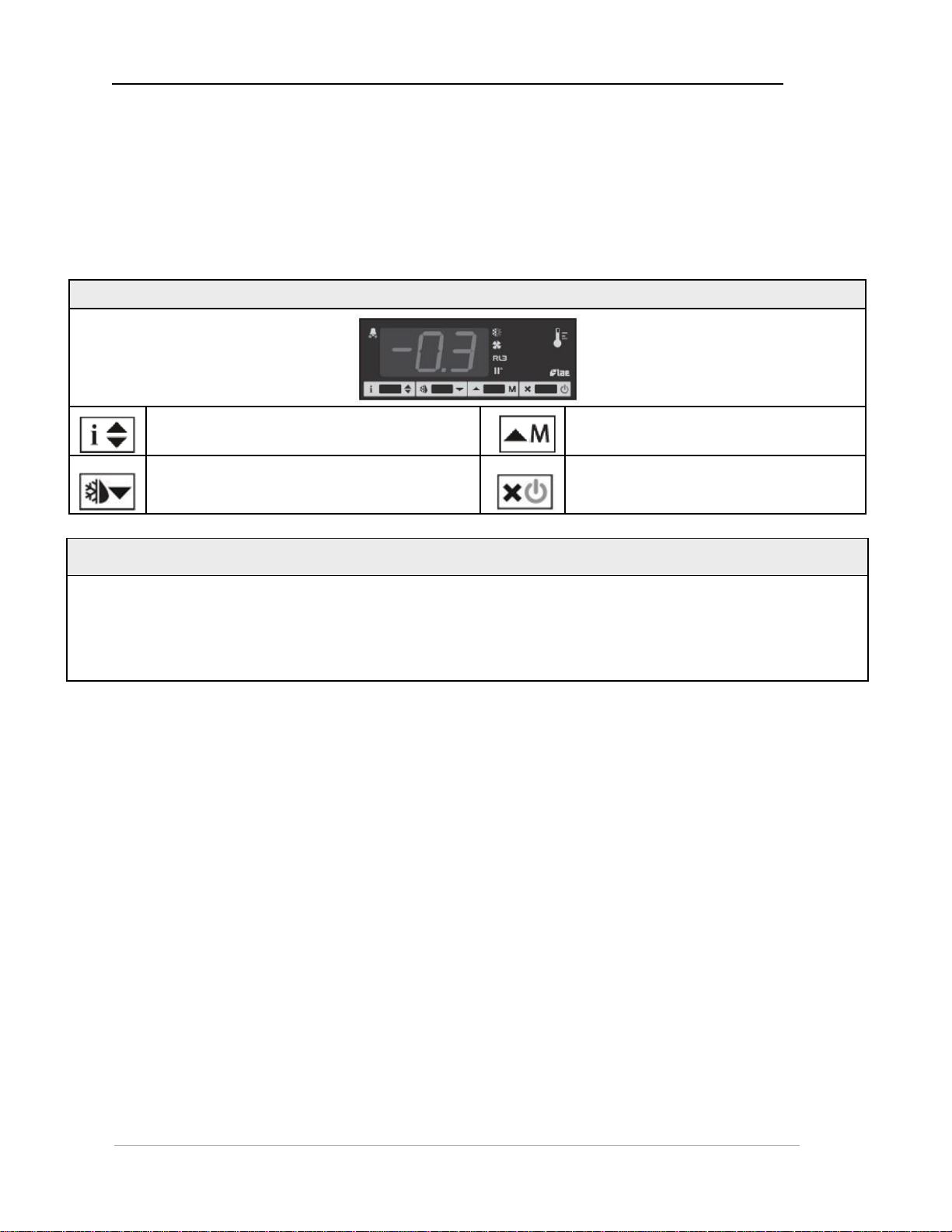

Controller

Info / Setpoint button

Increase / Manual activation

button

Manual defrost / Decrease button

Exit / Stand-by button

Set point (Display and modification of desired temperature value)

Press button “i” key and hold for more than 1/2 second, to display set point value

By keeping button “i” pressed, use button and to set the desired value When

button “i” is released, the new value is stored.

A complete manual of the controller is attached with unit.

Operating Procedure

Start-Up:

The Combo is turned ON by plugging the cord into a Wall outlet. Turn Power switch on

back left of Refrigerator on. If Display on the front of the Refrigerator shows

Temperature the Refrigerator is on. If the Display shows OFF then press and hold the

On/Off button on the Display for 5 seconds. The evaporator fan will run immediately, the

compressor & the condenser fan will run after 1 minute delay. Let the unit run for 30

minutes before placing product in the Combo.

High Capacity Propane Freezer/Refrigerator Combo

This manual is for the exclusive use of licensees and employees of McDonald’s Systems Inc. 8 of 22

Revision E

Temperature Setting:

The unit has been tested at the factory and the control has been preset to maintain a

temperature between 33° and 40°F (1° and 4.4°C) for Refrigerator and 0°F to - 10°F

(-18°C to -23°C) for Freezer.

Condensate Disposal:

The condensate from the Combo is disposed via a drain to a condensate evaporator

located in the side of the condensing unit.

Loading and Restocking

DO NOT over-load the refrigerator. All refrigeration requires good air circulation

to maintain uniform temperatures.

DO NOT let plastic bags, packaging or containers block or obstruct the

Evaporator air intake and return openings.

DO NOT leave the drawer open, except to remove product or to restock.

Cleaning

Exterior Cleaning

The exterior of the unit should be cleaned with EXCEED Glass & Multi-Surface Cleaner.

Do not use abrasive cleaners to clean the exterior of the cabinet as this might damage

the stainless steel finish. Do not use steel wool or any strong chemicals.

Interior Cleaning

The anodized aluminum interior of the refrigerator can be cleaned using a soft sponge

and EXCEED Glass & Multi-Surface Cleaner. Do not allow liquid to puddle in the unit.

Wipe the inner liner dry after cleaning.

CAUTION! Do not use a pressurized spray to clean the HCFRC30.01P.

CAUTION! Do not use abrasives or strong chemicals to clean any

surfaces of the HCFRC30.01P.

WARNING! Do not spray liquids directly onto the power switch, into the

compressor compartment at the top of the cabinet, or into the evaporator.

Doing so will void the warranty and risk serious personal injury.

High Capacity Propane Freezer/Refrigerator Combo

This manual is for the exclusive use of licensees and employees of McDonald’s Systems Inc. 9 of 22

Revision E

Preventative Maintenance

Clean the Condenser Coils (Quarterly)

For proper operation of the condensing unit, the condenser fins should be cleaned and

vacuumed every one (1) month. The front grill is designed to be removable without the

use of tools for this purpose. Tools:

•Brush

•Vacuum cleaner with attachments.

•Safety Gloves

Procedure

1. Remove appropriate cover to access fins to be cleaned.

2. Vacuum fins to remove any dust or debris that has accumulated.

3. Carefully brush any remaining greasy dust or debris.

4. Replace cover after cleaning.

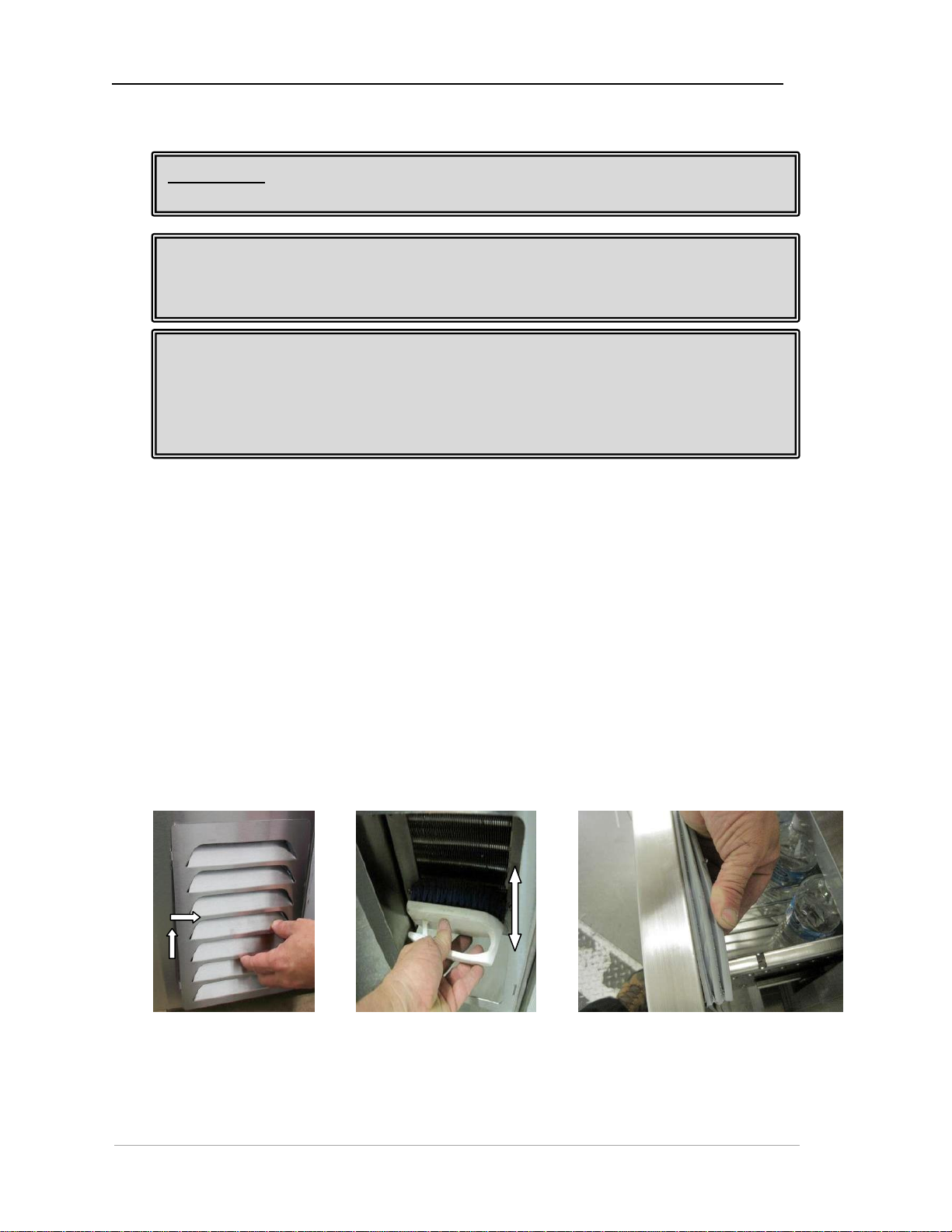

Remove panel: Lift panel

and pull out.

Use a soft bristled brush to

clean greasy on the coil

Check to see if the door gasket is in good

condition

WARNING! Failure to properly perform scheduled preventative maintenance

may void manufacturer’s warranty.

WARNING! Verify refrigerator is disconnected from the power source before

attempting any preventative maintenance. Failure to disconnect the electric

power could result in electric shock, burns, injuries or death.

CAUTION! The fins on a condenser coil are very sharp, and some refrigeration

components can be very hot, resulting in possible cuts and/or burns. Avoid

physical contact with the fins on the condenser coil or any related refrigeration

lines. Gloves are recommended when accessing the internal components of any

refrigerated equipment.

High Capacity Propane Freezer/Refrigerator Combo

This manual is for the exclusive use of licensees and employees of McDonald’s Systems Inc. 10 of 22

Revision E

Check the Door Gasket (Quarterly)

Check to see if drawer gasket broken. If the drawer gasket is broken, and cannot seal

the cabinet properly, please call 1-800-521-3987 to order replacement gasket.

Product Warranty

H&K International makes the following limited warranties to the original purchaser only

for this equipment and replacement parts:

H&K warrants all components to be free of defects in material and workmanship, if

properly installed, operated and maintained, for period of (2) years from the date of the

delivery.

The company’s obligation under this warranty is limited to repairing or replacing any part

or parts of the refrigerator determined to be defective by an authorized representative of

H&K.

The company reserves the privilege of determining if such repairs are to be made in the

field or at the H&K factory.

The company assumes no liability for expenses or repairs made by other parties except

by written consent.

Corrections of such defects by repair or replacement shall constitute fulfillment of all

company obligations to the purchaser.

H&K shall not be liable for loss, damages or expenses arising from misuse, abuse,

alteration, accident or improper installation of the refrigerator such as:

•Improper or unauthorized repair;

•Failure to follow proper installation instruction;

•Improper maintenance;

•Damage in shipment;

•Abnormal use;

•Improper power supply;

•Natural disaster;

Special Conditions

This warranty also does not cover:

•Overtime or holiday charges;

•Consequential damages (the cost of repairing or replacing other property which is

damaged), loss of time, profits, use of any other incidental damages of any kind.

Tabla de contenidos

Otros manuales de Refrigerador de H&K

H&K

H&K HCFRC18.01P Manual de usuario

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Frigidaire

Frigidaire FSC23R5DW9 Manual de usuario

Beko

Beko LSP4579W Manual de usuario
