Handicare SEDEO PRO+ Manual de usuario
SEDEO PRO+
USER MANUAL EN
9010304A
2 Sedeo Pro+
© 2014 Handicare
All rights reserved.
The information provided herein may not be reproduced and/or published in any form, by print,
photoprint, microfilm or any other means whatsoever (electronically or mechanically) without the prior
written authorization of Handicare.
The information provided is based on general data concerning the construction known at the time of
the publication of this manual. Handicare executes a policy of continuous improvement and reserves
the right to changes and modifications.
The information provided is valid for the product in its standard version. Handicare can therefore not
be held liable for any damage resulting from specifications of the product deviating from the standard
configuration. Illustrations contained in the manual may deviate from the configuration of your product.
The information made available has been prepared with all possible diligence, but Handicare cannot
be held liable for any errors contained in the information or the consequences thereof.
Handicare accepts no liability for loss resulting from work executed by third parties.
Names, trade names, trademarks etc. used by Handicare may not, as per the legislation concerning
the protection of trade names, be considered as being available.
2014-01
Sedeo Pro+ Table of content 3| 3
Table of content
1 Introduction....................................................................................................................................4
1.1 This user manual 4
1.2 Symbols used in this manual 4
2 Safety............................................................................................................................................5
2.1 Temperature 5
2.2 Indications on the seating system 5
2.3 Moving parts 5
3 General description.......................................................................................................................6
3.1 Sedeo Pro+ product description 6
4 Use................................................................................................................................................7
4.1 Adjustments (by the user/attendant) 7
4.2 Getting in and out of the wheelchair (transfer) 8
4.3 Options / accessories 9
4.4 Reducing the seating system in size for transportation purposes 10
4.5 Setting up the seating system following transportation 12
5 Adjustments (to be carried out by a professional).......................................................................14
5.1 Seat width 14
5.2 Seat depth 14
5.3 Backrest height 15
5.4 Standard and manually elevating legrest 15
5.5 Central legrest 17
5.6 Electrical central legrest 18
5.7 Armrest assembly 20
5.8 Adjusting the centre of gravity 23
5.9 Headrest 24
5.10 Fixed / swing-away controller bracket 25
5.11 Backrest with adjustable straps - flexible 26
5.12 Velcro back curvature adjustment 26
5.13 Abduction support 27
5.14 Thoracic support 27
5.15 Attaching the lap strap 28
6 Maintenance................................................................................................................................30
6.1 Cleaning the upholstery 30
7 Troubleshooting...........................................................................................................................31
8 Technical specifications...............................................................................................................32
8.1 CE declaration and requirements 32
8.2 Technical information 32
9. Warranty......................................................................................................................................34
4 Introduction Sedeo Pro+
1 Introduction
1.1 This user manual
This user manual will help you to use and
maintain your seating system safely This user
manual is a supplement to Handicare’s general
wheelchair user manual.
Where necessary this user manual refers to
other manuals as shown below:
Wheelchair: Refers to the general
wheelchair user manual.
Controller: Refers to the user
manual for the controller (only
applicable for power wheelchairs).
Read this user manual and the other user
manuals referred to carefully before using
the product. If one of the user manuals was
not included with your wheelchair, please
contact your dealer immediately.
In addition to this user manual, there is also a
service manual for qualified specialists.
Contact Handicare if you
have a visual impairment.
1.2 Symbols used in this manual
Note!
Pointing out possible problems to the user.
Caution!
Advice for the user to prevent damage to the
product.
Warning!
Warnings for the user to prevent personal in
jury.
Not following these instructions may result
in physical injury, damage to the product or
damage to the environment!
Safety 5Sedeo Pro+
1 2
3
4
5 6 7 8
9 9
2 Safety
Warning!
Always follow the instructions given next to
the warning symbols! Failure to follow these
instructions may result in physical injury,
damage to the wheelchair or damage to the
environment. Where possible the warning
symbols have been placed in the applicable
paragraphs.
Be carefull when swing away/flip up parts.
Contact with moving parts should be
avoided.
Take care when smoking.
Do not use wheelchair near open flame.
Caution!
Parts of the wheelchair that are intended, for
service or repair, to be removed without the
use of tools (e.g. armrest, legrest) can have
an adverse effect on the support of the user
if they are missing or not placed back in the
right position.
2.1 Temperature
Warning!
Avoid exposing the wheelchair to direct
sunlight for extended periods of time. Some
parts of the wheelchair, such as the seat,
the backrest and the armrests assembly,
complete, can become hot if exposed to the
sun for too long. This may cause burns or
skin irritation.
2.2 Indicationsontheseatingsystem
The wheelchair must not be lifted
up by the armrests assembly,
complete and/or legrests.
The stability of the wheelchair is
influenced by the adjustment of the
seating system's centre of gravity.
Such adjustments should be made
by professionals only.
2.3 Moving parts
Warning!
Contact with the moving parts of the
wheelchair should be avoided. A wheelchair
has moving and rotating parts. Contact with
moving parts may result in serious physical
injury or damage to the wheelchair.
Moving/rotating parts:
1. Electrically tilt adjustment
2. Electrically high/low adjustment
3. Electrically reclining backrest
4. Electrically reclining antishear backrest
5. Electrically elevating legrests
6. Electrically elevating central legrest
7. Electricallyelevatingcentrallegrestandelectric
height adjustment
8. Flip-up armrests
9. Wheels (turning and pivoting)
6 General description Sedeo Pro+
3 General description
3.1 Sedeo Pro+ product
description
The wheelchair is fitted with a Sedeo Pro+
seating system. The Sedeo Pro+ seating
system provides excellent support for the head,
torso, arms and legs. Optimal body support
ensures maximum independence for the
wheelchair user.
The wheelchair must be adjusted by a qualified
specialist. Incorrect settings may have negative
consequences for seating posture.
Caution!
Please study this manual carefully before
using the seating system.
Key to symbols
Loosen by one turn with wing-nut
Tighten by one turn with wing-nut
Loosen by one turn with torx
Tighten by one turn with torx
Step 1, 2 etc.
An arrow, as part of an illustration, indicates
that the component in question moves or needs
to be moved in the direction indicated.
Notes on "Key to symbols"
Each illustration includes icons and numbering
to indicate what needs to be done and in which
order.
12
,
Use 7Sedeo Pro+
A
A
A
B
1
2
4 Use
4.1 Adjustments (by the user/
attendant)
Manually elevating legrest knee angle
The angle of the manually elevating legrests
can be adjusted independently of each other.
1. Push handle (A) forwards.
2. Lift your leg.
3. Release the handle when in the desired
position.
Moving the controller bracket inwards
1. Push (A) inwards until hearing a click.
Swing away the controller bracket
1. Push (A) outwards until hearing a click.
Note!
Swinging back the controller bracket will
allow you to pull up close to a table. Full
operation of the controller remains possible.
8 Use Sedeo Pro+
1
A
A
B
1
2
A
B
12
Hemiplegia armrest
1. Pull (A) out of the locked position and twist
(B) into the desired position.
Note!
Ensure that (B) is properly secured!
4.2 Getting in and out of the
wheelchair (transfer)
Forwards transfer
Warning!
Do not stand on the footplates. Putting
your full weight on the footplates may lead
to wheelchair damage and to hazardous
situations, including the wheelchair tipping
up.
Swinging back and/or removing the standard
legrest
1. Push (A) to the rear.
2. Swing (B) to the side.
3. Remove (B).
Flipping up the (electrical) central legrest
footplate
1. Flip up (A).
Use 9Sedeo Pro+
2
B
A
1
2
B
A1
1
A
Sideways transfer
Folding back the armrest assembly
1. Fold (A) to the rear.
Caution!
Remove the tray before folding back the
armrest assembly.
4.3 Options / accessories
Removing/positioning the headrest
1. Loosen (A) by one turn.
2. Slide (B) out of or into the receiver.
3. Tighten (A).
Note!
Always slide the headrest until it comes to a
stop in the bracket.
Removing the side cushion
1. Loosen (A) by two turns
2. Slide (B) up
3. When replacing the side cushion, tighten (A)
by two turns

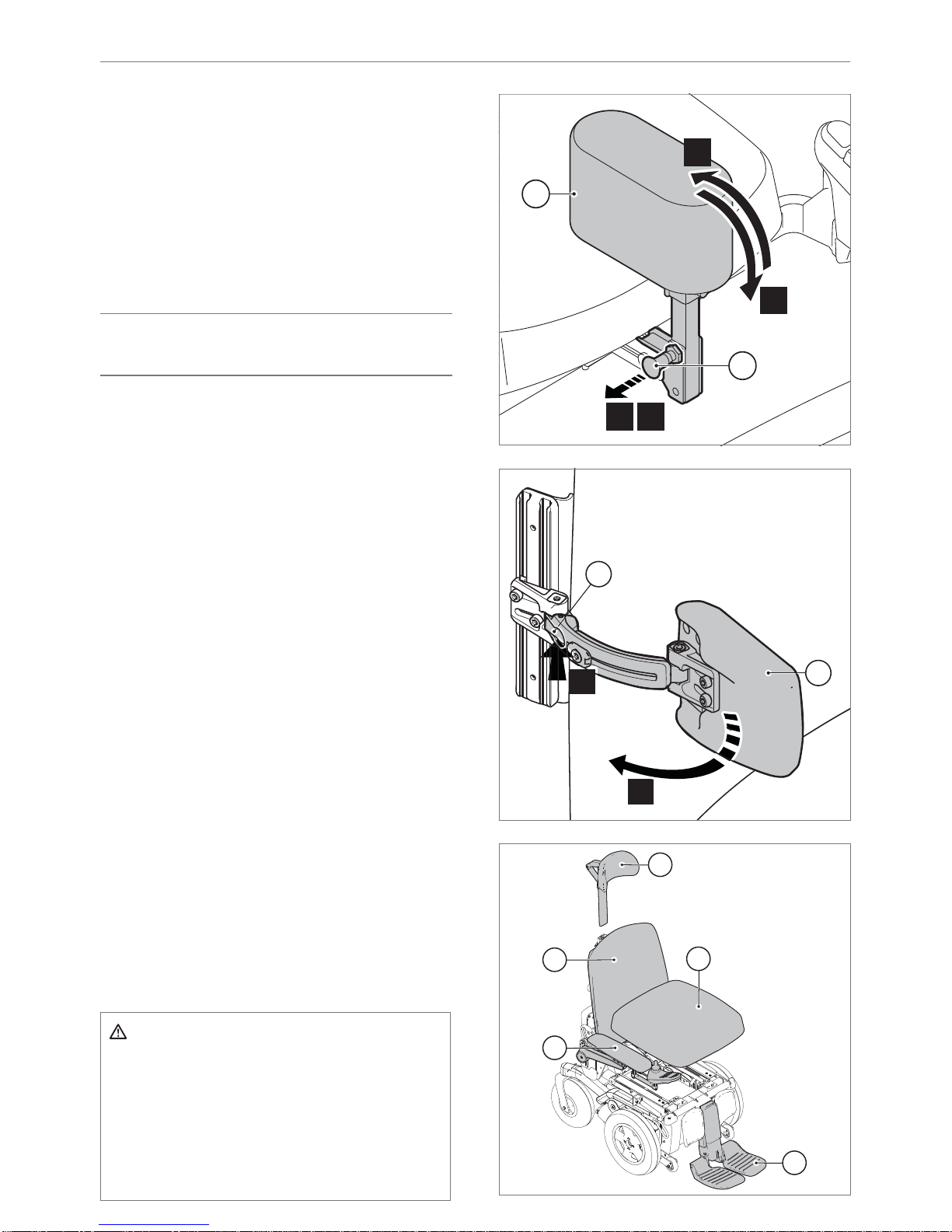

10 Use Sedeo Pro+
1
2
B
A
A
B
1b
1a 3a
3b
B
A
D
C
E
Flip down the abduction support
1. Pull (A) out of the locked position and flip
down (B)
2. Release (A).
Flip up the abduction support
3. Pull (A) out of the locked position and flip
up (B).
4. Release (A) in the locked position.
Note!
Ensure that (B) is properly secured!
Folding back the thoracic support
1. Press (A) to fold back (B).
4.4 Reducing the seating system
in size for transportation
purposes
A. Removing the headrest, see 4.3 ‘Options/
accessories (1,3 kg)
B. Removing the seat cushion (2,5 kg)
C. Flip up the armrest
D. Folding the backrest fully forward
E. Removing the legrest or fold up footplates
Warning!
The wheelchair can be reduced in size for
transportation without a passenger. Any
components of the seating system that can
be detached easily should be removed. Store
away such components safely so that they
can not cause injury or damage, or become
damaged themselves.
