H&H CS-652 Manual de usuario
CS-652 operation manual
issue 2 14.01.17 P. 1 of 14
Table of Contents
Precautions with regard to Safety
Name Plate
Introduction
Specifications
Machine Components
Control Console
Preparation Before Main Power Connected
Operation Mode Selection
Machine Operation
Machine Setting
Control Panel
Control Panel General Display
Temperature Setting Adjustment
Press Timer Adjustment
Press Pressure Adjustment
Trouble Shooting
Appendix A Control Circuit Schematic Diagram
CS-652 operation manual
issue 2 14.01.17 P. 2 of 14
> Precautions with regard to Safety
Please observe these safety tips for safe, efficient, an injury-free operation of your equipment. By
strictly following all instruction contained in this manual you will certainly obtain an excellent
performance from the use of this equipment for years.
CS-652 operation manual
issue 2 14.01.17 P. 3 of 14
> Precautions with regard to Safety (cont.)
CS-652 operation manual
issue 2 14.01.17 P. 4 of 14
> Name Plate
CS-652 operation manual
issue 2 14.01.17 P. 5 of 14
> Introduction
Thank you for your choosing of CS-652 which is manufactured by H&H.
The pneumatic flat press machine described in this manual is one of the sophisticated machines for
processing the flat press products in the market today. Built on digital control platform and designed
for the professional users. Operators are recommended to have basic knowledge and skill in heat
press operation before using this machine.
This manual is aimed for the operators to understand the machine and avoid damage to the machine
or personnel. Please read this manual carefully and keep it well for daily reference usage.
CS-652 operation manual
issue 2 14.01.17 P. 6 of 14
> Specifications
Model : CS-652
Voltage : 220 V, single phase
Frequency : 50/60 Hz
Power Consumption : 1000 W
Compressed Air : >0.4 Mpa
Heat Temperature Range : Room Temperature~260OC
Press Duration : 1~999 second, minute or hour
Heat Press Size : 8”X 6”
Lower Platform Size : 8”X 6”
Overall Dimensions : 520mm (L) x 380mm (W) x 1050mm (H)
Overall Weight : 45 kg
Note : due to continuous improvement, specifications are subjected to change without prior notification
CS-652 operation manual
issue 2 14.01.17 P. 7 of 14

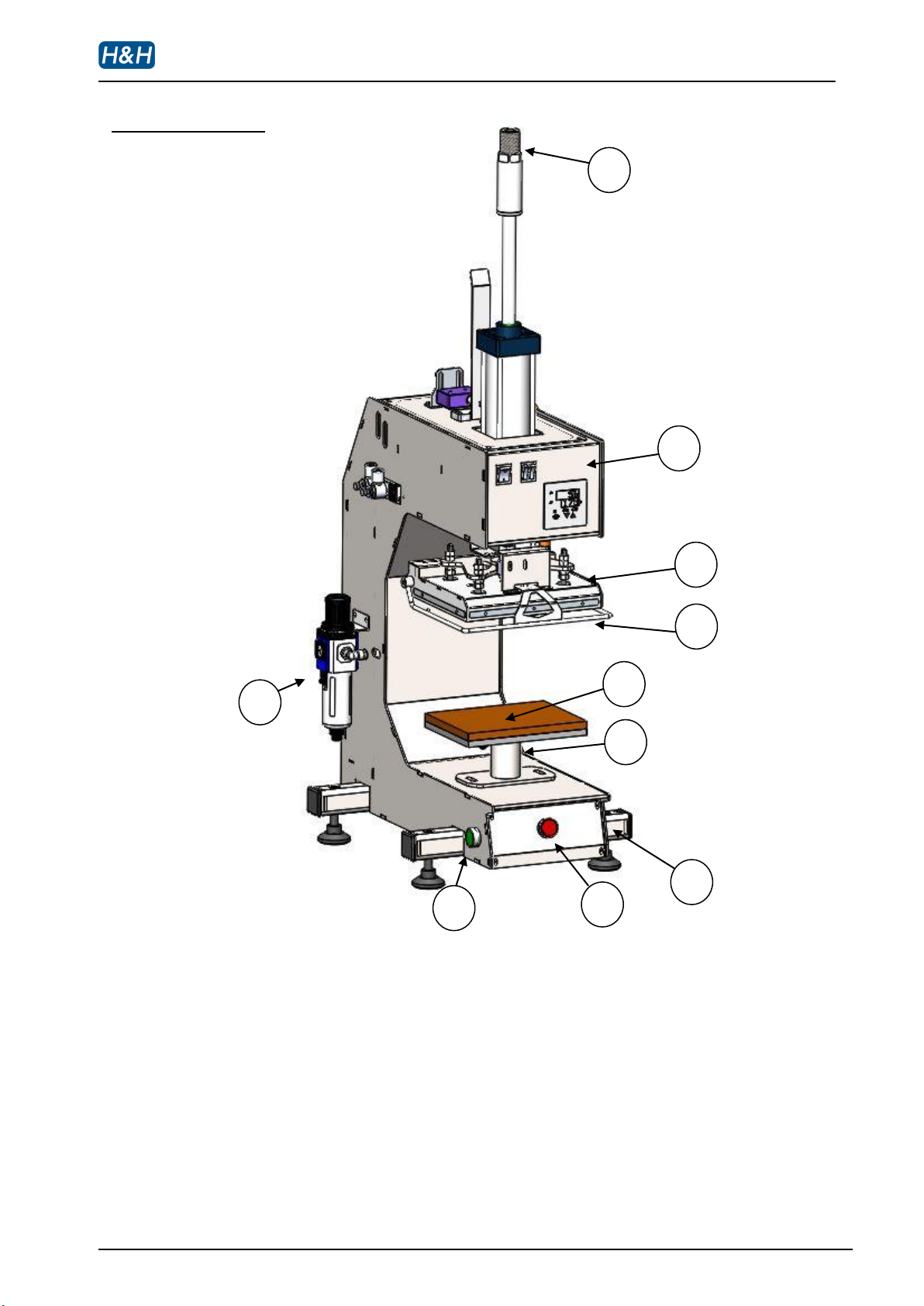

> Machine Components
1. press pressure adjusting knot for the cylinder
2. control console
3. heating plate & pressing head
4. safety protective bar
5. lower platform
6. machine base
7. start buttons (must press both left & right buttons to activate)
8. cancel button
9. air filter and regulator
1
2
9
5
7
4
6
3
8
7
CS-652 operation manual
issue 2 14.01.17 P. 8 of 14
>Control Console
1. Main Power Switch —On / Off the Main Power
2. Led Light Switch —On / Off the Led Light
3. Heater Switch —On / Off the Heater
4. Control Panel —Set the heat temperature setting & press time
1
2
3
4
CS-652 operation manual
issue 2 14.01.17 P. 9 of 14
> Preparation Before Main Power Connected
1. Compress air connection
Since the heating plate will go up after compress air connected, the cable ties on the heating
plate and the working table should be removed first.
2. Main power connection
The main power cable with plug is located at the back of the machine, plug into the main power
supply socket.
3. Foot switch connection
The foot switch socket is located at the back of the machine, plug in the foot switch connector
and tighten the screws.
>Operation Mode Selection
The machine has two operation modes:
A. Manual Push Button Mode –Press both the left & right start buttons at the front, the heating
plate goes down, the timer starts to countdown. Once the timer is up or when you press the
cancel button at the middle, the heating plate goes up.
B. Pedal Control Mode –Step on the left foot switch, the heating plate goes down, after move
away the foot, the timer starts to countdown. When the countdown is completed or you step
into the right pedal, the heating plate goes up.
Pedal Switch
1
2
