THANK YOU

We appreciate the trust and condence you have placed in Hampton Bay through the purchase of this LED wall

sconce. We strive to continually create quality products designed to enhance your home. Visit us online to see our full

line of products available for your home improvement needs. Thank you for choosing Hampton Bay!

USE AND CARE GUIDE

LED OUTDOOR WALL SCONCE

Questions, problems, missing parts? Before returning to the store,

call Hampton Bay Customer Service

8 a.m. - 6 p.m., EST, Monday - Friday

1-877-527-0313

HAMPTONBAY.COM

Item #1000 001 784 (US)

777-417 (Canada)

Model #NTSW30030LBL-MS (US)

NTSW30030LBLC-PCIR (Canada)

Table of Contents

Safety Information....................................2

Warranty ...................................................2

Pre-Installation.........................................3

Planning Installation ..............................3

Tools Required .......................................3

Hardware Included.................................3

Package Contents..................................4

Installation................................................5

Planning Installation ..............................6

Operation...................................................7

Care and Cleaning ....................................8

Troubleshooting........................................8

Maintenance .............................................8

Safety Information

Read all safety precautions and installation instructions

carefully before installing or servicing this xture.

Failure to comply with these instructions could result in

potentially fatal electric shock and/or property damage.

It is recommended that a qualied electrician perform all

wiring. This xture must be wired in accordance with all

national and local electrical codes.

This xture is designed for use in a 110-120VAC, 60Hz

fused circuit. Do not use on a dimming circuit.

This xture is intended to be used for general outdoor

lighting in wet locations.

WARNING: Do not handle any energized xture or

attempt to energize any xture with wet hands or while

standing on a wet or damp surface or in water.

WARNING: To reduce the risk of electrical shock, and to

assure proper operation, this xture must be adequately

grounded. To accomplish proper grounding, there must

be a separate ground wire (green) contact between this

xture and the ground connection of your main power

supply panel.

WARNING: There is no serviceable part inside the

motion sensor. DO NOT try to repair or disassemble the

unit. Doing so could damage the unit or create possibility

the electrical shock. Consult a qualied electrician if

needed.

DISCLAIMER

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules and Canadian ICES-003. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

□Reorient or relocate the receiver antenna.

□Increase the separation between the equipment and receiver.

□Install the product onto on a circuit different from that to which the receiver is connected.

□Consult with the dealer or an experienced radio/TV technician for help.

□Any modications to this xture may void the warranty and interfere with the safe operation of the

luminaire.

Warranty

LIMITED FACTORY WARRANTY

The manufacturer warrants this xture to be free from defects in materials and workmanship when installed and

used under normal operating conditions for a period of 3 years from the date of purchase. This warranty covers all

component parts and extends only to the replacement of a defective xture or components; it does not cover failure

due to improper installation, misuse, mishandling, or damage incurred in transit.

Contact the Customer Service Team at 1-877-527-0313 or visit www.hamptonbay.com.

3 HamptonBay.com

Please contact 1-877-527-0313 for further assistance.

Pre-Installation

PLANNING INSTALLATION

□Turn off the electrical power at your fuse or circuit breaker box before installing or servicing any part of this

xture.

□Carefully remove the xture from the carton, and check that all parts are included. Be careful not to misplace

any of the screws or parts needed for installing the xture.

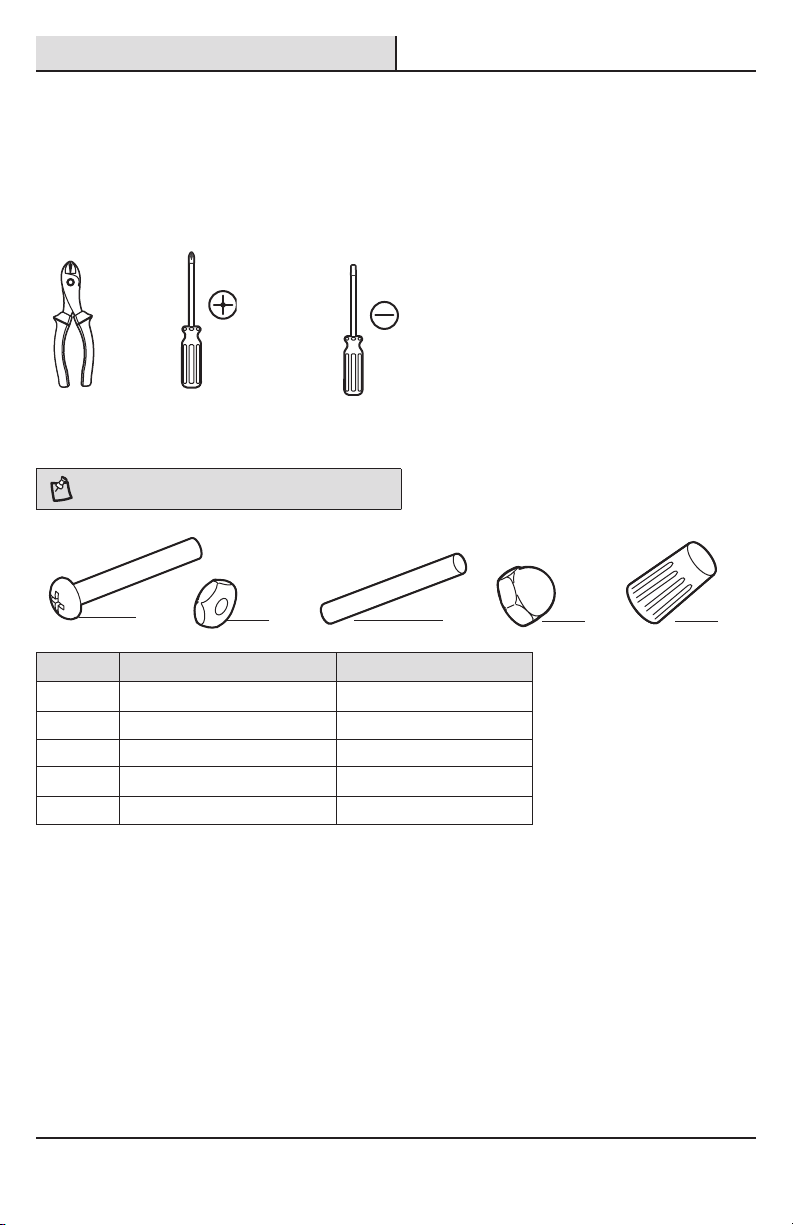

TOOLS REQUIRED

Wire

cutters

Phillips

screwdriver

Flathead

screwdriver

HARDWARE INCLUDED

NOTE: Hardware not shown to actual size.

AA BB CC DD EE

Part Description Quantity

AA Screw 2

BB Nut 2

CC Stud 2

DD Acorn nut 2

EE Wire nut 3

Pre-Installation (continued)

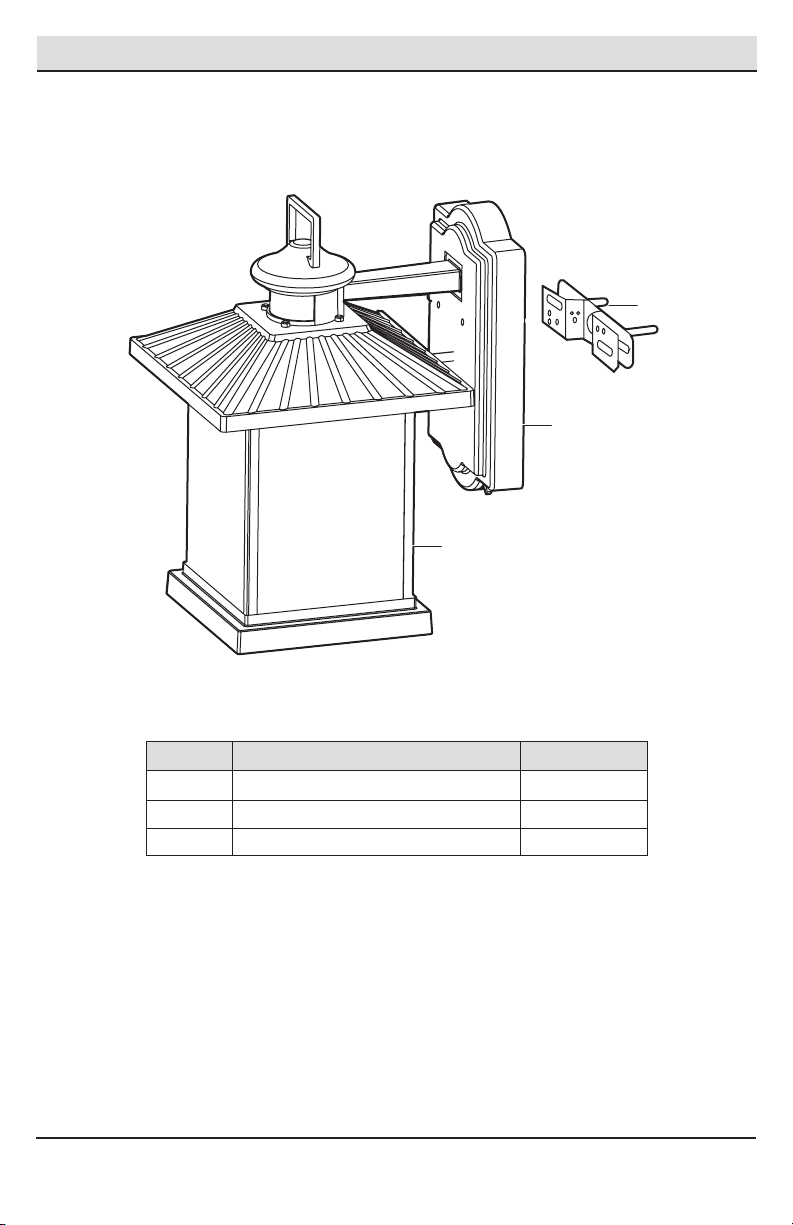

PACKAGE CONTENTS

Part Description Quantity

A Gem bar (preassembled to Backplate (B)) 1

B Backplate 1

C Light xture 1

5 HamptonBay.com

Please contact 1-877-527-0313 for further assistance.

Installation

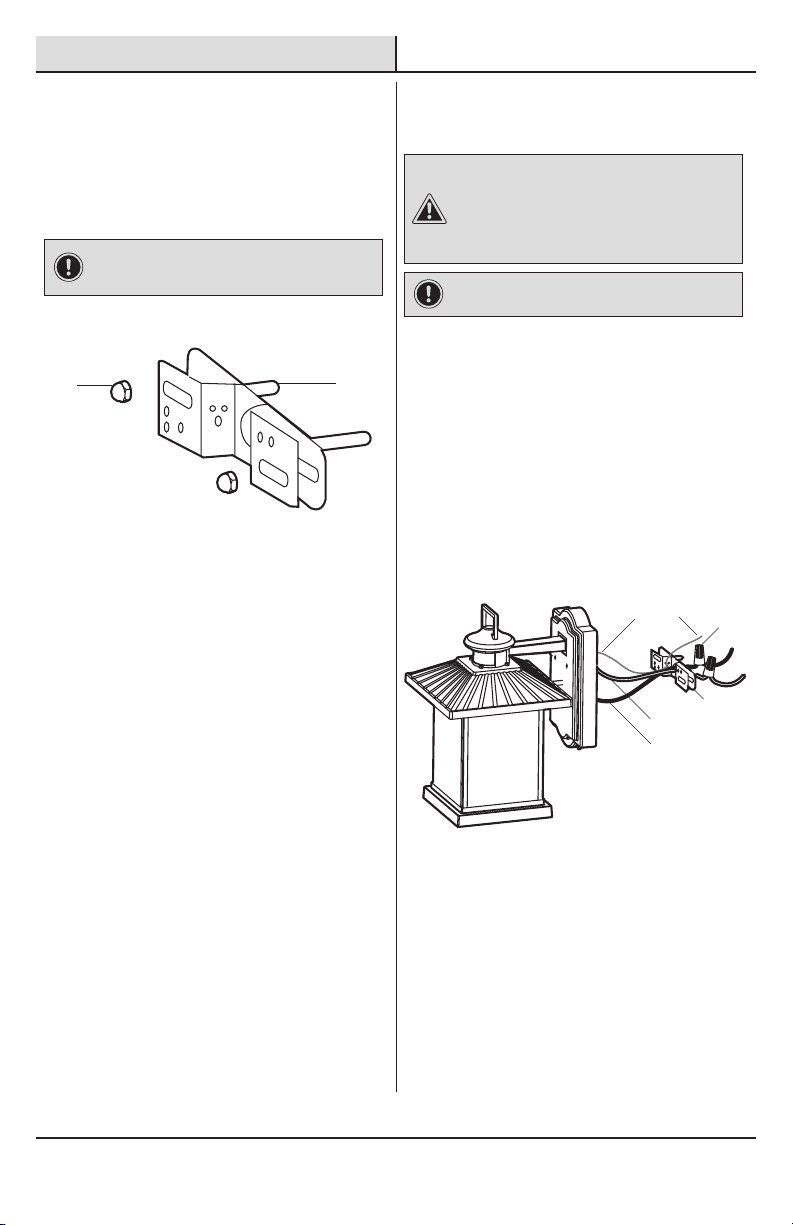

1 Installing the gem bar

□Remove the acorn nuts (DD) to separate the

gem bar from the xture.

□Install the gem bar (A) on the junction box by

securing it with two screws (AA).

IMPORTANT: If a 4 in. square junction box is used, then

a square to round at converter must be placed to accept

the gem bar provided.

2 Connecting the wires

CAUTION: Make sure the main power is off at the fuse

or circuit breaker box. Check the power wires for damage

or scrapes. If the power supply wires are within three

inches of the ballast power supply, use wire suitable for at

least 90°C (194°F). Most dwellings built before 1985 have

supply wire rated to 60°C. Consult a qualied electrician

before installing.

IMPORTANT: All wiring must take place inside the

junction box.

□Connect the bare copper wire from the xture

to the grounding wire from the power source.

□Connect the black wire from the xture to the

black wire from the power source.

□Connect the white wire from the xture to the

white (neutral) wire from the power source.

□Secure all wiring connections together with

wire connectors (EE) and tuck all connections

neatly into the junction box.

Copper/Ground

Wires

Black Wire

White Wire

Installation (continued)

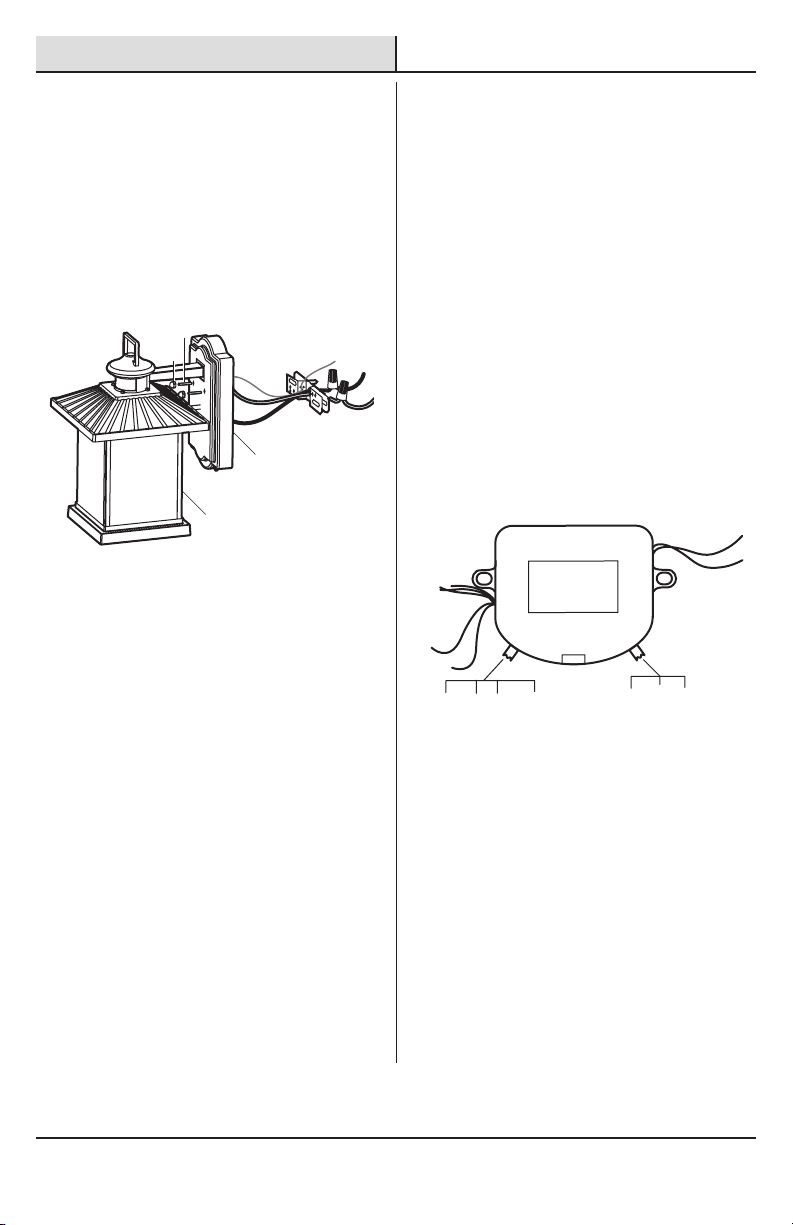

3 Mounting the light fixture

□Align the mounting holes in the backplate (B)

with the two studs (CC).

□Insert the two studs (CC) through the backplate

(B), and secure the xture with the two acorn

nuts (DD).

□Restore the power at the fuse or circuit

breaker box.

4 Testing the light fixture

The sensitivity switch adjusts the amount of distance

that is required to activate the unit. To set to a desired

level of sensitivity:

□Turn on the circuit breaker and the light

switch. The sensor has 1-2 minutes warm up

period before it will detect motion. When rst

turned on, wait 1-1.5 minutes.

□Set the Time switch to the “TEST” position

and the Sensitivity switch to the “M” position.

The lights turn off in about 5 seconds. Keep

in mind a better sensitivity is achieved by

walking across the coverage area, not walking

towards or away from the motion sensor.

□Set the sensitivity to the “H” position for a

higher level of sensitivity and “L” for a lesser

level of sensitivity. The reach is approximately

a 30 ft. radius from the motion sensor if set to

the “H” position.

Test

Time Switch PIR Motion

Sensitivity

Switch

2” 6” LMH

D to D

7 HamptonBay.com

Please contact 1-877-527-0313 for further assistance.

Operation

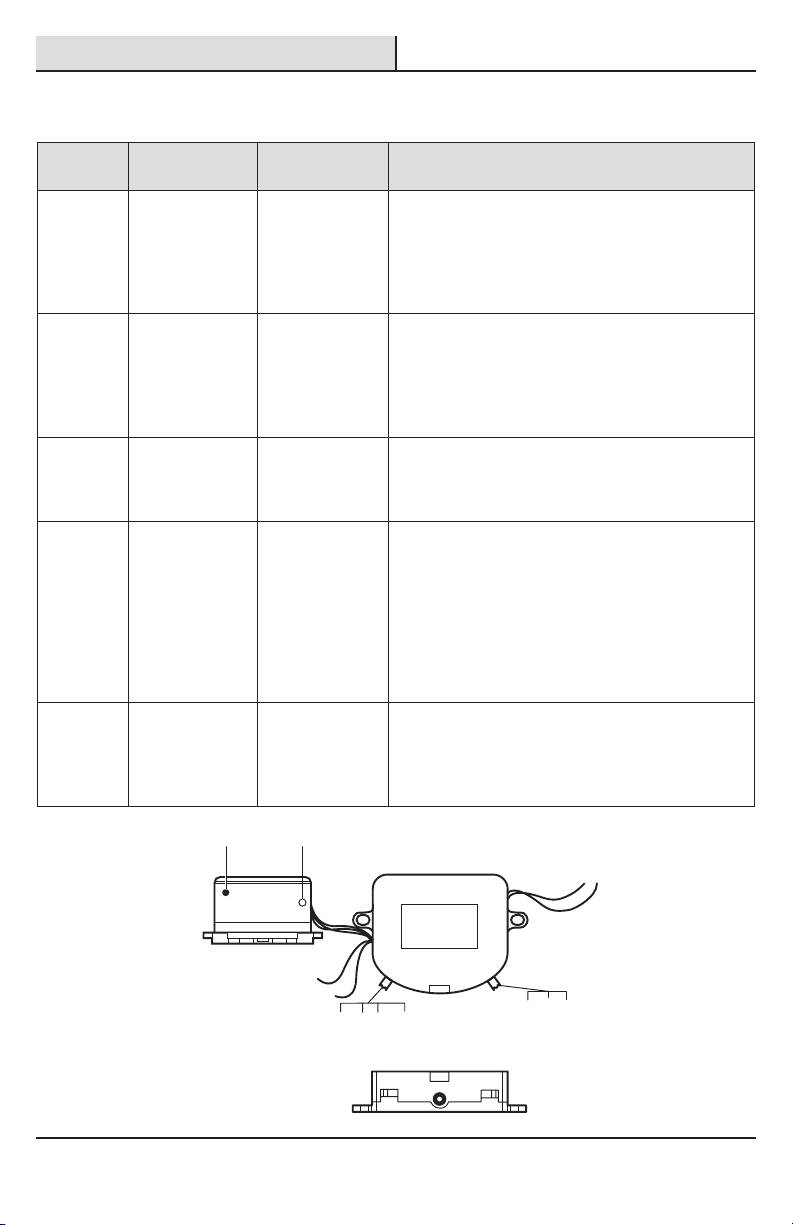

OPERATION MODES

Set the amount of time you want the lights to stay on after motion is detected: 2 or 6 minutes. After the selected

amount of time, the light will be automatically turned off.

Mode Sensitivity

Switch Position

Timer Switch

Position

Explanation

Stand-by

Mode

L - Less

M - Medium

H - High

Test, 2, or 6 This is the state when the power is turned on. If you have

turned off the power for a long period of time and upon

restoring power to the xture, the light will turn on in 2

seconds and remain on for approximately 60 seconds

regardless of motion. Then it enters the Auto Detection Mode

or Test Mode based on the setting of the Timer switch.

Auto

Detection

Mode

L - Less

M - Medium

H - High

2 or 6 This is the normal motion detection mode. The motion

detector turns the light on automatically after sensing

movement in its coverage area at dusk and stays on as long

as motion is detected. When motion stops, the light remains

on for the predetermined time you set (2 or 6 minutes) and

then turns off automatically.

Test Mode L - Less

M - Medium

H - High

Test This mode allows you to adjust the sensitivity of the motion

detector to a desired level at dusk or dawn. When motion

stops, the light will turn off in about 5 seconds.

Manual

Override

Mode with

Auto Reset

L - Less

M - Medium

H - High

2 or 6 This mode allows you to turn on and off your xture by

using the existing wall switch, regardless of the presence

of motion. The manual override mode works only when it is

dark (light intensity level is below 30 Lux). The unit resets

itself back to Auto Detection Mode after 8 hours. To activate

the feature, turn the existing wall switch off then back on

within 3 seconds so the light stays on continuously. The unit

will turn off and reset itself to Auto Detection Mode after 8

hours.

Dusk-to-

Dawn Mode

L - Less

M - Medium

H - High

D to D In this mode, the light turns on at dusk and off at dawn

automatically, regardless of the presence of motion. The “D to

D” setting ensures lights are non-operational in daylight and

only function at night. To activate, set the Timer switch to the

“D to D” position.

Motion Sensor Unit

LED

AC Power Supply

Mounting Side

Photocell

Lense

Motion Detector

Indicator Light

Test

Time Switch PIR Motion

Sensitivity

Switch

2” 6”

LMH

D to D

Care and Cleaning

To clean the xture, use a dry or slightly dampened cloth to wipe the glass and surface of the xture. Do not use any

cleaners with chemicals, solvents, or harsh abrasives. If necessary, use a mild soap to clean off any dirt or stains.

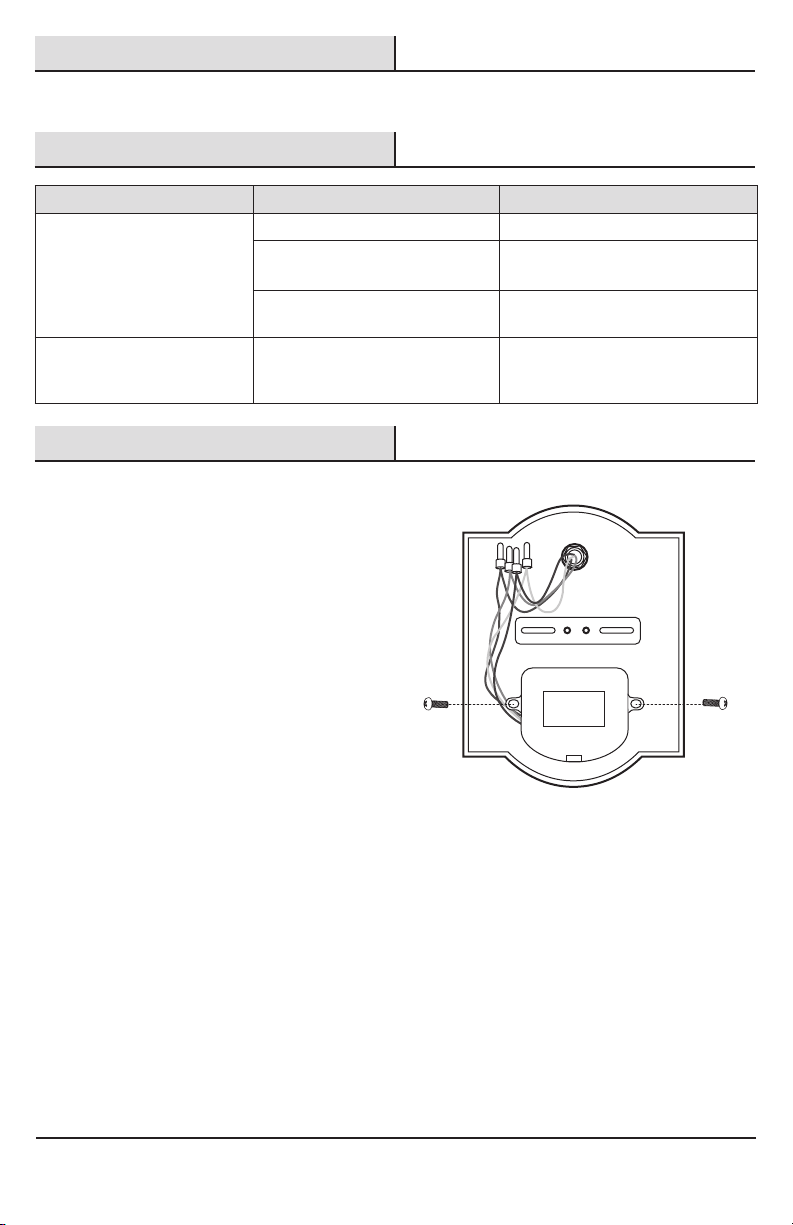

Troubleshooting

Problem Possible Cause Solution

The light will not come on. The wall switch is turned off. Turn on the wall switch.

There is a faulty wire connection. Access the outlet box, and check and

secure the wire connections.

The circuit breaker is off. Ensure the circuit breaker is set in the

On position.

The fuse blows or a circuit

breaker trips when the light is

turned on.

There are crossed wires or the power

wire is not grounded.

Access the outlet box and x the wire

connections or consult an electrician

Maintenance

REPLACING THE LED DRIVER

□Turn off main power at fuse or circuit breaker box.

□Remove the xture from the wall.

□Disconnect the xture power supply wires from the

branch circuit wires.

□Remove the two screws holding the driver to the

back plate of the xture.

□Cut the cable ties holding the bundled wires

together.

□Cut each individual colored wire pair immediately

below the crimp/wire connector.

□Strip each colored wire 3/8 in. from the end of the

wire.

□Attach the new driver to the back plate with the

previously-removed screws.

□Connect the driver colored wires to the

corresponding colored xture wires using wire nuts

or crimp connectors.

□Reattach the xture to the wall.

□Restore power to the xture.

Questions, problems, missing parts? Before returning to the store,

call HamptonBay Customer Service

8 a.m.-6 p.m., EST, Monday-Friday

1-877-527-0313

HAMPTONBAY.COM

Retain this manual for future use.

8060748

MERCI.

Nous apprécions la conance que vous avez placé dans Hampton Bay par l'achat de cette rampe d'éclairage murale

DEL. Nous nous efforçons continuellement de créer des produits de qualité conçus pour améliorer votre maison.

Visitez-nous en ligne pour voir notre gamme complète de produits disponibles pour vos besoins de rénovation. Merci

d'avoir choisi Hampton Bay.

GUIDE D'UTILISATION ET

D'ENTRETIEN

RAMPE D'ÉCLAIRAGE MURALE DEL

Questions, problèmes, pièces manquantes? Avant de retourner au magasin,

appelez le service à la clientèle de Hampton Bay

de 8h à 18h, heures normales de l'Est, du lundi au vendredi

1-877-527-0313

HAMPTONBAY.COM

Article n°1000 001 784 (US)

777-417 (Canada)

Modèle #NTSW30030LBL-MS (US)

NTSW30030LBLC-PCIR (Canada)

Otros manuales para NTSW30030LBL-MS

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Luz exterior de HAMPTON BAY

HAMPTON BAY

HAMPTON BAY 62906 Manual de usuario

HAMPTON BAY

HAMPTON BAY 517-636 Manual de usuario

HAMPTON BAY

HAMPTON BAY JBO1691A-5/ORB Manual de usuario

HAMPTON BAY

HAMPTON BAY MILLBROOK HDP06527BL Manual de usuario

HAMPTON BAY

HAMPTON BAY CHARLOTTE LDR1603AX-01 Manual de usuario

HAMPTON BAY

HAMPTON BAY 240177 Manual de usuario

HAMPTON BAY

HAMPTON BAY LAN15/3WY/BLK/HD Manual de usuario

HAMPTON BAY

HAMPTON BAY DSHD1604D Manual de usuario

HAMPTON BAY

HAMPTON BAY F319001A ROB Manual de usuario

HAMPTON BAY

HAMPTON BAY NXT-DP02 Manual de usuario

HAMPTON BAY

HAMPTON BAY TURIN HDP15139 Manual de usuario

HAMPTON BAY

HAMPTON BAY ELLENA HDP06534BL Manual de usuario

HAMPTON BAY

HAMPTON BAY HB7028-05 Manual de usuario

HAMPTON BAY

HAMPTON BAY HD28572 Manual de usuario

HAMPTON BAY

HAMPTON BAY BOA1691A-2/BN Manual de usuario

HAMPTON BAY

HAMPTON BAY 338-000 Manual de usuario

HAMPTON BAY

HAMPTON BAY NTSW30030LBL-MS Manual de usuario

HAMPTON BAY

HAMPTON BAY 10318 Manual de usuario

HAMPTON BAY

HAMPTON BAY Home Depot 756-001 Manual de usuario

HAMPTON BAY

HAMPTON BAY HB7097-43 Manual de usuario

HAMPTON BAY

HAMPTON BAY KZB1501HX-01/MB Manual de usuario

HAMPTON BAY

HAMPTON BAY GALE HDP11973 Manual de usuario

HAMPTON BAY

HAMPTON BAY 598-821 Manual de usuario

HAMPTON BAY

HAMPTON BAY 847658004017 Manual de usuario

Manuales populares de Luz exterior de otras marcas

Sealey

Sealey LED37 Manual de usuario

nordlux

nordlux VEJERS Guía del usuario

SImx

SImx ELITE LED LHTC637 Manual de usuario

GEV

GEV CAROLINE 10833 Manual de usuario

NEBO

NEBO NEB-LSP-0020 Manual de usuario

WE-EF

WE-EF PFL540 LED Manual de usuario

Lindby

Lindby 9949029 Manual de usuario

HEPER

HEPER DOGO Side LW6048.585-US Instrucciones de instalación y funcionamiento

HEPER

HEPER LW8034.003-US Instrucciones de instalación y funcionamiento

Maretti

Maretti VIBE S 14.6080.04.A Manual de usuario

BEGA

BEGA 84 253 Manual

HEPER

HEPER MINIMO Instrucciones de instalación y funcionamiento

LIGMAN

LIGMAN BAMBOO 3 Manual de usuario

Maretti

Maretti TUBE CUBE WALL 14.4998.04 Manual de usuario

Maxim Lighting

Maxim Lighting Carriage House VX 40428WGOB Manual de usuario

urban ambiance

urban ambiance UQL1273 Manual de usuario

TotalPond

TotalPond 52238 Manual de usuario

Donner & Blitzen

Donner & Blitzen 0-02661479-2 Manual de usuario
