HAMPTON BAY 560-293 Manual de usuario

INSTRUCTIONS MANUAL

EXTERIOR WALL LANTERN

Page 1

HOME DEPOT SKU# 560-293 (UPC# 046335904255)

Page 2

Thank you for purchasing this Hampton Bay Exterior Wall Lantern. This

product has been manufactured with the highest standards of safety and

quality.

FEATURES:

Before returning to your local Home Depot, please call our Customer

Service Team at 1-877-527-0313 or visit www.homedepot.com. Please

reference your SKU (560-293) or UPC (046335904255).

QUESTIONS, PROBLEMS, MISSING PARTS:

1. Easy to install.

2. Handsome Polished Brass finish with Clear Bent Beveled glass.

3. Optional tail extension.

4. For energy savings this fixture has been engineered to safely use a

Self Ballasted Compact Fluorescent Lamp in place of an incandescent

lamp.

Page 3

CAUTION:

1. Before starting installation of this fixture or removal of a previous

fixture, disconnect the power by turning off the circuit breaker or by

removing the fuse at the fuse box.

2. CONSULT A QUALIFIED ELECTRICIAN IF YOU HAVE ANY

ELECTRICAL QUESTIONS. If you have any non-electrical

questions about this fixture, please call our Customer Service Team at

1-877-527-0313 or visit www.homedepot.com. Please reference your

SKU (560-293) or UPC (046335904255).

3. KEEP your receipt and these Instructions for Proof of Purchase.

TOOLS REQUIRED FOR INSTALLATION AND ASSEMBLY

(not included):

Safety

goggles

Wire

strippers

Phillips

screwdriver

Electrical

tape

Wire

cutters

Silicon Rubber

Sealant

for exterior use

Flathead

screwdriver

Light Bulb (100

watt maximum or

CFL equivalent)

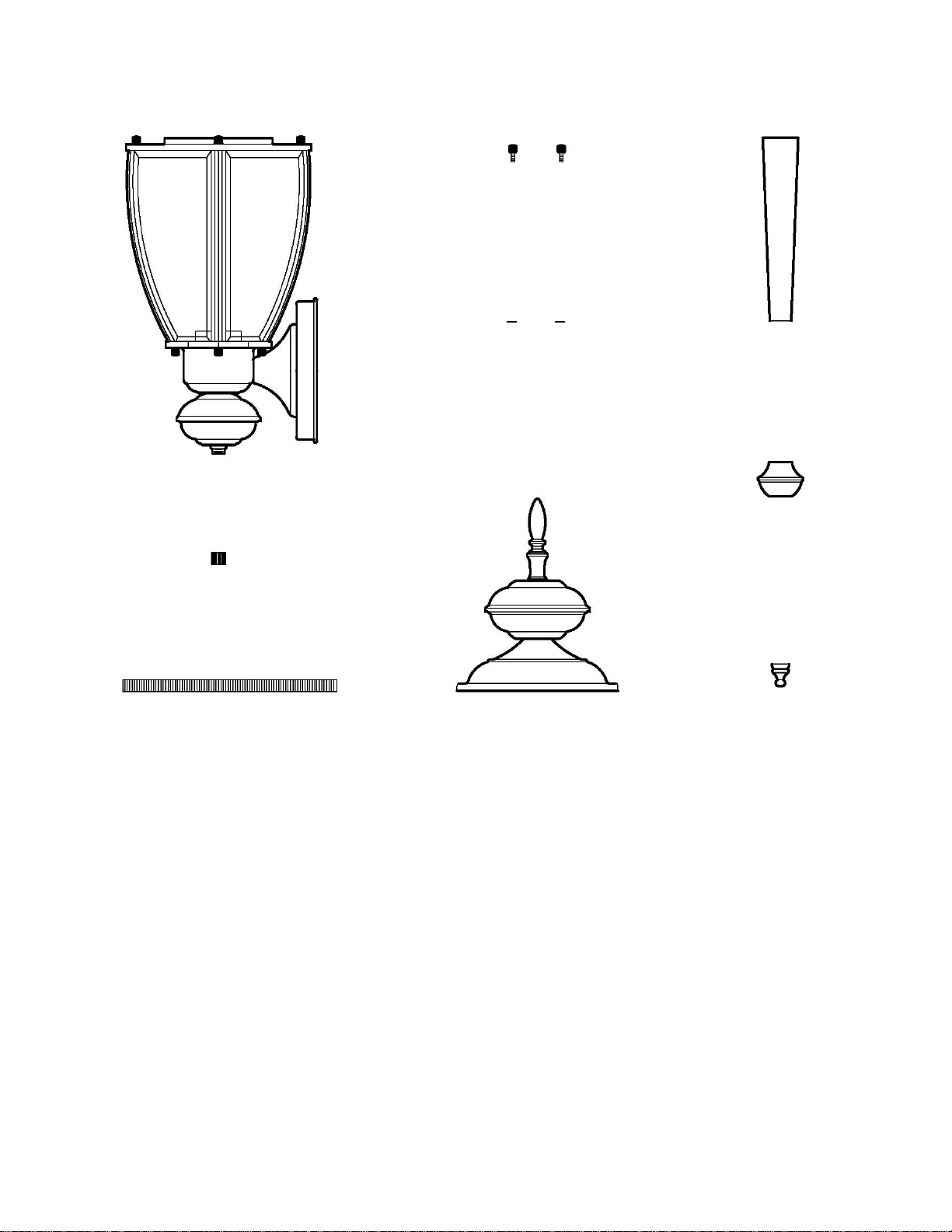

PARTS INCLUDED FOR ASSEMBLY (parts are not to scale):

ASSEMBLY INSTRUCTIONS:

Page 4

2 ea Hood

Nuts (#18)

1 ea Main Fixture Body (#1)

1 ea Hood

(#2)

1. Carefully unpack the fixture. Lay out all parts on a clean surface.

2. Install up to a 100 watt Light Bulb (#17) or a Listed SBCFL (Self-Ballasted Compact Fluorescent Lamp

[not provided]) in the socket of the Main Fixture Body (#1). Do not exceed a 100 watt incandescent

light bulb, or a 26 watt SBCFL.

3. Attach the Hood (#2) to the Main Fixture Body (#1) using the provided Hood Screws (#18) and Lock

Washers (#19).

4. Thread the Finial (#22) onto the bottom of the Main Fixture Body (#1).

4. OPTIONAL TAIL ASSEMBLY - Thread the Coupling (#23) onto the bottom of the Main Fixture

Body (#1). Thread the Nipple (#20) onto the Coupling (#23). Slide the Tail (#21) and the Fount (#24)

over the Nipple (#20) and secure them in place by threading the Finial (#22) to the bottom of the Nipple

(#20).

1 ea Tail

(Optional)

(#21)

1 ea Nipple (Optional)

(#20) 1 ea Finial

(#22)

2 ea Lock

Washers (#19)

Coupling (Optional) (#23)

1 ea Fount

(Optional)

(#24)

ASSEMBLY:

Page 5

17. Light Bulb

21. Tail

18. Hood Nut

2. Hood

20. Nipple

19. Lock

Washer

23. Coupling

24. Fount

22. Finial

OPTIONAL TAIL ASSEMBLY

1. Main Fixture

Body

1. Main

Fixture

Body

Page 6

PARTS INCLUDED FOR INSTALLATION (parts are not to

scale):

INSTALLATION INSTRUCTIONS:

3 ea Wire

Nuts (#14)

2 ea Bracket Mounting

Screws (#8)

1. Thread the Fixture Mounting Screws (#6) into the provided holes of the Mounting Bracket (#7) as shown. Thread the Hex

Nuts (#9) onto the Fixture Mounting Screws (#6), as shown. Do not tighten the Hex Nuts (#9) at this time.

2. Pull the power supply wires out from the Outlet Box (#4), and mount the Mounting Bracket (#7) to the Outlet Box (#4), using

the Bracket Mounting Screws (#8).

3. Attach the Black Supply Wire (#5) to the Black Fixture Wire (#12) and the White Supply Wire (#16) to the White Fixture Wire

(#13) using Wire Nuts (#14). Connect the Fixture Ground Wire (#11) and the Supply Ground Wire (#15) together using a

Wire Nut (#14). Wrap all wire connections with electrical tape for a more secure connection. Note: If you have electrical

questions, consult your local electrical code for approved grounding methods.

4. Place the Wall Plate (#10) over the Outlet Box (#4) and onto the Fixture Mounting Screws (#6), and adjust the Fixture

Mounting Screws (#6) until they protrude out from the Wall Plate (#10) 1/4". Remove the Wall Plate (#10) and secure the

position of the Fixture Mounting Screws (#6) by tightening the Hex Nuts (#9) against the Mounting Bracket (#7). Place the

Wall Plate (#10) back onto the Fixture Mounting Screws (#6), and secure it into place using the Lock Nuts (#3) provided.

5. After installing the fixture, caulk the upper 2/3s of the Wall Plate (#10) to mounting surface. Leave the bottom 1/3 un-caulked

for drainage of any water that might leak into the enclosure. The manufacturer recommends a non-drying exterior caulking

material. A good example is a clear silicone rubber sealant for exterior use.

6. Installation is complete. Turn on power at the circuit breaker or fuse box. Turn the light switch on to activate the fixture.

1 ea Mounting

Bracket (#7)

2 ea Fixture Mounting

Screws (#6)

2 ea Hex

Nuts (#9)

2 ea Lock

Nuts (#3)

Page 7

INSTALLATION:

10. Wall

Plate

3. Lock

Nut

13. White

Fixture

Wire

11. Fixture

Ground

Wire

14. Wire

Nut

16. White

Supply

Wire

5. Black Supply

Wire

15. Supply

Ground

Wire

4. Outlet

Box

7. Mounting

Bracket

8. Bracket

Mounting

Screw

9. Hex Nut

6. Fixture

Mounting

Screw

12. Black

Fixture

Wire

Page 8

Possible Cause Corrective Action

1. Power is off. 1. Make sure power supply is on.

2. Faulty switch. 2. Test or replace switch.

3. Faulty wire connection. 3. Check wiring.

Fuse blows or circuit breaker

trips when light is turned on. 1. Crossed wires or power wire is grounding

out. 1. Check wire connections.

Light willnot turn on.

TROUBLESHOOTING:

PRODUCT MAINTENANCE:

1. To clean the outside of the fixture, use a dry or slightly dampened clean cloth (use clean

water, never a solvent) to wipe the surface of the fixture.

2. To clean the inside of the fixture, first disconnect power to the fixture by turning off the

circuit breaker or by removing the fuse at the fuse box. Next, use a dry or slightly

dampened clean cloth (use clean water, never a solvent) to wipe the interior surface of the

fixture.

3. Do not use any cleaners with chemicals, solvents or harsh abrasives. Use only a dry soft

cloth to dust or wipe carefully.

LIMITED WARRANTY

The manufacturer warrants this lighting fixture to be free from defects in materials and workmanship for a

period of three (3) years from date of purchase. This warranty applies only to the original consumer

purchaser and only to products used in normal use and service. If this product is found to be defective, the

manufacturer’s only obligation, and your exclusive remedy, is the repair or replacement of of the product at

the manufacturer’s discretion, provided that the product has not been damaged through misuse, abuse,

accident, modifications, alterations, neglect or mishandling. This warranty shall not apply to any product

that is found to have been improperly installed, set-up, or used in any way not in accordance with the

instructions supplied with the product. This warranty shall not apply to a failure of the product as a result of

an accident, misuse, abuse, negligence, alteration, or faulty installation, or any other failure not relating to

faulty material or workmanship. This warranty shall not apply to the finish on any portion of the product,

such as surface and/or weathering, as this is considered normal wear and tear. The manufacturer does not

warrant and specially disclaims any warranty, whether expressed or implied, of fitness for a

particular purpose, other than the warranty contained herein. The manufacturer specifically

disclaims any liability and shall not be liable for any consequential or incidental loss or damage,

including but not limited to any labor/expense costs involved in the replacement or repair of said

product.

MANUAL DE INSTRUCCIONES

FAROL DE PARED PARA EXTERIORES

Page 9

HOME DEPOT SKU# 560-293 (UPC# 046335904255)

Page 10

Gracias por comprar este Farol de Pared para Exteriores de Hampton

Bay. Este producto ha sido fabricado con los estándares más altos de

seguridad y calidad.

CARACTERÍSTICAS:

Antes de regresar el producto a su Home Depot, llame a nuestro Equipo

de Servicio al Cliente al 1-877-527-0313 o visite www.homedepot.com.

Dé como referencia el SKU (560-293) o UPC (046335904255).

PREGUNTAS, PROBLEMAS, PARTES FALTANTES:

1. Fácil de instalar.

2. Hermoso acabado en latón pulido con vidrio biselado transparente.

3. Extensión de cola opcional.

4. Para fines de ahorro de energía, este luminario ha sido diseñado para

usar de manera segura un foco fluorescente compacto con balasto

integrado en lugar de un foco incandescente.
