HAMPTON BAY Isolabella Manual de usuario

Isolabella

54" Ceiling Fan

With Remote Control

Owner’s Manual

Hampton Bay®

Classic Collection

Isolabella

Ventilador de Techo de 54"

con Control Remoto

Manual del Propietario

Date Purchased

Store Purchased

Model No.

Serial No.

Vendor No.

UPC

Hampton Bay Lifetime Limited Warranty

The retailer warrants the fan motor to be free from defects in workmanship and material

present at time of shipment from the factory for a lifetime after the date of purchase by the

original purchaser. The retailer also warrants that all other fan parts, excluding any glass or

plexiglass blades, to be free from defects in workmanship and material at the time of

shipment from the factory for a period of one year after the date of purchase by the original

purchaser. We agree to correct such defects without charge or at our option replace with a

comparable or superior model if the product is returned to the retailer. To obtain warranty

service, you must present a copy of the receipt as proof of purchase. All costs of removing

and reinstalling the product are your responsibility. Damage to any part such as by accident

or misuse or improper installation or by affixing any accessories, is not covered by this

warranty. Because of varying climatic conditions in the United States this warranty does

not cover any changes in brass finish, including rusting, pitting, corroding, tarnishing or

peeling. Brass finishes of this type give their longest useful life when protected from

varying weather conditions. A certain amount of wobble is normal and should not be

considered a defect. Servicing performed by unauthorized persons shall render the warranty

invalid. There is no other express warranty. The retailer hereby disclaims any and all

warranties, including but not limited to. Those of merchantability and fitness for a

particular purpose to the extent permitted by law. The duration of any implied warranty

which cannot be disclaimed is limited to the time period as specified in the express

warranty. Some states do not allow limitation on how long an implied warranty lasts, so the

above limitation may not apply to you. The retailer shall not be liable for incidental,

consequential, or special damages arising out of or in connection with product use or

performance except as may otherwise be accorded by law. Some states do not allow the

exclusion of incidental or consequential damages, so the above exclusion or limitation may

not apply to you. This warranty gives specific legal rights, and you may also have other

rights which vary from state to state. This warranty supersedes all prior warranties.

Lifetime Limited Warranty

108-974

11289

792145351818

Safety Rules..............................................................................................................

Unpacking Your Fan ....................................................................................................

Installing Your Fan ......................................................................................................

Installing the .....................................................................................

Your .........................................................................................

Care of Your Fan .......................................................................................................

Troubleshooting .......................................................................................................

Specifications ..........................................................................................................

Decorative Cover

Operating Transmitter

10.

11.

12.

13.

Table of Contents

1. Safety Rules

1.To reduce the risk of electric shock, insure electricity has been

turned off at the circuit breaker or fuse box before beginning.

2. All wiring must be in accordance with the National Electrical

Code and local electrical codes. Electrical installation should be

performed by a qualified licensed electrician.

3. WARNING: To reduce the risk of electrical shock and fire, do not

use this fan with any solid-state fan speed control device.

4. WARNING: To reduce the risk of personal injury, use only the two

steel screws (and lock washers) provided with the outlet box for

mounting to the outlet box. Most outlet boxes commonly used for

the support of lighting fixtures are not acceptable for fan support

and may need to be replaced, consult a qualified electrician if in

doubt.

8. Avoid placing objects in the path of the blades.

9. To avoid personal injury or damage to the fan and other items, be

cautious when working around or cleaning the fan.

10. Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be

suitable for most cleaning.

11. After making electrical connections, spliced conductors should

be turned upward and pushed carefully up into the outlet box.

The wires should be spread apart with the grounded conductor

and the equipment-grounding conductor on one side of the outlet

box.

12. Electrical diagrams are for reference only. Light kits that are not

packed with the fan must be UL Listed and marked suitable for

use with the model fan you are installing. Switches must be UL

General Use Switches. Refer to the Instructions packaged with

the light kits and switches for proper assembly.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR

FAN SUPPORT.

5. The outlet box and support structure must be securely mounted

and capable of reliably supporting a minimum of 50 pounds. Use

only UL Listed outlet boxes marked FOR FAN SUPPORT.

6. The fan must be mounted with a minimum of 7 feet clearance

from the trailing edge of the blades to the floor.

7. Do not operate the reverse switch while the fan blades are in

motion. The fan must be turned off and the blades stopped before

reversing the blades direction.

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE

BLADE ARMS (ALSO REFERRED TO AS BRACKETS) DURING ASSEMBLY

OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN THE PATH OF

THE BLADES.

NOTE

READ AND SAVE ALL INSTRUCTIONS!

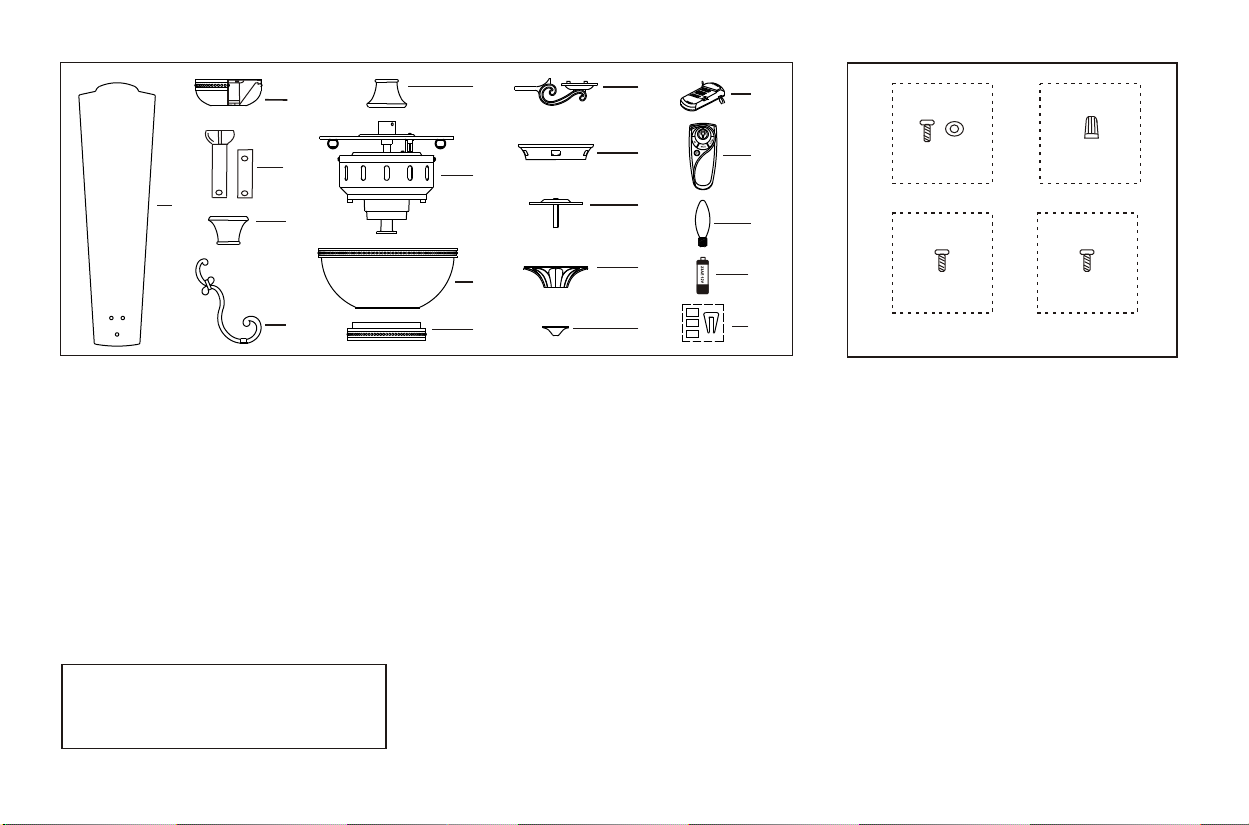

Unpack your fan and check the contents. You should have the following items;

1. Fan blades (5)

2. Canopy assembly

Decorative scroll ring

5. Decorative scroll arms

7. Fan motor assembly

8. Glass housing

9. Glass housing plate

10. Blade arms (5)

Ball/downrod assembly (1)

& extra downrod (1)

(4)

Coupling cover

11. Blade arm holder

12. Metal holder

13. Decorative cover

14. Decorative nut

15. Receiver with 6 wire nuts

16. Transmitter+holder+2 mounting screws

+ 2 plastic plugs

17. 15 Watt candelabra bulbs (4)

18. 12V MN21/A23 battery

19. Balancing kit

210

Unpacking Your Fan 2.

WARNING

DO NOT INSTALL OR USE FAN

IF ANY PART IS DAMAGED OR MISSING.

CALL TOLL FREE 1-877-898-1881

20. Loose parts bag containing:

a. Blade attachment hardware

(16 )

b. Mounting hardware

( 3 plastic wire connectors)

c. B

screws, 16 Fiber washers

hardware

(6 screws)

(11 screws)

lade arm holder

. Blade arm hardware

Tools Required

Phillips screwdriver, straight slot

screwdriver, adjustable wrench, step

ladder, and wire cutters.

Mounting Options

If there isn't an existing UL listed

mounting box, then read the following

instructions. Disconnect the power by

removing fuses or turning off circuit

breakers.

Secure the outlet box directly to the

building structure. Use appropriate

fasteners and building materials. The

outlet box and its support must be able

to fully support the moving weight of the

fan (at least 50 lbs). Do not use plastic

outlet boxes.

Figures 1,2 and 3 are examples of

different ways to mount the outlet box.

Note: You may need a longer downrod to

maintain proper blade clearance when

installing on a steep, sloped ceiling.

To hang your fan where there is an existing

fixture but no ceiling joist, you may need

an installation hanger bar.(Fig.4)

(available at any Home Depot store).

Outlet box

Outletbox

Figure 1

Figure 2

Figure 4

3. Installing Your Fan

Provide strong support

Recessed

outlet box

Mounting bracket

opening must be

toward the top

Figure 3

Angled ceiling

maximum

18 angle

Hanging the Fan

REMEMBER to turn off the power. Follow the

steps below to hang your fan properly:

Step 1. Remove the decorative canopy

bottom cover from the canopy by turning the

cover counter clockwise.(Fig. 5)

Step 2. Remove the hanger bracket from the

canopy by loosening the two screws on the

bottom of the hanging bracket

from the screw head and turning the canopy

counter clockwise.(Fig. 5)

Step 3. Pass the 120-volt supply wires

through the center hole in the ceiling hanger

bracket.(Fig. 6)

Step 4. Secure the hanger bracket to the

ceiling outlet box with the screws and

washers provided with your outlet box. (Fig. 6)

Step 5. Remove the hanger pin, lock pin and

set screws from the top of the motor

assembly.

Step 6. Route wires exiting from the top of

the fan motor through the collar cover,

d canopy cover, canopy

and then through the ball / downrod. (Fig. 7)

Step 7. Align the holes at the bottom of the

downrod with the holes in the collar on top of

the motor housing (Fig. 7). Carefully insert

the hanger pin through the holes in the collar

and downrod. Be careful not to jam the pin

against the wiring inside the downrod. Insert

the locking pin through the hole near the end

of the hanger pin until it snaps into its locked

position, as noted in the circle inset of Fig. 7.

a half turn

ecorative scroll ring,

WARNING

FAILURE TOPROPERLY INSTALL LOCKING PIN AS

NOTED IN STEP 7 COULD RESULT IN FAN

LOOSENING AND POSSIBLY FALLING.

Step 8. Tighten two set screws at top of the

fan motor collar firmly. (Fig. 7)

Step 9. Install the 4 x 15W bulbs (provided)

into the sockets of the bulb holder assembly.

(Fig. 8)

Step10. Install the decorative scroll arms to

the decorative scroll ring and motor with the

screws provided. Be sure to tighten all screws.

(Fig. 8)

Step 11. Place the downrod ball into the

hanger bracket socket. Rotate the downrod

ball until the groove of the downrod ball

lines up with the hook of the hanger bracket.

(This will help balance the fan.)

Figure 5

Hanger

bracket

Ceiling

canopy

Canopy

cover

Motor collar

Collar cover

Pin in

locked

position

Ball/downrod

assembly

Ceiling

canopy

Tighten screws

firmly

Locking pin

Canopy

cover

Decorative

scroll ring

Hanger pin

Figure 7

Mounting

screws

(supplied with

electrical box)

Hook

UL Listed

electrial

box

Figure 6 120V Wires

Washers

Hanger

bracket

Make the Electric Connections

WARNING: To avoid possible electrical

shock, be sure electricity is turned off at the

main fuse box before wiring.

NOTE: This remote control unit is equipped

with 16 code combinations to prevent

possible interference from or to other remote

units. The frequency switches on your

receiver and transmitter have been preset at

the factory. Please recheck to make sure the

switches on transmitter and eceiver

are set to the same position, any

combination of settings will operate the fan

as long as the transmitter and receiver are

set to the same position.(Fig. 9)

Step 1. (Fig. 10) Insert the receiver into

the mounting bracket with the flat side of

the receiver facing the ceiling.

Step 2. (Fig. 11) Motor to Receiver Electrical

Connections: Connect the black wire from

the fan to black wire marked "TO MOTOR L".

Connect the white wire from the fan to

the white wire marked "TO MOTOR N" from

the receiver. Connect the blue wire from the

fan to the blue wire marked "For Light" from

the receiver. Secure the wire connections

with the plastic wire nuts provided.

the the r

Figure 8

Screws

Bulbs

Canopy

cover

Decorative

scroll ring

Decorative

scroll arms

Changing the Downrod (Optional)

NOTE: Your fan comes with a 12" downrod

attached to the hanger ball. In addition, a 4-

1/2" downrod has been provided to be used

in case the ceiling is lower. In this case,

perform the following steps for correct

installation:

1. Remove the hanger ball from downrod by

loosening the setscrew at the top of the

downrod which holds the hanger ball to

the downrod.

2. Slide the hanger ball down the downrod

and remove the support pin.

3. Insert the support pin in the holes at the

top of the 4-1/2" downrod and slide the

hanger ball up the 4-1/2" downrod. Make

sure the support pin is properly seated in

the grooves in the top of the hanger ball.

4. Tighten the setscrews firmly.

NOTE: Do not install the decorative scroll if

you plan to use the 4-1/2" downrod.

NOTE: Your fan comes with a 12" downrod

for 9' ceiling. A 4-1/2" downrod has been

provided to be used in case the ceiling is 8'.

Receiver

Hanger bracket

Figure 9

Figure 10

ONON

Code switch

Figure 11

Step 3. (Fig. 11) Receiver to House Supply

Wires Electrical Connections: Connect the

black (hot) wire from the ceiling to the

black wire marked "AC in L" from the

receiver. Connect the white(neutral) wire

from the ceiling to the white wire marked

"AC in N" from the Receiver. Secure the

wire connections with the plastic wire nuts

provided.

Step 4. (Fig. 11) If your outlet box should

have a ground wire (green or bare copper)

connect it to the fan's ground wires;

otherwise connect the hanging bracket

ground wire to the grounded metal junction

box. Secure the wire connection with a

plastic nut provided. After connecting the

wires spread them apart so that the green

and white wires are on one side of the

outlet box and black and blue wires are on

the other side. Carefully tuck the wire

connections up into the outlet box.

Note: Fan must be installed at a maximum

distance of 20 feet from the transmitting

unit for proper signal transmission

between the transmitting unit and the fan's

receiving unit.

CAUTION: Do not use with wall light

dimmer switch.

SUPPLY CIRCUIT

Ground

Conductor

Outlet Box

Green

Ground

Lead

Ground to

Downrod

BLACK

WHITE

BLACK

BLUE

GREEN

ONON

Installing the Glass

Housing

1. Remove 1 of the 4 screws from the

bottom of the motor housing and loosen

the other 3 screws. (Do not remove)

2. Raise and hold the glass housing close

to the motor, place the key holes on the

glass housing plate over the 3 screws

previously loosened from the motor

housing, turn glass housing plate until

it locks in place at the narrow section of

the key holes. Secure by tightening the

3 screws previously loosened and the

one previously removed. (Fig. 13)

Figure 13

Motor

housing

Glass housing

plate

Screws

Figure 12

Finishing the Installation

Step 1. Tuck connections neatly into ceiling

outlet box.

Step 2. Slide the canopy up to ceiling and

over the 2 screws on the hanger bracket.

Rotate canopy clockwise. Next, while holding

the canopy with one hand, slide the canopy

cover over the screws and rotate clockwise

until tight. Note: adjust the canopy screws as

necessary until the canopy and canopy cover

are snug. (Fig. 12)

WARNING

Make sure the hook on the hanging

bracket properly sits in the groove in the

hanger ball before attaching the canopy

to the bracket by turning the housing

until it drops into place.

Outlet box

Hanger

bracket

Hanger

ball

Canopy

cover

Tabla de contenidos

Otros manuales de Admirador de HAMPTON BAY

HAMPTON BAY

HAMPTON BAY RIVERWALK Manual de usuario

HAMPTON BAY

HAMPTON BAY HAWKINS YG204-BN Manual de usuario

HAMPTON BAY

HAMPTON BAY Thorton Manual de usuario

HAMPTON BAY

HAMPTON BAY Moonlight 458-241 Manual de usuario

HAMPTON BAY

HAMPTON BAY Copperhead Manual de usuario

HAMPTON BAY

HAMPTON BAY 1002 498 557 Manual de usuario

HAMPTON BAY

HAMPTON BAY ASHBURTON YG593-BN Manual de usuario

HAMPTON BAY

HAMPTON BAY Burgess 640-657 Manual de usuario

HAMPTON BAY

HAMPTON BAY Winfield Manual de usuario

HAMPTON BAY

HAMPTON BAY SENZE 24816-021 Manual de usuario

HAMPTON BAY

HAMPTON BAY HOLLY SPRINGS 57281 Manual de usuario

HAMPTON BAY

HAMPTON BAY Devereaux II Manual de usuario

HAMPTON BAY

HAMPTON BAY BELVOY AK330-BN Manual de usuario

HAMPTON BAY

HAMPTON BAY Clarington 503 837 Manual de usuario

HAMPTON BAY

HAMPTON BAY TUDOR Manual de usuario

HAMPTON BAY

HAMPTON BAY HAWKINS YG204I-TB-D Manual de usuario

HAMPTON BAY

HAMPTON BAY 80213 Manual de usuario

HAMPTON BAY

HAMPTON BAY GLENDALE AG524-FB Manual de usuario

HAMPTON BAY

HAMPTON BAY Campbell II Manual de usuario

HAMPTON BAY

HAMPTON BAY 786-756 Manual de usuario

HAMPTON BAY

HAMPTON BAY Devereaux II Manual de usuario

HAMPTON BAY

HAMPTON BAY HALWIN AK396H-BN Manual de usuario

HAMPTON BAY

HAMPTON BAY Carlsbad Manual de usuario

HAMPTON BAY

HAMPTON BAY Cherokee 565 332 Manual de usuario

Manuales populares de Admirador de otras marcas

ELTA FANS

ELTA FANS H03VV-F Manual de usuario

Hunter

Hunter 20714 Manual de instrucciones

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manual de usuario

Hunter

Hunter Caraway Manual de instrucciones

Panasonic

Panasonic FV-15NLFS1 Manual de usuario

Kompernass

Kompernass KH 1150 Manual de usuario

VES

VES FALA100/12V/TR Manual de usuario

Vertiv

Vertiv Liebert DCD Manual de usuario

Westinghouse

Westinghouse GFP Series Manual de usuario

Venmar

Venmar KUBIX HRV PLUS Series Manual de usuario

Maico

Maico ECR 31 Manual de usuario

Sonnenkonig

Sonnenkonig Dinky Manual de usuario

S&P

S&P ECOWATT HXBR Manual de usuario

Wider

Wider IMP03369BH Manual de usuario

Panasonic

Panasonic F-60DHN Manual de usuario

Hinkley

Hinkley HIGHLAND Manual de usuario

Broan

Broan 766BN Manual de usuario

Premium

Premium PFS16022 Instrucciones de montaje
