Hamilton Beach 31104 Manual de usuario

READ BEFORE USE

LIRE AVANT UTILISATION

LEA ANTES DE USAR

Questions?

Please call us – our friendly

associates are ready to help.

USA: 1.800.851.8900

¿Preguntas?

Por favor llámenos – nuestros

amables representantes están

listos para ayudar.

MEX: 01 800 71 16 100

Le invitamos a leer cuidadosamente

este instructivo antes de usar su

aparato.

Visit www.hamiltonbeach.com for our

complete line of products and Use and

Care Guides – as well as

delicious recipes, tips, and

to register your product online!

Rendez-vous sur www.hamiltonbeach.ca

pour notre liste complète de produits et de

nos manuels utilisateur – ainsi que nos

délicieuses recettes, nos conseils et pour

enregistrer votre produit en ligne !

¡Visite www.hamiltonbeach.com.mx para

obtener nuestra línea completa de productos

y las Guías de Uso y Cuidado, además de

deliciosas recetas, consejos y para registrar

su producto en línea!

Questions ?

N’hésitez pas à nous appeler –

nos associés s’empresseront

de vous aider.

CAN : 1.800.267.2826

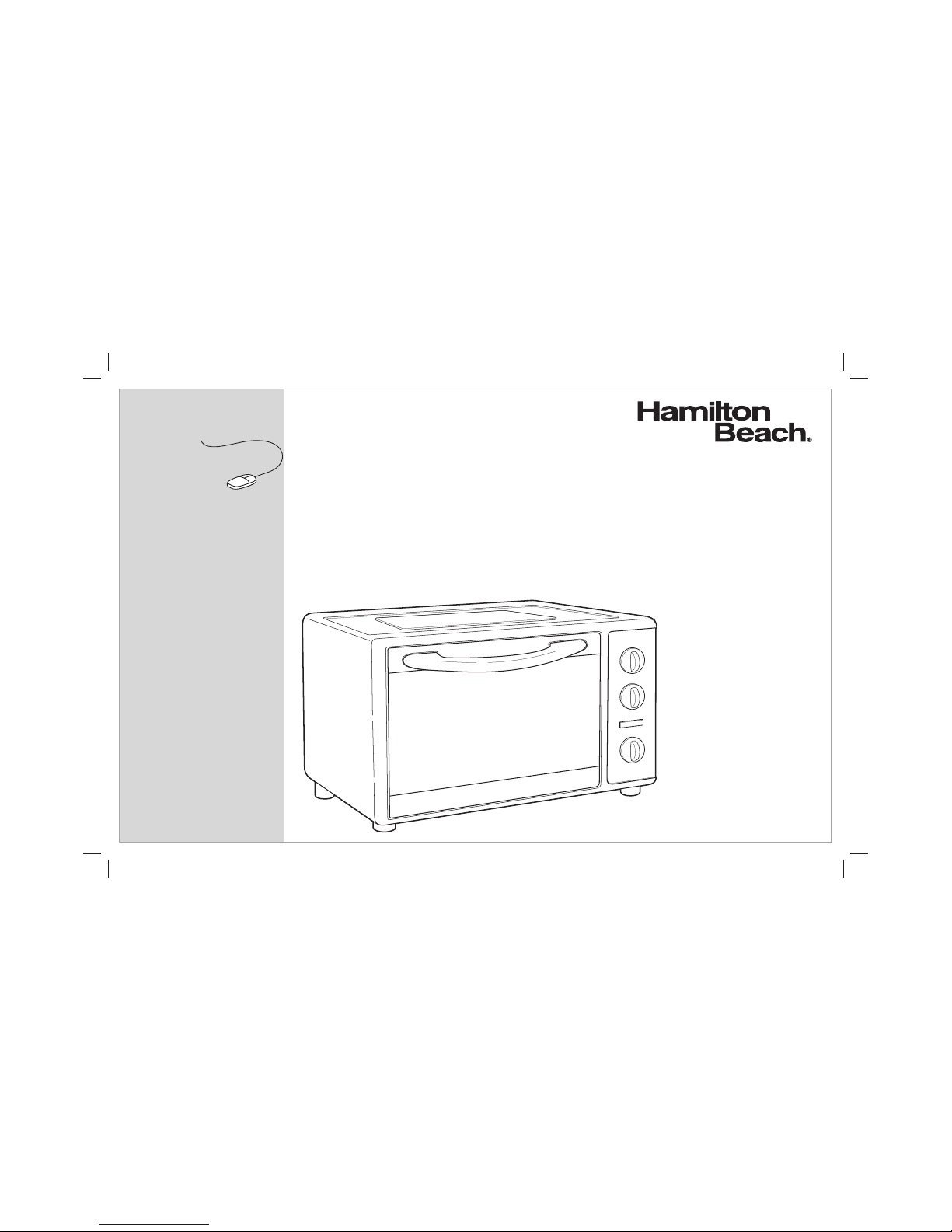

Countertop Oven

With Rotisserie

Four et rôtissoire

Horno para Mostrador

con Rostizador

English...................... 2

Français .................. 17

Español................... 31

840195701 ENv03.indd 1840195701 ENv03.indd 1 3/14/12 2:54 PM3/14/12 2:54 PM

IMPORTANT SAFEGUARDS

1. Read all instructions.

2. Do not touch hot surfaces. Use handles or knobs.

3. To protect against electrical shock, do not immerse cord, plug,

or oven in water or other liquid.

4. Close supervision is necessary when any appliance is used by or

near children.

5. Unplug from outlet when not in use and before cleaning. Allow to

cool before cleaning appliance and putting on or taking off parts.

6. Do not operate any appliance with a damaged cord or plug, or

after the appliance malfunctions or is dropped or damaged in

any manner. Call our toll-free customer service number for

information on examination, repair, or adjustment.

7. The use of accessory attachments not recommended by the

appliance manufacturer may cause injuries.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter or touch

hot surfaces.

10. Do not place on or near a hot gas or electric burner or in a

heated oven.

11. Extreme caution must be used when moving an appliance

containing hot oil or other hot liquids.

12. To disconnect, turn all controls to OFF; then remove plug from

wall outlet.

13. Use extreme caution when removing pan or disposing of hot

grease.

14. Do not clean with metal scouring pads. Pieces can break off the

pad and touch electrical parts, creating a risk of electrical shock.

15. Oversize foods or metal utensils must not be inserted in an

oven as they may create a fire or risk of electric shock.

16. A fire may occur if the oven is covered, touching, or near

flammable material, including curtains, draperies, walls, and the

like, when in operation. Do not store any item on top of the

appliance when in operation or before the appliance cools down.

17. Extreme caution should be exercised when using containers

constructed of materials other than metal or glass.

18. Do not store any materials, other than manufacturer-recommended

accessories, in this oven when not in use.

When using electrical appliances, basic safety precautions should always be followed, including the following:

wWARNING

Fire Hazard.

• If contents ignite, do not open oven door. Unplug oven and allow contents to stop burning and cool before

opening door.

• Do not operate unattended while in Broil mode.

• Do not use with oven cooking bags.

• Always allow at least one inch between food and heating element.

• Always unplug oven when not in use.

• Regular cleaning reduces risk of fire hazard.

840195701 ENv03.indd 2840195701 ENv03.indd 2 3/14/12 2:54 PM3/14/12 2:54 PM

SAVE THESE INSTRUCTIONS!

Other Consumer Safety Information

This appliance is intended for household use only.

WARNING! Shock Hazard: This appliance has a polarized plug (one

wide blade) that reduces the risk of electric shock. The plug fits only

one way into a polarized outlet. Do not defeat the safety purpose of

the plug by modifying the plug in any way or by using an adapter.

If the plug does not fit fully into the outlet, reverse the plug. If it still

does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce

the hazards of becoming tangled in or tripping over a longer cord.

If a longer cord is necessary, an approved extension cord may be

used. The electrical rating of the extension cord must be equal to

or greater than the rating of the appliance. Care must be taken to

arrange the extension cord so that it will not drape over the counter-

top or tabletop where it can be pulled on by children or accidentally

tripped over.

This appliance is equipped with a fully tempered safety glass door.

The tempered glass is four times stronger than ordinary glass and

more resistant to breakage. Tempered glass can break; however, it

breaks into pieces with no sharp edges. Care must be taken to avoid

scratching door surface or nicking edges. If the door has a scratch or

nick, call our toll-free customer service number.

Always unplug your oven from the outlet when not in use.

19. Do not place any of the following materials in the oven: paper,

cardboard, plastic, and the like.

20. Do not cover crumb tray or any part of the oven with metal foil.

This will cause overheating of the oven.

21. To turn oven off, turn Timer to OFF position. See “Parts and

Features” section.

22. Do not place eyes or face in close proximity with tempered

safety glass door, in the event that the safety glass breaks.

23. Always use appliance with crumb tray securely in place.

24. Do not use appliance for other than intended use.

25. Clean oven interior carefully. Do not scratch or damage heating

element tube.

840195701 ENv03.indd 3840195701 ENv03.indd 3 3/14/12 2:54 PM3/14/12 2:54 PM

Parts and Features

Small Baking

Pan

Temperature Knob

Slide-Out Crumb/

Drip Tray

Easy-Clean Oven

Interior

Rotisserie Insert

Rotisserie Forks

on Rotisserie Rod

(Rotisserie Skewer)

Rotisserie Lift

Oven Racks

(2)

Broil Rack

BEFORE FIRST USE

Most heating appliances produce an odor and/or smoke when used the first time. Plug unit

into outlet. Turn FUNCTION dial to BAKE and turn TEMPERATURE dial to 450˚F; then rotate

TIMER to set for 5 minutes. Let the oven preheat for approximately 5 minutes. The odor

should not be present after this initial preheating. Wash baking pan, broil rack, and oven

rack before using.

Function Knob

Red Power Indicator Light

ON/OFF Oven Control/

Timer

Broil Rack in

Baking Pan

Large Coated Baking Pan

840195701 ENv03.indd 4840195701 ENv03.indd 4 3/14/12 2:54 PM3/14/12 2:54 PM

Parts and Features (cont.)

BAKE

Center food in the oven. Rack position will vary depending on size of food.

Small Baking Pan

This pan is used on the

oven rack.

Large Coated Baking Pan

This pan is used instead of an

oven rack and is placed in the

rack slots.

BROIL

Place oven rack in high position.

ROTISSERIE

Remove both oven racks.

Place large coated baking pan in the

lowest position for drippings.

840195701 ENv03.indd 5840195701 ENv03.indd 5 3/14/12 2:54 PM3/14/12 2:54 PM

How to Bake

Center food in the oven. Rack position will vary depending on size of

food.

Set TEMPERATURE:

Rotate Temp Dial to desired

temperature.

Set FUNCTION to BAKE.

PREHEAT:

Rotate Timer past 40, then to

10 minutes to preheat before

beginning to bake.

Fire Hazard.

• If contents ignite, do not open oven door.

Unplug oven and allow contents to stop

burning and cool before opening door.

• Do not use oven cooking bags.

• Always allow at least 1 inch between

food and heating element.

• Always unplug oven when not in use.

wWARNING

BAKE:

After oven is preheated, rotate

Timer past 40 minutes and then

to desired baking time or rotate

Timer to

STAY ON

FOR 2 PIZZAS:

Place the baking racks in the

bottom rack slot and in the third

rack slot (from the bottom).

Preheat the oven, and then place

the pizzas on the baking racks.

Cook the pizzas for about one-half

the recommended time, and then

switch the baking rack positions

to allow the pizzas to be uniformly

cooked top and bottom.

840195701 ENv03.indd 6840195701 ENv03.indd 6 3/14/12 2:54 PM3/14/12 2:54 PM

How to Bake (cont.)

• Do not totally enclose foods in aluminum foil.

Foil can insulate foods and slow down heating.

• To reheat rolls or biscuits, place on baking pan

and heat at 300°F (149°C) for 10 minutes.

• Reheat leftover roasts or casseroles at 350°F

(177°C) for 20 to 30 minutes or until heated

through.

• Bake foods, such as a whole chicken, on the

LOW RACK POSITION. Place food in baking pan.

• Ovens with convection mode: When baking

pizza, use convection setting and reduce cooking

time by 25%.

APPROX. BAKE TIMES

30 minutes

15 minutes

Turn foods halfway through

cooking time.

Visit foodsafety.gov for more

safe cooking temperature

information.

170°

145°

77°

63°

FOOD

Fresh Chicken Breast

Fish Fillet

INTERNAL

TEMPERATURES

840195701 ENv03.indd 7840195701 ENv03.indd 7 3/14/12 2:54 PM3/14/12 2:54 PM

Convection Bake

1 2

Set TEMPERATURE:

Rotate Temp Dial to desired

temperature.

Set FUNCTION to CONVECTION.

BAKE:

After oven is preheated, rotate

Timer past 40 minutes and then

to desired baking time or rotate

Timer to

STAY ON

Fire Hazard.

• If contents ignite, do not open oven door.

Unplug oven and allow contents to stop

burning and cool before opening door.

• Do not use oven cooking bags.

• Always allow at least 1 inch between

food and heating element.

• Always unplug oven when not in use.

wWARNING

PREHEAT:

Rotate Timer past 40, then to

10 minutes to preheat before

beginning to bake.

Center food in the oven. Rack position will vary depending on size of

food.

FOR 2 PIZZAS:

Place the baking racks in the

bottom rack slot and in the third

rack slot (from the bottom).

Preheat the oven, and then place

the pizzas on the baking racks.

Cook the pizzas for about one-half

the recommended time, and then

switch the baking rack positions

to allow the pizzas to be uniformly

cooked top and bottom.

840195701 ENv03.indd 8840195701 ENv03.indd 8 3/14/12 2:54 PM3/14/12 2:54 PM

TIPS FOR USING CONVECTION BAKE

NOTE: Convection Bake forces more air to circulate

in the oven, so food will cook faster than the

conventional Bake setting.

• Ovens with convection mode: When baking

pizza, use convection setting and reduce cooking

time by 25%.

• Bake at the same oven temperature but for a

shorter period of time.

• Bake for the same length of time as the conven-

tional Bake setting, but reduce the temperature

by about 25 degrees.

• Bake for a slightly shorter period of time AND at a

reduced temperature.

Turn foods halfway through cooking time.

Visit foodsafety.gov for more safe cooking

temperature information.

Convection Bake (cont.)

840195701 ENv03.indd 9840195701 ENv03.indd 9 3/14/12 2:54 PM3/14/12 2:54 PM

Fire Hazard.

• If contents ignite, do not open oven door.

Unplug oven and allow contents to stop

burning and cool before opening door.

• Do not leave oven unattended during operation.

• Keep 1 inch between food and heating element.

• Do not use oven cooking bags.

• Do not heat foods in plastic containers.

• Follow food manufacturer’s instructions.

wWARNING

How to Broil

Use small baking pan for best

results. Place food directly on

small baking pan or on broil rack

inserted into small baking pan.

Place in oven. DO NOT PREHEAT

OVEN.

Set TEMPERATURE:

Rotate Temp Dial to BROIL/

ROTISSERIE.

Set FUNCTION to BROIL.

NOTE: Only upper heating

elements will be on in BROIL

mode.

BROIL:

Rotate Timer past 40 and then

to the desired broiling time or

rotate Timer to STAY ON. Turn

foods when browned or halfway

through cooking time.

APPROX. BROIL TIMES

25 minutes

30 minutes

35 minutes

40 minutes

Turn foods halfway

through cooking time.

Visit foodsafety.gov

for more safe cooking

temperature information.

165°

140° rare

160° med

170° well

73°

60°

71°

77°

FOOD

1/4-lb. (115-g) Hamburger

Steak – 1" (2.5-cm) thick

INTERNAL

TEMPERATURES

840195701 ENv03.indd 10840195701 ENv03.indd 10 3/14/12 2:54 PM3/14/12 2:54 PM

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Horno de Hamilton Beach

Hamilton Beach

Hamilton Beach 31334-CN Manual de usuario

Hamilton Beach

Hamilton Beach 31401 Manual de usuario

Hamilton Beach

Hamilton Beach Sure-Crisp 31413 Manual de usuario

Hamilton Beach

Hamilton Beach 31508 - 6 Slice Capacity Toaster Oven... Manual de usuario

Hamilton Beach

Hamilton Beach 32522 Manual del propietario

Hamilton Beach

Hamilton Beach 32180 Manual de usuario

Hamilton Beach

Hamilton Beach 31137 Manual del propietario

Hamilton Beach

Hamilton Beach 31334 Manual del propietario

Hamilton Beach

Hamilton Beach 31142 Manual de usuario

Hamilton Beach

Hamilton Beach Flexi-Grill 31395 Manual del propietario

Hamilton Beach

Hamilton Beach 31334 Manual de usuario

Hamilton Beach

Hamilton Beach 31508-220 Manual del propietario

Hamilton Beach

Hamilton Beach Horno de la Tostadora Manual de usuario

Hamilton Beach

Hamilton Beach 31195 Manual de usuario

Hamilton Beach

Hamilton Beach 31507 Manual de usuario

Hamilton Beach

Hamilton Beach 31411 Instrucciones de instalación

Hamilton Beach

Hamilton Beach Easy Reach 31126 Instrucciones de instalación

Hamilton Beach

Hamilton Beach 31151 Manual del propietario

Hamilton Beach

Hamilton Beach 32600 Manual de usuario

Hamilton Beach

Hamilton Beach 31150C Manual de usuario

Hamilton Beach

Hamilton Beach 31506 - Hamilton 6 SL Toaster Oven Manual de usuario

Hamilton Beach

Hamilton Beach 31230 Manual del propietario

Hamilton Beach

Hamilton Beach 31300 Manual de usuario

Hamilton Beach

Hamilton Beach 840099000 Manual de usuario

Manuales populares de Horno de otras marcas

Bosch

Bosch HVA531NS0 Manual de usuario

Electrolux

Electrolux EOF6P46X Manual de usuario

NEFF

NEFF B44S32 5GB Series Manual de usuario

Combi

Combi BLODGETT BC142GDS Manual de usuario

AEG

AEG COMPETENCE 311704300 Manual de usuario

Falcon

Falcon DOMINATOR PLUS G3106 Series Guía del usuario

Rational

Rational SCC WE 61G Manual de usuario

Smeg

Smeg DOSPA38X Manual de instalación y operación

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manual de usuario

Miele

Miele HR 1954-2 Manual de usuario

KHIND

KHIND OT50 Manual de usuario

Henny Penny

Henny Penny Smoker Box Manual de usuario

Lang

Lang ECOD-AP Manual de usuario

AEG

AEG BEK455310M Manual de usuario

Frigidaire

Frigidaire FNGE90JGR Manual de usuario

Hotpoint

Hotpoint FE9 S831 JSH IX Manual de usuario

GE Advantium SCB2000 Manual de usuario

AEG

AEG DE401301DM Manual de usuario
