Haier XQSB60-JN Manual de usuario

This manual is for

Please read this manual

carefully before using.

Retain it for future reference.

XQSB60-JN

User's manual

Environment-friendly double-driver

automatic washing machine

0030806318B

Names of the parts..................................................1

Safety precautions ................................................2

Installation and adjustment ..............................4

Install the water inlet hose....................................6

Preparation before washing................................................8

The musts in washing ...........................................8

Usage of the detergent ....................................9

Put in laundries..............................................9

Close the top lid..................................................................9

Use the operation buttons .................................10

Finish washing ...................................................16

Disposal after washing .........................................17

Trouble shooting *Answer to question..............................18

Packing list ...............................................19

Specification..............................................................19

Contents

Names of the parts

Top lid handle

Adjustable leg film

Water absorption

cushion

Drain hose

Back cover

Water inlet valve

Inner cover component

Detergent box

Control panel

Outer tub cover

Balance ring

Inner tub

Lint filter(2 pieces)

Front control board

Cabinet

Cabinet base

Fixed leg (3 pieces)

Adjustable leg

Softener inlet

Front door

Pulsator

Handle(2 pieces)

Top lid component

Decorative board

Attachment block

(2 pieces)

Liquid bleacher

inlet

Meaning and description of the symbols

Warning sign

Forbidden sign

Contents marked with that symbol are related to the

safety of the product and the personal safety of the

users. Please operate in strict conformity to the contents,

otherwise it may cause damage of the machine or

injure the personal safety of the user.

Contents marked with that symbol are actions forbidden

to perform. Performing of those actions may result

in damage of the machine or injure the personal

safety of the user.

Do not wash water-proof laundry like the raincoat,

bike covers etc. To avoid abcommon vibrations in

spinning and damages to the laundries.

In common usage of the washing machine, the power

plug shall be ready to be pulled or plugged with hand.

Be sure to pull the plug off and close the water faucet

when occurring power failure, delivering the machine,

setting the machine idle or cleaning the machine. Do

not plug or pull the power plug with wet hand.

Do not use water with temperature higher than 50

Safety precautions

In case the washing machine is installed on ground

with carpet, be careful not to block the ventilation hole

with carpet.

Do not put the machine at damp place like the

bathroom. Never wash it with water. Do not

put wet laundries on the control panel coating.

Do not let the machine share one receptacle with other

electric appliances. If the power plug is damaged, or

the plugging into the receptacle is loose, do not use

the plug any more.

Do not bend,stretch, twist, bind the power cord by force, or reform it.

Do not pressor clamp it with heavy items. If the power cord and power

plug are bad,or the receptacle is loose, be sure to have it replaced by

the technicians ofour special shopor our agent,or the after-salesservice

department to avoidany risk. Keep the prong of the power plugclean. If

dust is foundon the powerplug, please wipeit off withdry cloth.

Please insert the power cord into special receptacle

with rated voltage. Be sure to use single-phase three

pins receptacle. Ensure the earthing prong of the

power receptacle is earthed reliably. Use leakage

protector if possible.

The ventilation

holes at the bottom

Safety precautions

Do not put hand into the rotating tub. It is dangerous

even if the rotation speed is slow. Take special care of

the children. Keep children away from the washing

machine to avoid them climbing on.

Do not decompose, repair or alter the machine by

yourself.

Do not put any hot or heavy items (such as the

kettle with hot water) on the washing machine.

Do not wash laundry with volatile materials

(such as thinner, petrol etc.).

Keep the machine away from direct sunlight and

heat source like the heater.

The handicapped or Childrenwithout care shall not

use the machine.

Please keep the lint filter in good

condition, and install it to proper

position during washing. If

the lint filter is lost or damaged,

please contact the local after-sales

service department of our company.

Benzene

To protect your laundries and washing machine,

please take out all of the coins, buttons, sand, hairpin

and other foreign materials before washing.

Please check if the water faucet is open, and if the connection of the water inlet pipe is proper before washing.

Please put down the drain hose before washing.

It is suggested to use foamless washing powder.

Please don't use the washer in the environment below 0 if the washer has been stored below 0 please

be sure to ensure the washer is placed under the room temperature for 24 hours and then use otherwise the

washing effects may be lowered or the washer may be damaged.

Dismantle

Install

Please install and adjust the machine according to the requirement of the manual.

It is very important to your security and correct operating the machine.

Installation and adjustment

After opening the package, please lean the washing

machine gently down on soft items (like towel cloth,

blanket, etc.). Install the bottom plate to the bottom

of the machine with four screws by a cross screwdriver,

then lift the machine up gently.

See to the figure:

Install the inner cover component

Install the bottom plate

1.Open the top lid of the washing machine.

2.Put the inner cover component on the outer tub cover,

aiming the inner cover shaft to the installation hole of the

corresponding outer tub cover shaft groove.

3.Firstly insert the inner cover shaft of one side into the

corresponding outer tub cover shaft groove, then push

the another inner cover shaft into the corresponding

outer tub cover shaft groove. Please install to designated

position to guarantee there are no dropping or abcommon

sound in opening and closing of the inner cover, and the

operation shall be smooth. Do not dismount the inner

cover component after washing.

Soft object

Bottom plate

Back

Screw

Front

Inner cover

Inner cover shaft

Outer tub cover

shaft groove

Right hand

Left hand

Usage the drain hose

The washing machineaway from wallshould be overrun20mm. The largestallowable slope ofthe

shank base ofthe machine is1 .The slanting orrough ground willresult in unstablerunning or

stoppage of themachine. Please adjustit with followingmethods:

Confirm it's horizontal:

Hang the lead line to check if it is

horizontal.

Adjust the adjustableleg:

Adjust the Installation position

1 .Totwist the adjustableleg, please firstlift up the

side of theleg slightly,loosen the adjustablenut,

and twist theleg.

2 . Afteradjustment, fasten thenut.

Fasten

Loosen

High Low

the adjustable nut

the adjustable feet

The drainage shall be smooth with the drain hose.

1.The height of the drain hose shall be less than 10cm,

or the drainage will not be smooth, and cost such long

time that the machine may stop at mid way.

2.Do not step on or press the drain hose.

4.If extra drain hose is needed, please make separate

purchase. The inner diameter of the extra hose shall

not less than 30mm, and the length shall not exceed

1.5m.

5.If the extra hose is too long,cut it either at

A or at B point.

<10cm

> 30mm

<1.5m

3. If the drain hose is too long, cut it at mid point. To make

smooth drainage, cut the front end of the hose slantingly.

Install the water inlet hose

1. Attach the water inlet hoses to the water faucet. Using pliers, tighten

the coupling. ( As figure 1)

NOTE: Do not over tighten. Damage to the valves can result.

2. Connect the other ends to the water inlet valve .

( As figure 2)

Figure 1

Water absorption cushion

Jointer of the water inlet hose

Jointer of the

water inlet valve

Figure 2

1.After using, Closethe water tap.

2. Pull off the water inlethose from thewater tap and washer

Take down the water inlet hose

Check the connection between the jointer of

the water inlet hose and the water tap

1.Swing the hose gently to confirm if it is fastened stable.

2.After installation, open the faucet to check if it leaks.

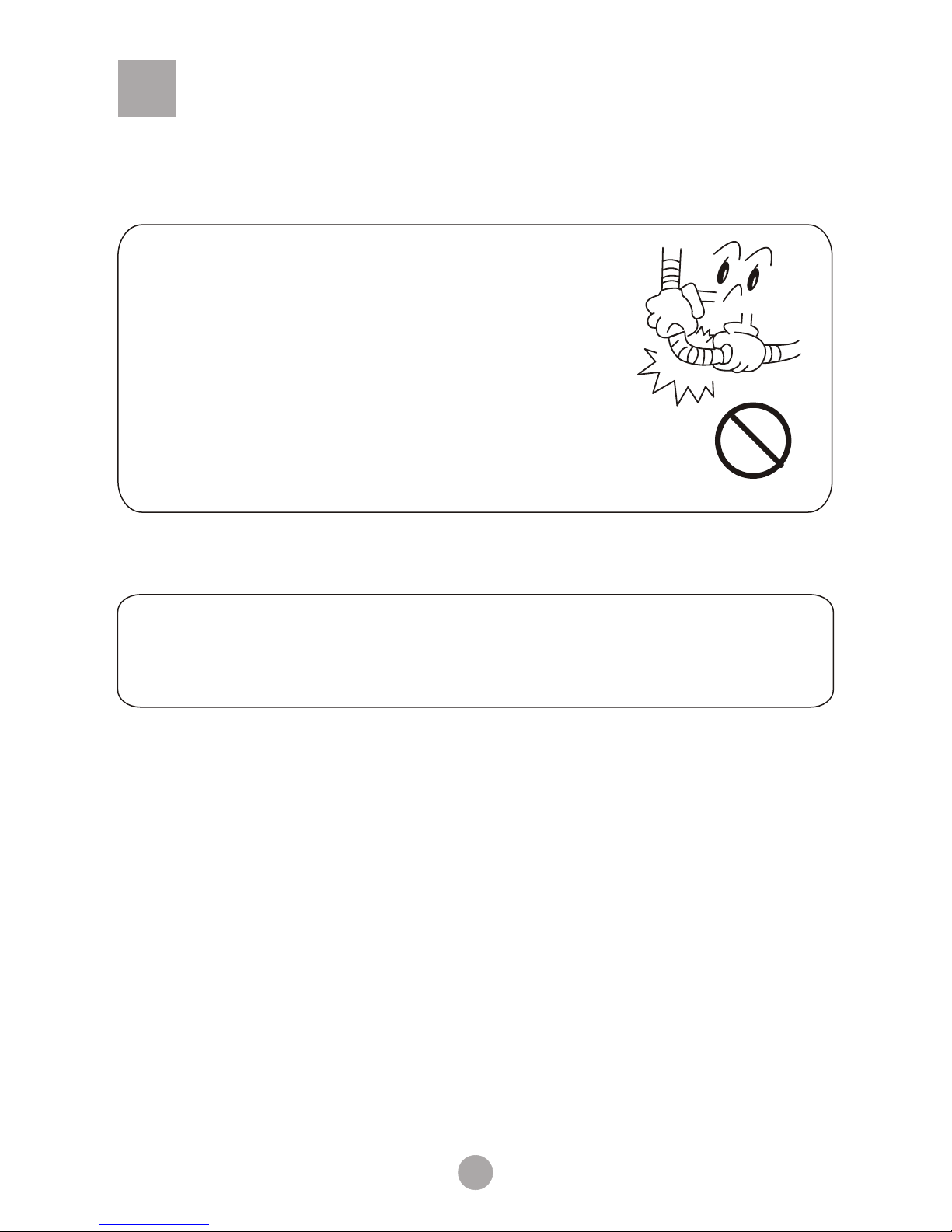

3.Do not bend the hose with overstrain.

4.Before each usage please check if the connection

between the jointer of the water inlet hose and the

water faucet, and the installation of the water inlet

hose are firm, so as to prevent dropping from

improper installation position.

1 Preparation before washing

Confirm if there's

special requirement

for the laundries.

Clear the pocket.

Take out the coins ,

sand, hairpins etc.

Fasten the buttons

and zippers.

When the pulsator is

running ,the buttons of

the laundries may cause

noise. For the sake of

discretion ,please put

the laundries with

buttons into other

laundries.

Preparation before washing

The quantity of the

laundries shall not

exceed the rated

value. The big

laundries like the

jeans shall be put

in loosely.

Pay attention to followings before washing the laundries

1.Connect the water inlet hose.

2.Confirm that the washing machine is earthed

reliably . Then insert the power plug into the

receptacle. Do not connect the earth terminal

to the gas pipe and tap water pipe.

a. Check if the laundries are applicable for washing with machine.

B. Divide the laundries that are not colorfast from other laundries.

c. Put those laundries difficult to absorb water into water with hand.

d. For those laundries with heavy soil, please first remove the dirt like mud or dust. For the parts with heavy soil,

please apply detergent in advance, which can make it easier to remove the soil.

e. For those laundries that may get lint ball and those with long fur, turn it over before putting in.

f. Do not put those laundries polluted by chemicals directly into the washing machine.

The capacity of washing of the machine refer to the largest weight of the standard laundries under dry

condition that can be washed in one time.

The thickness ,size , type of the cloth will influence the actual washing capacity. It is suitable to put in

reasonable amount of laundries and the laundries can be turned round in washing for one time washing.

Do not select high water level for small quantity of laundries ,so as to avoid splashing of water.

2 The musts in washing

4.The ground inclination or unevenness may cause

the washer operating not steadily or cause noise,

please set level the washer.

It is suggested to use foamless washing powder.

Otros manuales para XQSB60-JN

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Arandela de Haier

Haier

Haier HWM6000 Manual de usuario

Haier

Haier HE600TX Manual de usuario

Haier

Haier HW100-B14636N Manual de usuario

Haier

Haier HWM62-0566 Manual de usuario

Haier

Haier HA1000T Manual de instrucciones

Haier

Haier HWM75-1279 Manual de usuario

Haier

Haier HWM200-B1678S Manual de usuario

Haier

Haier HLTW600AXW Manual de usuario

Haier

Haier HLP28E Manual de usuario

$Haier JW-K50B\JW-K50C Manual de usuario$

Haier

Haier JW-K50B\JW-K50C Manual de usuario

Haier

Haier HW-E1050TVE Manual de usuario

Haier

Haier HW-C1270TVEME Manual de usuario

Haier

Haier XQB100-96 Manual de usuario

Haier

Haier HWM50-0528 Manual de usuario

Haier

Haier RWT150AW Manual de usuario

Haier

Haier HWD 1500 Manual de usuario

Haier

Haier XQB60-91BF Manual de usuario

Haier

Haier HLP21E - Pulsator Wash With Tub Manual de usuario

Haier

Haier HW90-BP14636 Manual de usuario

Haier

Haier GWT450AW Manual de usuario

Haier

Haier HWF10DW1 Manual de usuario

Haier

Haier XQB55-10 Manual de usuario

Haier

Haier XPB135-LA Manual de usuario

Haier

Haier BYWR1206 Manual de usuario

Manuales populares de Arandela de otras marcas

Tricity Bendix

Tricity Bendix AW 1000 W Guía del producto

Panasonic

Panasonic NA-F60L5WRB Manual de usuario

GE WSLP1500 Manual

Electrolux

Electrolux EWF1284EDW Manual de usuario

Bosch

Bosch WAN2829BSN Manual de usuario

LG TV2516DV3B Manual de usuario

LG TH2517DSAV Manual de usuario

VESTEL

VESTEL CMH-XL 7510 TE Manual de usuario

AEG

AEG 74335 Manual de operación

Johnson

Johnson JWF721A Manual de usuario

Beko

Beko WTE7604XLW0 Manual de usuario

Danby

Danby DTT100A1WDB Instrucciones de montaje

Amica

Amica WA 14 Ex Manual de usuario

Daewoo

Daewoo DWD-F1222 Manual de usuario

Bosch

Bosch WAS28461AU Manual de usuario

Miele

Miele PW 6080 Vario Manual de usuario

Finlux

Finlux FLX108CF220 Manual de usuario

Whirlpool

Whirlpool 3LBR5132AN0 Manual de usuario
