Haier XPB80-50 Manual de usuario

XPB80-50

Single-tub Washing Machine

Names of the parts........... the 2nd cover

Safety precautions ........................... 1

Installation and adjustment ..................3

Preparation before washing .............. 5

Put in the laundries ............................ 6

Put in the detergent ............................ 7

Select the wash selector...................... 7

Select the wash time .......................... 7

Close the top cover ............................. 8

Finish washing .................................... 8

Disposal after washing .........................8

Trouble shooting.................................9

Packing list...........................................9

Specification................the back cover

Contents

Before using

Using process

Please read this manual carefully before using.

Please retain it attentively for future reference.

User's manual

Contents marked with that symbol are related to the safety of the product

and the personal safety of the users. Please operate in strict conformity to

the contents.

Contents marked with that symbol are actions forbidden to perform.

Performing of those action may result in damage of the machine or

influence the personal safety of the users.

Accessories

water inlet hose

( one pc )

Base

Cabinet

Drain hose

Back cover

Fixing leg

(four pieces)

Power cord

Valve cover

Handle

Panel support

Pulsator

Lint filter

Filter cap

Top lid

Before Using

Names of the parts

Control panel

Water inlet

Quick water inlet

Timer knob

Water selector

MAX

MED

MIN

Water-filling jointer

(one pc)

Ventilation hole at

the bottom of the

washing machine

Before Using

Safety precautions

If the power cord is bad, to avoid risk it is required to replace it by the technicians of

our special shop or the after-sale service department. Keep the pin of the power

plug clean.

Be sure to use three-phase receptacle.

Earth the earthing terminal of the

receptacle reliably.

Do not put the machine at damp place

like the bathroom . Never wash it with

water. Do not place wet laundries on the

control panel.

In case the washing machine is installed

on ground with carpet , do not block the

ventilation hole with carpet.

When the machine is normally using, please

put the power plug at the location easily to

be inserted and extracted by hand. Be sure

to pull the plug off when there'spower failure,

or the machine is being moved, cleaned or

when it is idle.

Do not use water hotter than 50 C .

Do not share one receptacle with other

electric appliances. Do not use it in

case that the power plug is damaged

or the inserting into the receptacle is

loose.

Earth

Before Using

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.

Handicapped or children without care

shall not use the machine.

Do not put any hot or heavy items

( such as the kettle with hot water )

on the washing machine.

Do not decompose, repair or alter the

machine by yourself.

Keep the machine away from direct

sunlight and heat source like the

heater.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.).

Petrol

Thinner

Safety precautions

Please install and adjust the machine according to the requirement of the manual.

It is very important to your security and correct operating the machine.

Usage of the drain hose

The drainage shall be smooth with the drain hose.

1.The height of the drain hose shall be

less than 10cm , or the drainage will

not be smooth enough and cause

incomplete drainage.

2.Do not step on or press the drain hose.

3.If extra drain hose is needed , the inner

diameter of the extra hose shall not less

than 30mm, and the length shall not exceed

1.5m.

If the extra hose is too long, cut it either

at point A or B.

<10cm

> 30mm

<1.5m

Before Using

Installation and adjustment

Adjust the installation position

Install the water inlet hose ; Select the water level

The largest permitted slope of the bearing surface of the washing machine is 2.

Slanting or uneven ground will cause unstable operation of the machine. Please

check with following methods:

Hang a becket with weight to confirm if the washing machine is horizontal.

Before Using

Water inlet hose

Water inlet

High

about 83L

about 68L

about 49L

Low

Medium

Water level

indicator

Insert the water inlet hose into the water-inlet

on the control panel directly. ( pull it out to

dismantle it)

Fill the water to the water level selected

according to the quantity of the laundries.

Attention:

Do not exceed the " High " water

level , otherwise the water may

overflow out of the machine.

Use the quick water inlet

MAX

MED

MIN

Insert the water-filling jointer into water inlet hose,

then push the water-filling jointer into the water

inlet on the control panel. (To dismantle the water

inlet hose, just push the control handle as

indicated in the figure and pull it out)

Fill water into the wash tub directly through

quick water inlet. It can reduce the humidity

inside the control panel significantly and

prolong the operating life of the components.

Quick water inlet

Water-filling jointer

Control handle

Push

Confirm if

there's special

requirement for

the laundries.

Clear the pocket.

Take out the

coins , sand,

hairpins etc.

Fasten the

buttons and

zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion,please

put the laundries

with buttons into

other laundries.

Preparation before washing

1.Connect the water inlet hose.

2.Confirm that the washing machine is

earthed reliably . Then insert the power

plug into the receptacle. Do not connect

the earth terminal to the gas pipe and

tap water pipe.

3.Hang the drain hose up.

The quantity of

the laundries

shall not exceed

the rated value.

The big laundries

like the jeans

shall be put in

loosely.

Using process

1 Preparation before washing

Pay attention to followings before washing the laundries

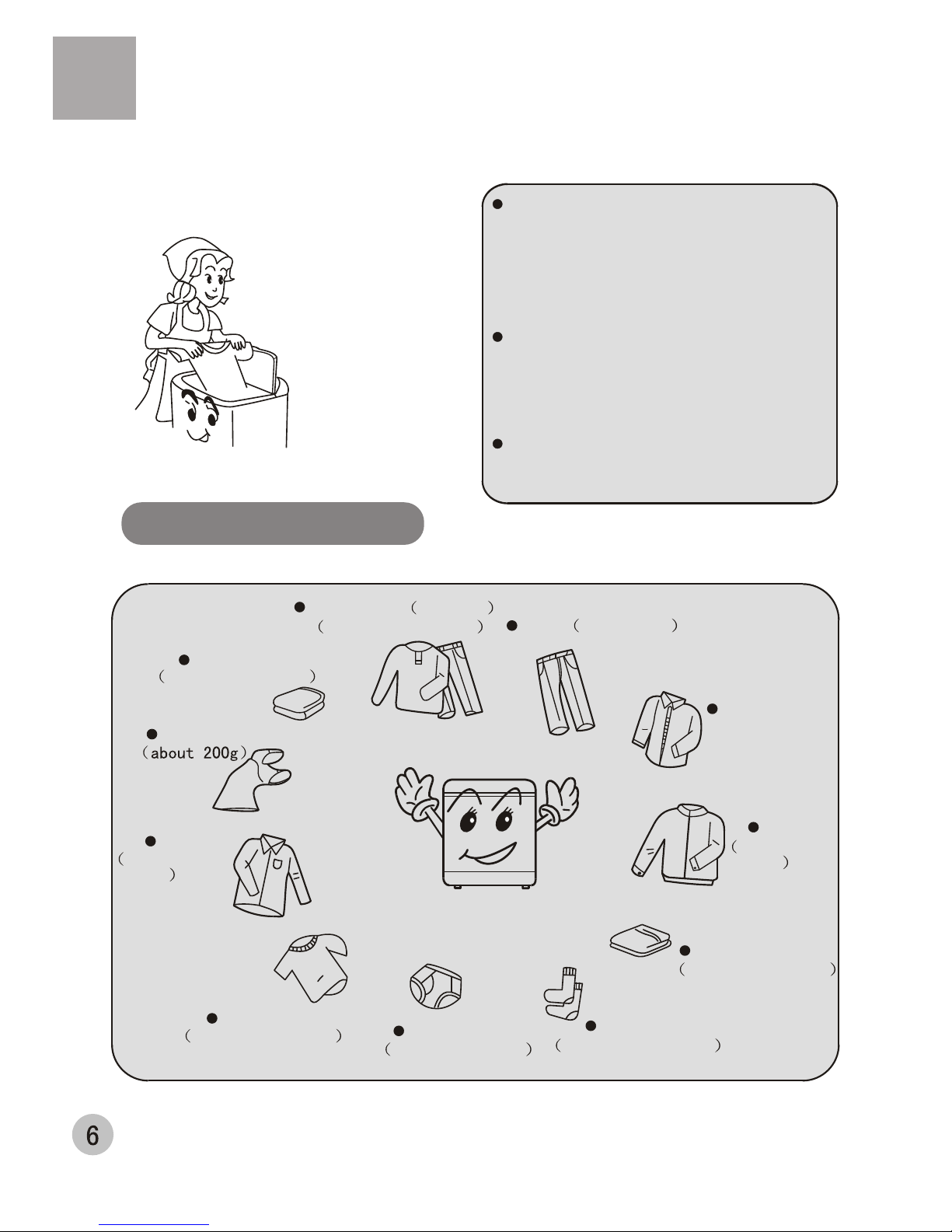

Reference weight of the laundries:

working suit up,down

jeans about 800g

The capacity of washing of the machine

refer to the largest weight of the standard

laundries under dry condition that can be

washed in one time. Laundries quantity

in one washing cycle shall be lower

than the rated capacity.

The thickness ,size , type of the cloth will

influence the actual washing capacity. It

is suitable to put in reasonable amount of

laundries and the laundries can be turned

round in washing for one time washing.

Do not select " High " water level for

laundries less than 4.0kg, so as to avoid

splashing of water.

blending coat

about 800g

shirt jacket

single bed sheet

socking

underpants

undershirt

pajamas

blanket

cotton,about 900g

cotton,about

300g

cotton,about

800g

cotton,about 600g

blending,about 50g

cotton,about 70g

cotton,about 180g

Using process

2 Put in the laundries

cotton,about 1120g

Selection of the quantity of the washing powder

How to use the washing powder

How to use the whitener

Fill water to decided level. Dilute the whitener with container. Pour it slowly into the

washing tub.

Avoid using whitener on laundries with color or pattern as they are prone to lose color.

The whitener shall not touch the laundries directly.

Direct dissolved in the machine:

1.Fill small quantity of water.

2.Add the powder . Run for 30 seconds to

dissolve it completely.

3.Put it in the laundries. Select suitable

water level.

The instant dissolving of the washing powder:

1.Prepare warm water of 30 C and a container.

2.Add the powder while stirring to fully

dissolve it.

The powder is more prone to pollute the

laundries than the detergent. Therefore

please use it with proper quantity.

It is suggested not to use high sudsing

detergent.

Dosage of different washing powder is

different. Please refer to the instruction

of the washing powder for the detail

dosage.

Refer to the user's manual for the usage and quantity of the whitener.

For powder whitener,please dissolve it before using.

Please select wash time according to the laundries.

Please select water current according to the laundries.

Laundries Wash time minutes

Knitwear/chemical fiber

Cotton,blending,linen

Very dirty and thick laundries

Bed sheet

Silk(thin laundries) About2 4~

About3~6

About7~13

About8~10

About10~13

3 Put in the detergent

5 select the wash time

4 select the wash selector

Using process

Water level

Standard dosage

Concentrated washing

powder Common washing

powder

Water quantity

About About

High (about83L)

Low (about49L)

Medium (about68L)

75g

61g

43g

83g

68g

49g

6 Close the top lid

7 Finish washing

8 Disposal after washing

The pulsator stops rotating. Put down the drain hose

to discharge the water.

After using, please clean the lint and foreign materials of the lint filter and lint frame in time.

Otherwise it may influence your using the machine.

Please first pull off the power plug from the receptacle before cleaning.

Figure 2

Figure 3

Figure 1

Thinner

Alcohol

Petrol

1. Take off the lint filter

Put hand at the indicated position.

Push down to take it off. (See to

Figure 1)

2. Clean the lint

Put it in water and clean while it is still

wet.(See to Figure 2)

Attention: be sure not to confuse the direction.

Wipe the complete unit with soft cloth

twisted dry.

Wipe with neutral detergent if too dirty.

After washing, dismount the water inlet hose.

Pull off the power plug and hang up the

power cord.

Do not store water in the tub for long period.

Discharge the water immediately after each

using.

Wipe off the water drops on the surface and

inside the tub with clean soft cloth. Open the

cover of the wash tub for some time (about

one hour), then close it.

Hang up the drain hose.

Do not wash it directly by water.

3. Install the lint filter

After cleaning, insert the bottom of

the lint filter (marked with "down side")

into the filter frame, then push the

upper part of the filter in (marked with

"up side"). (See to Figure 3)

The lint filter must be used during washing.

It must be cleaned in time after each using.

Cleaning the lint filter

Using process

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Arandela de Haier

Haier

Haier HLPW028BXW Manual de usuario

Haier

Haier Thermocool HMS800TVE Manual de usuario

Haier

Haier HBS82-880 Manual de usuario

Haier

Haier HW-B1470TVE-F Manual de usuario

Haier

Haier HLT23E - 07-04 Manual de usuario

Haier

Haier HWM120-01A6 Manual de usuario

Haier

Haier XQG50-S1216 Manual de usuario

Haier

Haier HWMP75-918 Manual de usuario

Haier

Haier HW80-IM12826TNZP Manual de usuario

Haier

Haier HE805TX Manual de usuario

Haier

Haier HW70-IM10829TNZP Manual de usuario

Haier

Haier QFW150 Series Instrucciones originales

Haier

Haier HA600TX Manual de usuario

Haier

Haier HWM50-0528 Manual de usuario

Haier

Haier HWM70-1203D Manual de usuario

Haier

Haier HWM110-23BS Manual de usuario

Haier

Haier JW-K70F Manual de usuario

Haier

Haier WMQ-12.P Manual de usuario

Haier

Haier HWM70-12688NZP Manual de usuario

Haier

Haier HW-F1481 ME Manual de usuario

Haier

Haier HDS1260TVE Manual de usuario

Haier

Haier HWT60AA1 Manual de usuario

Haier

Haier XQB60-68 Manual de usuario

Haier

Haier HWT12AD1 Manual de usuario

Manuales populares de Arandela de otras marcas

Tricity Bendix

Tricity Bendix AW 1000 W Guía del producto

Panasonic

Panasonic NA-F60L5WRB Manual de usuario

GE WSLP1500 Manual

Electrolux

Electrolux EWF1284EDW Manual de usuario

Bosch

Bosch WAN2829BSN Manual de usuario

LG TV2516DV3B Manual de usuario

LG TH2517DSAV Manual de usuario

VESTEL

VESTEL CMH-XL 7510 TE Manual de usuario

AEG

AEG 74335 Manual de operación

Johnson

Johnson JWF721A Manual de usuario

Beko

Beko WTE7604XLW0 Manual de usuario

Danby

Danby DTT100A1WDB Instrucciones de montaje

Amica

Amica WA 14 Ex Manual de usuario

Daewoo

Daewoo DWD-F1222 Manual de usuario

Bosch

Bosch WAS28461AU Manual de usuario

Miele

Miele PW 6080 Vario Manual de usuario

Finlux

Finlux FLX108CF220 Manual de usuario

Whirlpool

Whirlpool 3LBR5132AN0 Manual de usuario
