HWM80-113S

Twin-tub Washing Machine

User's manual

Names of the parts.............the 2nd cover

Safety precautions ...............................1

Installation and adjustment ..................3

Introduction of the major functions .......5

Preparation before washing ................6

The musts in washing .........................7

Usage of the detergent .......................8

Washing sequence ..............................9

Disposal after washing .......................13

Contents

Before using

Using process

Trouble-shooting*

Answers to question.....................15

Specification..............the back cover

Packing list ......................................17

Please read this manual carefully before using.

Retain it for future reference

Please check if the power receptacle has good earthing

condition before using to guarantee your safety.

The manufacturer will not bear the responsibility for

those risks occurred from not obeying this manual.

Before Using

Names of the parts

Meaning and description of the symbols

Warning sign

Forbidding sign

Contents marked with that symbol

are related to the safety of the

product and the personal safety

of the users. Please operate in

strict conformity to the contents,

otherwise it may cause damage

of the machine or injure the

personal safety of the user.

Contents marked with that symbol

are actions forbidden to perform.

Performing of those actions may

result in damage of the machine

or injure the personal safety of

the user.

Accessories

Water-filling jointer

(one piece)

Water inlet hose

(one piece)

Gland

(one piece)

Lint filter

Buzzer

Water-filling entrance

Water inlet selector handle

Wash selector

Wash timer

Control panel

Overflow filter

Quick water-filling entrance

Drain hose hook

Water level adjusting lever

Lint filter(Installed by user)

Pulsator

Wash tub

Drain hose

Wash tub cover

Outer cover of the spin tub

Inner cover of the spin tub

Spin timer

Spin tub frame

Spin tub

Cabinet

Power cord

Base frame

If the power cord is bad, to avoid risk it is required to replace it by the technicians of

our special shop or the after-sale service department. Keep the pin of the power

plug clean.

Before Using

Safety precautions

In case the washing machine is installed

on ground with carpet , do not block the

ventilation hole with carpet.

Do not use water hotter than 50 C .

Do not share one receptacle with other

electric appliances. Do not use it in

case that the power plug is damaged

or the inserting into the receptacle is

loose.

Do not wash water-proof laundries such

as the raincoat, bicycle shelter etc. To

avoid abnormal vibration during spinning.

Do not put the machine at damp place

like the bathroom . Never wash it with

water. Do not place wet laundries on the

control panel.

Please insert the power cord into special

receptacle with rated voltage.Be sure to

use single-phase three pins receptacle.

The earthing terminal of the receptacle

must be earthed reliably.If possible,please

adopt electric leakage protector.

When the machine is normally using, please

put the power plug at the location easily to

be inserted and extracted by hand. Be sure

to pull the plug off when there'spower failure,

or the machine is being moved, cleaned or

when it is idle.

Earth

Ventilation hole at

the bottom of the

washing machine

Before Using

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.

Handicapped or children without care

shall not use the machine.

Do not put any hot or heavy items

( such as the kettle with hot water )

on the washing machine.

Do not decompose, repair or alter the

machine by yourself.

Keep the machine away from direct

sunlight and heat source like the

heater.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.).

Petrol

Thinner

Safety precautions

Please check if the water faucet is open, and if

the connection of the water inlet pipe is proper.

It is suggested to use foamless washing powder.

Toprotect your laundries and washing

machine, please take out all of the coins,

buttons, sand, hairpin and other foreign

materials before washing.

Before Using

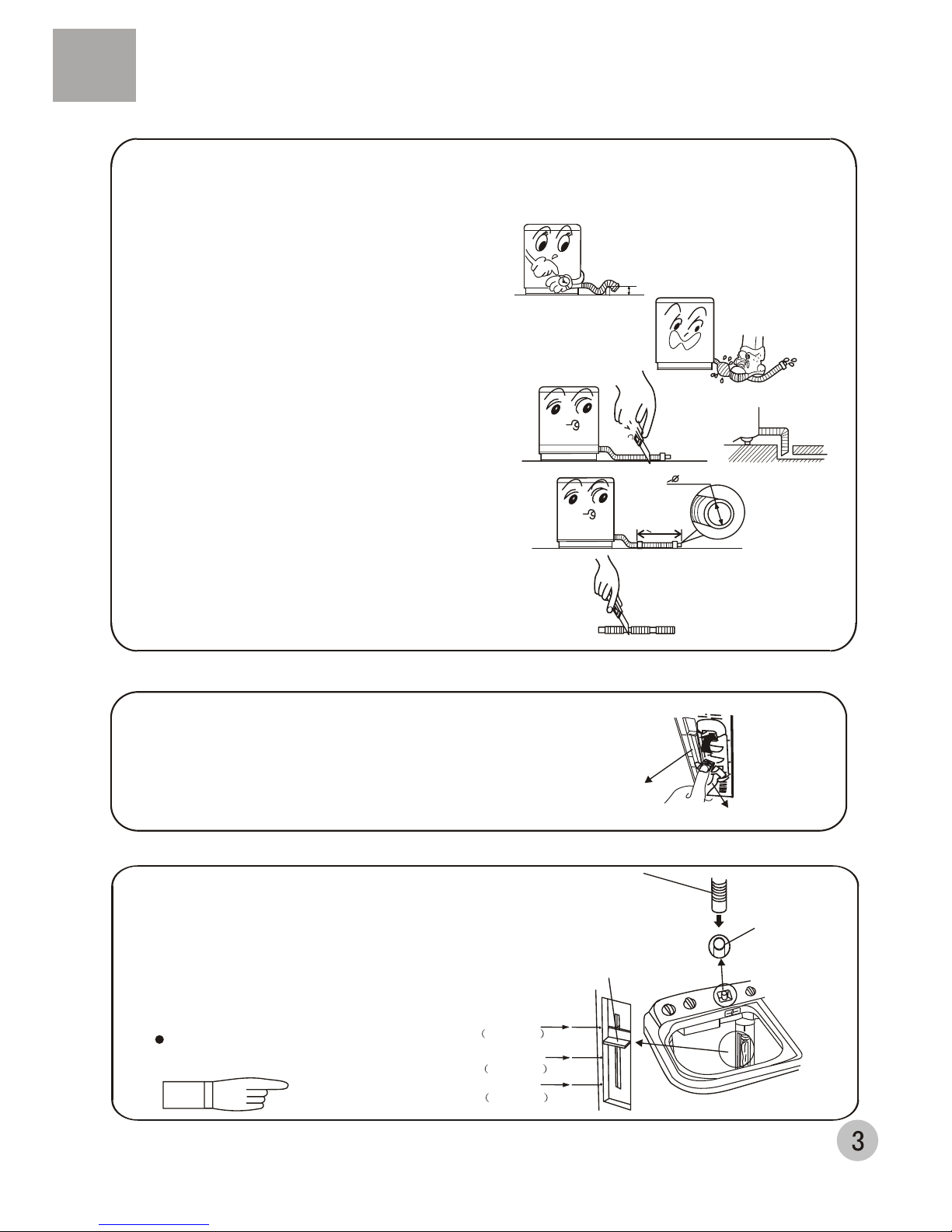

Installation and adjustment

Install the water inlet hose; Select the water level

Page8

Select water level according to the

quantity of the laundries.

Set the water level adjusting lever

to needed line.

Insert the water inlet hose into the water-filling

entrance on the control pane directly.(pull it

out to dismantle it)

Water inlet hose

Water inlet

Maximum Max.

Minimum Min

Medium Med

Water level

indicator

about 55L

about 46L

about 36L

Usage of the drain hose

The drainage shall be smooth with the drain hose.

1.The height of the drain hose shall be

less than 10cm , or the drainage will

not be smooth enough and cause

incomplete drainage.

2.Do not tramp or press the drain hose.

4.If extra drain hose is needed , please make

separate purchase. The inner diameter of the

extra hose shall not less than 30mm, and the

length shall not exceed 1.5m.

5.If the extra hose is too long, cut it either

at point A or B.

3 If the drain hose is too long, cut it at mid point.

To make smooth drainage, cut the front end of

the hose slantingly.

<10cm

> 30mm

<1.5m

Install the lint filter

After opening the package,please take out the

lint filter from the document bag,install it

to the overflow filter of the cabinet.

See to the figure

Please install and adjust the machine according to the requirement of the manual.

It is very important to your security and correct operating the machine.

Overflow filter

Lint filter

Before Using

How to change the direction of the drain hoses

Figure 1 indicates the ex factory

installation position of the drain

hose.

Then hang the drain hose into the hanging hole at the spin tub side. (As per Figure 5).

Extend the drain hose from the side of spin tub.

Extend the drain hose from the rear side

Take out the drain hose from the fixing hook. Extend it from the rear side (When

the drain hose is extended from the rear side, it can be hung on the point for drain

hose at the two sides of the cabinet.) (See to Figure 6).

Take off the drain hose from the hanging

hole of the cabinet. Pull the drain hose

fixing hook outwards gently to take out

the drain hose from the two fixing hooks.

(As per Figure 2)

Rotate the drain hose fixing hook for 90

to take it out from the installation hole

(As per Figure 3).

Install the two drain hose

fixing hooks taken out into

the installation hole at the

other side of the base frame

(to aim at the installation

hole accurately you can

lean the washing machine

forward slightly).Then rotate

for 90 (As per Figure 4).

Pull the fixing hook outwards slightly.

Inlay the drain hose into the fixing hooks

reliably along the groove at spin tub side,

and make it extend towards spin tub side.

Figure 6

Figure 5

Figure 4

Figure 2

Figure 1

Figure 3

Drain hose

fixing hook

Drain hose

fixing hook

Pull outwards

slightly

Side sectional view

Fixing hook

installation hole

Drain hose

Tak e off

the drain hose

Take off the fixing

hook downwards

Rotate the fixing

hook for 90

Insert the fixing hook into the

installation hole upwards

Rotate the fixing

hook for 90

to fix it

Using process

Introduction of the major function

The machine has good comprehensive performance, and nice appearance.

It adopts streamline appearance and full plastic shell, which will never get rust.

For the design on safety and reliability, it adopts the wash shelf, spin shelf and water

reception groove design, and reduces the unfavorable influence on the electrical component

by the vapor. Therefore it guarantees more safe and reliable washing.

By the technology of comprehensive energy-saving, the machine can work under

wide range of voltage, regardless of the voltage fluctuation.

It adopts complete enclosed base frame and low-noise motor, and thus reduces the

working noise significantly. We can guarantee that the purchase of this machine will bring

you a clean world without disturbing your quiet life.

Use the foam-removing spinning to

remove the extra detergent liquid. It

can both shorten the washing time

and save the water consumption.

Foam-removing

spinning

Remove most of

the foam extra

detergent liquid.

Remove the detergent

liquid remained

The effect is best when the

laundries quantity is below

80% of the rated value.

Spin

Fill water for

about 1 minutes Spin for about

1~2 minutes

Quick water-filling entrance

Foam-removing spinning during high-efficiency rinsing

If you do not need spraying spin, you can

fill water into the wash tub directly through

this entrance. It can reduce the humidity

inside the control panel significantly and

prolong the operating life of the components.

Quick water-filling entrance

Confirm if ther-

e's special req-

uirement for the

laundries.

Clear the pocket.

Take out the coi-

ns , sand, hairpi-

ns etc.

Fasten the butt-

ons and zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion,please

put the laundries

with buttons into

other laundries.

Preparation before washing

1.Connect the water inlet hose.

2.Confirm that the washing machine is earthed

reliably . Then insert the power plug into the

receptacle. Do not connect the earth terminal

to the gas pipe and tap water pipe.

3.Put down the drain hose .

4.Slanting or uneven ground may result in

unstable working or abnormal noise. Please

make the machine stand horizontally.

The quantity of th-

e laundries shall n-

ot exceed the rat-

ed value.The big

laundries like th-

e jeans shall be

put in loosely.

Using process

Preparation before washing

Pay attention to followings before washing the laundries

Reference weight of the laundries

Working suit up,down

Jeans about 800g

The capacity of washing and spinning of

the machine refer to the largest weight of

the standard laundries under dry condition

that can be washed or spinned in one time.

Laundries quantity in one washing cycle

shall be lower than the rated capacity.

The thickness ,size , type of the cloth will

influence the actual washing capacity. It

is suitable to put in reasonable amount of

laundries and the laundries can be turned

round in washing for one time washing.

Do not select " Maximum " water level

for laundries less than 3.2kg, so as to

avoid splashing of water.

Blending coat

about 800g

Shirt Jacket

Single bed sheet

Socking

Underpants

Undershirt

Pajamas

Blanket

cotton,about 900g

cotton,about

300g

cotton,about

800g

cotton,about 600g

blending,about 50g

cotton,about 70g

cotton,about 180g

Using process

The musts in washing

cotton,about 1120g

Selection of the quantity of the washing powder list 1

Selection of the current , water level and washing time list 2

How to use the washing powder

How to use the whitener

Fill water to decided level. Dilute the whitener with container. Pour it slowly into the

washing tub.

Avoid using whitener on laundries with color or pattern as they are prone to lose color.

The whitener shall not touch the laundries directly.

Direct dissolved in the machine:

1.Fill small quantity of water.

2.Add the powder . Run for 30 seconds to

dissolve it completely.

3.Put it in the laundries. Select suitable

water level.

The instant dissolving of the washing powder:

1.Prepare warm water of 30 C and a container.

2.Add the powder while stirring to fully

dissolve it.

The powder is more prone to pollute the

laundries than the detergent. Therefore

please use it with proper quantity.

It is suggested not to use high sudsing

detergent.

Dosage of different washing powder is

different. Please refer to the instruction

of the washing powder for the detail

dosage.

Refer to the user's manual for the usage and quantity of the whitener.

For powder whitener, please dissolve it before using.

Water level

Current

Standard dosage

Concentrated washing

powder

Laundries

Common washing

powder

Washing time

(minutes)

Water quantity

About About

About3~6

About8~10

About10~13

About7~13

About2~4

About3~6

About8~10

About About

Maximum (about55L)

Minimum (about36L)

Strong

Medium (about46L)

46g

38g

30g

55g

46g

36g

Usage of the detergent Using process

Using process

Knitwear

Cotton,blending,linen

Very dirty and thick

Bed sheet

Silk(thin laundries)

Chemical fiber

Cotton,blending,linen

Standard

Otros manuales para HWM80-113S

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Arandela de Haier

Haier

Haier HW60-1201S Manual de usuario

Haier

Haier LMDR8124PBAB0 Manual de usuario

Haier

Haier HWM130-113S Manual de usuario

Haier

Haier HWM8000 Manual de usuario

Haier

Haier HWD1000 - 1.7 cu. Ft. Washer/Dryer Combo Manual de usuario

Haier

Haier HE600TX Manual de usuario

Haier

Haier HWM65-113S Manual de usuario

Haier

Haier MWB146E Manual de usuario

Haier

Haier XPB10-LA Manual de instrucciones

Haier

Haier HWM75TLA Manual de usuario

Haier

Haier HWM70-113S Manual de usuario

Haier

Haier HW70-B14636N Manual de usuario

Haier

Haier HWM110-0626S Manual de usuario

Haier

Haier RWT350AW Instrucciones de montaje

Haier

Haier HW100-1411N-F Manual de usuario

Haier

Haier HLP23E - Electronic Touch Pulsator Ing Portable Washing... Manual de usuario

Haier

Haier XPB60-CS Manual de usuario

Haier

Haier XQBM22-C Manual de usuario

Haier

Haier HWM-G42A Manual de usuario

Haier

Haier HWM-802P Manual de usuario

Haier

Haier HW80-187S Manual de usuario

Haier

Haier HWM45-10B Manual de usuario

Haier

Haier HWB-1200TXVE Manual de usuario

Haier

Haier HWM60-0713S Manual de usuario

Manuales populares de Arandela de otras marcas

Tricity Bendix

Tricity Bendix AW 1000 W Guía del producto

Panasonic

Panasonic NA-F60L5WRB Manual de usuario

GE WSLP1500 Manual

Electrolux

Electrolux EWF1284EDW Manual de usuario

Bosch

Bosch WAN2829BSN Manual de usuario

LG TV2516DV3B Manual de usuario

LG TH2517DSAV Manual de usuario

VESTEL

VESTEL CMH-XL 7510 TE Manual de usuario

AEG

AEG 74335 Manual de operación

Johnson

Johnson JWF721A Manual de usuario

Beko

Beko WTE7604XLW0 Manual de usuario

Danby

Danby DTT100A1WDB Instrucciones de montaje

Amica

Amica WA 14 Ex Manual de usuario

Daewoo

Daewoo DWD-F1222 Manual de usuario

Bosch

Bosch WAS28461AU Manual de usuario

Miele

Miele PW 6080 Vario Manual de usuario

Finlux

Finlux FLX108CF220 Manual de usuario

Whirlpool

Whirlpool 3LBR5132AN0 Manual de usuario
