Haier HLT20E Manual de usuario

HAIER

WASHING MACHINE

Service Manual

PART # WD-8888-83

HAIER AMERICA TRADING, LLC

www.haieramerica.com

Service Manual

Haier Group

HLT20E(United States)

LAH1212(Mexico)

LAH1214(Mexico)

Special No.: SMXQJ100-96-02 Edition: 2004-05-18

Full automatic agitating washer

XQJ100-96

Features

Magical lint Filter

Single-directional agitator

Spray spin soak+wash

Front arranged door, convenient for users

Four adjustable feet

Cold & hot water inlet selection

Mechanical control

Drain up

1. Contents 1

2. 1

4. Specifications

6. 6

7. Net dimension 7

8. 7

9. Parts and functions 9

10. Maintenance service and trouble shooting 10

11. Wiring diagram 14

12. Exploded view 15

13. List of parts 17

Product code illumination and series introduction

Features 2

Safety precautions 5

Warning and cautions

Installation and accessory parts

CONTENTS

FEATURES

Magical lint filter

this model abides the used design method of filter lint and adopts unique magical

lint filter technology, cleaning away your lint stealthily .

Spray spin

Five-step Cold & warm water inlet selection

Soak function

Drain up function

Cabinet with the door open in the front:

It adopts the American local design , and the door which can be opened in the front

is easy to repair.

Zincking steel cabinet

the linear pure-white outlook is simple and clean.

Super capacity for more clothes

Mechanical control, operate easily.

Special structure agitator, produce welter current, wash equably and twist-free.

SPECIFICATIONS

Model HLT20E

(United States)

LAH1212

(Mexico)

LAH1214

(Mexico)

Features for use

Wash capacity kg 10.0 10.0 10.0

Spin capacity kg 10.0 10.0 10.0

Level/Volume L95/72/51 95/72/51 95/72/51

Residual dampness %100 100 100

Control model

controller

Normal computerized ×××

Fuzzy computerized × × ×

Frequency conversion ×××

Service features

Programs 4--

Short cycle × × ×

Inlet heating select

Heating selection ×××

Spinning cycle (selector) 500/700 500/700 500/700

Spinning cycle (variable) ---

Start/Pause ×××

Automatic balancing ×××

Aesthetics

Cabinet material P=Plastic /Z=Zincking/C =Cold ) ZZZ

Rolled stainless steel

Inner drum (stainl. steel=s / plastic=p) sss

Drain type drain up drain up drain up

Door (glass=g / plastic=p) ×××

Adjustable feet

Technical data

Voltage/frequency V/Hz 120V/60Hz 120V/60Hz 120V/60Hz

Wash power W800 800 800

Spin power W780 780 780

Special function

Air-Bubble ×××

Feet wheel ×××

Water fall current ×××

Dimensions (measurements)

Height / built under mm 1115 1115 1115

Width mm 686 686 686

Depth / with open door mm 686 686 686

Net weight kg 73 73 73

NOTES: " " FOR AVALIABLE, "×" FOR NOT AVALIABLE “-”FOR NOT BE APPLICABLE

SAFETY PRECAUTIONS

If the power cord is bad, to avoid risk it is required to replace it by the technicians

of our special shop or the after-sale service department. Keep the pin of the power

plug clean.

Do not share one receptacle with other

electric appliances. Do not use it in

case that the power plug is damaged

or the inserting into the receptacle is

loose.

Earth

Do not wash water-proof laundries such

as the raincoat, bicycle shelter etc. To

avoid abnormal vibration during spinning.

If the power cord is bad, to avoid risk it is required to replace it by the technicians

of our special shop or the after-sale service department. Keep the pin of the power

plug clean.

Be sure to earth the earthing wire reliably. When the machine is normally using, please

put the power plug at the location easily to

be inserted and extracted by hand. Be sure

to pull the plug off when there'spower failure,

or the machine is being moved, cleaned or

when it is idle.

Do not put the machine at damp place like

the bathroom. Never wash it with water.

Do not let the machine share one receptacle

with other electric appliances. If the power

plug is damaged, or the plugging into the

receptacle is loose, do not use the plug any

more.

Do not install or store the washer where

it will be exposed to the weather.

WARNING AND CAUTIONS

Do not decompose, repair or alter the

machine by yourself.

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.

Do not put any hot or heavy items (such

as the kettle with hot water ) on the

washing machine.

The handicapped or children without

care shall not use the machine.

Under certain conditions, hydrogen gas may be produced in a hot water system that has

not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water

has not been used for such a period, before using the washing machine, turn on all hot

faucets and let the water flow from each for several minutes.

This will release any accumulated hydrogen gas. As the gas

is flammable, do not smoke or use an open flame during this time.

Keep the machine away from direct

sunlight and heat source like the heater.

Do not wash articles that have been

previously cleaned in, washed in, soaked

in, or spotted with gasoline, dry-cleaning

solvents, other flammable, or explosive

substances as they give off vapors that

could ignite or explode. Do not add

gasoline, dry-cleaning solvents, or other

flammable, or explosive substances to

the wash water. These substances give

off vapors that could ignite or explode.

Petrol

Thinner

Unit mm

Figure 1

NET DIMENSION

INSTALLATION AND ACCESSORY PARTS

686

1115

The largest allowed slope of the shank base of the machine is 2 . The slanting or rough ground will

result in unstable running or stoppage of the machine. Please adjust it with following methods:

Confirm it's horizontal

Hang the plumb to confirm it's horizontal.

Adjust the adjustable feet

1) To twist the adjustable foot, please first lift up

the side of the foot slightly, and twist the foot.

2) Fasten the nut after adjustment.

Adjust the Installation position

High Low

Adjustable foot

Install the drain hose

Outer drain hose

component Drain hose hook

Drain hose joint

Drain hose clamp

First install the drain hose hook on the parts of

outer drain hose component.

Put the drain hose clamp on the outer drain hose,

insert the outer drain hose into the joint for it, and

then clutch tightly with drain hose clamp.

Please install and adjust the machine according to the requirement of the manual.

It is very important to your security and correct operating the machine.

INSTALLATION AND ACCESSORY PARTS

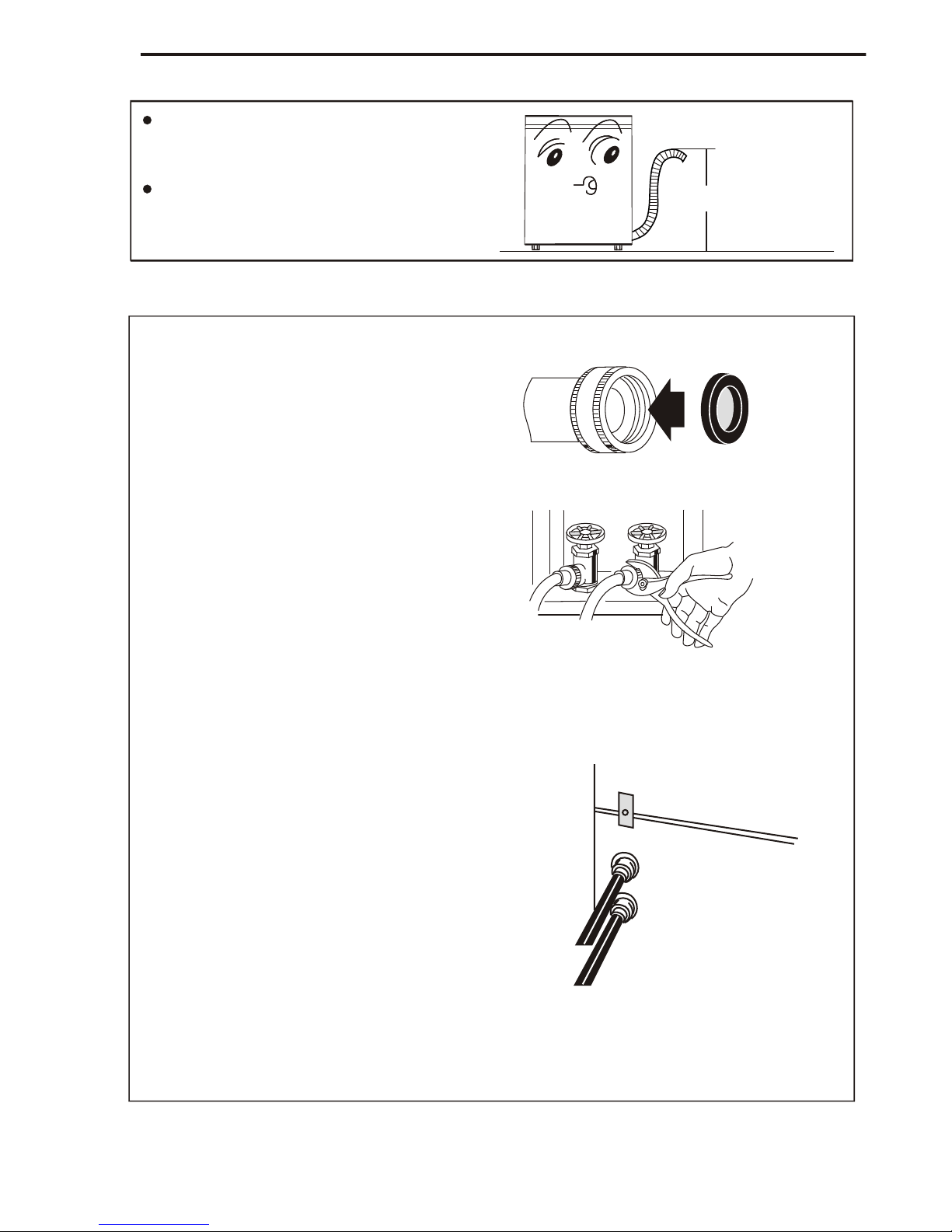

Usage the drain hose

Hang the outer drain hose on the proper place

before washing( do not use it toppled down

on the ground).

Attend that the outlet of drain hose shall be higher

than the water level in washtub to avoid siphon

phenomenon.

<1.2m

Connect the water inlet hoses

Figure 4

Figure 3

Figure 2

1. Insert a new flat washer into each end of the inlet hoses. Firmly seat the washers

in the coupling. ( As figure 2)

2. ttach the water inlet hoses to the hot water faucet and the cold water

faucet. Using pliers, tighten the coupling. ( As figure 3)

NOTE: Do not over tighten. Damage to the valves can result.

Respectively a

5. Check for leaks

(1). Swing the water inlet hose gently to confirm if it is suitable.

(2). Turn on the water faucets and check for leaks. A small amount of water might

enter the washers. You will drain this later.

3. Run water through both faucets and inlet hoses, into a bucket or laundry tub, to get

rid of particles in the water lines that might clog the inlet valves screens.

4. Attach the hose connected with hot water faucet to the HOT water inlet valve(sign

with "H'). Attach the hose connected with cold water faucet to the COLD water

valve(sign with C).

( As figure 4)

NOTE: Do not over-tighten. Damage to the valves can result.

PARTS AND FUNTIONS

Program selector

Softener injection inlet

Bleach injection inlet

Cabinet

Control panel

Control panel seat

Inner tub

Top lid

Water level knob

Temperature knob

Control foot of door switch

Agitator

Adjustable foot

(four pieces)

Power line

Water inlet valve

Water absorption

cushion

Drain hose joint

Door switch
