Haier HADG9DCS56B Manual de usuario

ENGLISH

INSTALLATION AND USER'S MANUAL

SPANISH

MANUAL DE INSTALACION Y USO

POLSKI

INSTRUKCJA OBSŁUGI I INSTALACJI

PORTUGUES

MANUAL DE INSTALAÇÃO E UTILIZADOR

DEUTSCH

INSTALLATIONS- UND BEDIENUNGSANLEITUNG

БЪЛГАРСКИ

PЪKOBOДCTBO ЗА MOHTAЖ И EKCПЛOATAЦИЯ

SERBIAN

INSTALACIJA I UPUTSTVO ZA UPOTREBU

HRVATSKI

UPUTE ZA UGRADNJU I UPORABU

CZECH

NÁVOD K INSTALACI A POUŽITĺ

SLOVAK

NÁVOD NA INŠTALÁCIU A POUŽITIE

SLOVENŠČNA

NAVODILA ZA MONTAŽO IN UPORABO

ΕΛΛΗΝΙΚΑ

ΕΓΚΑΤΑΣΤΑΣΗ ΚΑΙ ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΤΗ

ROMÂNĂ

MANUAL DE INSTALARE ȘI UTILIZARE

INSTALLATION AND USER’S MANUAL

CONTENT

INTRODUCTION

SAFETY PRECAUTION

ELECTRICAL INSTALLATION

SPECIFICATION

INSTALLATION (VENT OUTSIDE)

INSTALLATION (VENT INSIDE)

DESCRIPTION OF COMPONENTS

OPERATION

MAINTENANCE

TROBULESHOOTING

CONFORMITY WITH DIRECTIVES

ENVIRONMENTAL PROTECTION

INTRODUCTION

Thank you for choosing this cooker hood.

This instruction manual is designed to provide you with all required

instructions related to the installation, use and maintenance of the appliance.

In order to operate the unit correctly and safety, please read this instruction

manual carefully before installation and usage.

The cooker hood uses high quality materials, and is made with a streamlined

design. Equipped with large power electric motor and centrifugal fan, it also

provides strong suction power, low noise operation, non-stick grease filter and

easy assembly installation.

SAFETY PRECAUTION

�Never let the children operate the machine.

�The cooker hood is for home use only, not suitable for barbecue, roast

shop and other commercial purpose.

�The cooker hood and its filter should be clean regularly in order to keep in

good working condition.

�Clean the cooker hood according to the instruction manual and keep the

unit from danger of burning.

�Forbid the direct baking from the gas cooker. Please keep the kitchen

room a good convection.

�Before connecting this appliance check that the power supply cord is not

damaged. A damage supply cord must be replaced by qualified service

personnel only.

�There shall be adequate ventilation of the room when the range hood is

used at the same time as appliances burning gas or other fuels;

�The air must not be discharged into a flue that is used for exhausting

fumes from appliances burning gas or other fuels;

�Regulations concerning the discharge of air have to be fulfilled.

�Children should be supervised to ensure that they do not play with the

appliance.

�Do not flambé under the range hood.

�The range hood is not intended to be installed over a hob having more

than four hob elements

Electrical Shock Hazard

Only plug this unit into a properly earthed outlet. If in doubt seek advice

from a suitably qualified engineer.

Failure to follow these instructions can result in death, fire, or electrical

shock.

5IFTFTIBMMCFBEFRVBUFWFOUJMBUJPOPGUIFSPPNXIFOUIFSBOHF

IPPEJTVTFEBUUIFTBNF UJNFBTBQQMJBODFTCVSOJOHHBTPSPUIFS

GVFMTOPUBQQMJDBCMFUPBQQMJBODFTUIBUPOMZEJTDIBSHFUIFBJSCBDL

JOUPUIFSPPN

UIFEFUBJMTDPODFSOJOHUIFNFUIPEBOEGSFRVFODZPGDMFBOJOH

UIFSFJTBGJSFSJTLJGDMFBOJOHJTOPUDBSSJFEPVUJOBDDPSEBODFXJUIUIF

JOTUSVDUJPOT

EPOPUGMBNFVOEFSUIFSBOHFIPPE

$"65*0/"DDFTTJCMFQBSUTNBZCFDPNFIPUXIFOVTFEXJUI

DPPLJOHBQQMJBODFT

�

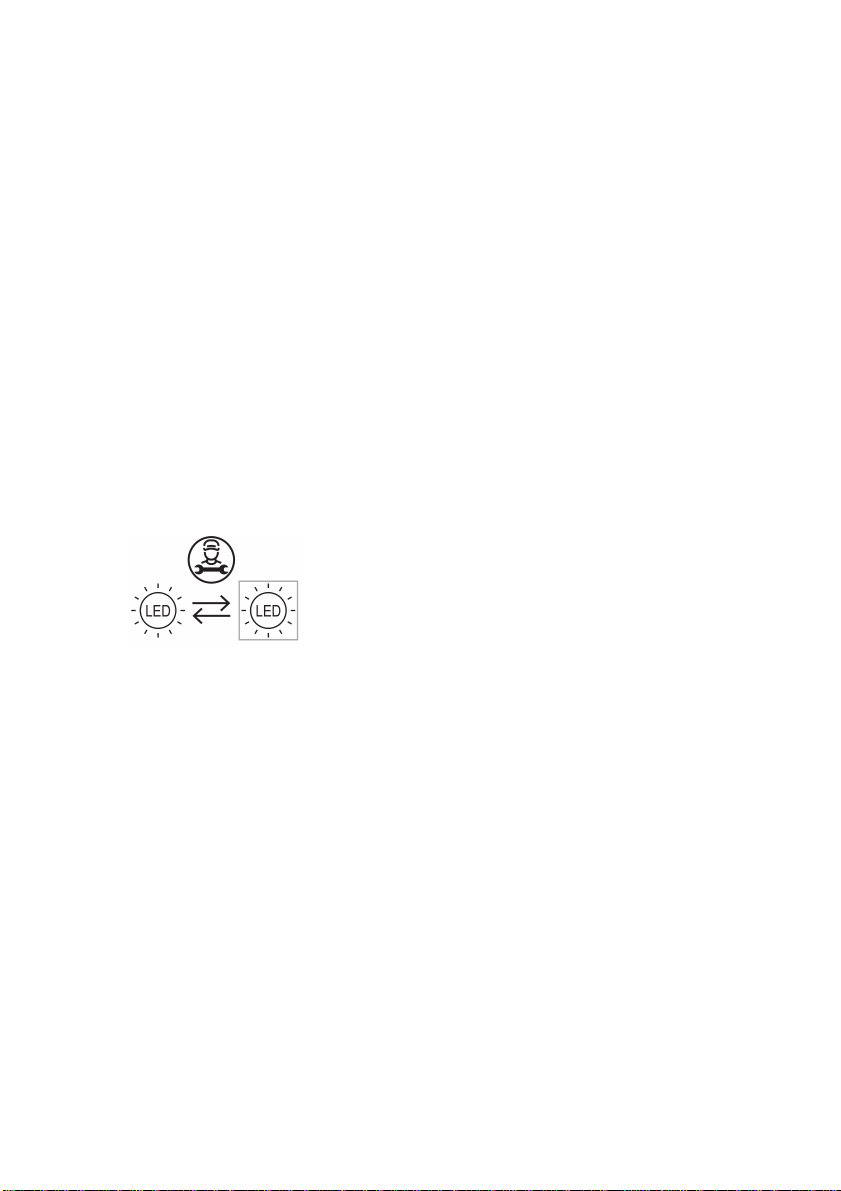

The lamp used in this product is not suitable for use

in the lighting of a room.

The purpose of this lamp is to provide illumination for using the product.

ElectricalInstallation

All installation must be carried out by a competent person or qualified

electrician. Before connecting the mains supply ensure that the mains

voltage corresponds to the voltage on the rating plate.

Direct Connection

The appliance must be connected directly to the mains using an omnipolar

circuit breaker with a minimum opening of 3mm between the contacts.

The installer must ensure that the correct electrical connection has been

made and that it complies with the wiring diagram.

The cable must not be bent or compressed.

Regularly check the power plug and power cord for damage. If the supply

cord is damaged, it must be replaced by a special cord or assembly

available from the manufacturer or its service agent.

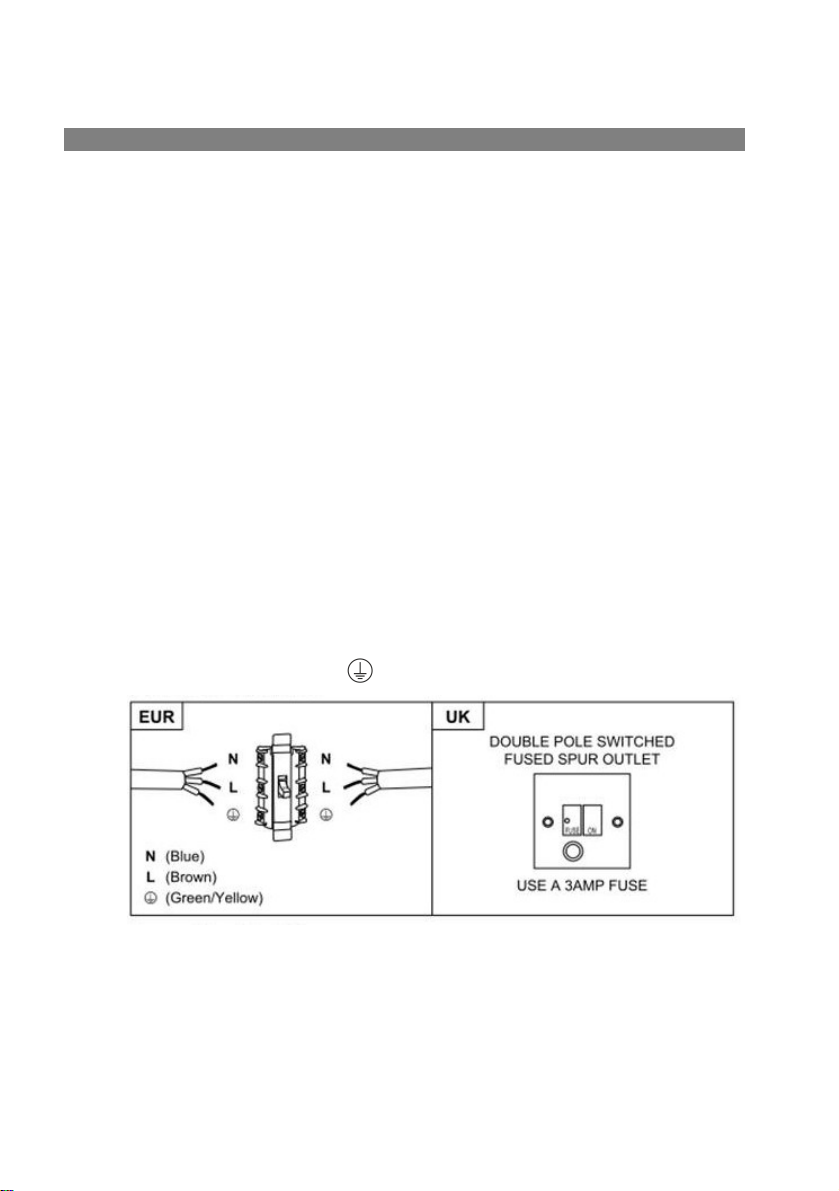

WARNING: This is a Class I appliance and MUST be earthed This

appliance is supplied with a 3 core mains cable coloured as follows:

Brown = L or Live

Blue = N or Neutral

Green and Yellow = E or Earth

The fuse must be rated at 3 Amps.

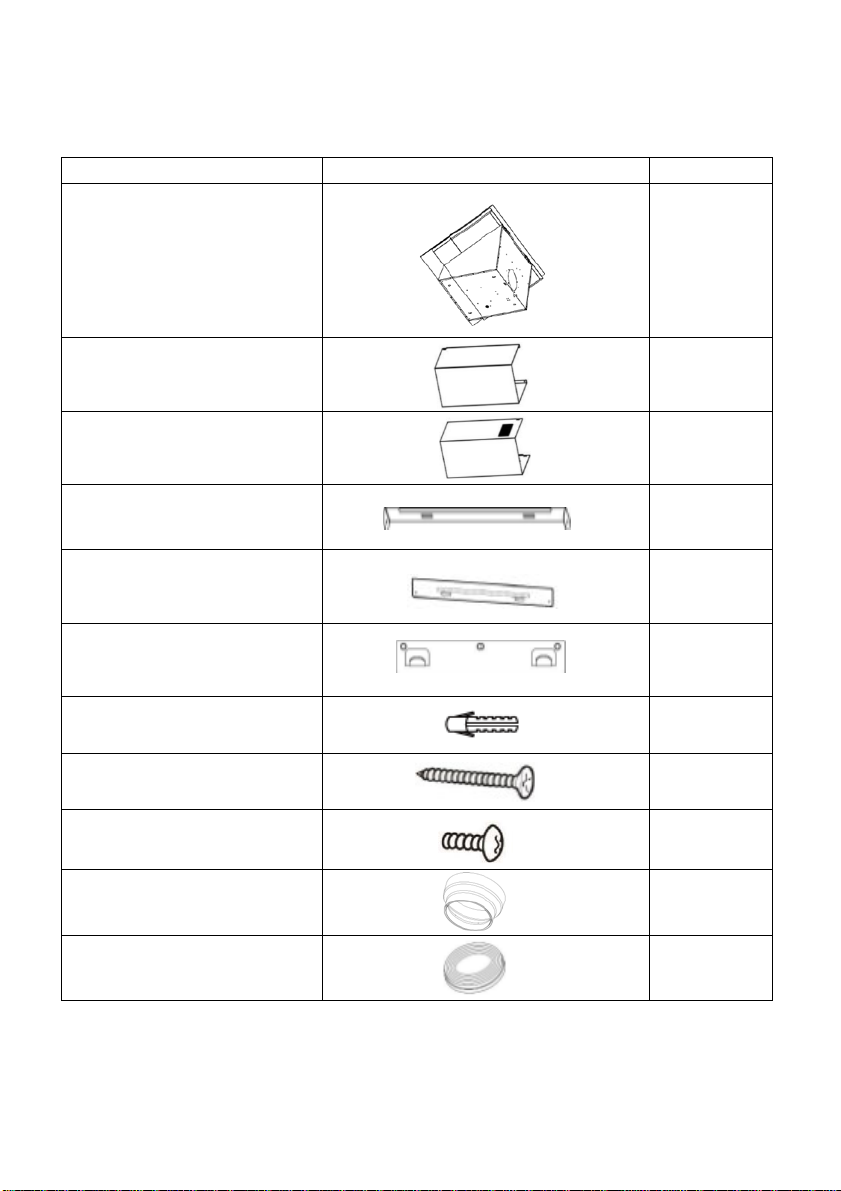

Standard Installation Accessories List

Spec.

Illustration Picture

Qty

Hood body 1

Lower chimney

(500mm) 1

Upper chimney

(500mm) 1

Upper chimney

bracket 1

Lower chimney

bracket 1

Cooker hood bracket 1

φ8 rawl plugs φ8×φ6

white color 9

Screw (ST4 * 8 mm)

Screw (ST4 * 30 mm)

Air outlet 1

Carbon ﬁlter 2

INSTALLATION (wall mounting)

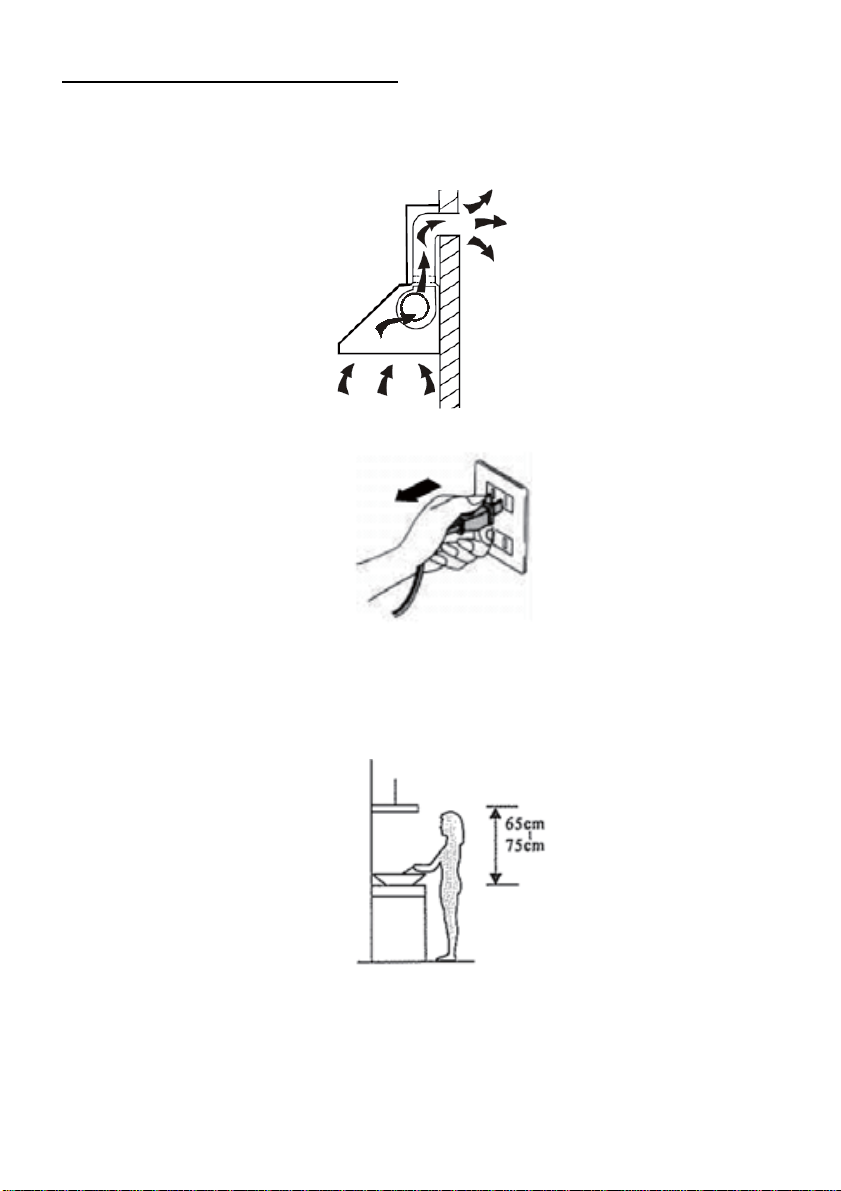

If you have an outlet to the outside, your cooker hood can be connected as

below picture by means of an extraction duct (enamel, aluminum, flexible pipe

non flammabe with an interior diameter of 150mm)

1. Before installation, turn the unit off and unplug it from the outlet.

2. The cooker hood should be placed at a distance of 65~75cm above

the cooking plane forbest effect.

INSTALLING THE HOOD

Position the hood at the desired height respecting the minimum height

above the hob.

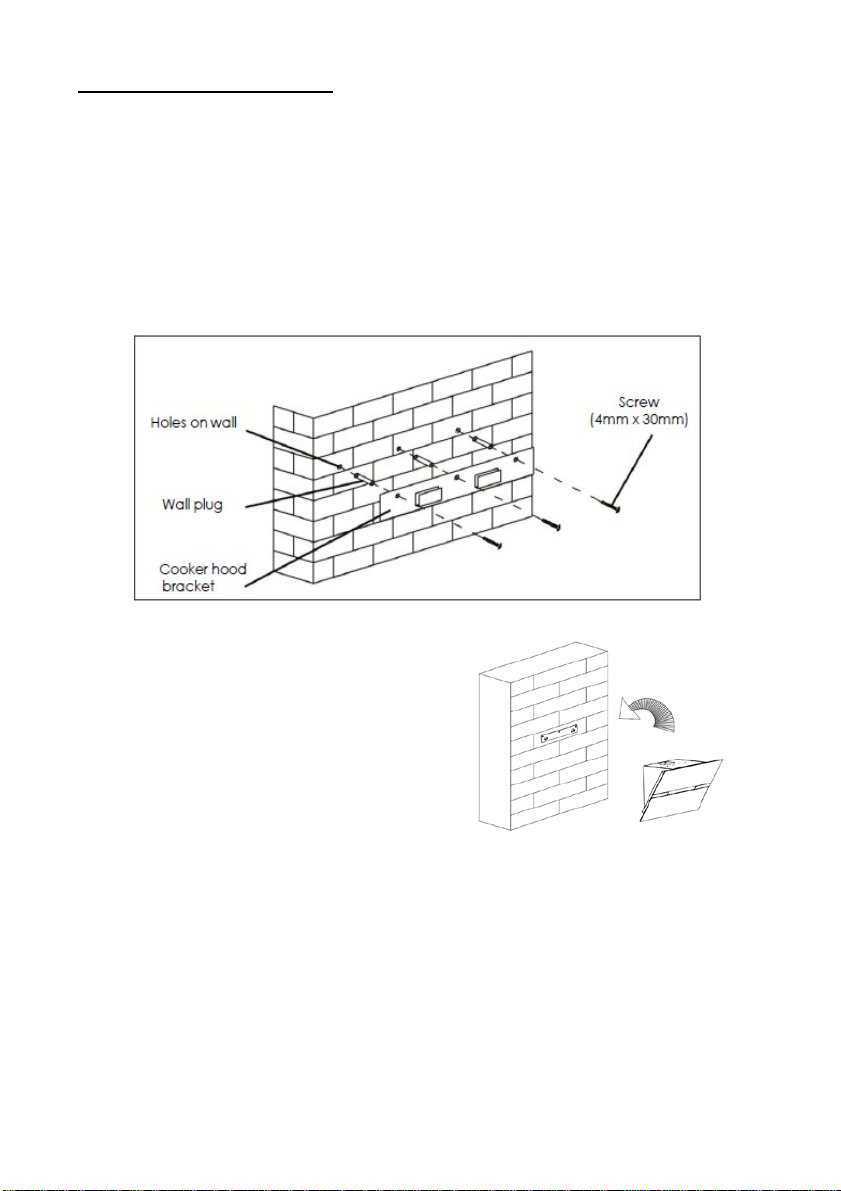

Mark the location of the wall bracket.(Placed the holes between 700 and

800 mm above the worktop) Remove the hood and position the wall bracket

to mark the locations of the holes on the wall.

Drill the 3 holes in the wall to insert the appropriate fastening system (screw

ST4x30mm)..

Hang the hood in the notches of the wall

bracket.

INSTALLING THE HOOD

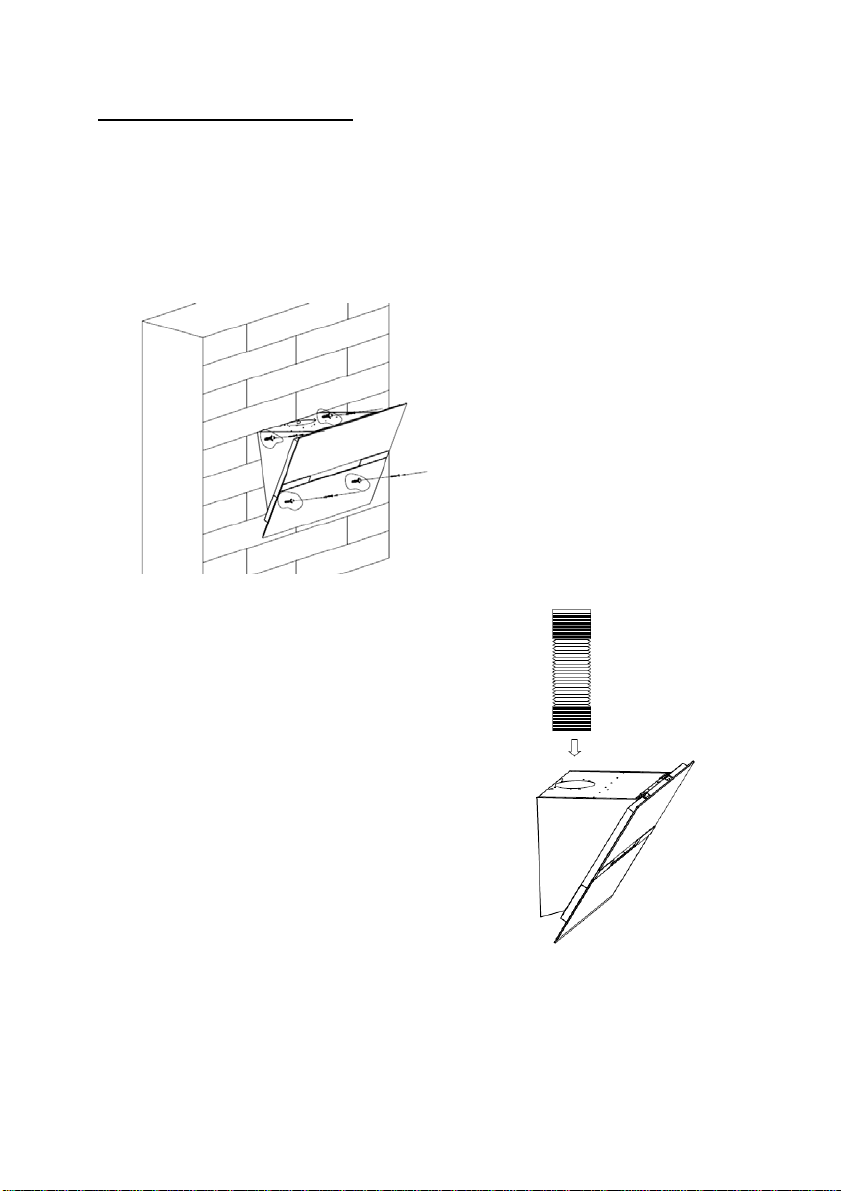

Once the hood is in place, locate the location of the 4 additional wall mount

screws as shown in the following diagram.

Remove the hood to puncture the wall and install wall plugs.

Secure the body of the hood with 4 screws of 4 mm in diameter using

dowels adapted to your wall.

If the extraction mode is selected, place the

exhaust air duct on the air outlet as shown.
