Haier 21F9D Manual de usuario

The Owner's Manual for the Follow Models:

21F9D, 21T9D, 21F9K, 21TA1(S),

21TA1(D), 21FA1, 21TA1, 21T9D(D),

21T9D(S), 21T9D(B), 21F7A, HT-3728,

HT-3768, 37T6D-T, 15F6B 21TA1(B),

21TA1(BG)

COLOUR TV RECEIVER

OWNER'S MANUAL

Please read this manual carefully

before operating the unit, and keep

it for future reference.

Get other manuals https://www.bkmanuals.com

CONTENTS

Before Operation

Basic Operation

Others

Technical operation

Warning and Cautions

Installation

Antenna connection

Preparation for theremote control

Position of keysand plug-ins

Front panel

Back panel

Using the remotecontrol

Power on andpower off

Viewing TV programs

Program scan andscreen display

Tuning

Automatic search. ..

Manual search

MFT

Skip

Adjusting the pictureand the sound

Multiple picture modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... .. . . . . . . . . . . . .

Multiple sound modes

S.C.C,count and mute

Setting the Timer

Timer off.. .

Sleep timer andtimer on

Channels appointment

Setting the otherfunction

Language, screen protection

Curtain function andcalendar display

Channel exchange

Setting the lock

Changing your password

Setting the lock

Game

Game control buttonsand method ofplaying the game

Connecting Additional Equipments

Connecting additional equipment

Troubleshooting

Specifications

Get other manuals https://www.bkmanuals.com

Warning and Cautions

1. When you clean the TV set, please

pull out the power plug from AC outlet.

Don't clean the cabinet and the

screen with benzene, petrol and other

chemicals.

4. To prevent the TV set from firing

and electric shock, don't expose the

TV set to rain or moisture.

2. In order to prolong the using life of

the TV set, please place it on a

ventilated place.

5. Don't open the back cover,

otherwise it is possible to damage the

components in the TV set and harm

you.

3. Don't place the

TV set in the

sunshine or near

heat source.

6. When the TV set isn't going to be

used for long time or it is in thunder

and lightening, please pull out the

plug from AC outlet and the antenna

plug from the cover of the TV set.

Explanation on the display tube

In general, it is not needed to clean the tube surface. However, necessary,

it's surface can be cleaned with a dry cotton cloth after cutting off the power.

Don't use any cleanser. If using hard cloth, the tube surface will be damaged.

Get other manuals https://www.bkmanuals.com

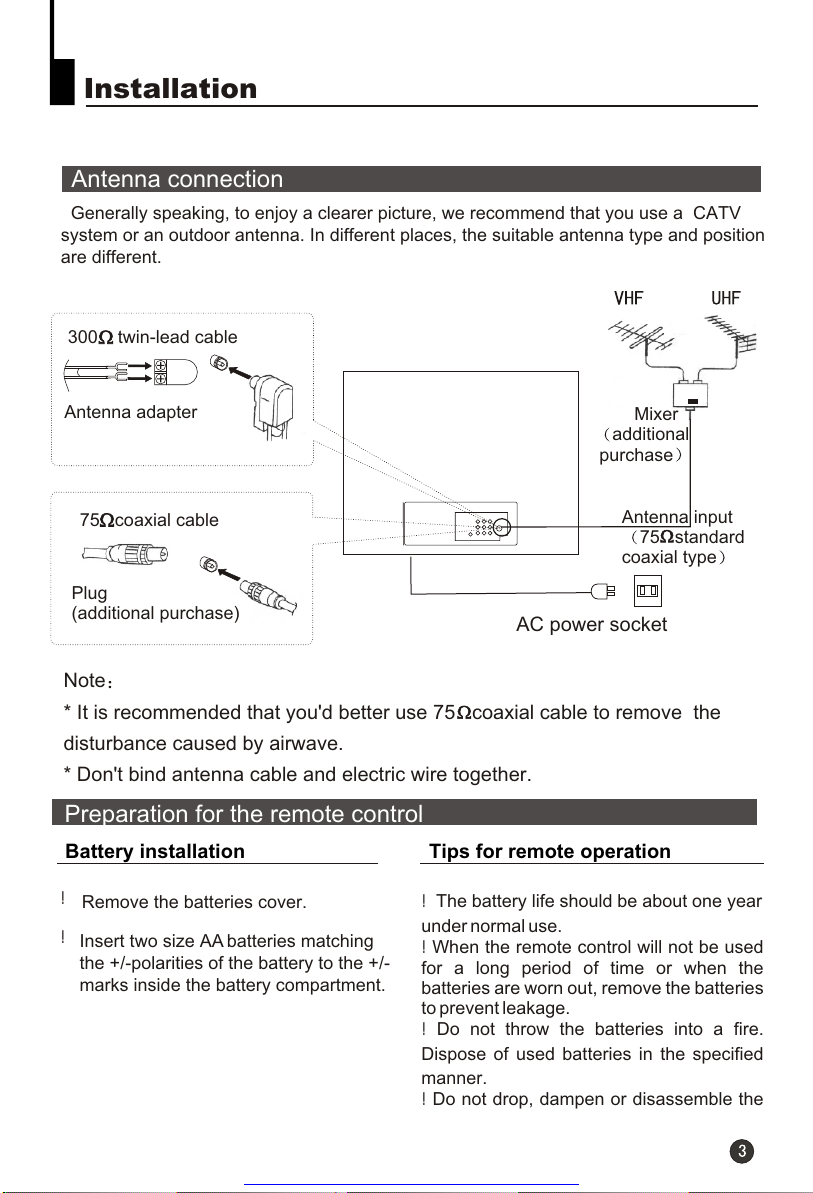

Installation

Antenna connection

Generally speaking, to enjoy a clearer picture, we recommend that you use a CATV

system or an outdoor antenna. In different places, the suitable antenna type and position

are different.

Note

* It is recommended that you'd better use 75

* Don't bind antenna cable and electric wire together.

coaxial cable to remove the

disturbance caused by airwave.

Preparation for the remote control

Battery installation Tips for remote operation

Remove the batteries cover. !The battery life should be about one year

under normal use.

! When the remote control will not be used

for a long period of time or when the

batteries are worn out, remove the batteries

to prevent leakage.

! Do not throw the batteries into a fire.

Dispose of used batteries in the specified

manner.

! Do not drop, dampen or disassemble the

Insert two size AA batteries matching

the +/-polarities of the battery to the +/-

marks inside the battery compartment.

300 twin-lead cable

Antenna adapter

75 coaxial cable

Plug

(additional purchase) AC power socket

Antenna input

75 standard

coaxial type

Mixer

additional

purchase

Get other manuals https://www.bkmanuals.com

Position of Keys and Plug-ins

Front panel

Signal receiver

Power switch Power

indicator

VIDEO

L/R audio Menu

Volume down/up Channel down/up

TV/AV switch

Menu TV/AV switch

Volume down/upChannel down/up

Signal receiver

Power switch Power

indicator

L/R audio

VIDEO

TV/AV switch

Volume down/up Channel down/up

Power

indicator

Signal receiver Power switch

15F6B

Signal receiver

Power

indicator

Power switch

VIDEO Menu

TV/AV switch

Volume down/up

Channel down/up

AUDIOHEADPHONE

Get other manuals https://www.bkmanuals.com

Position of Keys and Plug-ins

Front panel

TV/AV switch

Volume down/up

Channel down/up

AUDIO R/LHEADPHONE VIDEO

Power switch

Signal receiver

Power

indicator

HT-3768/37T6D-T

Back panel

Antenna input socket

Video Cr input terminal

Audio left channel input terminal

Audio right channel input terminal

Audio left channel output terminal

Audio right channel output terminal

Video Cb input terminal

Video Y input terminal

Video input terminal

Video output terminal

S-VIDEO input terminal

ÒôÆµ×óÉùµÀÊä³ö¶Ë×Ó

ÒôÆµÓÒÉùµÀÊäÈë¶Ë×Ó

ÒôÆµ×óÉùµÀÊä³ö¶Ë×Ó

TV/AV

V-

P-

P+

V+

Menu TV/AV switch

Volume down/up

Channel down/up Power switch

Power

indicator

Signal receiver

21F7A

HT-3728

Signal receiver

Power

indicator

Power switch

VIDEO L/R audio

TV/AV switch

Menu Volume down/up

Channel down/up

Note: Please do not use the side and back AV terminals simultaneously.

Note: The audio channel in some models doesn'thave the functionof stereo.

S-VIDEO is onlyavailable in some models.

Get other manuals https://www.bkmanuals.com

Using the Remote Control

TV/AV

-/--

WID

BAR

DISP SYSTEM SCAN

WATCH

S.STDP.STD

LOCK

CH+

CH-

VOL+VOL- MENU

HIT

PRE BACK

CALENDAR

FIRE LIGHT

FIRE

EXIT

MODE RESTART

Buttons and Descriptions

TV and AV Exchange Button

Toexchange between TVand

other available videoinputs

Mute Button

Press to conceal thesound of programs.

Screen Display Button

System Adjust Button

Direct-digit Choosing Button

Directly select channelnumbers

Lock Setting button

Used for settinglock for channel-

searching, channel,AVand clock,etc.

Menu Select/Adjust Button

Use this buttonto adjust themenu,

the volume andthe channels, aswell

as to controlthe game.

Program Play-forward Button

Calendar

Game Background SelectButton

BAR Button(not available)

Fire Button(can call thecalendar)

Restart Game Button

Game Exit Button

Program Play-backward Button

Chromatic Belt Width Adjust Button

(not available)

Sound Mode Select Button

There are high,normal and low three

kinds of sound modes.

Stopwatch Button

Digit Select Button

Change the channel position number

between one digit, two-digits and three

-digits.

Picture Mode SelectButton

There are DYNAMIC,STANDARD,

MILD,MEMORY, PICTURE MUTE and

COLOR MUTE sixmodes of picture.

Program Scan Button

DC Standby Button

Sleep TimerButton

The stopwatch canwork 1 hourwithout

interruption and whenyou use this

function, do notoperate other

function button aswell.

Get other manuals https://www.bkmanuals.com

Power On and Power Off

Below are methods on how to power on/off the TV set with the switch on the TV and

on the remote control.

Power on/off

Connect/disconnect to the power

1.Connect the power supply wire, then press

power switch button, the power indicator will

light.

3. Press the button on the remote control

to get into the standby state.

4. Press the button on the TV set to

completely turn off the TV.

NOTE

1.You can also press the 0-9

button to call off the standby

status instead of pressing the

DC Standby button. Press the

digit button of the preset channel

(limited to one digit) , you can

complete the selection of channel while you turn on the

TV set( To operate the preset of TV channel, please see

on page 10-13).TUNING

2.When you do not use the remote control, you can

directly press the the button on the television to call off

the standby status.

Power supply auto-off function

When the (black background) is set ,

and there is no signal , game screen protection

works, and ,in15 minutes later, it will change

into standby status.

B.B ON

DC Standby Button

Direct-digit Choosing Button

2. If the TV is in the state of standby, press the

button on the remote control.

Get other manuals https://www.bkmanuals.com

VOLUME

COLOR AUTO

SOUND DK

SELECT ADJUST

PRE BACK

SYSTEM

Viewing TV Programs

Viewing TV programs

How to select the TV program

1.Use the direct-digit choosing button

2.Use button

Press to increase the channel position number.

Press to decrease the channel position number.

CH+/-

CH+

CH-

Press the button from 0-9 to select a one digit channel.

If you want to select a two-digits channel, press the

Digit Select button and change it into two-digits mode,

then press the number of the channel.

If you want to select a three-digits channel, press the

Digit Select button and change it into three-digits mode,

then press the number of the channel.

3.Use button and buttonPRE BACK

Press button, you can go back to the channels you

viewed (as many as four).

Then, press Back button, you can return to the channels you

were watching just now (as many as four) .

For example, if you have viewed channel 1,2,3,4,5,6 after the

TV is powered on, and the channel you are watching now is

number 7, then press button, you can view channel 6,5,

4,3, and you may press the button to return to channel 7.

PRE

BACK

If the channel position number you select is larger than 218,

the TV will use the first two number as the channel position.

Choose the proper volume you like

Press VOL+/- button to adjust the volume.

If the color or sound of one channel is abnormal

It might be because the color or sound

system has been set improperly.You may

follow the instructionbelow to adjust it.

Press button, and you can see

the form.

SYSTEM

Press button, and move the indicator to ,

and press button to select the proper color(

and will appear alternately). Generally,

please set to .

CH+/- COLOR

VOL+ AUTO,PAL,

NTSC4.43 NTSC3.58

AUTO

Press button, and move the indicator

to , and press button

to select the proper sound if it can be

selected.

CH+/-

SOUND VOL+/-

If the color of the picture is abnormal

If the sound is abnormal

CH+

CH-

VOL- VOL+

If the is set , the volume of

the pre-fifty channel will be stored

independently.

VOL STORE ON

Press to increase the volume, press

to decrease the volume.

VOL+

VOL-

Direct-digit Choosing

button

Digit Select

button

COLOR AUTO

SELECT ADJUST

SOUND DK

Get other manuals https://www.bkmanuals.com

Screen display

SCAN

½ÚÄ¿ä¯ÀÀ¼°ÆÁÄ»ÏÔÊ¾¹¦ÄÜ

Viewing TV Programs(continued)

Program scanning functionis to let the television automatically scan all

preconcerted channel program(abouttwo seconds perchannel).

Program scan and screen display

Program scanning function

1.If you want to scan the programs

and select your favorite channel ,

just press the button, then

the television will start scanning

from the present channel with a

rate of two seconds per channel

and until all the preconcerted

programs have been displayed

once, the TV set will return to the

starting channel.

SCAN

2.If you want to terminate this

function during thescanning, press

the button again, and the

program will stay at the present channel.

SCAN

DISP Usually, when you press the button, the channel

number will appear on the top right corner of the screen

and press it again, the screen's top left corner will

display the presenttime( the adjustment of time please

see Setting theTimer ).Ifpress it for a third time, the

channel number and time will both disappear .

DISP

Get other manuals https://www.bkmanuals.com

Otros manuales para 21F9D

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de Haier

Haier

Haier L32F1120 Instrucciones de montaje

Haier

Haier 21FA1 Manual de usuario

Haier

Haier HBTV-32L01HD Manual de usuario

Haier

Haier HT-2199 Manual de usuario

Haier

Haier LE46T3 Manual de usuario

Haier

Haier BH1304D Manual de usuario

Haier

Haier LE20F6500 Manual de usuario

Haier

Haier L42V6-A8K Manual de usuario

Haier

Haier L24F6 Manual de usuario

Haier

Haier 21H5FT-ME Manual de usuario

Haier

Haier LT32R3A Manual de usuario

Haier

Haier DX-LTDVD19-09 Manual de usuario

Haier

Haier L26F6 Manual de usuario

Haier

Haier TV-8888-35 Manual de usuario

Haier

Haier RGBTV-25F99 Manual de usuario

Haier

Haier L32B1120 Instrucciones de montaje

Haier

Haier D29FA9 Manual de usuario

Haier

Haier BH2404D Manual de usuario

Haier

Haier HTN19R12 Manual de usuario

Haier

Haier HTAR21B Guía de inicio rápido

Haier

Haier HL42XR1 - 42" LCD TV Manual de usuario

Haier

Haier L40A8A-A1 Manual de usuario

Haier

Haier DX-RCRT20-09 Manual de usuario

Haier

Haier 55DA5550 Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario
