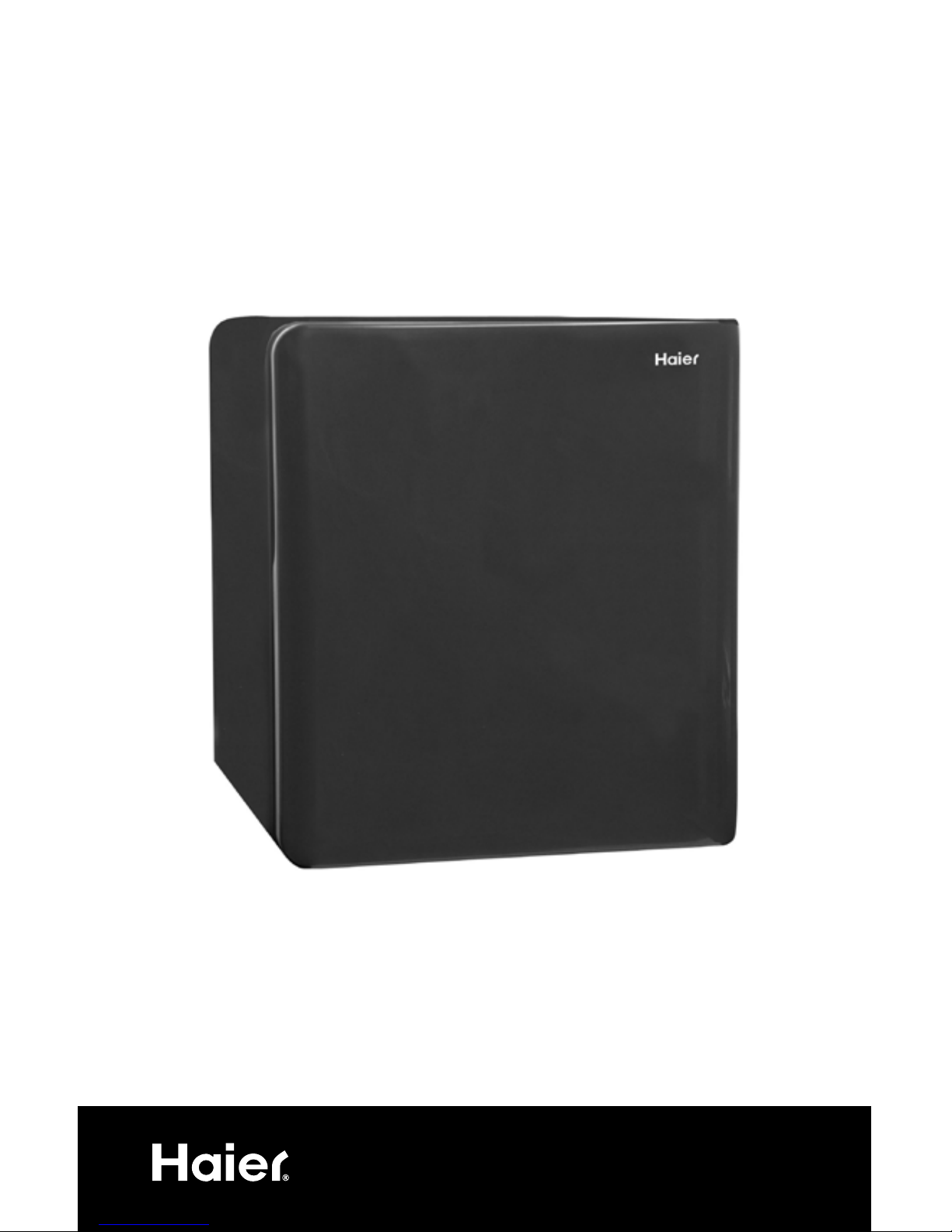

Haier HSR17 Manual de usuario

Coolant-Free Compact Refrigerator

Refrigerador Compacto sin Refrigerant

Quality nInnovation nStyle

User Manual

Model # HSR17

Manual del Usuario

Para Modelo de # HSR17

SAFETY PRECAUTIONS

When using this appliance, always exercise basic safety precautions, including

the following:

1) Use this appliance only for its intended purpose as described in this use and care

guide.

2) This refrigerator must be properly installed in accordance with the installation

instructions before it is used. See grounding instructions in the installation section.

3) Never unplug your refrigerator by pulling on the power cord. Always grasp the

plug firmly and pull straight out from the outlet.

4) Repair or replace immediately, all electric service cords that have become frayed

or otherwise damaged. Do not use a cord that shows cracks or abrasion damage

along its length, the plug or the connector end.

5) Unplug your refrigerator before cleaning or before making any repairs.

If for any reason this product requires service, we strongly recommend that

a certified technician performs the service.

6) If your old refrigerator is not being used, we recommend that you remove the doors

and leave the shelves in place. This will reduce the possibility of danger to children.

7) This refrigerator should not be recessed or built-in an enclosed cabinet. It is

designed for freestanding installation only.

8) Do not operate your refrigerator in the presence of explosive fumes.

SAVE THESE INSTRUCTIONS

Household Type

Note

English

Electrical Requirements

Wiring and Grounding Instructions

This appliance must be plugged into at least a 15 AMP 110-115 VOLT 60 Hz

GROUNDED OUTLET. This appliance must be grounded. It is equipped with a

3-wire cord having a grounding plug. The plug must be plugged into an outlet

that is properly installed and grounded.

WARNING! Improper use of grounded wire can result in the risk of electricshock.

Consult a physician if necessary. Do not attempt to defeat this safety

feature by modifying the plug.

Avoid the use of an extension cord because it may overheat and cause a risk of

fire. However, if it is necessary to use an extension cord:

A. Use only 3-wire extension cords with 3-blade grounding plug.

B. The marked rating of an extension cord must be equal to or greater than the

rating of this appliance.

C. It should be positioned such that it does not drape over the counter or

tabletop where it can be pulled on by children intentionally.

SAFETY INSTRUCTIONS

WARNING

Avoid fire hazard or electric

shock. Do not use an extension cord or

an adapter plug. Do not remove any

prong from the power cord.

Do not, under any

circumstances,

cut, remove,

or bypass the

grounding prong.

Grounding type

wall receptacle

Power supply

cord with 3-prong

grounding plug

Attempting any maintenance or cleaning:

To minimize the possibility of electric shock, unplug this appliance from the power

supply or disconnect at the household distribution panel by removing the fuse or

switching off the circuit breaker before attempting any maintenance or cleaning.

Note

Always disconnect the appliance from the power supply, before

maintenance and cleaning

WARNINGS:

English

PRODUCT REGISTRATION

Staple your receipt to your manual.

You will need it to obtain warranty service.

Please register online at www.prodregister.com/Haier.

1. Inspect and remove all packing materials. This includes the foam and any

adhesive tape both inside and outside of the unit.

2. Inspect and remove any remains of packing, tape, or printed materials before

powering on your appliance.

DANGER

Risk of child entrapment.

Before you throw away your old refrigerator,

take off the door so that children may not

easily get trapped inside.

WARNING

Please read this manual carefully before using.

Retain it for your future reference.

UNPACKING YOUR REFRIGERATOR

Thank you for using our Haier

product. This easy-to-use manual

will guide you in getting the best

use of your refrigerator.

Remember to record the model and

serial number. They are on a label

in the rear of the refrigerator.

Model number

Serial number

Date of purchase

English

PAGE

Safety Precautions.............................................................................1

Parts And Features............................................................................5

Installing Your Refrigerator ................................................................6

Unpacking Your Refrigerator ..............................................................6

Proper Air Circulation........................................................................6

Install Limitations...............................................................................6

Refrigerator Features And Use ..............................................................7

General Features ..............................................................................7

Proper Refrigerator Care and Cleaning................................................8

Cleaning and Maintenance................................................................8

Power Interruptions............................................................................8

Vacation and Moving Care................................................................8

Troubleshooting ................................................................................9

Warranty Information......................................................................10

Combining the best features of semiconductor and compressor cooling into a

brand new coolant-free technology that is capable maintaining temperatures

down to 37ºF. Cold enough to store perishable products like milk, cheese

and butter. Environmentally Friendly - Has No HCFC.

Temperature is based on normal operation conditions and on

ambient temperature (70˚F).

TABLE OF CONTENTS

Note

NuCool is a trademark of Haier America Trading, LLC.

All trademarks are the property of their respective owners.

English

Parts and Features

1. Temperature Control

2. NuCool™ Air Circulation Fan

3. Full Width Shelf

4. Dispense-A-Can®Storage

5. 2 Liter Bottle Storage

6. Drip Tray (not shown; located in back

of the unit)

7. Magnetic Latch

PARTS AND FEATURES

English

After Unpacking Your Refrigerator

Find the best location to install your refrigerator near a 115 volt, 15 amp outlet.

Make sure there is proper air ventalation.

Proper Air Circulation

• To assure your refrigerator works at the maximum efficiency it was designed

for, you should install it in a location where there is proper air circulation and

electrical connections.

• The following are recommended clearances around the refrigerator:

Sides.......................2 “(50mm)

Top.......................2” (50mm)

Back....................4” (100mm)

Install Limitations

• Do not install your refrigerator in any location not properly insulated or heated

e.g. garage etc. Your refrigerator was not designed to operate in temperature

settings below 55º Fahrenheit.

• Select a suitable location for the refrigerator on a hard even surface away

from direct sunlight or heat source e.g. radiators, baseboard heaters, cooking

appliances etc.

• This refrigerator is designed to operate at 37ºF, in a room that has an ambient

temperature of 70ºF. At recommended settings, this fridge will be cold enough for

dairy and perishables if set between the MED and HIGH setting. The temperature

may fluctuate due to ambient temperate of the room it is in.

It is not suggested to keep perishables in the NuCool refrigerator if the

ambient temperature of the room is higher than 80ºF.

INSTALLING YOUR REFRIGERATOR

Note

English

REFRIGERATOR FEATURES AND USE

Fig. 4

General Features

Your refrigerator will automatically maintain the temperature level you select. The

temperature control dial has Low (warmest) and High (coldest) settings with a

Medium temperature setting in between. At first, set the dial to High for 2 hours

before adjusting the temperature to your needs.

Refrigerator Interior Shelf

To adjust, remove or replace a full-width slide-out shelf: (see fig. #4)

1. Gently tilt the shelf up and slide forward until the shelf has been completely

removed.

2. To replace the shelf, gently slide the shelf back.

Using the Dispense-A-Can®

Your refrigerator is equipped with the convenient

“Dispense-A-Can®” compartment. The compartment

will hold up to 5 cans. Simply load the cans from the top.

To dispense a can simply draw one out from the bottom.

LOW HIGH

English

PROPER REFRIGERATOR CARE & CLEANING

Warning:• To avoid electric shock always unplug your refrigerator before

cleaning. Ignoring this warning may result in death or injury.

Caution: • Before using cleaning products, always read and follow

manufacturer's instructions and warnings to avoid personal injury or

product damage.

General: • Prepare a cleaning solution of 3-4 tablespoons of baking soda

mixed with warm water. Use sponge or soft cloth, dampened with

the cleaning solution, to wipe down your refrigerator.

• Rinse with clean warm water and dry with a soft cloth.

• Do not use harsh chemicals, abrasives, ammonia, chlorine bleach,

concentrated detergents, solvents or metal scouring pads. Some

of these chemicals may dissolve, damage and/or discolor your

refrigerator.

Door Gaskets:

• Clean door gaskets every three months according to general

instructions. Gaskets must be kept clean and pliable to assure a

proper seal.

• Petroleum jelly applied lightly on the hinge side of gaskets will keep

the gasket pliable and assure a good seal.

Power Interruptions

• Occasionally there may be power interruptions due to

thunderstorms or other causes. Remove the power cord from AC

outlet when a power outage occurs. When power has been restored,

replug power cord to AC outlet. If outage is for a prolonged period,

inspect and discard spoiled food in the refrigerator. Clean inside the

refrigerator before reusing.

Vacation and Moving Care

• For long vacations or absences, unplug the power cord from AC

outlet, empty food from refrigerator and clean the refrigerator and

door gaskets according to “General cleaning” section. Prop door

open, so air can circulate inside. When moving, always try to

move the refrigerator vertically.

English

TROUBLE SHOOTING

Refrigerator Does Not Operate

• Check if refrigerator is plugged in.

• Check if there is power at the AC outlet, by checking the circuit breaker.

Food temperature appears too warm

• Frequent door openings.

• Allow time for recently added warm food to reach fresh food temperature.

• Check gaskets for proper seal.

• Adjust temperature control to colder setting.

Food temperature is too cold

• If temperature control setting is too cold, adjust to a warmer setting

and allow several hours for temperature to adjust.

Moisture build up on interior or exterior of the refrigerator:

• This is normal during high humidity periods.

• Prolonged or frequent door openings.

• Check door gaskets for proper seal.

Refrigerator has an odor:

• Interior needs cleaning.

• Foods improperly wrapped or sealed are giving off odors.

Refrigerator door does not shut properly:

• Check for blockages e.g. food containers, shelves, etc.

• Make sure no objects are stuck to the magnetic latch.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Refrigerador de Haier

Haier

Haier HRF-155 Manual de usuario

Haier

Haier HC45SG42SW Manual de usuario

Haier

Haier HRN-176 Manual de usuario

Haier

Haier HSQ04WNA Manual de usuario

Haier

Haier HSBS582AW Manual de usuario

Haier

Haier HRF-660S Manual de usuario

Haier

Haier HRF-369DAA Manual de instrucciones

Haier

Haier HRF12WNDWW Manual de usuario

Haier

Haier HRF-200NS Manual de usuario

Haier

Haier HRF580YPS Manual de usuario

Haier

Haier HCR3818ENPT Manual de usuario

Haier

Haier HRFN-250DAA Manual de usuario

Haier

Haier HB22FWRSSAA Manual de usuario

Haier

Haier HFW7918EIMP Manual de usuario

Haier

Haier HR-135A/A Manual de usuario

Haier

Haier ECR27W Instrucciones de montaje

Haier

Haier HRF-688FF Manual de usuario

Haier

Haier HRQ16N3BGS Manual de usuario

Haier

Haier HSE02WNCWW Manual de usuario

Haier

Haier Cube 83 5 Series Manual de usuario

Haier

Haier HTE10WNAWW Manual de usuario

Haier

Haier HBF130SS Manual de usuario

Haier

Haier HE7195BCMW Manual de usuario

Haier

Haier HRF-300ME Manual de usuario

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Frigidaire

Frigidaire FSC23R5DW9 Manual de usuario

Beko

Beko LSP4579W Manual de usuario
